Trick Scooter Axle Won’t Fit

So your trick scooter axle won't fit. You're standing there with a wrench in your hand, a wheel that's almost on, and threads that just won't catch. It's frustrating, but it's also a really common problem in the scooter world.

The good news is there are only a few reasons this happens, and every single one of them has a straightforward fix.

Most modern trick scooters follow the ASTM F2643-22 standard for performance requirements, which covers axle and fork compatibility. But brands still use different thread pitches and axle diameters. Once you know what you're working with, you can diagnose the issue in under a minute.

Let's walk through exactly how to figure out what's stopping that axle from fitting.

Quick Answer

A wrong thread pitch or axle diameter causes most fit issues. Check your axle size first, then measure your fork slot width. Most scooters use an 8mm or 10mm axle, so match your part to the fork.

If they don't match, get the right axle.

Image source: Bing (Web (fair-use with source credit))

Why Won't Your Scooter Axle Fit

Every axle fit problem falls into one of four categories. Either the threads are wrong, the diameter is wrong, the length is wrong, or something in the wheel hub is blocking it. That's it.

Four possibilities, and each one has its own clear fix.

The tricky part is that symptoms overlap. A stripped thread feels the same as a mismatched thread pitch when you're turning the wrench. A bent fork dropout can mimic a hub bearing problem.

That's why you need a system, not a guess.

As of 2026, most pro-level trick scooters use either an 8mm solid axle or a 10mm hollow axle. The 8mm size is standard for most street and park setups. The 10mm size usually shows up on pegged scooters or heavier builds.

Getting these mixed up is the number one cause of fit issues.

The Diagnosis Path

Start with the simplest check first. Look at the axle you're trying to install. Is it visibly the same diameter as the one you removed?

If it's an 8mm axle going into a fork designed for 10mm, it'll slide right through and rattle. If it's a 10mm axle trying to fit an 8mm fork slot, it won't go in at all.

If the diameter matches, move to the threads. Try threading the axle into the fork by hand. If it starts easily but gets tight, you might have a thread pitch mismatch.

If it won't start at all, you could have stripped threads or a bent fork.

If the threads are fine and the diameter is right, check the length. An axle that's too short won't reach the far fork dropout. One that's too long will stick out and make the wheel sit crooked.

Measure from the inside of one fork leg to the inside of the other, then add the width of your hub plus any washers.

If all three of those check out, the problem is in the hub. Bearings that are seized or misaligned can make an axle feel like it doesn't fit. So can a bent wheel or a crooked fork dropout.

Here's a quick reference table for the four main checks:

Case #1: The Threads Won't Catch

This is the most common complaint we hear. You line everything up, start turning the axle, and it either won't grab or it gets tight halfway in and feels wrong.

Is it a thread pitch mismatch or stripped threads? Here's how to tell. Try threading a known good nut onto the axle. If the nut screws on smoothly, the axle threads are fine.

The problem is your fork. If the nut won't go on either, the axle threads are the issue.

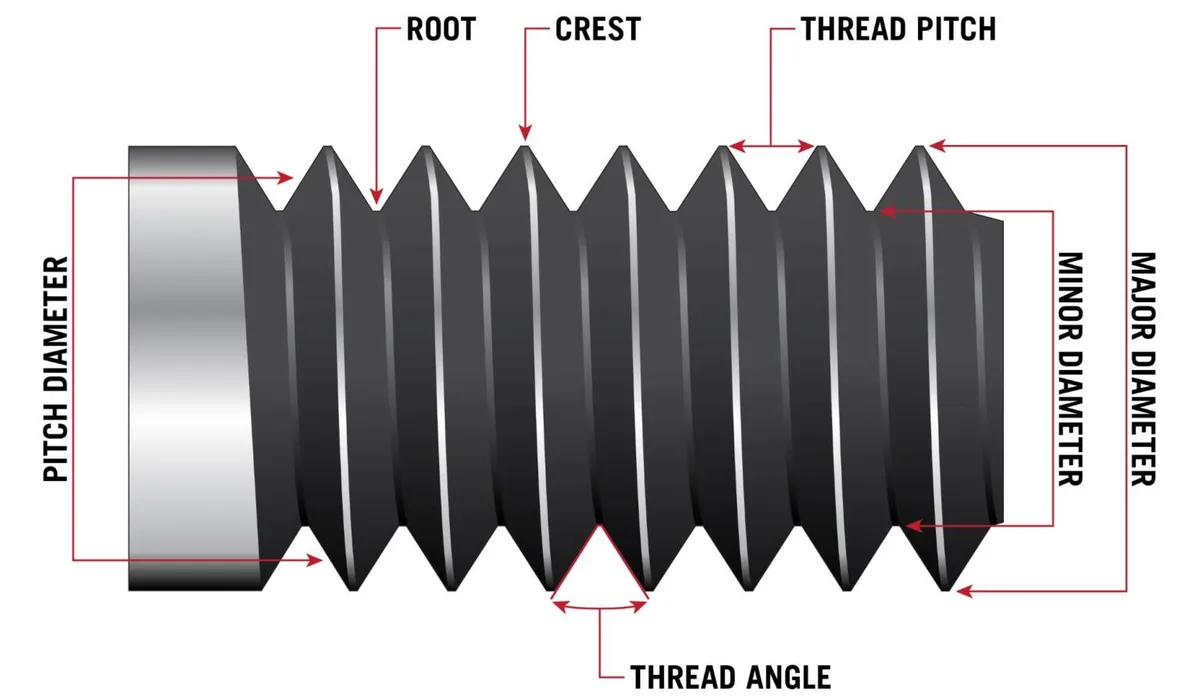

Standard thread pitch for most trick scooter axles is M8 x 1.25. That means an 8mm diameter with 1.25mm between each thread. Some European or older scooters use M8 x 1.0, which is a finer thread.

They look almost identical to the naked eye. But putting a 1.25 pitch axle into a 1.0 pitch fork will cross-thread and damage both parts permanently.

Image source: Bing (Web (fair-use with source credit))

If you have a thread pitch mismatch, you need either a different axle or a different fork. There is no safe workaround. Forcing it strips the threads in your fork and ruins a potentially good part.

If the threads are just dirty or slightly burred, a thread file can clean them up. Grease the axle lightly before installation. Dry threads are more likely to gall and seize.

Case #2: The Axle Diameter Doesn't Match

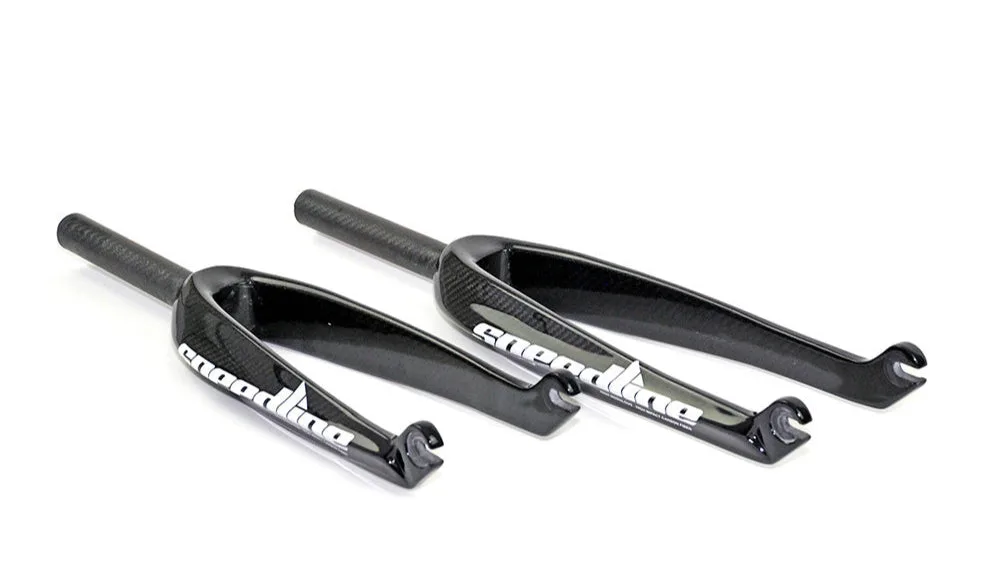

Your fork has a slot cut into it that the axle sits in. That slot has a specific width. Most trick scooters use either 8mm or 10mm slots.

Some older or budget models use 6mm.

If the axle is too big for the slot, it won't go in at all. Don't force it. You risk bending the fork legs or cracking the dropout.

You need an axle with a smaller diameter.

If the axle is too small for the slot, it will slide in but the wheel will rattle and shift under load. This is dangerous. A loose axle can let the wheel detach while you're riding.

You need a larger diameter axle, or you can use a shim kit designed for this purpose. But shims are a temporary fix, not a permanent solution.

8mm axles are the standard for most aftermarket and complete scooters. 10mm axles are common on pegged setups and some pro-level completes. Check your fork's internal slot width with a caliper to confirm which one you need.

Image source: Bing (Web (fair-use with source credit))

If you're upgrading from a complete scooter to aftermarket parts, this is where compatibility issues show up most. A complete scooter might use an 8mm axle on a fork that actually has a 10mm slot, because the stock axle uses oversized threads. Switch to a standard aftermarket axle and suddenly it's sloppy.

Case #3: The Axle Is Too Short or Too Long

This one is simpler to diagnose. Put the wheel in the fork and slide the axle through. If it doesn't reach the threads on the far side, it's too short.

If it sticks out past the fork leg by more than a couple of millimeters, it's too long.

Too short means your axle can't engage enough threads to hold securely. You might get it started, but it won't tighten all the way. This is a safety issue.

A half-threaded axle can back out while you ride.

Too long means the axle pushes the wheel out of alignment. The wheel won't sit centered in the fork. It'll rub on one side and have a gap on the other.

On some scooters, a long axle also hits the deck or the brake mount.

Measure your axle length from the shoulder where the head sits to the threaded end. Standard lengths range from 85mm to 120mm. To find the right length, add up: your fork width (inside leg to inside leg), plus the hub width, plus any washers or spacers.

That total is the minimum axle length you need.

Pro tip: If your axle is just slightly too short, you might be able to remove a thin washer to gain a millimeter or two. If it's slightly too long, a spacer washer on the outside of the fork can take up the slack. But if the difference is more than 3mm, get a different axle.

Case #4: The Wheel Won't Sit Right

So the axle slides in cleanly. The threads catch fine. But something still feels off.

The wheel won't sit centered, or it spins with a wobble.

That points to a hub problem, not an axle problem. The axle might be fine. Start by checking your hub bearings. Seized bearings can tilt the wheel and make the axle feel like it doesn't fit.

Remove the wheel and spin each bearing by hand. The inner race and outer race should move smoothly with no grinding. If a bearing feels gritty or notchy, replace it before you reassemble anything.

The next suspect is fork dropout alignment. Hold the fork upside down and sight down the legs. Both dropouts should sit parallel.

A hard landing can bend one inward or outward without you noticing.

If the dropouts are slightly compressed, you can carefully spread them with a flathead screwdriver. If they're bent unevenly, that's a fork replacement situation. Bent forks weaken over time, and a failure at speed is not worth the risk.

You can also put the wheel on a known good fork to isolate the problem. If it spins true there, the issue is your fork, not your wheel.

Quick Fixes & Pro Tips

A few small tricks can save you a lot of frustration. Most of these come from riders who do their own maintenance and learned the hard way.

Clean your threads before every install. A wire brush or a thread file removes dirt and small burrs. Dry threads gall and seize. A light coat of grease prevents that.

Swap the axle to the other side. Some forks have a subtle difference between the left and right dropout. If an axle catches on one side but not the other, flip the wheel around and try again. It sounds too simple, but it works more often than you'd think.

Check used parts carefully. If you're buying a used fork or axle, inspect the threads with a flashlight. Hairline cracks and stripped sections hide well in photos.

Use a steel ruler, not a tape measure. You'll get more consistent lengths when you measure axle depth and fork width. A 1mm miss is the difference between seated and halfway.

Mistakes to Avoid

Forcing the axle. This is mistake number one. If the axle won't thread in smoothly after a few turns, something is wrong. Forcing it strips your fork, ruins your axle, and turns a $10 fix into a $60 repair.

Stop at the first sign of resistance.

Mixing metric and standard tools. Scooter parts are metric. If you're using SAE wrenches because they're close enough, stop. A 5/16-inch wrench on an 8mm bolt will round the corners.

Use the right hex key for your axle head, usually 6mm or 8mm.

Ignoring a wobbly wheel. A wheel that shifts side to side after installation is a red flag. It means the axle isn't seated evenly. Riding it that way destroys bearings and bends forks over time.

Fix the fit before you ride, not after.

Using shims as a permanent fix. Shims can help an undersized axle fit temporarily. They are not a long-term solution. A properly sized axle is always safer.

When to Call It

You've measured everything. You've checked the threads, the diameter, and the length. You've cleaned everything and tried again.

If it still won't fit, it's time to replace parts.

Try this in order:

1. Replace the axle first. It's the cheapest fix. A standard chromoly axle costs between $8 and $20.
2. Replace the bearings next. If bearings are seized or worn, they can cause fit issues that look like an axle problem. New 608 bearings run about $10 to $15 for a set.
3. Replace the fork if threads are gone. Stripped fork threads can't be repaired reliably. A new fork is $50 to $120, depending on the brand and material.

If you're unsure, take your scooter to a local skate shop. A professional can diagnose the issue in minutes. Shop labor is worth it compared to buying parts you don't need.

Frequently Asked Questions

Can I use a 10mm axle in an 8mm fork?

No. The axle won't fit through the fork slot, and forcing it can bend the fork legs. You need an axle that matches your fork's slot width.

How do I know what thread pitch my scooter axle has?

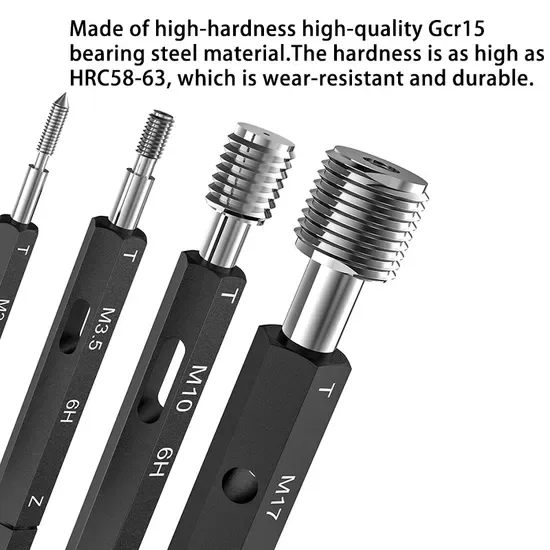

Check the axle with a thread gauge. If you don't have one, try threading a known M8 nut onto the axle. If it fits smoothly, you have a standard pitch.

If it's tight, you likely have a fine thread.

Why does my axle feel tight halfway in?

That's usually a dirty or slightly damaged thread. Clean the threads with a wire brush, add a little grease, and try again. If it still gets tight, check for cross-threading.

Can I just buy any axle for my scooter?

No. You need to match the diameter, thread pitch, and length to your fork and hub. Buying any axle will probably waste your money.

When should I replace my scooter fork?

If the threads are stripped, the dropouts are bent, or there are visible cracks. A damaged fork can fail while riding, and that's a serious safety risk.
