Your trick scooter fork won't fit, and you're standing over a half-disassembled scooter wondering where things went wrong. The short answer is that fork fitment comes down to four things: steerer tube diameter, steerer tube length, headset standard, and brake tab position. Get any one of them wrong, and the fork will bind, rub, or refuse to seat.
In our research, the most common mismatch we see is an SCS fork being paired with a scooter built for IHC or ICS compression. As of 2026, the two dominant standards are 1⅛" steerer tubes with integrated or semi-integrated headsets. Older completes still use 1" tubes and threaded setups.
If the fork doesn't drop in smoothly, force is not the answer.
Quick Answer
A trick scooter fork won't fit because of one of three things: wrong steerer tube diameter, wrong compression standard, or a brake tab that doesn't align. Measure the steerer tube and headset first. Match the fork to the scooter's compression system.
Don't force anything.
Image source: Bing (Web (fair-use with source credit))
Before You Blame the Fork: What's Actually Touching, Rubbing, or Binding
What a Thick Steerer Tube Feels Like
If the fork only goes halfway into the headtube, the steerer tube is too big. Integrated headset bearings are sized for either 25.4mm or 28.6mm steerers. Forcing a thicker one chips the bearing race and ruins the headset.
29% off Today's Exclusive Deals
Limited-time Exclusive Deals. Check current discount on Amazon.
Check Price on Amazon As an Amazon Associate I earn from qualifying purchases.What a Long Steerer Tube Looks Like
The fork slides in fine, but the steerer tube pokes out past the clamp. That leaves no room for the compression bolt to reach the star nut. Most aftermarket steerer tubes run between 120mm and 175mm.
Measure your old fork before cutting anything.
When the Brake Tab Is the Problem
A fork can fit perfectly while the brake sits crooked. If the cutout on the fork faces the wrong side of the deck, the brake hanger won't align. Most completes use a left-side brake mount.
Some street frames don't.
| Symptom | Likely Cause | What to Check |
|---|---|---|
| Fork stops halfway | Steerer tube diameter too large | Measure outer diameter with calipers |
| Fork rattles after assembly | Steerer tube too short or star nut missing | Verify compression bolt threads |
| Brake pulls to one side | Fork brake tab on wrong side | Match the deck's brake plate |
The Compatibility Checklist: Headtube, Steerer Tube, and Headset Standard
Image source: Bing (Web (fair-use with source credit))

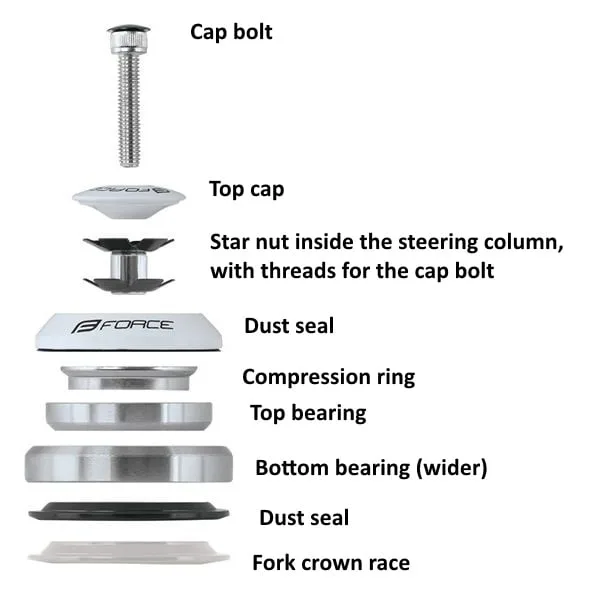

The headtube is the hole in the frame that the fork passes through. The headset sits inside it and lets the fork rotate smoothly. If the fork doesn't fit, the problem usually lives in one of these three areas: the headtube bore, the steerer tube diameter, or the compression standard.
Image source: Bing (Web (fair-use with source credit))
| Headset Standard | What You'll See | Fork Compatibility |
|---|---|---|
| Integrated | No visible cups, bearings sit inside headtube | Most modern complete scooters |
| Semi-integrated | Cups press into frame, bearings in cups | Common on mid-range parts |
| External | Cups sit outside the frame | Older or budget completes |
Compression is separate from the headset. SCS uses a split clamp that grabs the outside of the steerer tube. HIC, IHC, and ICS compress from the inside with a bolt, star nut, or wedge.
If your fork uses a different compression system than your bars, the top won't seat and the bars will spin freely.
Decision Tree: Which Fit Problem Are You Dealing With?
Start with a simple hand test. Slide the fork into the headtube with no bearings, no bars, and no compression. If it drops through, the diameter is fine.
If it sticks, wobbles, or stops halfway, you've found your first clue.
Steerer Tube Too Thick or Too Thin
If it won't enter, the steerer tube outer diameter is too large for the headset bearing race. If it rattles around, it's too small. That's usually a 1" fork sitting in a 1⅛" headset.
Check with calipers: 1" is 25.4mm, 1⅛" is 28.6mm.
Steerer Tube Too Short or Too Long
If the compression bolt spins freely without tightening, the steerer is too short for your system. If the top cap sits above the clamp, the steerer is too long. Cut it only after measuring exactly.
Never ride with less than 30mm of insertion in the clamp.
Compression System Doesn't Match
SCS forks have a long straight steerer and rely on clamp bolts. HIC, IHC, and ICS forks need the compression bolt to reach a threaded insert or star nut. Mix an SCS fork with HIC bars, and the bars won't lock down.
Brake Tab and Dropout Misalignment
The brake tab on the fork must sit on the same side as your deck's brake mount. The dropout slot also needs to match the axle size: 8mm or 10mm. If the dropouts are too narrow, don't file them.
Get the right fork.
How to Measure Your Current Fork and Headtube Like a Shop Tech
Image source: Bing (Web (fair-use with source credit))

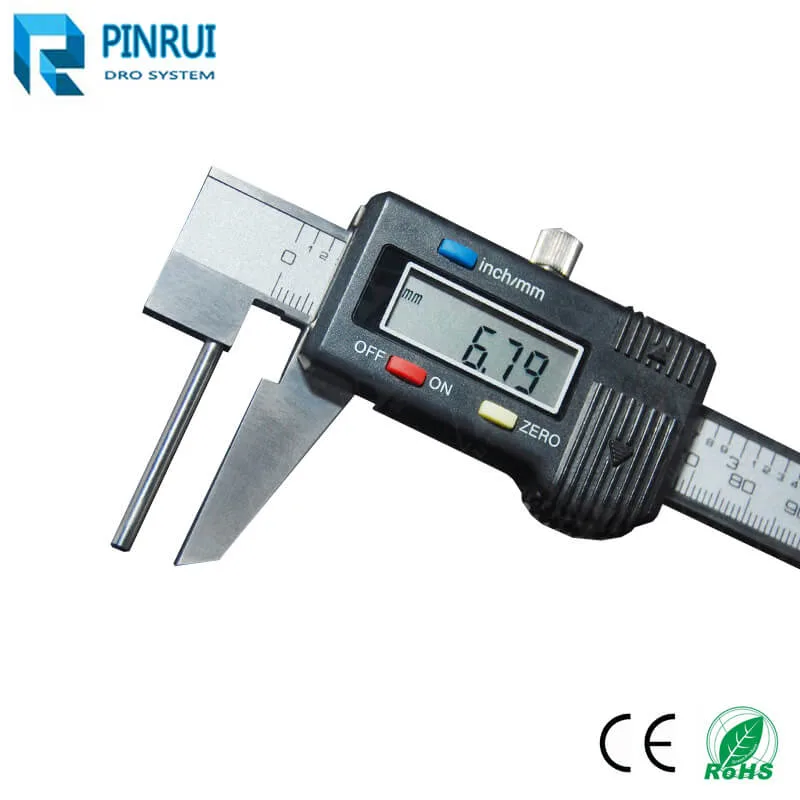

Grab a digital caliper and a tape measure before ordering anything. These four measurements will tell you exactly which fork fits. Skip them, and you're just guessing.
Image source: Bing (Web (fair-use with source credit))
| Measurement | Tool | Spec to Match |
|---|---|---|
| Steerer tube outer diameter | Caliper | 25.4mm or 28.6mm |
| Steerer tube length | Tape measure | 120mm to 175mm |
| Headtube inner diameter | Caliper | Match headset cup or bore |
| Dropout slot width | Caliper | 8mm or 10mm axle |
Manufacturer compatibility charts list all of these numbers for each model. If a listing only says "fits most scooters," that's a red flag. Buy a fork that matches every measurement.
Step-by-Step: Swapping the Fork Without Bending or Stripping Anything
Tools You'll Need
- Allen key set, metric and imperial
- Rubber mallet
- Digital calipers
- Grease
- Torque wrench if available
The Swap
- Remove the bars and compression. For SCS, loosen the clamp bolts evenly. For HIC, IHC, or ICS, remove the top cap and compression bolt.
- Pull the front wheel out and set it aside.
- Loosen the headset. Remove the top bearing, compression ring, and any spacers.
- Tap the old fork out from the top with a rubber mallet. Don't pry on the dropouts.
- Grease the new steerer tube and slide it into the headtube. Keep the brake tab on the correct side.
- Reinstall the compression ring and top bearing. Tighten the compression bolt just until play is gone.
- Reattach the wheel and brake. Bolt the bars to the fork. Check that the headset turns smoothly.
If the compression bolt won't thread in smoothly, stop. Cross-threading a star nut or wedge ruins a new fork. Test the front end before riding.
Loose steering components cause crashes.
Common Mistakes That Turn a Simple Swap Into a Broken Scooter
Forcing the Fork Into the Headtube
If the fork won't slide in, stop pushing. A stuck fork means the steerer diameter is wrong or the bearing race is damaged. Forcing it chips the bearing and scratches the frame headtube.
Overtightening the Compression Bolt
More torque does not mean a better fit. The compression bolt should just remove play from the headset. Overtightening strips the star nut or wedges the compression ring.
Both fail at speed.
Cutting the Steerer Tube Before Checking Everything
A long steerer tube is an easy fix. A short one means you bought the wrong fork. Measure three times.
Check the length with the bars, clamp, and compression system installed. Leave 5mm of clearance for the bolt to thread properly.
Mixing Compression Systems
SCS, HIC, IHC, and ICS are not interchangeable. An SCS fork has a straight steerer with no internal threading. HIC forks need a slit in the steerer and a shim.
If you mix them, the bars will slip or the compression bolt won't engage.
Ignoring Brake Tab and Axle Alignment
A fork that fits the headtube can still be useless if the brake tab faces the wrong way. Check it before ordering. Confirm the dropout slot matches your axle size.
An 8mm axle rattles loose in a 10mm slot.
Final Verdict: Fix It, Cut It, or Send It Back?
When You Can Fix the Fork
If the steerer tube is just too long, cutting it is safe and common. Use a pipe cutter or hacksaw with a guide. Deburr the edge afterward.
If the compression bolt won't reach, cutting down the steerer by 15mm to 20mm usually solves it.
When You Should Send It Back
Return the fork if the steerer tube diameter is wrong. No adapter reliably converts a 1" steerer to a 1⅛" headset. Same goes for a fork with the brake tab on the wrong side.
These are structural mismatches.
When You Need a New Part
Compression system mismatches sometimes just need a compatible part. SCS bars on an HIC fork won't work. HIC bars on an SCS fork can work with the right shim.
Check the manufacturer's compatibility chart before buying.
| Problem | Fix or Return? | Confidence |
|---|---|---|
| Steerer tube too long | Cut it down | Safe if done evenly |
| Steerer diameter too thick | Return | No adapter works |
| Compression system mismatch | Buy new bars or shim | Depends on brands |
| Brake tab on wrong side | Return | Structural mismatch |
| Dropouts too narrow | Return | Don't file the slots |
Frequently Asked Questions
How do I know if my fork fits my scooter?
Measure the steerer tube outer diameter with calipers. Check the headset standard on your frame. Match the compression system to your bars.
If those three line up, the fork fits.
Can I use an SCS fork with HIC bars?
No. SCS uses a split clamp that grips the outside of the steerer tube. HIC uses an internal shim and compression.
The standards don't mix without adapter parts.
How short can I cut my steerer tube?
Aim to keep at least 30mm of steerer inserted into the clamp. Below that, the bars have too little grip and can slip during tricks.
What if the fork is too tight when I slide it in?
Stop immediately. Check the bearing race inside the headset. A damaged race or a slightly oversized steerer causes binding.
Don't hammer it through.
Do I need a new headset if my fork doesn't fit?
Only if the old headset got damaged during removal or forced installation. If the bearings sit clean and the race is smooth, reuse them with the new fork.
Why does my front wheel sit crooked after the swap?
The wheel axle may not be seated evenly in the dropouts. Loosen the axle bolts, push the wheel to center, and retighten evenly. Confirm the dropouts match your axle diameter.
