Trick Scooter SCS Compression Problem

Image source: Bing (Web (fair-use with source credit))

If you've ever set up a trick scooter, you've run into the trick scooter SCS compression problem. You tighten the top cap bolt, the headset still wobbles, and you can't figure out why. It makes the scooter feel unsafe to ride.

Before we get into the fix, understand this: an SCS top cap bolt is typically M8 x 1.25mm threading. It needs proper thread engagement to apply preload correctly. Most SCS setups need a stack height between 15mm and 25mm to work.

If your parts don't add up to that range, the compression cap will bottom out before it tightens the headset. Let's walk through why this happens and how to fix it.

Quick Answer

Your SCS headset won't stay tight because the top cap bolt is bottoming out. Stack height is likely wrong. Fix the stack height and tighten the bolt again.

That solves most cases.

Why Your SCS Headset Won't Stay Tight

SCS compression works differently than other scooter headset systems. With HIC or IHC, you use a star nut inside the steerer tube. The top cap bolt screws into that star nut and pulls the fork up into the bearings.

SCS doesn't use a star nut at all. The SCS compression cap sits on top of the headset bearings, and the bolt goes through the cap into a threaded hole in the fork's steerer tube.

This design is stronger in theory. Fewer loose parts, fewer failure points. But it introduces a problem HIC riders never face: stack height sensitivity.

The bolt that screws into the steerer tube has a fixed length. If the combined height of your headset bearings, compression cone, and any washers or spacers is too tall, the bolt threads run out before the cap applies downward pressure on the bearings. The headset feels loose no matter how hard you crank the bolt.

If the stack height is too short, the bolt engages enough threads but the cap pushes down on nothing useful. The bearings get crushed before they seat properly, or the bolt doesn't reach the fork threads at all.

That's the core issue. It's not a complicated mechanical failure. It's a measurement problem.

How SCS Compression Actually Works

Image source: Bing (Web (fair-use with source credit))

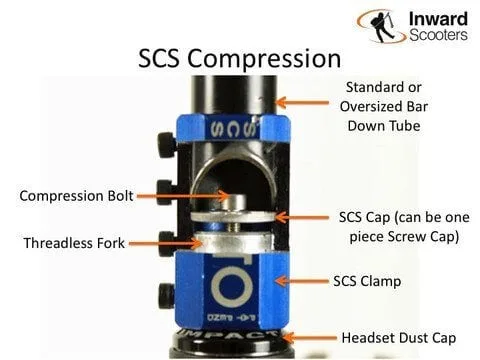

Let's look at the parts involved. The SCS compression system has four main components that must work together.

The compression cap sits on top of the headset bearing stack. It has a recessed center where the bolt head sits and a flat bottom surface that presses down on the top bearing race. Some caps are tall, some are short.

The compression cone sits between the bearings and the fork. It's a tapered ring that slides onto the steerer tube. When the top cap pushes down, the cone wedges into the inner bearing race and takes up slack between the bearing and the fork.

If the cone is upside down or missing, you get play.

The bearings sit in the headtube of the deck. Most trick scooters use 608 or 619 size bearings. They need a smooth surface to spin against and proper preload from the compression system above them.

The steerer tube of the fork has a threaded hole at the top. The bolt from the compression cap screws directly into this hole. Different forks have different thread depths.

Some are shallow, some are deep.

When you tighten the top cap bolt, it pulls the fork upward into the compression cone. The cone seats into the bearings. The bearings get squeezed between the cone and the deck's headtube.

That squeeze creates preload. No squeeze equals wobble.

The SCS system is reliable when stack height matches the bolt length and thread depth. Miss that match, and nothing works.

Diagnose Your SCS Compression Problem Step by Step

Image source: Bing (Web (fair-use with source credit))

Don't tear everything apart yet. Start with the simplest check and work your way through the possibilities.

Check 1: Does the Top Cap Bottom Out Before the Headset Feels Tight?

Remove the SCS clamp and the bars. Leave the compression cap on. Tighten the top cap bolt slowly with a hex key.

Feel for resistance.

If the bolt tightens but the headset still has play, the bolt is bottoming out in the fork threads before the cap presses down on the bearings. The bolt threads are done, but the cap never touched the bearing race.

This is the most common SCS compression problem. Manufacturer specifications indicate that the bolt needs at least 8mm of thread engagement inside the steerer tube to pull the fork up properly. If your stack height pushes the cap too high, the bolt runs out of travel.

Fix this by reducing stack height. Remove the compression cap and check if you have spacers or washers between the cap and the bearing. Take one out.

Try again.

Check 2: Is Your Stack Height Too Short or Too Tall?

Stack height is the total height from the top of the fork crown to the bottom of the compression cap when it's installed. You need a caliper or ruler to measure this accurately.

Place the fork in the deck. Stack the bearings, cone, and any washers or spacers on top of the fork crown. Measure the total height of everything above the crown.

This is your stack height.

Now measure the depth of the threaded hole in the steerer tube. Compare that to the bolt length from the compression cap. The bolt should reach the bottom of the threads with about 2mm to 4mm of extra space.

If the stack height is taller than the bolt can reach, you need shorter components. Swap to a shorter compression cap. Remove spacers.

Use a lower-profile bearing setup.

If the stack height is too short, the bolt engages the threads but the cap might not contact the bearing race at all. Add a thin washer or spacer under the cap.

Aggregate reviews report that aftermarket SCS compression caps vary in height by up to 8mm between brands. If you switched caps recently, that could be your issue.

Check 3: Is the Compression Cone Seated Correctly?

The compression cone has a specific orientation. Most cones are tapered on one side and flat on the other. The tapered side faces down into the top bearing.

The flat side faces up toward the compression cap.

If the cone is flipped upside down, the tapered section points upward. It does not wedge into the bearing race properly. The headset will feel loose no matter how tight you make the top cap.

Remove the fork from the deck. Take the cone off the steerer tube. Look at the shape.

The narrower end should point toward the fork. The wider end points up.

Reinstall it correctly and reassemble the headset. This fix takes two minutes and solves a surprising number of wobble complaints.

Check 4: Are Your Bearings Seated Properly?

Bearings can shift out of position during assembly or riding. If the bearing is not fully seated in the headtube race, the compression system cannot push against it properly.

Spin the bearings by hand with the fork removed. They should spin smoothly with no rough spots. If they feel gritty or notchy, dirt has gotten inside.

Replace them.

Check for side-to-side play in the bearing seat itself. Install the bearings in the deck without the fork. Press them in by hand.

They should sit flush with the headtube edge. If they wiggle, the headtube might be oval or damaged.

A bent or oval headtube is rare but possible on cheaper complete scooters. If the bearings don't sit flat, no amount of compression adjustment will fix the wobble. That needs a deck replacement.

Common Mistakes That Make the Problem Worse

Riders often make the problem worse by doing the wrong thing first. Here are the errors we see most often.

Over-tightening the top cap bolt. If the bolt is bottoming out, cranking harder doesn't help. It strips the threads inside the steerer tube. Once those threads are gone, you need a new fork.

Maximum torque for an M8 bolt in an aluminum steerer is around 12 to 15 Nm. Going past that damages the threads permanently.

Tightening the clamp bolts before setting preload. The SCS clamp bolts should only be tightened after the top cap preload is set. If you lock the clamp down first, the fork is held in place by the clamp, not the compression system. The headset feels tight initially but develops play after one session because the top cap never actually pulled the fork into the bearings.

Using the wrong compression cap. SCS caps are not universal. Some are designed for specific fork brands or specific steerer tube lengths. Using a cap that is too tall or too short changes the stack height.

Check the cap height against your fork specs before installing.

Ignoring the compression cone orientation. This is the simplest fix and the one most people skip. Flip the cone around and see if the wobble disappears. It often does.

Adding spacers without measuring. Some riders add washers or spacers between the cap and the bearing to take up slack. This only works if the stack height is too short. If the stack is already too tall, adding spacers makes it worse.

Expert Tips for a Bulletproof SCS Setup

Getting the headset tight is only half the battle. Keeping it that way matters more.

Grease the bolt threads. A small amount of lithium grease or blue threadlocker on the compression bolt threads reduces friction. The bolt seats deeper with less torque. It also prevents the bolt from backing out during ride sessions.

Don't use red threadlocker. That stuff needs heat to release.

Tighten the top cap bolt before the clamp bolts. Always. The top cap sets the preload. The clamp bolts just hold the bars in place.

If you tighten the clamp first, the fork locks in position before the bearings get squeezed. The headset feels solid for one ride, then develops play as the bearings settle.

Tighten clamp bolts in a cross pattern. Most SCS clamps have four bolts. Tighten top left, bottom right, top right, bottom left. Then go around again until snug.

This keeps the clamp evenly loaded.

Re-check preload after your first session. Bearings and compression cones seat themselves during the first few hours of riding. That means the headset can loosen slightly after initial setup. Check the top cap bolt before your second ride session.

A quick quarter-turn is often enough.

Use a torque wrench if you have one. Set it to 12 Nm for the compression bolt. For the clamp bolts, check the manufacturer's spec. Most sit between 10 and 15 Nm.

Torquing to spec prevents over-tightening, which strips threads and crushes bearings.

Real-World SCS Fixes (What Different Symptoms Actually Mean)

Here is where we get practical. Match your problem to one of these patterns.

Symptom: Headset rocks back and forth but the bolt is tight. The bolt is bottoming out before the cap contacts the bearing stack. You have too much stack height. Remove washers or spacers, or switch to a shorter cap.

Symptom: Headset creaks or clicks when turning. The compression cone is likely upside down, or the bearings are dry. Pull the fork out and check the cone orientation first. If the cone is correct, clean and re-grease the bearings.

Symptom: Steering feels notchy or grindy. You are over-preloading the bearings. The top cap bolt is too tight. Back it off a quarter turn at a time until the steering feels smooth but has no play.

Notchy steering can also mean the bearings are damaged.

Symptom: Headset tightens up but loosens after 30 minutes of riding. This is usually a stripped thread inside the steerer tube. The bolt bites, then the soft aluminum threads give way under vibration. Take the bolt out and inspect it.

If the bolt has aluminum chips stuck to the threads, the fork threads are gone. You need a new fork.

Symptom: Bars sit crooked or shift during riding. The clamp bolts are not torqued evenly. Loosen all four clamp bolts, center the bars, and retighten in a cross pattern. If the bars still slip, the SCS clamp might not match the diameter of your bars.

Most SCS systems fit 35mm bars, but always verify.

Symptom: The top cap bolt spins without ever feeling tight. You either have no thread engagement or the threads are completely stripped. Remove the bolt and check. If the bolt is smooth and shiny, the threads chewed out.

Stop riding immediately. A fork with stripped steerer threads is dangerous.

Quick Decision Guide for SCS Compression

The single biggest mistake is trying to muscle through the problem. The top cap bolt is not a muscle bolt. It's a precision fastener.

If it doesn't work at reasonable torque, something else is wrong.

SCS Compression FAQs

How tight should the SCS compression bolt be?

Finger-tight plus a solid turn is the general sweet spot. That's roughly 10 to 15 Nm if you use a torque wrench. The bolt should pull the fork up into the bearings without crushing them.

If the bolt takes significant force to turn, stop and diagnose instead of forcing it.

Why does my SCS headset keep loosening after every ride?

The most common cause is missing or worn compression components. Check whether your compression cone is seated correctly. Then verify the stack height.

If the bearings settle, a quick quarter-turn on the top cap bolt after the first session usually solves it permanently.

Can I mix SCS parts from different brands?

Yes, but carefully. Compression caps and bolts are generally interchangeable because the threading is standardized. The problem is stack height.

One brand's cap may be several millimeters taller than another. Re-measure the stack height whenever you mix components.

Do I need a special tool for SCS compression?

No. A standard hex key set is all you need. Make sure you use the correct size hex bit for your cap bolt.

Most SCS caps use a 6mm hex, but some aftermarket brands use 5mm.

How do I know if my fork steerer threads are stripped?

Remove the compression bolt and look at the threads. If you see aluminum shavings or the bolt comes out with a rough, grinding feel, the threads are damaged. A quick test: thread the bolt in by hand.

If it binds before the last few turns, it's likely stripped. Replace the fork immediately.

Should I grease the compression cone?

A very light coat of grease helps the cone seat smoothly and prevents squeaking. Don't overdo it. Too much grease attracts dirt and turns into grinding paste.

How often should I check the headset?

Check the top cap bolt after your first ride session. A quarter-turn is usually enough to account for bearing settling. After that, inspect the headset every two to four weeks.

Look for play at the bars and listen for creaks during turns.

If your trick scooter SCS compression problem comes down to one thing, it's stack height. Measure it first. Fix that, and most headset issues disappear.

And never ride with a stripped fork steerer. That's an immediate replacement.
