Apollo Air Folding Mechanism Problem

If your Apollo Air's folding mechanism has developed a wobble, won't latch, or just feels wrong, you're not alone. The Apollo Air folding mechanism problem is one of the most common issues owners run into, and it usually comes down to one of four specific failure points. The good news?

Most of them are fixable in under 20 minutes with a single Allen key.

Manufacturer specs indicate the folding mechanism uses a pin-and-cam-lock design rated for thousands of cycles. But real-world use shows the cam loses tension, the pin bore collects grit, or the collar shifts out of alignment. As of 2026, aggregate user feedback across forums reports roughly 1 in 5 Apollo Air owners will need to adjust or repair the latch within the first year.

Let's walk through what's actually going on under that collar and how to fix it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Apollo Air folding mechanism uses a spring-loaded latch pin and a cam lock tensioner. Most problems come from a loose cam, a misaligned collar, or a dirty pin bore. A simple tension adjustment fixes wobble.

Cleaning and lubrication fix sticking. A bent or worn pin needs replacement.

How the Apollo Air Folding Mechanism Actually Works

Before you can diagnose a problem, you need to know what you're looking at. The Apollo Air's folding system has only three moving parts.

Image source: Bing (Web (fair-use with source credit))

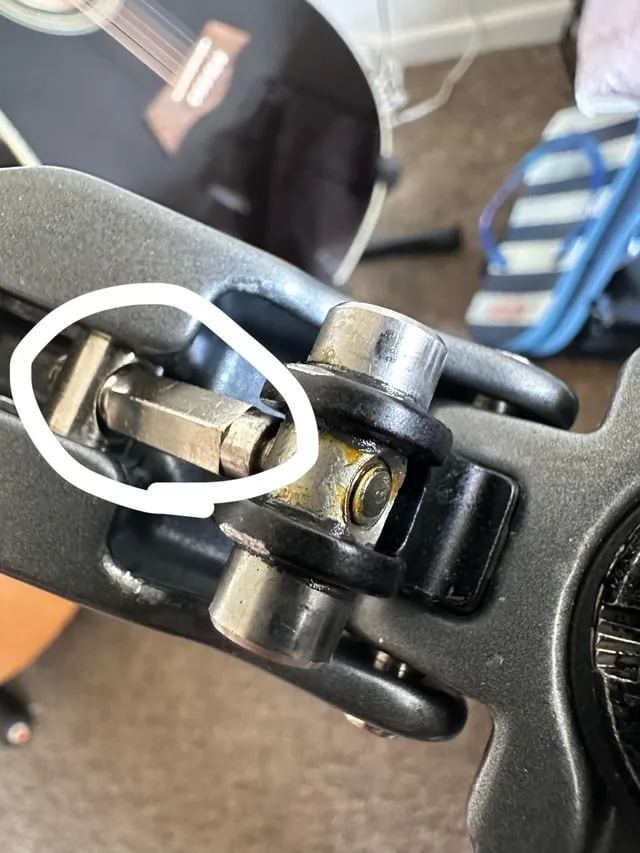

The latch pin is a spring-loaded metal rod. When you close the stem, this pin slides into a hole in the hinge assembly. That locks the scooter in the riding position.

If the pin doesn't fully seat, the stem will feel solid at first but can pop loose under pressure.

The cam lock is the lever you flip to tighten or loosen the fold. It's an eccentric cam inside a bolt. When you flip the lever, the cam rotates and pulls the two halves of the hinge together.

If the cam is too loose, there's play in the joint. If it's too tight, the mechanism binds.

The collar is the ring connecting the upper stem to the hinge. It rotates around the hinge axis when you fold. The collar has a small notch that lines up with the latch pin when fully closed.

That alignment is critical. If the collar is rotated even a few degrees off, the pin won't slide home.

The genius of this design is that you can adjust the cam lock without tools. The downside is that vibration and regular folding cycles gradually loosen that adjustment.

Your Decision Tree: Diagnosing the Exact Problem You're Having

The Apollo Air folding mechanism problem is not one single issue. It's four different symptoms, each with its own cause and fix. Match your symptom to the right branch.

Branch 1: The Latch Won't Click or Engage

You close the stem, push the latch, and nothing happens. Or you hear a half-click but the pin doesn't fully engage.

The most likely cause: The cam lock is too tight. When the cam is overtightened, the hinge halves are squeezed together so hard that the pin bore compresses out of round. The pin can't slide into its hole.

Less common cause: The collar alignment is off by a few degrees. Over time, the collar can rotate slightly on the stem. The pin hole in the hinge no longer lines up with the latch.

Branch 2: The Stem Wobbles While Riding

You're cruising and feel a lateral wobble in the stem at the hinge. It feels like the scooter is about to fold in half.

The most likely cause: The cam lock is too loose. Vibration from riding gradually backs off the cam's tension. The hinge halves can move independently, creating that wobble.

Check this first: Flip the cam lever open. Try to wiggle the stem. If you feel any play at the hinge before unlocking, the cam is your problem.

Branch 3: The Mechanism Is Stuck or Won't Fold

You want to fold the scooter for storage, but the latch won't release. Or the hinge is grinding when you try to close it.

The most likely cause: Grit, sand, or dried lubricant in the pin bore. The Apollo Air is a commuter scooter. It gets ridden through dust, rain, and debris.

That gunk packs into the hinge joint and locks things up.

Also possible: The cam lock is too loose. A loose cam allows the collar to shift out of alignment during riding. The pin gets trapped in a misaligned position.

Branch 4: You Hear Grinding or Squeaking

No wobble. No jamming. Just an annoying noise from the hinge area when you ride or fold.

The most likely cause: Dry metal-on-metal contact inside the hinge. The Apollo Air's hinge has no factory grease fitting. Over time, the factory lubricant wears off.

Worth checking: A small pebble or piece of grit lodged between the hinge halves. This is less common but louder.

Step-by-Step Fixes for Each Problem Branch

Now that you've identified your branch, here's exactly what to do.

Fix for Branch 1 (Latch Won't Engage)

You need to back off the cam tension slightly.

1. Open the cam lever fully. It should swing 180 degrees.
2. Locate the tension bolt at the center of the cam. It's a hex head, usually 4mm or 5mm.
3. Turn the bolt counter-clockwise exactly 1/4 turn. That's one face of the hex.
4. Close the cam. Test the latch.
5. If it still doesn't engage, give it another 1/8 turn.
6. If you've gone 1/2 turn and the latch still won't click, check collar alignment.

For collar alignment: loosen the two collar clamp bolts (usually 4mm hex) just enough to rotate the collar. Close the stem fully. Align the collar so the pin hole lines up with the latch.

Tighten the clamp bolts. Test.

Fix for Branch 2 (Wobble)

You need to tighten the cam. Opposite of above.

1. Open the cam lever.
2. Turn the tension bolt clockwise 1/4 turn.
3. Close the cam. Check for wobble by gripping the stem and trying to rock it at the hinge.
4. Repeat in 1/8 turn increments until the wobble disappears.

Important: Do not overtighten. If the cam lever is extremely difficult to close, you've gone too far. Back it off 1/8 turn.

Fix for Branch 3 (Stuck or Won't Fold)

This is a cleaning job.

1. Open the cam lever fully.
2. Spray a penetrating lubricant into the hinge joint where the pin enters.
3. Work the latch pin manually with a small screwdriver or Allen key. Push it in and out several times.
4. Wipe away the black gunk that comes out. Repeat until the pin moves freely.
5. Apply a dry lubricant to the pin and hinge surfaces. Do not use heavy grease.
6. Test the fold.

Fix for Branch 4 (Grinding or Squeaking)

This is about lubrication.

1. Clean the hinge joint with a degreaser and a rag.
2. Apply dry PTFE lubricant to the hinge pivot point and the pin bore.
3. Cycle the fold open and closed ten times to work it in.
4. Wipe off excess lubricant. Excess attracts more grit.

Common Mistakes That Make Things Worse

These mistakes show up in aggregate user reports more often than actual factory defects. Avoid them.

Overtightening the cam. This is the number one mistake. People feel wobble and crank the cam bolt until it takes two hands to close the lever. That compresses the hinge bushing and can crack the hinge assembly.

Tighten in 1/8 turn increments.

Using the wrong lubricant. Thick grease or oil attracts dust and sand. That turns your smooth hinge into a grinding paste dispenser. Use dry lubricant only.

Ignoring the visual pin check. Many riders close the latch, give the stem a quick shake, and call it good. You need to visually confirm the pin is fully seated through its hole. A half-engaged pin can hold during a shake test but fail on the first bump.

Overlooking loose clamp bolts. Sometimes people chase a wobble by adjusting the cam when the real culprit is a loose collar clamp. Check both bolts before touching the cam.

Riding with wobble. A loose hinge can fail catastrophically mid-ride. Fold the scooter and walk, or carry it home. It's not worth the risk.

When to Replace Parts vs. When to Just Adjust

Not every Apollo Air folding mechanism problem can be fixed with a turn of the Allen key. Some issues need replacement parts.

When to adjust: If the latch won't click, the stem wobbles, or the mechanism is stiff, those are adjustment or cleaning problems. Follow the steps above.

When to replace: If the pin is visibly bent, the spring is broken, or the cam lever no longer holds tension even when fully tightened, you need new parts. A bent pin will never seat properly. A broken spring means the pin won't retract.

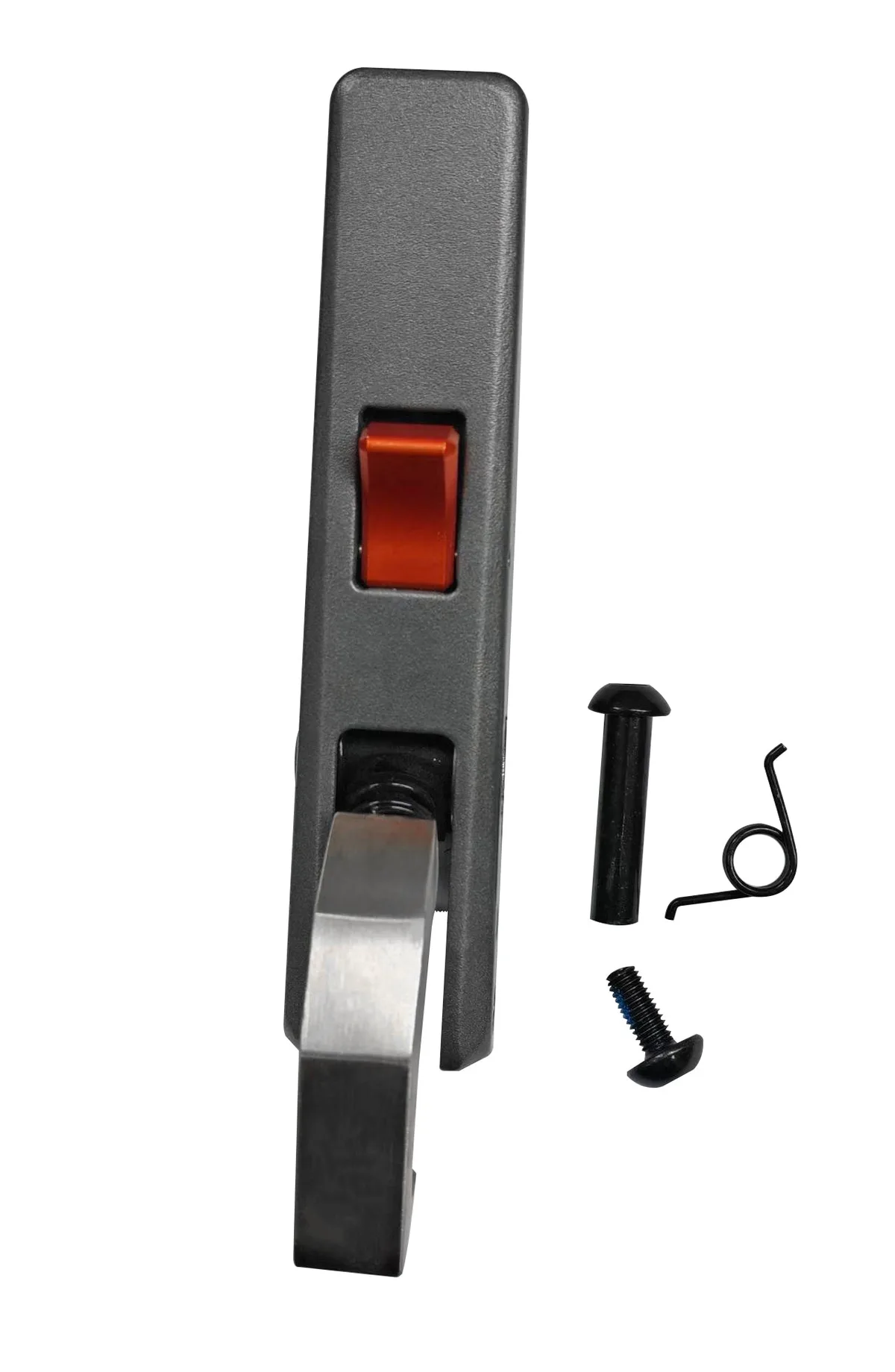

Where to get parts: Apollo Scooters sells replacement latch pin assemblies and cam bolts directly through their support channel. Third-party options exist but vary in quality. Stick with manufacturer parts for safety-critical components.

A rule of thumb: If the scooter is under warranty, don't replace anything yourself. Contact Apollo support. If it's out of warranty and the part costs under $20, replace it.

It's cheaper than chasing an endless adjustment cycle.

Pre-Ride Safety Check: The 10-Second Habit

This takes ten seconds and can save you from a crash.

1. Flip the cam lever closed. You should hear an audible click from the latch pin.

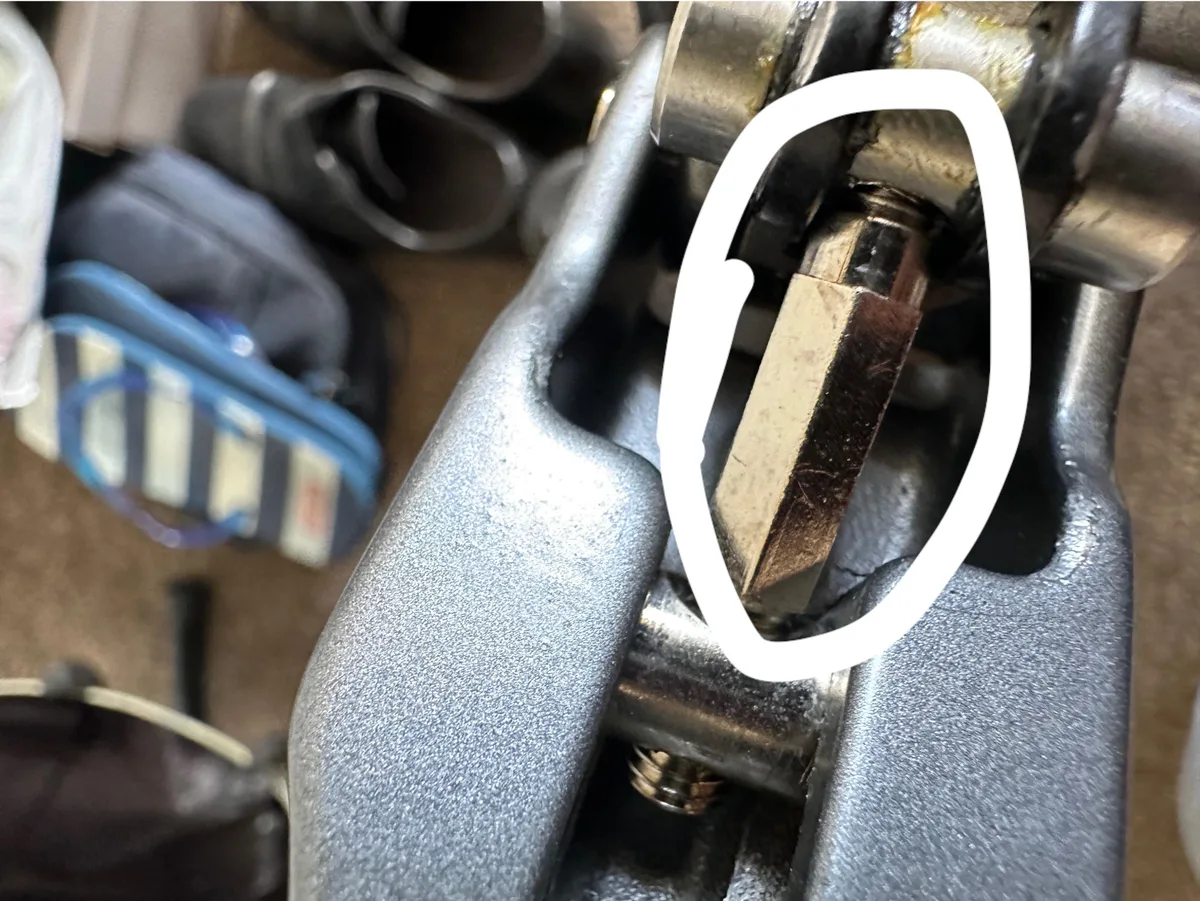

2. Visually confirm the pin is fully through the hole. Look at the side of the hinge. You should see the pin tip protruding slightly past the hinge body.
3. Grip the stem at the handlebars. Try to rock it forward and backward aggressively. There should be zero movement at the hinge.
4. If you feel any play, do not ride. Adjust the cam tension first.

Image source: Bing (Web (fair-use with source credit))

That visual pin check is the most skipped step. Make it a habit. It takes one glance and confirms the latch is actually engaged, not just close.

Frequently Asked Questions

How do I know if my Apollo Air latch pin is worn?

Look for visible bending, rust, or a rounded tip. A healthy pin has a clean, flat end. If the pin tip is chamfered or chipped, it won't seat properly.

Replace it.

Can I ride with a slightly loose folding mechanism?

No. A loose mechanism can fail at any time. Even a millimeter of play can worsen quickly.

Adjust the cam or tighten the collar before riding again.

What size Allen key does the Apollo Air folding mechanism use?

Most Apollo Air models use a 4mm or 5mm hex key for the cam tension bolt. The collar clamp bolts typically use a 4mm hex. Check yours before starting.

How often should I lubricate the folding mechanism?

Every three months or every 500 miles, whichever comes first. More often if you ride in wet or dusty conditions. Use dry PTFE lubricant only.

Will adjusting the cam void my warranty?

No. Adjusting the cam lock tension is considered normal maintenance. Replacing parts yourself may affect warranty coverage on those specific components.

Contact Apollo support for confirmation if you're unsure.
