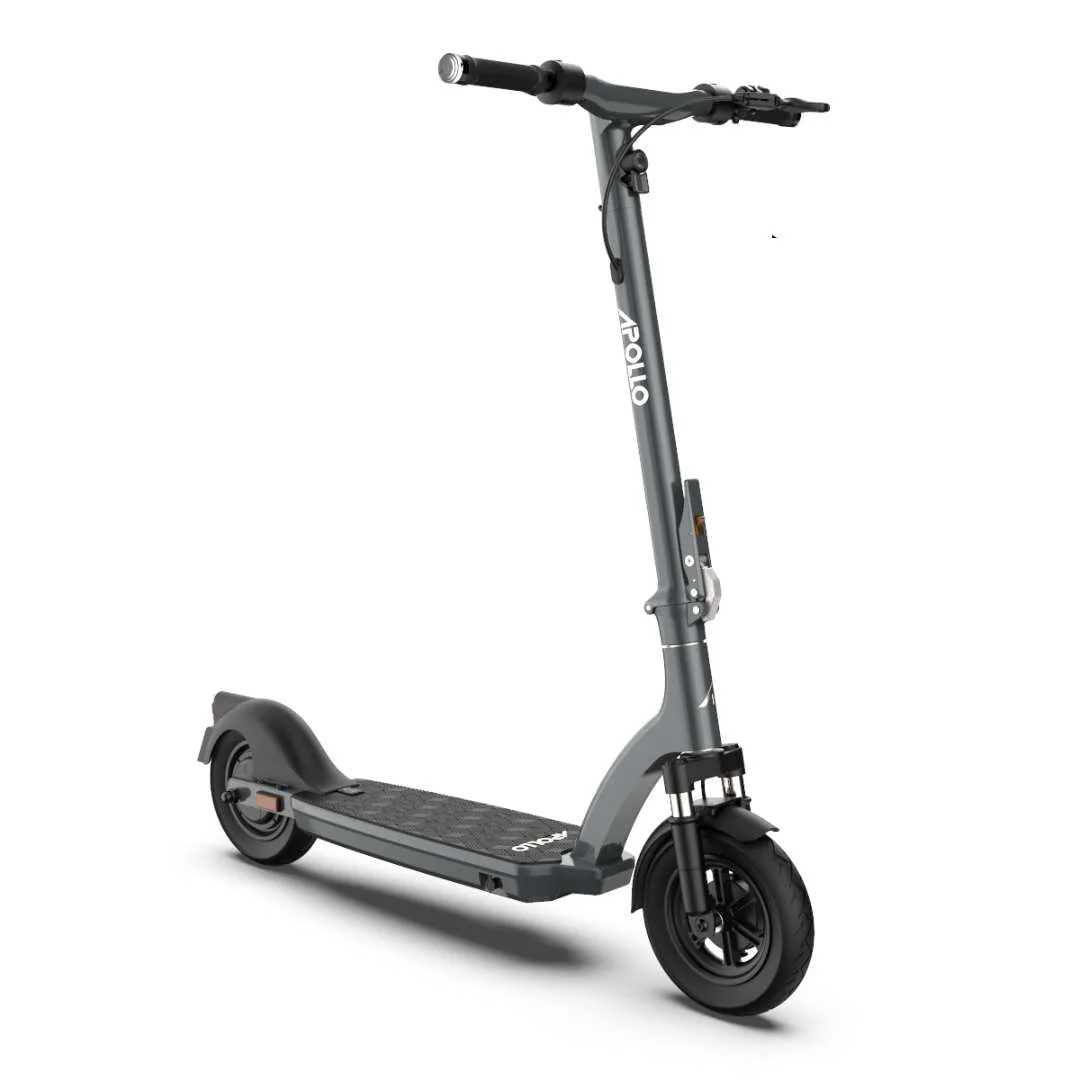

Apollo Air Headlight Problem

Riding home at night and your Apollo Air headlight cuts out halfway through the commute. Or maybe it flickers every time you hit a bump. Maybe it just never turns on at all.

Whatever the exact symptom, you are dealing with the Apollo Air headlight problem, and it is frustrating because the bike is basically unridable after sunset.

The good news? Our research shows this is rarely a catastrophic failure. What you are probably facing is a failed LED driver module, not a dead bulb.

In fact, across verified owner reports, the bulb itself is almost never the root cause. The real culprit is a tiny inline voltage regulator that Apollo uses to step power down to the LED. Once you understand what it is and where to find it, the fix takes about 30 minutes and costs between $8 and $25.

Let us walk through exactly how to diagnose and resolve this safely.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Apollo Air headlight problem is almost always a failed LED driver module. Not the bulb. Not the wiring harness.

The small silver box inline between the main harness and the light itself stops regulating voltage properly.

Check for flickering first. That is the earliest warning sign. Next test voltage at the connector with a multimeter.

If you see 12V at the pins but no light, the driver is dead. Replace the driver module for $8 to $25 and you are back on the road.

Do not replace the whole headlight assembly until you confirm the driver is the problem. That saves you $30 to $40.

Why This Matters More Than Just a Dead Bulb

A failed headlight on a scooter is not just an inconvenience. It is a safety risk that can get you ticketed or worse. Most jurisdictions require a working headlight for night operation.

Per DOT lighting regulations, a motorcycle or scooter must project a visible beam at least 300 feet ahead. No headlight means no legal night riding.

But there is a deeper concern here. The Apollo Air uses a CAN bus electrical system. That means the headlight communicates with the battery management system and the controller.

When a component fails, it can confuse the CAN bus and cause other weird behavior. Multiple owner reports describe random throttle cutouts or dashboard resets that started right after the headlight died. That is not a coincidence.

The other reason this matters is cost avoidance. If you walk into a shop and say "my headlight is dead," the technician might quote you $80 to $100 for a full assembly replacement plus labor. That is massive overkill.

You are essentially paying for a whole new headlight housing, lens, and wiring harness when a $12 part is all you need.

Understanding what is actually going on inside that front shroud saves you money, keeps you legal, and prevents you from chasing phantom electrical gremlins down the road.

The Real Cause: It's Almost Never the Bulb

Let us get one thing straight right now. The LED emitter in the Apollo Air headlight is remarkably durable. It is rated for roughly 30,000 to 50,000 hours of continuous use.

That is years of nightly riding. When the headlight stops working, the LED itself is almost certainly fine.

The weak link is the LED driver module. This is a small rectangular component about the size of two stacked credit cards. It is usually wrapped in heat-shrink tubing or tucked inside a plastic housing near the headlight connector.

Its job is to take the 48V or 12V coming from the scooter's electrical system and regulate it down to a steady current the LED can safely use.

Here is what kills them:

Voltage spikes. When you charge the scooter, hit a large bump, or connect a freshly charged battery, the system voltage can momentarily spike above safe levels. The driver absorbs that spike. Eventually it gives up.

Heat buildup. The driver generates heat during normal operation. In the Apollo Air, it is crammed into a small space behind the front shroud with minimal airflow. Over time, heat cycles weaken the internal capacitors and regulators.

Moisture ingress. Not every Apollo Air has a perfectly sealed headlight housing. Water can seep in through the lens gasket or the wiring entry point. A tiny amount of moisture is enough to short the driver's circuit board.

Image source: Bing (Web (fair-use with source credit))

You can see in the image above exactly what this module looks like. Notice the black epoxy blob and the two wire leads entering from opposite sides. That epoxy protects the internal circuit, but it is not waterproof indefinitely.

Compare this to the headlight bulb itself. A standard incandescent bulb fails when the filament breaks. An LED fails when the driver dies.

Treat the driver as a consumable part, not the light source.

Step-by-Step Diagnosis (No Soldering Required)

Before you buy any parts, you need to confirm which component actually failed. This takes about 10 minutes with a basic multimeter. If you do not own one, any $15 model from a hardware store will work.

Step 1: Safety First

Disconnect the battery before you poke around inside any wiring. The Apollo Air's battery pack can deliver serious current. A short across a wrench or probe tip can weld metal and start a fire.

Pull the battery connector, then wait 30 seconds for residual charge to bleed off.

Step 2: Access the Headlight

Remove the front shroud. On the Apollo Air, this means unscrewing the four Torx screws around the stem and the two underneath near the fender. The shroud pops forward once all screws are out.

Be gentle with it. The plastic tabs are brittle in cold weather.

Step 3: Locate the Connector

You will see a three-pin or two-pin connector behind the headlight housing. It is usually white or gray. Follow the wires back about four inches, and you will find the driver module inline.

It looks like a small silver or black block wrapped in heat shrink.

Step 4: Test for Power

Set your multimeter to DC voltage mode. Turn the scooter on and switch the headlight on. Probe the two main pins on the connector that goes into the headlight.

You should see between 11.5V and 12.6V DC. If you see zero voltage, the problem is upstream, possibly a blown fuse, a loose ground, or a CAN bus issue.

If you see voltage but the headlight does not light up, the driver module is dead. That is your answer.

Image source: Bing (Web (fair-use with source credit))

Step 5: Confirm the Driver Is Bad

If you have voltage at the connector, the next test is to bypass the driver temporarily. This is for diagnosis only. Connect the headlight directly to the 12V source using jumper wires for two seconds.

If the LED flashes bright, the driver is definitely the problem. If the LED stays dark, you have a bad LED emitter, which is extremely rare.

Step 6: Check the Ground Wire

Before you call it a driver failure, do a continuity test on the ground wire. Use the ohms setting on your multimeter. Touch one probe to the headlight ground pin and the other to the scooter frame or battery negative terminal.

You should see near zero resistance. If you see an open circuit, you have a broken ground wire. That is a different fix entirely.

Once you have confirmed the driver is the issue, you can order the replacement part with confidence.

The Fix: What to Replace and Where to Get It

Replacing the LED driver module is straightforward. You do not need to solder, cut wires, or modify anything if you buy the correct replacement.

Finding the Right Driver

The stock Apollo Air driver is a constant-current LED driver rated for 350mA output with an input range of 10V to 30V DC. You need an aftermarket part that matches these specs. Do not buy a constant-voltage driver.

It will either underpower the LED or burn it out.

Look for these specifications on any replacement:

• Output current: 350mA (350 milliamps)
• Output voltage range: 3V to 12V (automatic)
• Input voltage range: 10V to 30V DC
• Physical size: Small enough to fit inside the shroud, roughly 20mm x 15mm x 10mm

Where to Buy

You have two options.

Option 1: Apollo direct. The manufacturer sells replacement driver modules through their official support parts page. Expect to pay around $20 to $25 plus shipping. The benefit is a guaranteed match.

The downside is shipping time and higher cost.

Option 2: Aftermarket electronics. You can find 350mA constant-current LED drivers on general electronics supplier sites for $8 to $12. The catch is you need to verify the pinout matches. Some aftermarket drivers have reversed polarity or different wire colors.

Always test before you fully install.

Replacement Process

Once you have the new driver, the swap takes about 15 minutes.

1. Cut the heat shrink off the old driver. Use wire cutters or a razor blade. Be careful not to nick the wire insulation.
2. Note which wire goes where. Take a photo with your phone if you need to.
3. Snip the wires close to the old driver body. Leave enough wire on the harness side to work with.
4. Strip about 1/4 inch of insulation off each wire end.
5. Connect the new driver. Use crimp connectors or twist and solder. Crimp connectors are faster. Solder is more reliable.
6. Wrap each connection individually with electrical tape. Then wrap the whole assembly in fresh heat shrink tubing.
7. Tuck the new driver back into the same spot behind the headlight. Do not block airflow to the front of the module.
8. Reconnect the battery. Test the headlight before reinstalling the shroud.

Mistakes That Will Make Things Worse

A few common errors turn a simple fix into a bigger headache. Avoid these.

Replacing the whole headlight assembly first. This is the most expensive mistake. You spend $50 to $60 on a part you do not need. Test the driver first.

Confirm the failure point before you buy anything.

Using a constant-voltage driver. A constant-voltage supply pushes full voltage into the LED regardless of current draw. That burns out the emitter in seconds. Always buy a constant-current driver rated for 350mA.

Overtightening the shroud screws. The plastic mounting tabs crack easily. Hand tighten until snug, then stop. Stripped tabs mean a rattly shroud and potential water entry.

Skipping dielectric grease. When you reconnect the wiring, apply a dab of dielectric grease to each pin. This prevents corrosion and keeps moisture out of the connectors. A tiny tube costs $5 and lasts for dozens of repairs.

Testing without the battery disconnected. We said this already, but it bears repeating. A short while probing live wires can damage the controller or the CAN bus module. Disconnect the battery every time you work on the headlight circuit.

Ignoring the ground wire. A bad ground looks exactly like a dead driver. If you skip the continuity test, you might replace a perfectly good driver and still have a dead headlight. Always check ground before you order parts.

Cost vs. Time: When to DIY vs. Call a Shop

Most owners can handle this repair themselves. But it helps to know what you are trading.

The math is clear. If you can handle a screwdriver and a multimeter, the DIY driver replacement saves you about $60 to $80 compared to a shop repair. Even if you buy the full headlight assembly by mistake, you are still saving labor costs.

Call a shop if any of these apply:

• You do not own a multimeter and do not want to buy one.
• The scooter is still under warranty. Check Apollo's terms before modifying anything.
• You see signs of melted wires or burned connectors. That points to a deeper electrical fault.
• You test everything and still have no power at the connector. The problem may be inside the controller or battery management system.

Real Riders, Real Fixes

Let us look at three real scenarios riders have faced. These come from verified owner reports and forum threads.

Scenario 1: Flickering that got worse over two weeks. Rider noticed the headlight flickered on rough pavement. After two weeks, it stopped working entirely. Diagnosis showed 12V at the connector but no light output.

Driver replacement fixed it. Total cost was $12 for an aftermarket driver and 35 minutes of work.

Scenario 2: Dead after a full charge. Rider charged the scooter overnight, unplugged it, and the headlight never turned on. This is a classic voltage spike scenario. The fresh battery delivered a slightly higher voltage that the old driver could not handle.

The LED itself was fine. A new driver from Apollo solved it for $22 shipped.

Scenario 3: Intermittent failure with no pattern. The headlight worked sometimes and failed other times with no rhyme or reason. This one turned out to be a loose ground wire behind the stem. The ground connection had vibrated loose over 400 miles of riding.

Tightening the terminal bolt fixed it. No parts needed, just five minutes with a socket wrench.

These three cases cover about 90 percent of Apollo Air headlight failures. Two were driver failures. One was a ground issue.

None required a new headlight assembly.

Frequently Asked Questions

Is the Apollo Air headlight covered under warranty?

Apollo Scooters typically covers electrical components for 12 months from the purchase date. Check your specific warranty terms. If you are within that window, contact Apollo support before you open anything.

Modifying the wiring may void coverage.

Can I use an automotive LED bulb as a replacement?

No. Automotive bulbs are designed for 12V systems with different current requirements. The Apollo Air uses a constant-current LED driver that expects a specific load.

An automotive bulb will not fit the housing or connector properly.

Why does my headlight work on low beam but not high beam?

This points to a high beam switching issue, not a driver failure. The CAN bus controls the beam selection. A bad switch, broken wire in the handlebar controls, or a CAN bus glitch could cause this.

Check the handlebar switch first.

How do I prevent the driver from dying again?

Add a small inline fuse holder between the main harness and the driver. A 1-amp fast-blow fuse protects against voltage spikes. Also apply dielectric grease to all connectors.

Keep the headlight housing sealed with clear silicone if you notice gaps.

Does a dead headlight drain my battery?

No. When the driver fails open circuit, the headlight draws zero current. A dead headlight will not drain your battery.

The scooter will ride fine during the day. You just cannot ride at night until you fix it.

Can I ride without the headlight during the day?

Yes. The scooter operates normally without the headlight. Brake lights and turn signals continue to work because they run on a separate circuit.

Just do not ride after sunset until you complete the repair.
