Cannondale Trail 5 Bottom Bracket Noise

If your Cannondale Trail 5 bottom bracket noise has turned a peaceful trail ride into an embarrassing squeak-fest, you are not alone. It is one of the most common issues owners face. And it is almost always fixable with basic tools and a little patience.

The Trail 5 uses a BSA threaded 68mm shell. This standard interface is far easier to service than press-fit systems on many other bikes. Let's trace that noise to its source and silence it for good.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A Cannondale Trail 5 bottom bracket noise is usually a loose crank arm. Check the left crank bolt first. Tighten it to the correct torque spec.

If the noise continues, inspect the pedal threads and bottom bracket bearings. Most noises are simple to fix with basic tools.

The Likely Culprits: What's Making That Noise

Image source: Bing (Web (fair-use with source credit))

Bottom bracket noise typically falls into three types. A single click per pedal revolution points to a loose crank arm or pedal. A continuous creak under power loading suggests dry or contaminated bearings.

A loud pop when you start pedaling indicates a slipping interface.

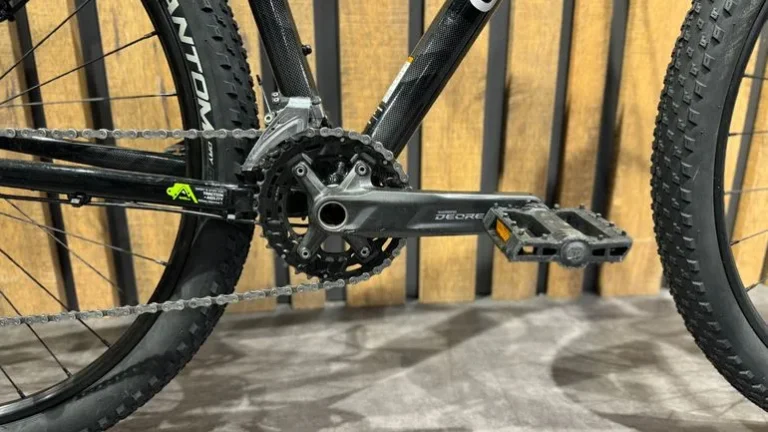

The most frequent cause is a loose left crank arm bolt. Depending on the model year, the Trail 5 uses either a Shimano Hollowtech II or an older square-taper crankset. Both can work loose over time.

Always check this first before buying any parts.

Diagnose the Noise Like a Mechanic

Do not replace anything yet. Isolate the noise first. Stand next to the bike and rock the cranks laterally.

If you feel play or hear a clunk, the crank arm is loose.

Tighten the bolt to manufacturer spec. That is 35-45 Nm for Hollowtech II and 25-30 Nm for square taper. Next, pedal the bike while standing up.

If the noise changes when you shift weight, the issue may be in the saddle or seatpost.

Check the sound timing carefully. A vibration in the pedals with every rotation likely means the bottom bracket or crank interface. If the noise only happens on one side, focus on that pedal and crank arm.

Fix the Root Cause Step by Step

Image source: Bing (Web (fair-use with source credit))

Start with the easiest fix. Apply grease to the pedal threads and tighten them securely.

Remove the non-drive crank arm. Clean the spindle interface thoroughly. Apply fresh grease, reinstall the arm, and torque it to spec.

This often resolves the noise entirely.

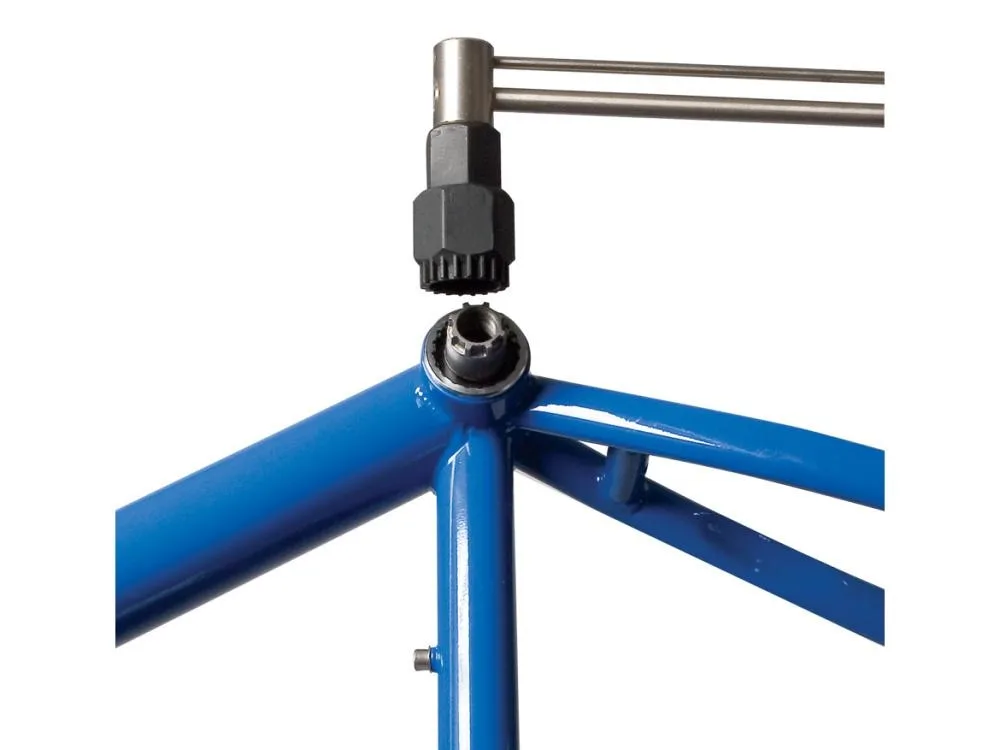

If the creak remains, remove both crank arms. Check the bottom bracket bearings by spinning the cups by hand. Gritty or loose bearings mean you need a replacement.

The Trail 5 uses standard BSA threaded cups. Remove them with the correct tool. Clean the frame threads thoroughly and apply anti-seize compound.

Install the new cups to 35-50 Nm. Reinstall the crankset and test ride. Per Shimano service documentation, using the correct torque wrench prevents damage to the aluminum cranks and frame.

Mistakes to Avoid When Servicing the Trail 5 Bottom Bracket

The biggest mistake is assuming the bottom bracket needs replacement. The noise often comes from the crank arm or pedals. Replacing a perfectly good BB is a waste of money.

Another common error is failing to clean the frame threads. Old grit or dried threadlocker prevents the new cup from seating flush. That can cause the noise to return immediately.

Always clean the threads and inspect them with a light.

Do not mix up the left and right cups. The Trail 5's BSA bottom bracket has opposite threading. The non-drive side is left-hand threaded.

Forcing a cup the wrong way can damage the frame's threads. That is an expensive mistake on an aluminum frame.

Frequently Asked Questions

How long does a bottom bracket on a Cannondale Trail 5 last?

Between 1,000 and 3,000 miles depending on riding conditions. Wet, muddy and dusty environments reduce bearing life. Listen for play or roughness and replace them when needed.

Can I convert my Trail 5 from square taper to Hollowtech II?

Yes, if your frame has a threaded BSA 68mm shell. You will need a new Hollowtech II crankset, a compatible bottom bracket, and the correct installation tools. It is a straightforward upgrade with clear performance benefits.

What tools do I need to fix the bottom bracket noise?

You will need hex keys, a crank puller for square taper cranks, and a bottom bracket tool like the Park Tool BBT-22 or BBT-4 depending on your cup type. A torque wrench and grease are also essential.

Is it safe to ride with a creaking bottom bracket?

A minor creak is annoyingly loud but usually not immediately dangerous. However, a loose crank arm can fail catastrophically and cause injury. Investigate any new noise promptly to stay safe.

Why does my bottom bracket creak only when I pedal standing up?

Standing up applies dramatically more torque through the drivetrain. This can flex the frame and create movement at interfaces. Check the crank arm, chainring bolts, and seatpost for tightness.
