Cannondale Trail 5 Crank Making Noise

If your Cannondale Trail 5 crank is making noise, you’re not alone. This is one of the most common complaints across the Trail lineup. The good news: it’s rarely the crankset itself that’s failing.

Most of the time, the sound comes from the bottom bracket, the crank arm bolts, or a loose chainring. All three are fixable at home with basic tools.

The Trail 5 ships with a square-taper bottom bracket and a Prowheel forged alloy crank. That interface is prone to creaking when the crank arm bolt backs off slightly, which is common after the first few hundred miles. Before you spend money on a shop visit, let’s walk through the diagnosis step by step.

This is the first repair most Cannondale owners learn to do themselves.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The most common cause is a loose crank arm bolt on the non-drive side. Tighten it to 35, 40 Nm. If the noise persists, check the bottom bracket lockring.

A creak under load usually means the square-taper interface needs grease and re-torquing. Grinding or clicking while pedaling points to a dry or failing bottom bracket bearing. Rarely is the crank arm itself defective.

Why Your Crank Makes Noise (And Why It’s Almost Never the Cranks)

The Trail 5’s crank arms are solid forged aluminum. They don’t flex, crack, or wear out under normal riding. The noise you hear is almost always a symptom of something else in the drivetrain.

The sound travels through the frame, echoes, and makes you think the problem is somewhere it isn’t.

The square-taper bottom bracket is the usual suspect. It’s a simple, reliable design, but it relies on a tight interference fit between the tapered spindle and the crank arm. When that bolt loosens, the crank arm develops a tiny bit of play.

Under power, it rocks on the taper, producing a rhythmic creak or click with every pedal stroke.

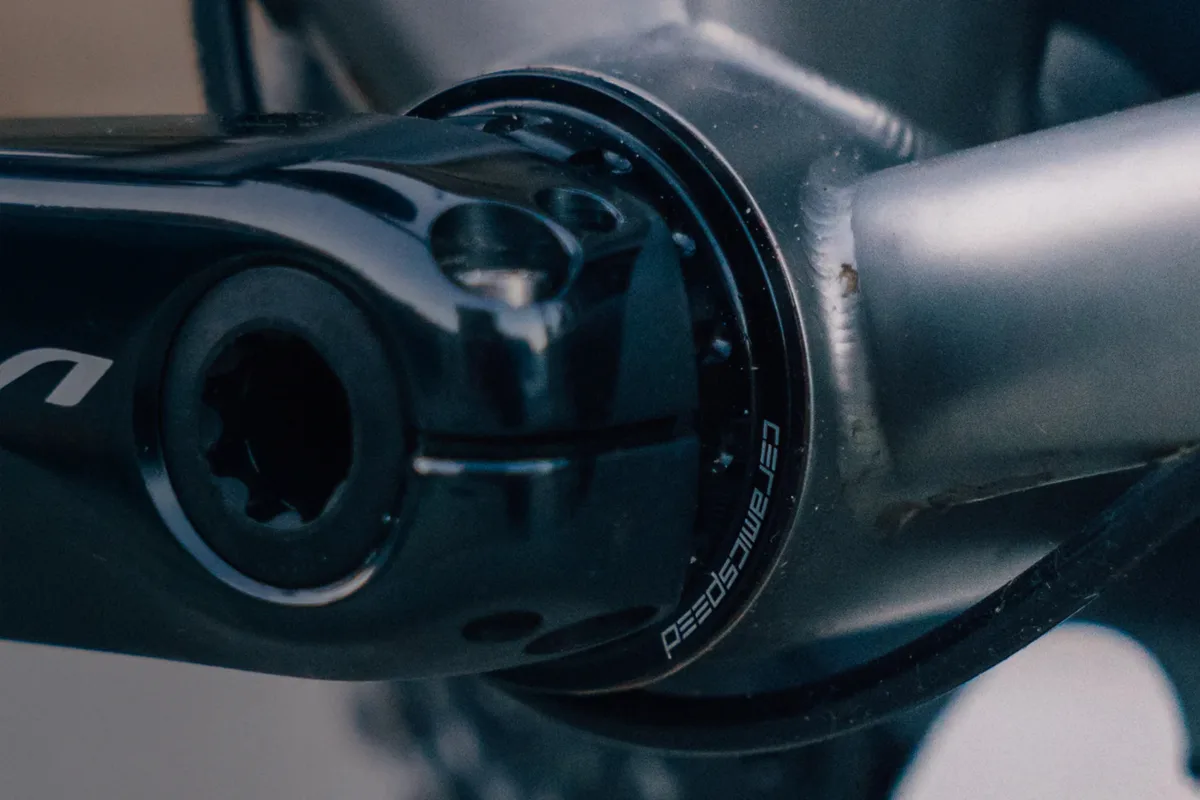

The second most common cause is the bottom bracket itself. The Trail 5 uses a cartridge bearing unit pressed into the frame. Over time, water and dirt get past the seals, the grease dries out, and the bearings start to make noise.

If you hear a grinding or rough sound that speeds up with your cadence, that’s the bearing, not the crank.

Finally, don’t overlook the chainring bolts. Four or five small bolts hold the chainring to the crank spider. If they’re loose, you’ll get a click that sounds exactly like a crank problem but has nothing to do with the crank arms.

A quick check with a hex key rules this out in under a minute.

How to Pinpoint the Noise: Click, Creak, or Grind

Image source: Bing (Web (fair-use with source credit))

Not all crank noise is the same. The specific sound tells you exactly where to look. This is the fastest way to avoid replacing parts you don’t need.

Listen carefully on your next ride, or better yet, put the bike on a stand and pedal by hand while you isolate the noise.

If it’s a click: A sharp, single click per revolution usually points to a loose crank arm bolt or a loose chainring. Stand up and pedal hard. If the click gets louder under load, that’s the square-taper interface rocking.

Stop pedaling and coast. If the noise stops when you coast, it’s drivetrain-related, not a wheel bearing.

If it’s a creak: A creak that happens once per pedal stroke and sounds like an old wooden floorboard is classic bottom bracket creak. It’s the cartridge bearing housing flexing inside the frame or the crank spindle moving against the taper. This is the most annoying one because it’s intermittent and often disappears when you spray lubricant on it, then comes right back under real load.

If it’s a grind: A continuous grinding or gritty feeling that matches your pedal cadence means the bearing is dry or contaminated. You might even feel a slight roughness through the pedals. This is a failing bearing.

It won’t fix itself, and riding on it long enough will eventually damage the bottom bracket shell in the frame.

If you can’t reproduce the noise on a stand, take it for a short ride around the block. The key variable is load. Stand up, pedal hard, then sit and pedal smoothly.

The difference tells you whether it’s the crank interface or the bearing.

Step-by-Step: The Most Likely Fix

Image source: Bing (Web (fair-use with source credit))

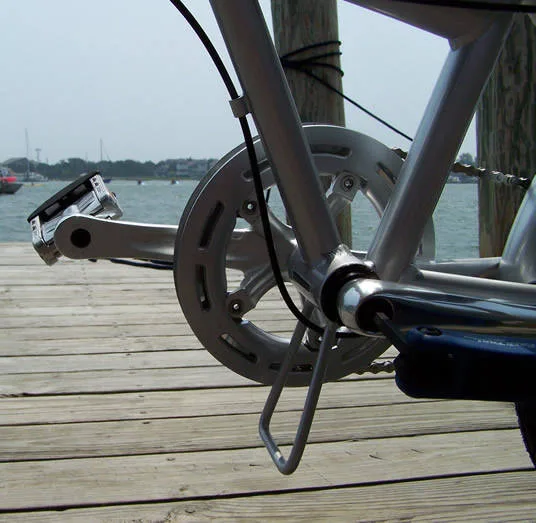

Start with the cheapest and most common fix before you touch anything else. You need an 8mm Allen key and a torque wrench. That’s it.

This takes about ten minutes.

Step 1: Remove the dust cap. Both crank arms have a small plastic cap in the center. Pop it off with a flathead screwdriver or a plastic pry tool. Set it aside; they’re easy to lose.

Step 2: Check bolt torque. Insert the 8mm Allen key and feel for play. If the bolt turns freely or feels loose, that’s your problem. The correct torque for the square-taper crank bolt is 35, 40 Nm.

If you don’t have a torque wrench, tighten it firmly, then give it a solid quarter-turn more. You’re not trying to strip it, but you want it snug.

Step 3: Grease the interface. If the bolt was tight and the noise continued, remove the bolt completely and pull the crank arm off the spindle. It might be stuck; if so, use a crank puller tool, not a hammer. Once off, apply a thin layer of grease to the square taper, then reinstall the arm and torque the bolt to spec.

This stops the creak in most cases.

Step 4: Check the non-drive side. The non-drive side (left arm) is the one that loosens most often. It’s the one without the chainring. Repeat the same process there.

Step 5: Check chainring bolts. If the crank bolts were tight and the noise is still there, grab a 5mm Allen key and check the four or five bolts around the chainring. Tighten them if they move even slightly.

If the noise is gone, you’re done. If it persists after all five steps, move to the bearing diagnosis below.

Mistakes That Send People to the Shop

Let’s talk about what not to do, because we see these mistakes constantly in owner forums and repair logs.

The first and most common one is replacing the crank arms entirely. The forged arms on the Trail 5 don’t wear out. Throwing a new crankset at a loose bolt is a $60 to $100 mistake.

The second mistake is over-torquing the crank bolt. We get it, you want it tight. But exceeding 40 Nm on a square-taper interface can deform the taper or strip the threads in the arm.

Once that happens, the arm is permanently damaged and needs replacement. Use a torque wrench. It’s a $25 tool that saves you a $50 part.

The third mistake is ignoring the noise and “riding it out.” A small creak can turn into a wallowed-out spindle hole in the crank arm within a few hundred miles. That’s a much bigger repair. The good news is you don’t need to fix it right this second, but you should address it within a week.

Another classic error is spraying WD-40 or chain lube at the bottom bracket from the outside. This is a temporary fix at best. It quiets the noise for a ride or two because it creeps into the interface, but it also washes out whatever grease is left in the bearing.

You’ll need to do it again and again, and each time you’re making the eventual bearing failure worse.

The last mistake is forgetting the chainring bolts. Many riders torque the crank, test the bike, hear the click, and immediately blame the bottom bracket. Meanwhile, the chainring is rattling on four loose bolts.

Check that early. It takes less time than making a cup of coffee.

Quick Answers: Common “Crank Noise” Questions

Is a clicking crank on a Cannondale Trail 5 dangerous to ride?

No, not immediately. A clicking crank from a loose bolt is safe to ride short distances, but you should fix it within a week. Ignoring it for months risks damaging the crank arm taper or the bottom bracket spindle, which turns a quick bolt tightening into a parts replacement.

Why does my crank creak only when I pedal hard?

That’s classic square-taper interface creak. Under load, the crank arm rocks microscopically on the spindle, and that movement creates the noise. The fix is removing the arm, greasing the taper, and retorquing to 35, 40 Nm.

If it still creaks after that, the bottom bracket bearing is likely the culprit.

Can I fix the noise without removing the crankset?

Sometimes, yes. If the crank bolt is loose, simply tightening it to spec solves the problem. If the noise persists after that, you won’t know if it’s the bearing or the interface until you pull the arm.

Fortunately, removing the crank on a Trail 5 only takes a few minutes with a basic Allen key.

How often should I check the crank bolts on a Trail 5?

Cannondale recommends a full bolt check after the first 100, 200 miles, then every 50, 100 riding hours afterward. The Trail 5’s bolts tend to loosen slightly during the initial break-in period, so a single early check prevents the vast majority of creak complaints.

Will a new bottom bracket fix the noise if the crank bolts are tight?

It depends. If you’re hearing a grinding noise or a creak that persists after greasing and retorquing the crank arm, yes, a fresh bottom bracket cartridge will likely solve it. Trail 5 frames use a standard BSA threaded shell, and replacement cartridges are common, inexpensive, and easy to install.
