Good morning.

So your brake lever pulls all the way to the grip. Or maybe it feels like there's sand in the cable. The Cannondale Trail 5 brake cable problem can turn a fun ride into a frustrating one.

Most owners run into this within the first year of ownership.

The factory housing on the Trail 5 compresses over time. Manufacturer specs for the Tektro mechanical discs call for a firm lever with about 1/8 inch of free play before engagement. When the housing settles, that gap disappears and the lever goes soft.

Let's walk through exactly what's happening and how to fix it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Cannondale Trail 5 brake cable problem usually comes from housing compression at the head tube. Internal cable routing creates a sharp bend there. The housing settles into that bend over time.

This makes the lever feel spongy. Fixing it requires reseating or replacing the housing. Barrel adjusters alone won't solve it if the housing is already compressed.

Quick Decision Flow: What's Your Symptom?

Your fix depends entirely on what the lever is doing. Grab the bike and feel the brake right now. Match it to one of these three conditions.

If the lever feels spongy but stops firm about halfway through, that's housing compression. If it's smooth but weak, you need more tension. If it's jerky or rough, the inner cable is likely frayed.

Why It Happens: The Common Failures on a Trail 5

The Trail 5 uses internal cable routing through the top tube. That means the housing enters the frame at the head tube and comes out near the bottom bracket. It makes the bike look clean.

But it also creates a tight bend where the housing exits the frame and heads to the caliper.

Here's the thing about the Trail 5 specifically. The stock housing is standard spiral-wound. It's not compressionless.

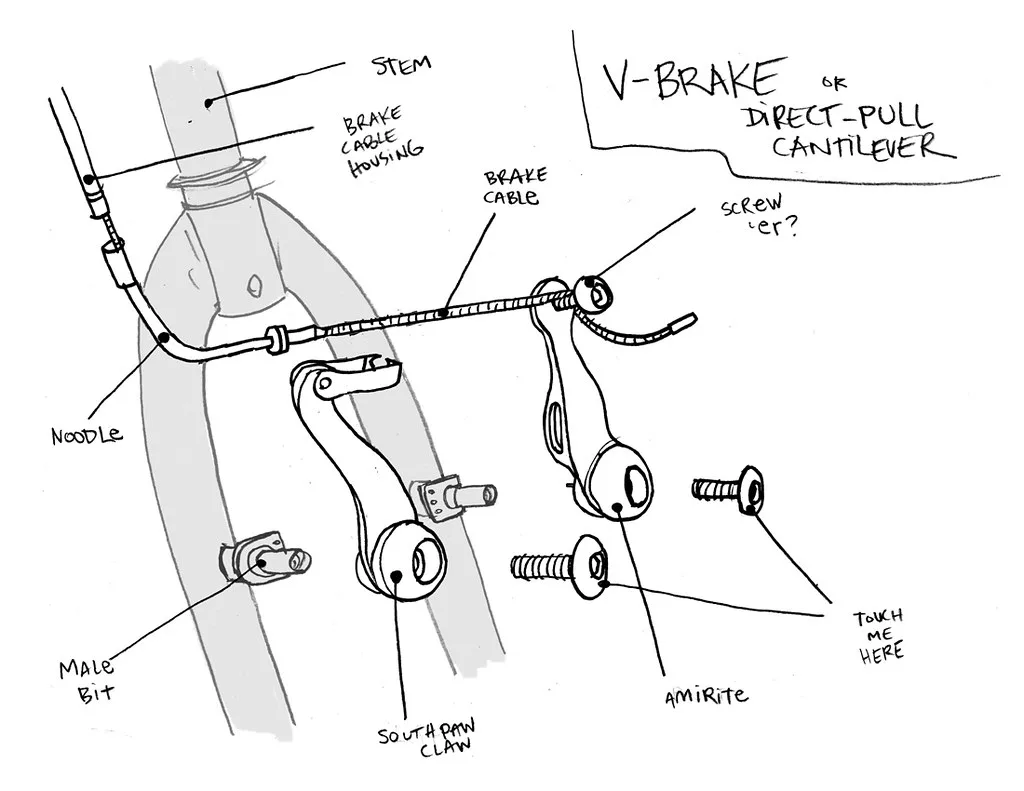

Spiral housing compresses under load, especially at those sharp bends. After a few months of braking, the housing squishes slightly at the head tube exit. That 1 to 2 millimeters of compression translates into a mushy lever feel.

Image source: Bing (Web (fair-use with source credit))

The other common failure point is the cable end where it pinches at the caliper. The stock cable ends can fray if you overtighten the pinch bolt. Even a single frayed wire creates drag inside the housing.

That drag makes the lever return slowly, which you might mistake for a sticky caliper.

Step-by-Step: Fixing Each Brake Cable Problem

Grab a 4mm and 5mm hex key, cable cutters, and a fresh cable and housing kit. You'll also need a crimp cap for the cable end. A basic workstand makes this much easier, but you can do it on the ground if you're careful.

Symptom A: Spongy or soft lever

This is the most common complaint on the Trail 5. The fix is straightforward. Start by loosening the pinch bolt at the caliper with a 4mm hex key.

Pull the inner cable taut by hand. Then tighten the bolt to 5 Nm (fingertight plus a quarter turn is fine if you don't have a torque wrench).

Here's the part most people miss. After tightening, squeeze the brake lever hard five to ten times. This seats any remaining compression out of the housing.

Then check the lever feel again.

Image source: Bing (Web (fair-use with source credit))

If the lever still feels soft, the housing needs replacement. Buy a fresh housing kit. Cut the new housing about 5mm longer than the old piece at the head tube end.

That extra length prevents the same compression problem from reoccurring.

Symptom B: Lever feels sticky or rough

A gritty lever means the inner cable is damaged. Remove the cable from the caliper and slide it out of the housing. Look for frayed wires near the cut ends or any corrosion spots.

If you see damage, replace both the inner cable and the housing. Running a rough cable through new housing will just damage the new housing too.

Cut the new housing square with sharp cable cutters. Use a housing file or a small drill bit to deburr the inner liner. A burr inside the housing will destroy a new cable in ten rides.

Symptom C: Pads rub constantly after cable work

You adjusted the cable tension and now the pads drag. This is a caliper alignment issue. Loosen the two bolts that mount the caliper to the frame.

Just enough so the caliper can wiggle. Squeeze the brake lever hard and hold it. While holding the lever, retighten the caliper bolts to 8 Nm.

This centers the caliper on the rotor. Release the lever and spin the wheel. If it still rubs, you may need to recenter the caliper manually with a 5mm hex key while looking at the pad gap.

Common Mistakes That Waste Your Time (and What To Do Instead)

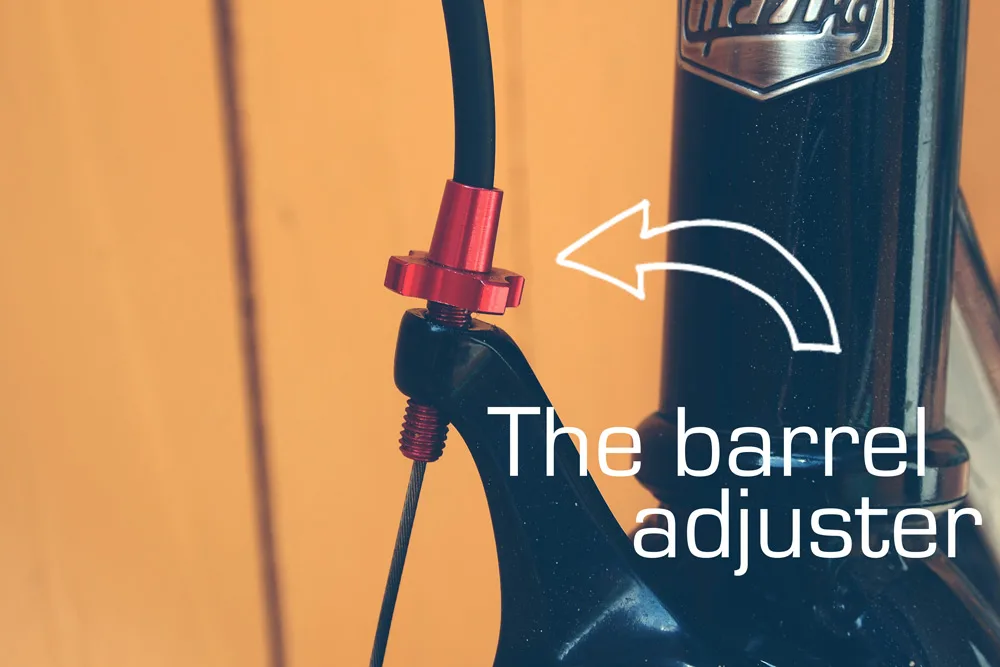

The biggest mistake we see is cranking on the barrel adjuster to fix a spongy lever. The barrel adjuster adds tension but does not fix compressed housing. You'll run out of threads before you solve the problem.

The lever will feel firm but the pads will drag because you've pulled the caliper too far inward.

Another common error is cutting the housing too short. The Trail 5's internal routing needs enough slack at the head tube to allow the handlebars to turn fully. Cut the housing too short and it pulls tight in a turn, activating your brake.

Add 10 centimeters of extra housing at the head tube end. Route it loosely so the bar can rotate without tension.

Per Park Tool's repair guides, always lubricate the inner cable lightly with Teflon or silicone grease before inserting it into new housing. Dry cables rust from the inside out, especially on a bike ridden in wet conditions. A light coat of lubricant extends cable life by months.

Frequently Asked Questions

Why does my Trail 5 brake lever pull to the grip?

Housing compression at the head tube bend is the most likely cause. The housing settles into the bend over time, reducing tension. Reseating or replacing the housing usually fixes it.

Barrel adjusters only mask the problem if the housing is already compressed.

Can I just tighten the cable instead of replacing the housing?

You can tighten it as a temporary fix. But the compressed housing will continue to settle. You'll find yourself adjusting the barrel adjuster every few rides.

Replacing the housing with a fresh piece is the permanent solution.

What type of housing should I use for replacement?

Use compressionless housing (also called linear strand or parallel strand). It resists compression much better than standard spiral housing. Measure the old housing length and add 5 to 10 millimeters for the new piece.

How often should I replace brake cables on the Trail 5?

Replace cables and housing once a year for regular trail riding. If you ride in wet or muddy conditions often, replace them every six months. Dry climate riders can stretch that to 18 months.

Check for fraying at the ends and corrosion spots regularly.

Do I need special tools for internal cable routing?

A cable fishing tool or a strong magnet helps. The Trail 5 has a liner tube inside the frame for the rear brake housing. If the old housing is stuck, you can use the old inner cable to pull the new housing through.

Tie the new housing to the old inner cable with electrical tape.
