Cannondale Trail 5 Brake Rotor Rubbing

That scraping sound from your front wheel is almost certainly the brake rotor rubbing against the pad. Cannondale Trail 5 brake rotor rubbing is common, but it is also one of the easiest problems to fix at home. Manufacturer specifications indicate the rotor should spin with zero contact once the wheel is fully seated and the caliper is centered.

Per ISO 4210 safety standards for disc brake systems, lateral runout on the rotor should stay under 0.2 millimeters. Anything beyond that creates drag and noise. Let us walk through the diagnosis so you can get back to riding without that scrape.

Quick Answer

Loosen the caliper bolts slightly. Squeeze and hold the brake lever. Tighten the bolts while holding it.

Spin the wheel. Noise gone? Problem solved.

That fixes roughly 80 percent of rubbing issues on this model.

The #1 Culprit: A Misaligned Caliper

Image source: Bing (Web (fair-use with source credit))

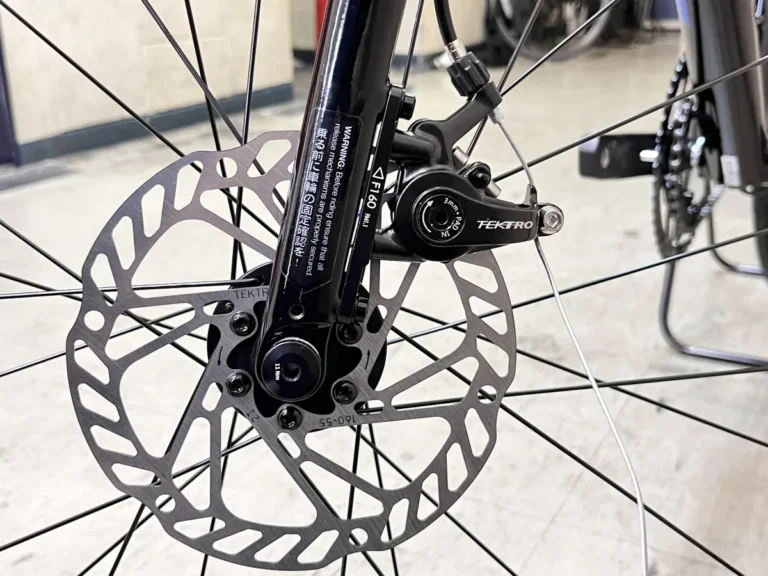

A misaligned caliper is the most common cause of brake rub on the Cannondale Trail 5. When you remove the wheel or hit a bump, the caliper can shift slightly off center. One pad then presses harder against the rotor.

The fix is simple. Use a 4mm or 5mm hex wrench to loosen the two caliper mounting bolts just enough so the caliper wiggles. Do not remove them completely.

Squeeze the brake lever firmly and hold it. The caliper self-centers. While holding the lever, tighten the bolts to the torque spec in the Cannondale owner manual.

If this does not solve the rub, move to the full diagnostic below.

How to Diagnose Exactly Where the Rub Is Coming From

Check Wheel Seating First

Before touching the caliper, confirm the wheel is fully seated in the dropouts. A wheel off by even 1 millimeter pushes the rotor sideways. On the Trail 5, this happens often with the quick-release front wheel if the skewer is not fully closed.

Open the quick-release lever, push the bike down firmly to seat the axle, then close the lever with firm hand pressure.

Spin and Listen: The Rotor Test

Lift the wheel off the ground and spin it hard. Listen for a rhythmic scrape that happens once per wheel rotation. That tells you the rotor itself is bent.

A constant scrape that does not change with wheel position points to a misaligned caliper.

The Caliper Squeeze Trick

If the rub is constant, perform the squeeze trick described above. If it is rhythmic even after the squeeze, you have a bent rotor.

Pad Inspection and Wear Check

Image source: Bing (Web (fair-use with source credit))

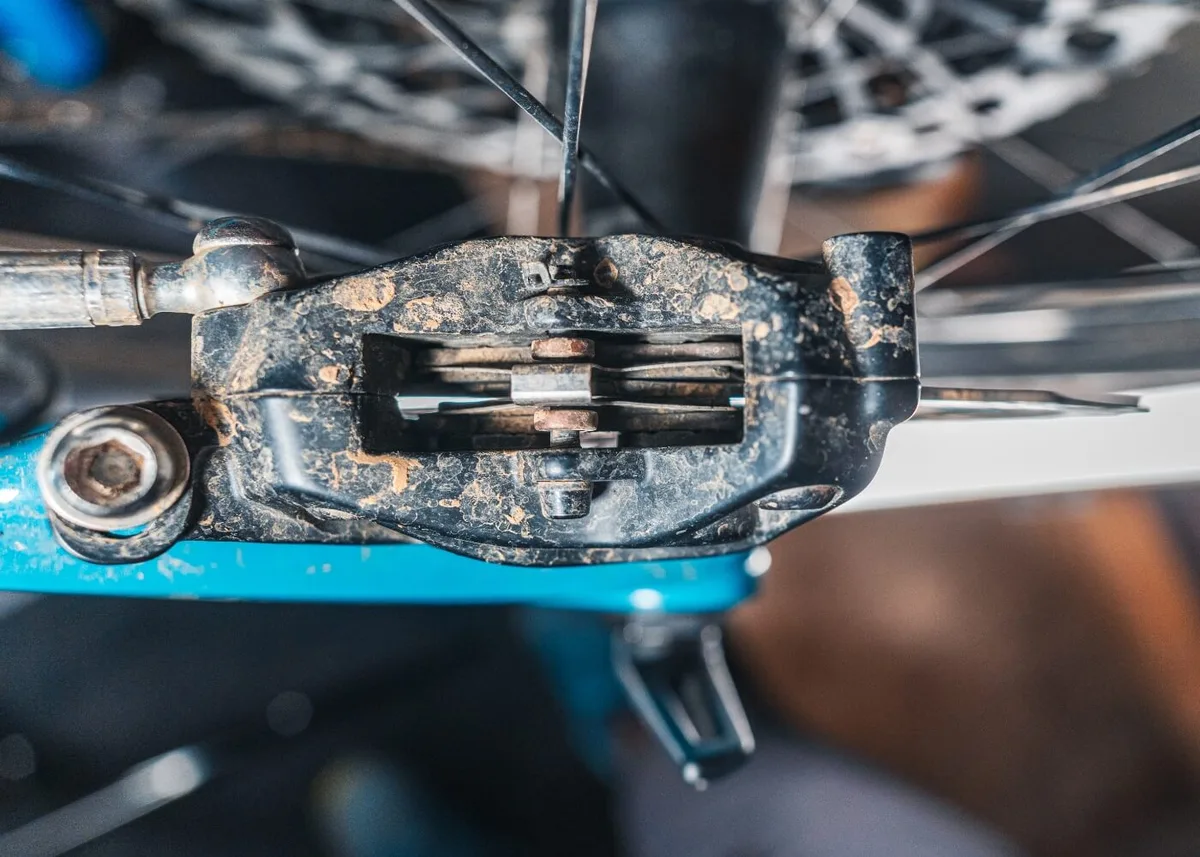

Remove the wheel and look at the brake pads through the caliper slot. If one pad is thinner than the other, the piston may be stuck or the pad is worn out. Replace pads when the friction material reaches 1 millimeter of thickness.

Uneven pad wear also causes rubbing by pushing the rotor to one side.

Don't Overlook These Simple Culprits

Loose Rotor Bolts

The Trail 5 uses a 6-bolt rotor mount. If any of those six bolts are loose, the rotor will wobble and rub. Check each bolt with a 3mm hex wrench.

Tighten them to 4 to 6 Newton-meters. You can feel a loose bolt by trying to wiggle the rotor with your finger while the wheel is off.

Over-Tightened Quick-Release

This is a sneaky one. Crank the skewer too tight and you can warp the hub or force the rotor out of alignment. Use firm hand pressure on the lever until it leaves a small imprint in your palm.

Do not use a tool to tighten it further.

Contaminated Pads or Rotor

Oil, chain lube, or tire spray can land on the rotor or pads. This creates grabby, rubbing, or squealing brakes. Clean the rotor with isopropyl alcohol and a clean rag.

If the pads are contaminated, sand them lightly with fine-grit sandpaper. Replace them if the noise persists.

When an Otherwise Good Rotor Gets Bent

How to True a Rotor at Home

Image source: Bing (Web (fair-use with source credit))

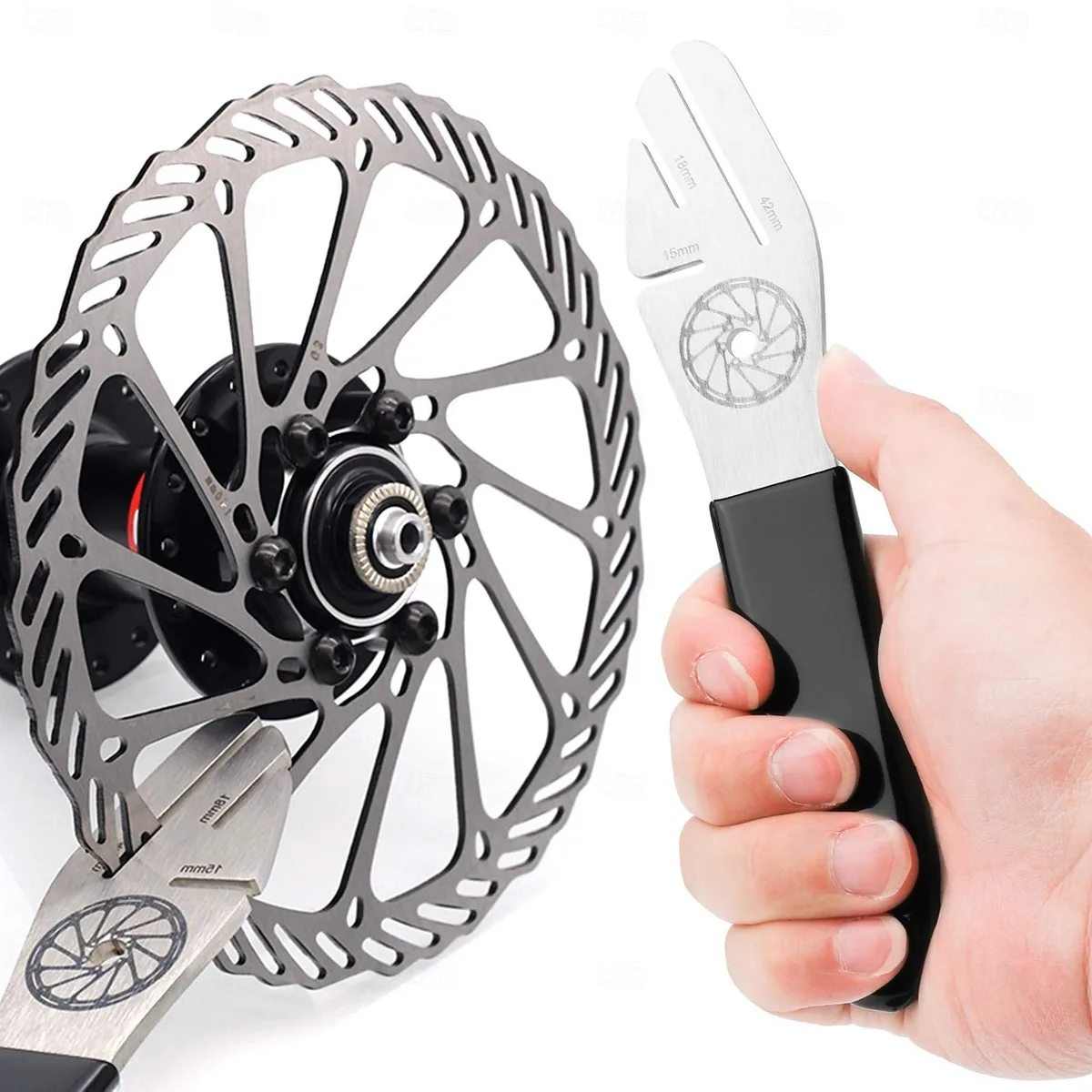

A bent rotor produces that rhythmic scrape. Spin the wheel and watch the gap between the rotor and the pad. Where the rotor moves toward the pad, that is the bend point.

Use a truing tool or an adjustable spanner to gently bend the rotor back. Push the rotor in the opposite direction of the bend. A tiny adjustment goes a long way.

Recheck after each small tweak.

Per Shimano's technical documentation, a runout of 0.2 millimeters or less is acceptable.

When to Replace Instead of Fix

If the rotor has a visible crack, deep gouge, or a bend that cannot be straightened without kinking the metal, replace it. Also replace if the rotor thickness measures below 1.5 millimeters with a caliper. The Trail 5 usually comes with 180mm front and 160mm rear rotors.

Replacing is a straightforward bolt-on swap.

Frequently Asked Questions

Why does my brake rub only when I pedal hard?

That is usually a bent rotor or a loose wheel. Pedaling hard flexes the frame and fork, which can push a slightly bent rotor into the pad. Check wheel seating first, then rotor trueness.

Can a brand new Cannondale Trail 5 have rotor rub?

Yes. New bikes often have rotors that are not fully bedded in. The caliper can also shift during shipping.

The squeeze trick usually fixes it. If not, check for a bent rotor from transport.

How do I know if the rotor is bent or the caliper is off?

Spin the wheel and listen. Rhythmic rub equals bent rotor. Constant rub equals misaligned caliper.

Do the squeeze trick. If it still rubs rhythmically, you have a bent rotor.

What torque should I use for caliper bolts on the Trail 5?

Cannondale specifies 8 to 12 Newton-meters for caliper mounting bolts. Use a torque wrench if you have one. Over-tightening can strip the frame threads.

Will the rubbing go away on its own as the pads wear?

Do not count on that. The rub often gets worse as pads wear unevenly. Fix it right away to avoid dragging brakes and wasted pedal effort.

Can I ride with a rubbing brake for a short trip?

It is safe for a short ride, but it will slow you down and wear out the pads faster. Fix it at home before heading out.
