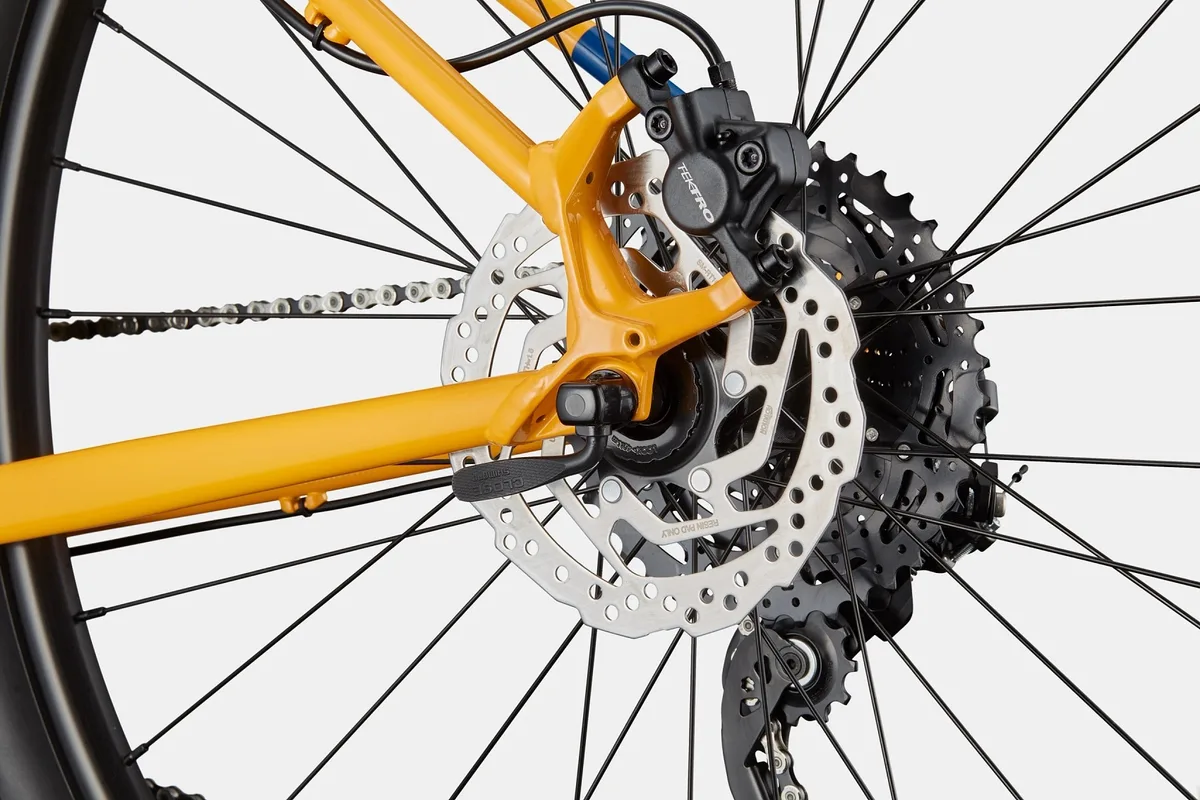

Cannondale Trail 5 Wheel Bearing Problem

If you've noticed a gritty grind, wobble, or dull click from your Cannondale Trail 5 wheel bearings? It's a common issue, fixable at home with basic tools in about 30 minutes.

The Trail 5 uses a loose-ball bearing design in its hubs, not sealed cartridge units. Bearings sit on a machined cup and get preloaded by a cone nut, requiring periodic adjustment and fresh grease. As of 2026, Cannondale's specs still call for a cup-and-cone system on this wheelset.

Let's walk through the diagnosis and the fix.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Cannondale Trail 5 wheel bearing problem is almost always a loose preload cone, not a destroyed bearing. Ride it too long and you'll feel play at the rim, gritty rotation, or a rhythmic click under load. Fix takes a 15mm cone wrench, a 17mm backup wrench, and about 30 minutes. If bearing surface is pitted, replace loose balls and regrease. Catch it early to save the cup.

Is It Really the Bearings? (Diagnosing the Noise or Play)

Before pulling the wheel, confirm the bearings are the culprit. Many "bearing problems" are a loose quick-release skewer, a spoke pinging, or a disc rotor dragging. Here's how to tell in under two minutes.

The rim-wobble test. With the bike on the ground, grab the top of the tire and push hard side to side. If you feel a distinct clunk or metallic click at the hub, that's bearing play. If springy or vague, check the quick-release first. Per bicycle maintenance standards, the rim should not move more than a millimeter or two at the tire's edge.

The spin test. Lift the wheel off the ground and give it a solid spin. Listen for dry grinding, crunchy rattle, or rhythmic tick that speeds up with rotation. A healthy hub spins nearly silently with a faint, smooth hum. If you hear gravel-in-a-blender sounds, grease has broken down or contamination got past dust seals.

The rotor check. Squeeze the brake lever and rock the bike forward and back. If the click comes from the caliper area, it's likely a loose rotor bolt or warped disc, not your hub. Rotor issues make a metallic ting; bearing issues make a dull thud.

Your Fix Depends on the Hub Type: Loose Ball or Cartridge?

Image source: Bing (Web (fair-use with source credit))

The Cannondale Trail 5 ships with a loose-ball (cup and cone) hub. If you're working on a last few model years, you have a Shimano-style freehub with adjustable cones and loose balls. If someone upgraded wheels or you own a different trim, you might have sealed cartridge. Verify before buying anything.

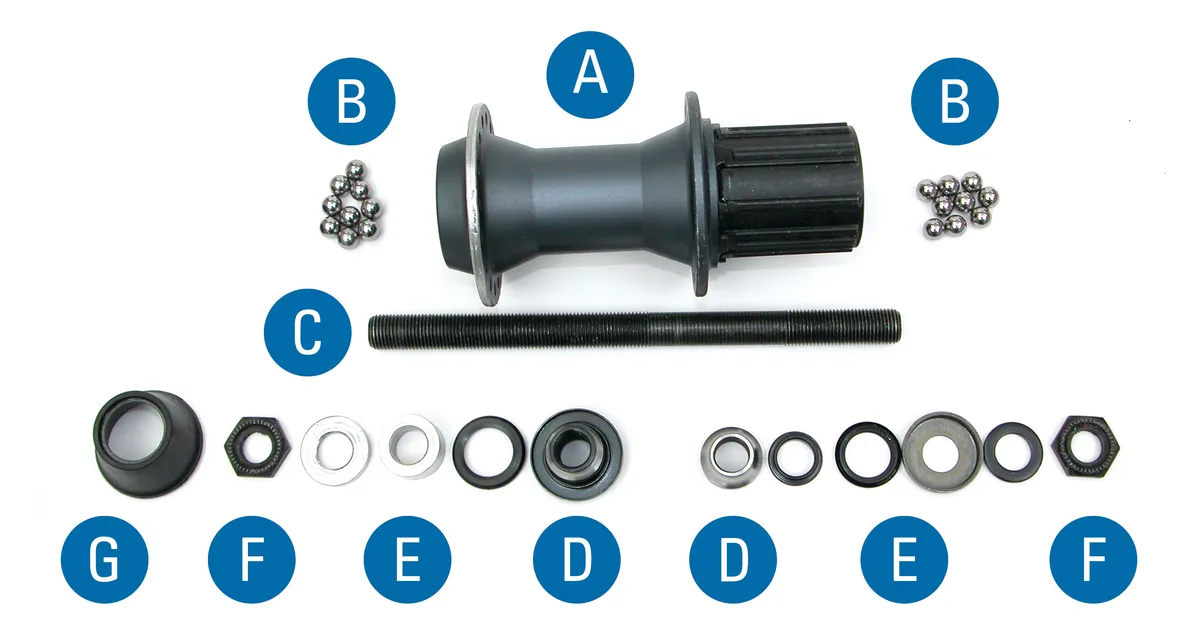

Loose-ball hubs (factory spec). Visible cone nut on each side (15mm or 17mm). Adjust with two wrenches. 30-minute job with wheel off.

Cartridge hubs (upgraded wheels). Sealed bearings pressed in. Play typically requires replacement, needing a bearing puller and press. More involved; worth taking to a shop.

How to check which one you have. Remove wheel, look at hub flange. Loose-ball hubs have a small hexagonal cone nut visible at axle end, often with a rubber dust cap. Cartridge hubs have a smooth, sealed end with no adjuster. If you see cone nut and locknut, it's loose-ball. If flat metal cap with snap ring groove, it's cartridge. Ten-second check.

Step-by-Step: How to Adjust or Replace the Bearings

Image source: Bing (Web (fair-use with source credit))

If loose-ball hub, here's the workflow: set preload so zero play at rim but balls spin freely.

Step 1: Remove the wheel and the axle hardware. Deflate tire slightly if needed. Loosen quick-release or through-axle, pull wheel off. On non-drive side, see cone nut and locknut. On drive side, see freehub body or cassette. Use cone wrench to hold cone, backup wrench to loosen locknut. Don't lose washers.

Step 2: Check the bearing surfaces. Once locknut off, thread cone off by hand. Remove loose balls with magnet or pick. Inspect each ball for pitting, flat spots, discoloration. Check cone for groove or rough ring. If damaged, need new parts.

Step 3: Regrease and reassemble. Pack hub cup with fresh lithium grease (multi-purpose bicycle grease with water resistance). Place balls back into cup, same count (usually nine or ten per side). Thread cone back on, not tight yet.

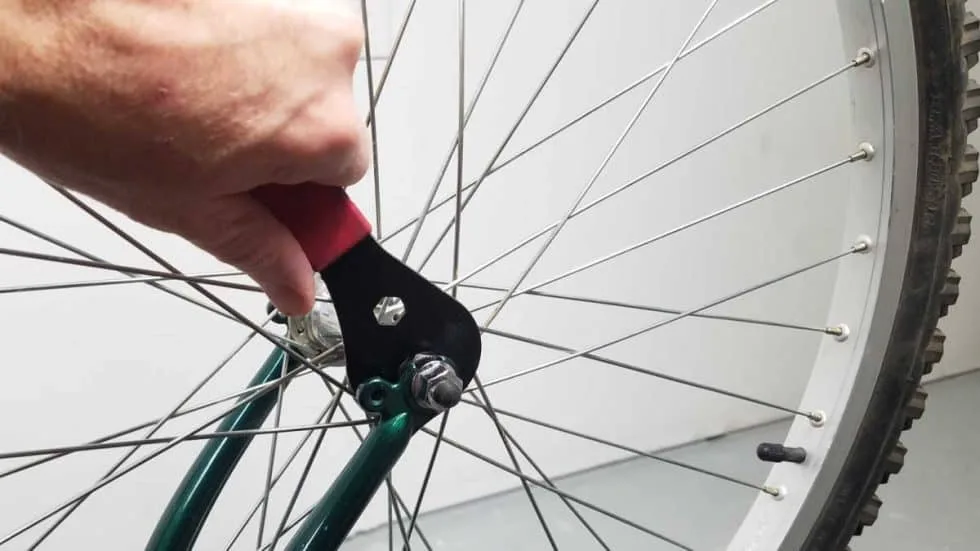

Step 4: Set the preload. Spin wheel gently, tighten cone while spinning. Stop when wheel starts to bind. Back off quarter turn. Reinstall locknut while holding cone perfectly still.

Step 5: Test the play. Reinstall wheel, repeat rim-wobble test. Zero lateral play. If still click, cone too loose. If sticky, too tight. Expect to nail it on second or third try.

Four Mistakes That Will Ruin Your Hub (and How to Avoid Them)

Mistake 1: Over-tightening to kill the play. Cranking cone to eliminate play binds balls and creates permanent groove in cup. Set preload so wheel spins with tiny drag, then install locknut without moving cone. Wheel should spin freely for several revolutions.

Mistake 2: Reusing damaged balls. Flat spot or chip wears cup faster. A full set of loose balls costs a couple dollars at any bike shop. Replace all at once. Mixing old and new causes premature hub failure.

Mistake 3: Losing the dust caps. Rubber dust caps keep water and grime out. If lost, contamination grinds balls to dust. Always remove wheel over clean, bright work surface; place hardware in tray or magnetic dish. Saves from $60 hub replacement.

Mistake 4: Using the wrong grease. Automotive grease too thick; thin oils wash out quickly. Use high-quality multipurpose grease with NLGI consistency of 1 or 2. Dedicated bike grease works. If grease is weird color and smells like solvent, don't use.

Frequently Asked Questions

How often should I service the Cannondale Trail 5 wheel bearings?

Check every 200 to 300 miles, or when play or noise appears. In wet or muddy conditions, interval shortens to about 100 miles. Full regrease advisable once a year or every 2,000 miles, whichever comes first.

What tools do I need to fix the bearing problem?

Cone wrench (15mm or 17mm), backup wrench for locknut, hex key for axle, clean rag. For replacing balls, small magnet or pick. No bearing press or puller required.

Can I tighten the bearings without removing the wheel?

Possible but not recommended. Need to hold cone nut still while torquing locknut, nearly impossible with wheel mounted. Pull wheel off, set in workbench vise.

How do I know when the bearings need replacing instead of adjusting?

If you see pitting, grooves, or discoloration on bearing surfaces, replacement needed. Also replace if individual balls have flat spots or chips. Adjusting won't fix physical damage.

Why does my wheel make noise after I adjusted it?

If noise persists after correct adjustment, grease likely broke down or surfaces were damaged before. Remove wheel, inspect balls and cones. If damage, replace bearings and regrease. If surfaces clean, check brake rotor drag or loose spoke.
