Schwinn Koen Handlebar Loose

Your Schwinn Koen handlebar is loose, and that needs fixing before the next ride. This is a common issue on kids' BMX-style bikes, usually pointing to a specific clamping part that needs attention. The good news: for most cases, it's a quick, at-home fix with one tool.

Manufacturer specifications confirm the Schwinn Koen uses a 1-inch threaded fork with a steel quill stem. The handlebar's security depends entirely on the tension of a single expander bolt inside that stem. Getting this right matters for safe steering, so let's work through the fix step by step.

Why Your Schwinn Koen Handlebar Feels Loose

The core reason is almost always the quill stem design. Unlike modern threadless stems that clamp around the outside of the fork, a quill stem inserts inside the fork's steerer tube.

Inside the stem sits a wedge-shaped piece called an expander. Tightening the top bolt pulls this wedge upward, forcing it against the inside walls of the steerer tube. Friction holds everything in place.

When that bolt loosens, the wedge loses its grip. The entire stem can wobble or rotate. Common causes include:

• A minor tip-over or crash that jars the bolt loose
• Rushed initial assembly at a big-box store
• Normal vibration from riding over bumps over time
• A worn or stripped bolt that can't hold tension

The problem isn't the handlebar itself. It's the internal clamping system that needs attention.

Image source: Bing (Web (fair-use with source credit))

First, Figure Out What's Actually Loose

Before grabbing a wrench, spend 60 seconds diagnosing exactly what's moving. This quick decision tree points you to the right fix.

The entire handlebar and stem rotate together, twisting left or right when you hold the front wheel still.

This means the stem's expander bolt is loose. Tighten the top bolt on the stem. This is the most common issue by far.

The handlebar wobbles up and down independently of the stem.

The handlebar clamp bolts on the front of the stem are loose. These are the two smaller bolts that pinch the bar. Use a 6mm Allen wrench and tighten them evenly, alternating between them.

The steering feels wobbly, but the stem and handlebar are both tight.

The problem is likely the headset, not the stem. The headset is the bearing system allowing the fork to turn inside the frame. You'll need to adjust the headset locknut and top race.

Our guide on the Razor A6 Headset Problem covers the general principle for threaded headsets.

How to Tighten a Schwinn Koen Quill Stem Handlebar

You need one tool: a 6mm Allen wrench (hex key). A torque wrench is ideal but not required if you're careful.

Step 1: Align the Handlebar

Stand over the bike and look down. Center the handlebar so it's perfectly straight with the front wheel. You can also straddle the front wheel, hold it between your knees, and twist the bars into alignment.

Step 2: Locate the Bolt

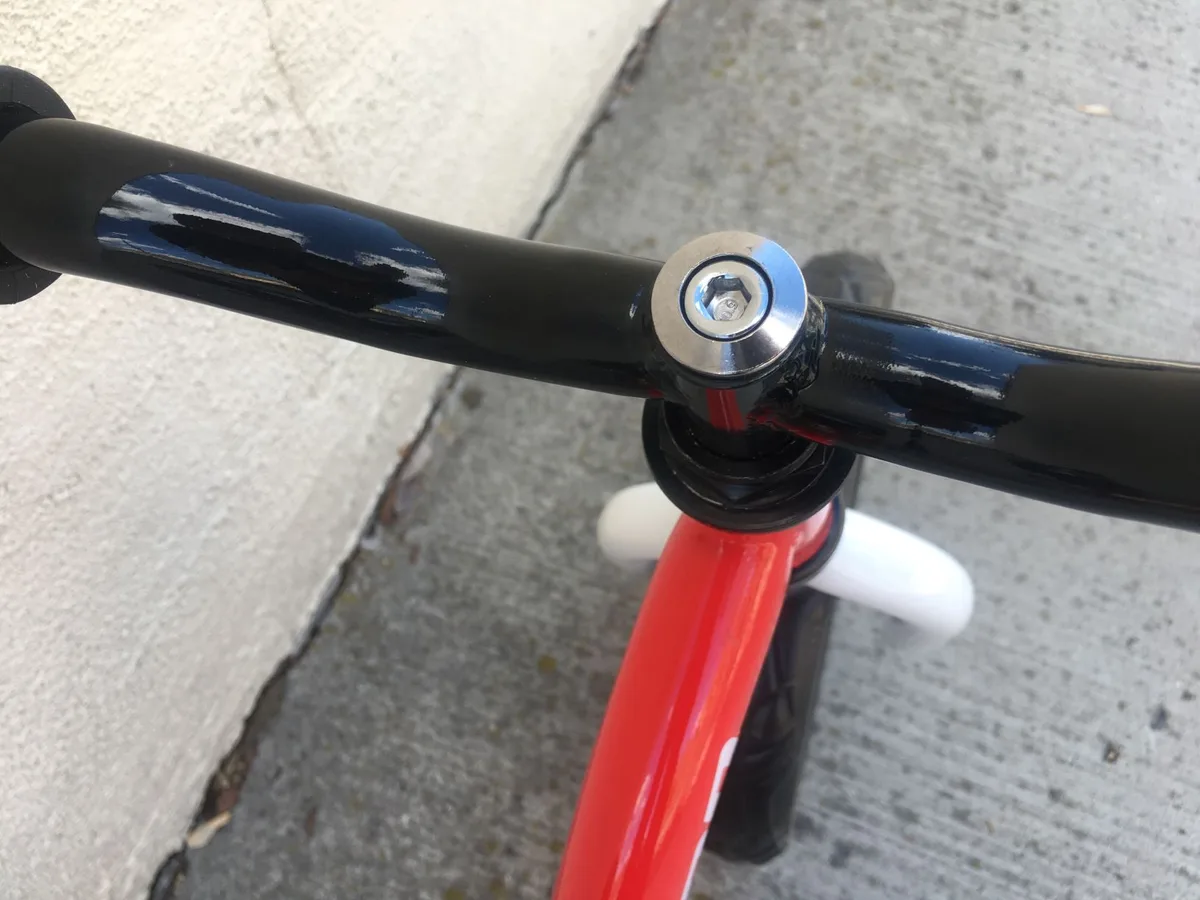

Look at the top of the stem where it enters the frame's head tube. You'll see a single bolt head. That's the expander bolt.

Image source: Bing (Web (fair-use with source credit))

Step 3: Tighten in Increments

Insert your Allen wrench. Turn clockwise to tighten. Do not crank with all your strength.

The suggested torque range for a quill stem binder bolt is roughly 15 to 20 Newton-meters. Without a torque wrench, tighten until very snug, then give it about a quarter-turn more. You should feel solid resistance.

Critical warning: Overtightening can strip threads or crack the stem. If the bolt suddenly spins freely without getting tighter, the threads are already damaged.

Step 4: The Final Check

Grab the handlebar and try to twist it forcefully. Shake it hard. There should be zero movement between the stem and the fork.

Go for a slow test ride in a safe area. Stand on the pedals and push against the bars. Everything should feel rock-solid.

What If the Stem Still Won't Stay Tight?

If you tightened the bolt correctly but the handlebar loosens again after a ride, something deeper is going on.

The bolt won't get tight. It spins but never feels snug. The threads inside the stem or on the expander bolt are stripped. The stem needs replacement.

Measure the quill diameter (likely 1-inch for the Koen) and the handlebar clamp diameter to match the part.

It's tight but works loose quickly. The expander wedge inside the stem may be worn, chipped, or corroded. The inside of the fork's steerer tube might be greasy or smooth, preventing grip. Remove the stem entirely.

Clean both surfaces with degreaser. Look for visible wear. If parts are damaged, replace them.

A very light layer of grease on bolt threads is fine during reassembly, but keep the steerer tube interior clean and dry.

Image source: Bing (Web (fair-use with source credit))

It holds, but other parts keep failing. If you find yourself repeatedly tightening this bolt, check the headset next. An excessively tight or damaged headset puts unusual stress on the stem. Per the Consumer Product Safety Commission's bicycle safety guidelines, regular safety checks prevent falls.

If something feels off, trust that instinct.

Mistakes That Make It Worse

Overtightening the bolt. This is the number one mistake. You can strip threads or crack the steel stem. Tighten to "very snug," not "maximum force."

Ignoring the headset. If the handlebar is tight but steering is wobbly, retightening the stem won't help. You're fixing the wrong problem.

Using the wrong tool. A worn or incorrect Allen wrench can round off the bolt head. Once that happens, adjustments become much harder.

Forgetting alignment. Tightening before the handlebar is straight means you'll loosen it again. Align first, then tighten.

Riding with "good enough." A loose handlebar on a child's bike is a serious safety hazard. A sudden rotation mid-ride can cause a bad fall. Fix it completely before the next use.

When to Take It to a Shop (and When You Don't Need To)

Most handlebar looseness on a Schwinn Koen is a five-minute home fix. But some situations genuinely need a professional mechanic.

Handle it yourself if the bolt just needs retightening and holds after torque, you need to clean corrosion off the expander wedge, the clamp bolts need snugging, or you're simply re-centering a shifted bar.

Visit a shop if the expander bolt spins freely and never tightens (stripped threads), the wedge is visibly chipped or corroded beyond cleaning, the stem is bent from a hard crash, you suspect worn headset bearings, or there's any visible crack near the head tube.

A local bike shop typically charges $15 to $40 for a basic stem and headset check. Replacement 1-inch quill stems run roughly $15 to $30. Our guide on Razor A6 Stem Problem covers similar stem-related symptoms that can help you describe the issue clearly to a mechanic.

If the handlebar loosens repeatedly despite proper tightening, that pattern alone justifies a shop visit. Persistent loosening points to a worn component that requires full disassembly to diagnose. Replacing a worn wedge before failure is always cheaper than repairing crash damage.

For other recurring hardware issues like frequent loosening on similar personal transport, the pattern often signals component quality rather than user error.

Frequently Asked Questions

How tight should the Schwinn Koen handlebar bolt be?

The expander bolt should be torqued to approximately 15 to 20 Newton-meters. In practical terms, that's very snug with a 6mm Allen wrench plus a quarter-turn more. If you don't have a torque wrench, firm hand pressure works.

Feel for solid resistance before that final quarter-turn.

Why does my kid's bike handlebar keep coming loose?

Repetitive loosening usually points to a worn expander wedge, stripped threads, or a greasy steerer tube interior that can't grip. Clean all contact surfaces with degreaser and inspect for visible wear. If the bolt spins freely without tightening, the stem needs replacement.

Can I ride with a loose handlebar temporarily?

No. A loose handlebar on any bicycle, especially a child's bike, is a serious safety risk. The bar can rotate suddenly mid-ride, causing a complete loss of steering.

Always fix the issue fully before the next ride.

What size Allen wrench does the Schwinn Koen need?

The stem expander bolt requires a 6mm Allen wrench. This is the standard size for most kids' BMX-style quill stems. A worn or incorrectly sized wrench risks rounding off the bolt head, making future adjustments much harder.

Is a loose handlebar covered under warranty?

Schwinn's limited warranty typically covers manufacturing defects for the original owner. A handlebar that arrives loose from the factory may qualify as an assembly defect. Contact Schwinn customer support with your proof of purchase.

Looseness from normal riding or crashes generally falls outside warranty coverage.

When should I replace the whole stem?

Replace it if the bolt won't hold tension, the wedge is visibly damaged, the stem is bent, or threads are stripped. A new 1-inch quill stem costs $15 to $30 and installs straightforwardly. If the steerer tube inside the fork is also damaged, that requires a fork replacement, which is best handled by a professional.

For other recurring loose-bolt patterns, a professional assessment often saves time and money.
