Electric Scooter Charging Port Problem

You go to plug in your scooter, and nothing happens. If you're facing an electric scooter charging port problem, you're in good company. It usually shows up the same way: you plug in the charger, and the LED stays green, or the battery gauge stays empty.

It feels worse because the scooter worked fine yesterday.

In our research, the most common culprits are a dead charger, a bent center pin, or a loose wire, not a dead battery. Most ports use a standard 5.5mm x 2.1mm DC barrel jack, and a $15 multimeter can isolate the fault in minutes. As of 2026, the repair often takes 30 minutes with a replacement part that costs under $30.

Quick Answer

Start with the charger. Then check the port pins. Then test the internal wiring.

If the port looks burnt, stop and call a pro. Most charging issues trace back to a broken physical connection, not a dead battery.

The Charging Chain: How the Port, Fuse, Wiring, and BMS Work Together

Think of the charging system as four links in a chain. The charger pushes DC voltage through the port. The port passes it along the charge wires to a fuse.

The fuse protects the battery from shorts. From there, the battery management system controls how current flows into the cells.

Most e-scooters use a 36V or 48V lithium-ion pack. The charger outputs roughly 42V or 54.6V. If any single link breaks, the whole chain stops.

That's why the scooter won't charge even though the battery is fine.

The port itself is a simple connector. Common styles include the 5.5mm x 2.1mm DC barrel jack and a 3-pin XLR connector. Some brands use magnetic charging connectors.

A rubber flap usually protects it from rain and dust.

Internal wiring matters too. Thin wires run from the port to the fuse and BMS. Over time, vibration can loosen connections.

The inline fuse, often a 10A or 15A blade fuse, can blow after a short. Corrosion at connectors is common in humid coastal areas.

The BMS is the smart gatekeeper. If it senses a voltage spike or reversed polarity, it can lock the pack. That's a safety feature, not a failure.

Some BMS units stay locked until you plug in a properly matched charger.

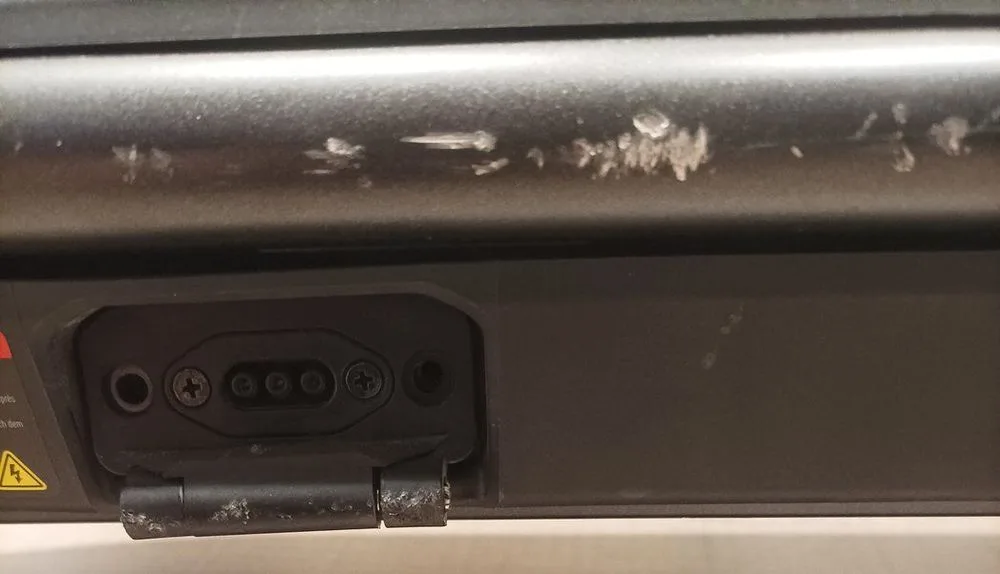

A quick visual check tells you a lot. Look for bent pins, burnt plastic, or rust. We'll show you exactly how to test each link in the next section.

Step-by-Step: Test the Charger, the Port, Then the Rest in the Right Order

This order saves time. It uses if-then logic. Follow it exactly.

Step 1: Test the wall outlet. Plug your phone charger into the same outlet. If that works, the outlet is fine.

Step 2: Test the scooter charger. Plug the charger into the wall, but don't plug it into the scooter. The charger's own LED should light up. If it stays dark, the charger is dead.

Step 3: Check the charger output voltage. Set a multimeter to DC volts. Insert the probe into the charger's plug. For a 36V pack, you should see about 42V.

For 48V, expect 54.6V. No voltage means the charger is faulty.

Step 4: Inspect the port visually. Look for a bent center pin, black scorch marks, or green corrosion. A bent pin is fixable with tweezers, but only if the metal isn't cracked.

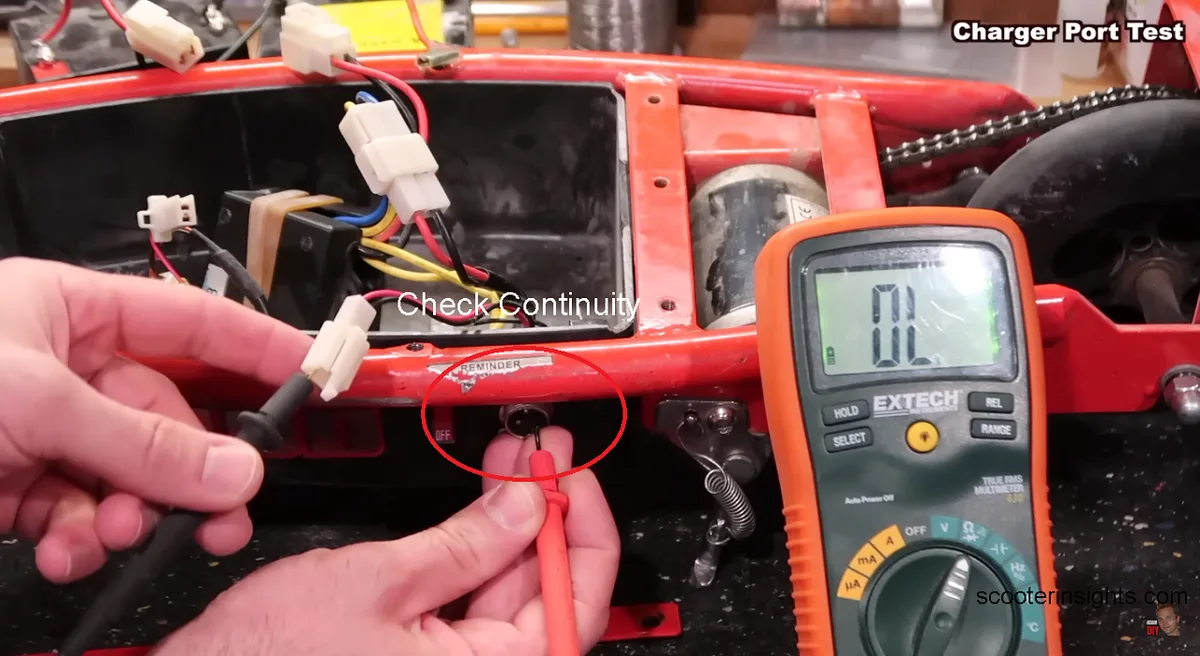

Step 5: Test continuity from port to battery. Turn everything off. Set the multimeter to continuity mode. Touch one probe to the port's positive pin and the other to the corresponding wire inside the deck.

No beep means a break in the wiring.

If every test passes but the scooter still won't charge, move to the fuse and BMS. Locate the fuse and check it with the multimeter. A blown fuse reads infinite resistance.

Replace it with the same amp rating.

If you ever smell burnt plastic or see melted wire insulation, stop. The U.S. Consumer Product Safety Commission tracks e-scooter fire incidents tied to damaged charging circuits.

It's not worth the risk to keep testing.

How to Replace a Damaged Charging Port Without Killing Your Battery

Replacing the port is a 30-minute job for most scooters. You need basic tools, a replacement port, and patience. Always disconnect the battery first.

That rule prevents sparks.

First, remove the deck cover. Usually it's four to eight screws on the bottom. Keep the screws organized.

Once inside, unplug the battery harness before touching anything else.

Look at the existing port. Most are held in by a nut inside the deck. Unscrew that nut and push the port outward.

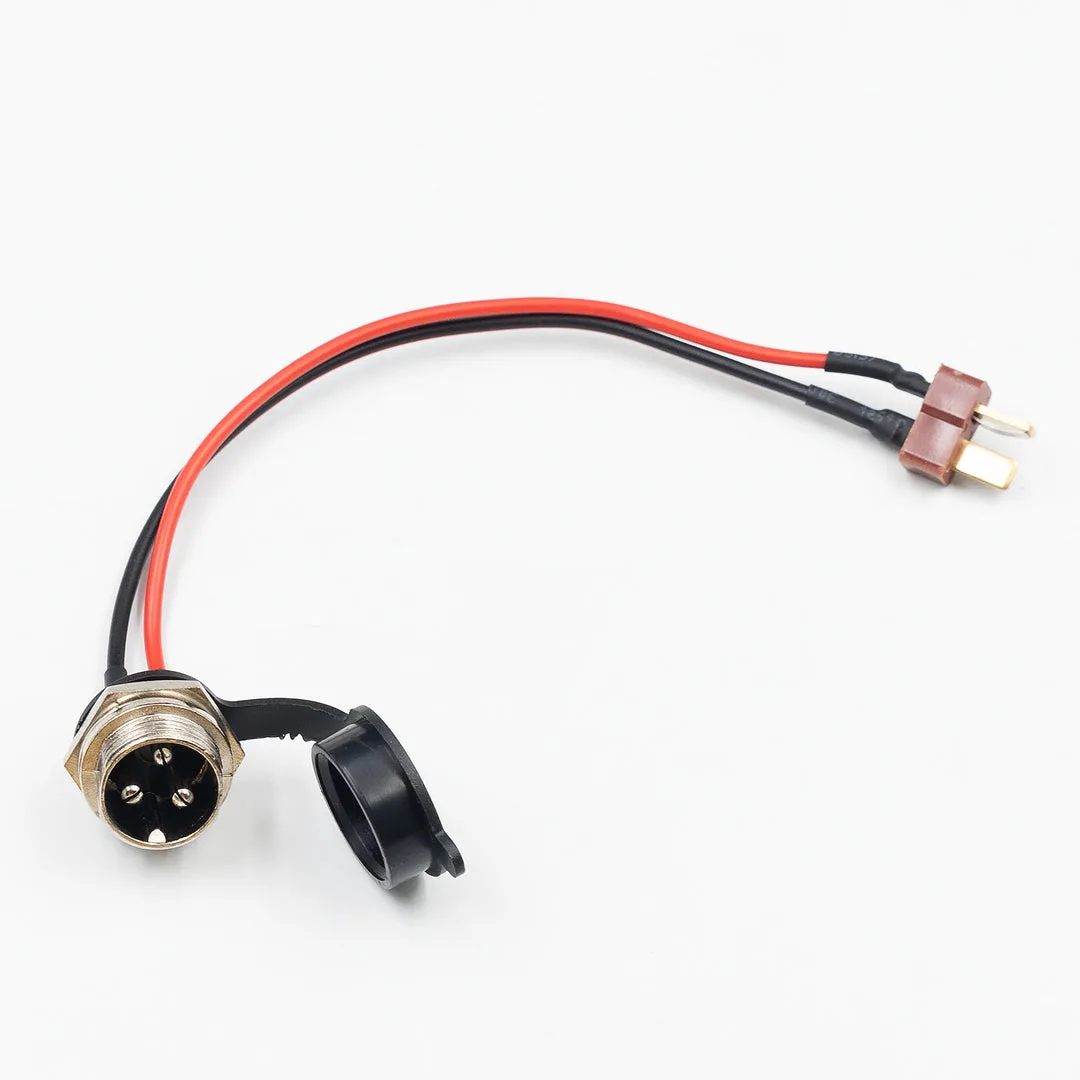

If the wires are soldered, cut them close to the old port and strip a little insulation. If the port has a pigtail connector, just unplug it.

Solder the new wires to the correct terminals. Double-check polarity before you close the deck. Center-pin positive is standard on most DC barrel jacks.

Heat shrink tubing protects each solder joint. A dab of silicone grease inside the connector keeps corrosion away. Then thread the new nut, reattach the battery, and test the charger.

The LED should switch from red to green within minutes if the pack is below full.

If it still won't charge, the problem is the BMS or battery. That's when you call a pro.

Common Mistakes That Turn a $10 Fix Into a $150 Battery Replacement

The biggest mistake is jumping straight to a new battery. In our research, most charging failures trace back to the port or charger. Replacing the pack first is expensive and rarely fixes the real issue.

Another mistake is using the wrong charger. A 48V charger plugged into a 36V scooter can damage the BMS permanently. Check the label before every charge.

Forcing a plug also causes damage. If the plug doesn't slide in easily, the port is blocked or the pins are misaligned. Jamming it bends the center pin.

That turns a $10 fix into a bigger headache.

Water is a silent killer. Many owners ride in the rain, then charge with a damp port. Water causes corrosion and shorts.

Always dry the port with compressed air or a cotton swab before plugging in.

Skipping the fuse check is another common error. The fuse is cheap and easy to test. Ignoring it leads people to replace the entire charging harness, which is unnecessary.

Finally, reconnecting the battery without verifying polarity can fry the BMS. Take a photo before you disconnect anything. That simple habit saves real money.

When NOT to DIY: Warped Connectors, Burnt Smells, and Warranty Red Flags

Some problems look like a simple fix but hide serious risk. You need to know when to close the deck and hand it to a pro.

The burnt smell rule. If you smell ozone or melted plastic near the charging port, stop immediately. That smell means the wires have already overheated. Continuing to test could cause a lithium-ion fire.

The warped connector rule. If the port housing is deformed or the plastic around the pins looks melted, the charger or BMS pushed too much current through a bad connection. A new port won't fix it if the internal wiring is also damaged.

The warranty rule. Many e-scooter warranty terms explicitly prohibit cutting or soldering wires. A single nick on the cable can void the coverage. Check your scooter's warranty before you touch a soldering iron.

The BMS lockout rule. If the multimeter shows voltage at the port but the battery pack won't charge, the BMS may be in permanent lockout mode. This happens after a deep discharge or a polarity reversal. Only a qualified repair center with the right software can reset some BMS units.

What to look for in a repair shop. Choose a shop that works specifically on personal electric vehicles. Ask if they carry your brand. A good shop will quote a flat diagnostic fee, usually $40 to $80.

They should also share test results before they start work.

If you see any of these signs, unplug everything. Store the scooter outdoors away from combustibles. Then call a professional.

Frequently Asked Questions

Why won't my electric scooter charge even though the charger light is on?

The charger light staying green usually means the battery is full or the connection is broken. Test the port with a multimeter. If voltage reaches the port but the scooter won't accept it, the BMS may be in lockout mode.

How do I know if my charging port is broken or if it's the charger?

Plug the charger into the wall without the scooter. If the charger LED stays dark, the charger is dead. If the LED lights up, test the output voltage with a multimeter.

No voltage means a bad charger. Voltage means the port or wiring is the issue.

Can I replace an electric scooter charging port myself?

Yes, if you have basic soldering skills and the right replacement part. Most ports cost $10 to $30. You need a multimeter, a soldering iron, heat shrink tubing, and about 30 minutes.

Always disconnect the battery first.

What causes a scooter charging port to melt or burn?

Loose internal wiring is the most common cause. It creates resistance, which generates heat. The heat melts the plastic and can start a fire.

Rainwater inside the port also causes corrosion that produces the same heat buildup.

How much does it cost to fix a charging port on an e-scooter?

A DIY fix costs $10 to $30 for the part plus a few dollars for solder and heat shrink. A repair shop will charge $40 to $100 for labor and parts combined. That's far less than a new battery, which can cost $150 to $400.

Is it safe to charge a scooter with a damaged charging port?

No. A damaged port can overheat and cause a fire. Replace the port first or take it to a shop.

Don't charge a scooter with a broken or corroded port.
