Electric Scooter Charging Port Loose

If you've ever plugged your e-scooter in only to watch the charger LED flicker or stay stubbornly green, you already know the frustration. An electric scooter charging port loose is one of the most common electrical faults on these machines. What starts as a minor annoyance can quickly turn into arcing, heat damage, or a dead battery pack.

A loose charging port typically means one of three things. The mounting screws have worked free. The solder joints inside have cracked.

Or the connector itself is worn out. Per UL 2272 testing standards for e-scooters, charging circuit integrity is a fire-safety concern, not just a convenience issue. Let's work through the diagnosis step by step.

Quick Answer

A loose charging port needs immediate attention. The fix depends on what's loose: the mount, the wires, or the connector. Tighten screws if the port wobbles.

Resolder wires if charging is intermittent. Replace the port if pins are bent or corroded. Always disconnect the battery before working on it.

Why a Loose Charging Port Needs Attention Now

A loose connection creates electrical resistance. Resistance generates heat. Heat melts plastic, oxidizes terminals, and causes complete charging failure.

In the worst cases, arcing at a loose port can ignite nearby materials. The CPSC has documented e-scooter charging fires linked to damaged ports.

Every time you plug and unplug the charger, you apply lateral force to the port. With a loose mount, that force transfers to the solder joints on the PCB. The joints develop hairline fractures that only make contact intermittently.

A loose port causes voltage drop during charging. The charger sees inconsistent voltage feedback and may stop charging early. Your battery never reaches full capacity.

You lose range without realizing it. If the connection breaks mid-cycle repeatedly, the BMS can log fault states that shorten the battery's lifespan.

Diagnose it now. You're looking at a $10 fix. Ignore it, and you risk a $400 battery replacement.

Or worse, a fire in your hallway.

Quick Check: Is It the Charger or the Scooter Port?

Before you open anything, figure out which side is failing. This saves you time and money. A surprising number of "loose port" cases turn out to be a damaged charger plug instead.

First, inspect the charger's barrel plug. Look at the center pin. Is it bent, recessed, or blackened?

If the pin looks deformed, the charger is the problem. Try it on the scooter anyway. Some bent pins still make partial contact.

The faster test uses a second scooter. If you have access to one, plug your charger in and see if it charges properly. If it works on the other scooter, your port is the issue.

If it won't charge either, the charger itself is suspect.

No second scooter? Use a multimeter. Set it to DC voltage.

Insert the charger plug into the barrel and read the output. A 42V charger should read close to 42V. A 54.6V charger should read close to 54.6V.

If the reading jumps around, replace the charger first. That's a cheaper fix than a new port.

Once you've ruled out the charger, move to the scooter side. That's where the wiggle test comes in.

Wiggle Test and Multimeter: Pinpointing the Exact Loose Point

Now we isolate where the physical looseness lives. This is the most important step in the diagnostic flow. Take your time.

Image source: Bing (Web (fair-use with source credit))

Step 1: The wiggle test. Plug the charger into the scooter. Watch the charger's LED indicator. Gently wiggle the plug where it enters the port.

If the LED flickers while you wiggle, you have a faulty electrical connection. Now wiggle the port body itself. Hold the port housing between two fingers and apply light pressure.

If the port moves against the deck, the mounting is loose.

Step 2: Test with the cover off. Remove the deck screws. Lift the deck cover carefully. Look at the back of the charging port.

You will see the connector body, the mounting nut, and the wires leading to the BMS. Now wiggle the port again. Watch the solder joints where the wires meet the connector terminals.

If you see movement, you have found the mechanical failure.

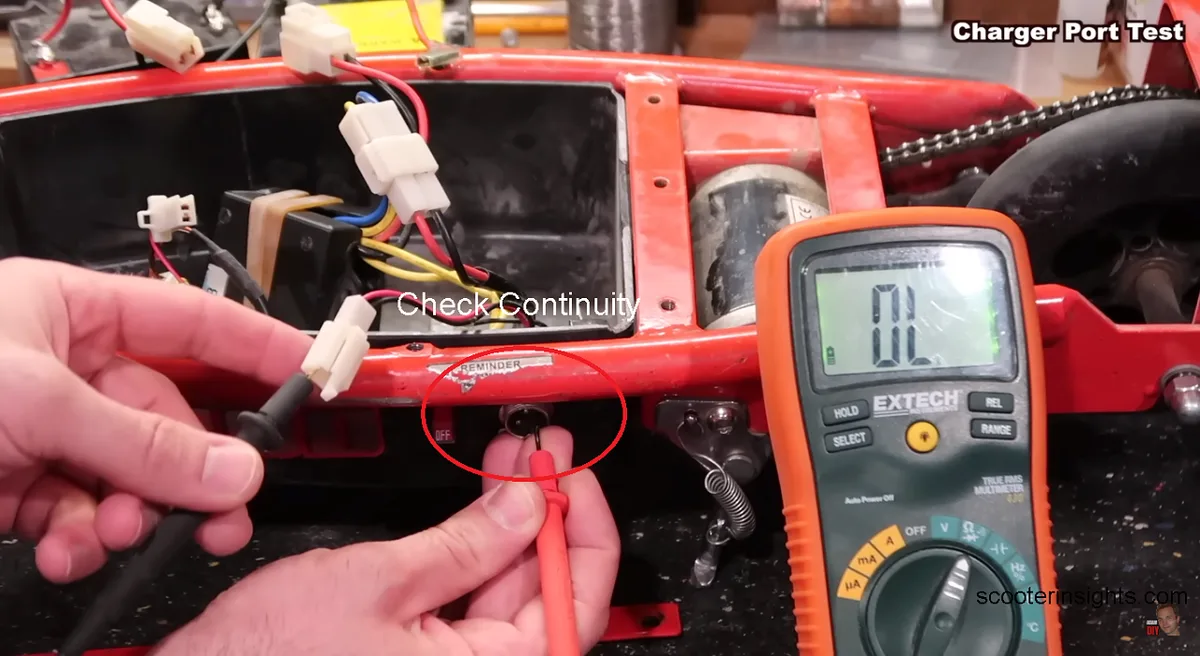

Step 3: The continuity test. Set your multimeter to continuity or resistance mode. Disconnect the port wires from the BMS if possible. Touch the probes to the plug's center pin and the corresponding wire terminal inside the deck.

A reading around 0 to 0.5 ohms means the connection is sound. A higher reading, or no reading at all, points to a broken solder joint or corroded terminal.

Decision Branches: Repair, Replace, or Upgrade

Your diagnosis points to one of four paths.

Branch A: The port housing moves, but the electrical connection holds. This is purely a mechanical issue. The mounting nut on the inside of the deck has worked loose. Tighten it with pliers or a wrench.

If it will not stay tight, add a drop of threadlocker. This is a 5-minute fix with zero parts cost.

Branch B: The port is solid, but the charger plug fits loosely. The barrel connector has worn out. These connectors are rated for roughly 1,000 to 5,000 insertion cycles. After two years of daily charging, that is a worn-out connector.

Replace the port with the same type. Match the barrel diameter and pin count.

Branch C: The port is solid mechanically, but continuity fails. The solder joints have cracked. You can resolder them if the terminals are not corroded or burnt. Apply fresh solder to the existing joints.

Add heat shrink to exposed wires. This fix is free if you already own a soldering iron.

Branch D: The port shows heat damage, corrosion, or bent pins. Replace the entire port. Do not try to salvage a connector that has been arcing. The plastic housing is compromised.

A new port costs between $5 and $25.

One more option worth considering: upgrade. If you live in a humid climate or charge your scooter twice a day, a standard barrel jack will keep failing. An XLR or GX16 connector handles more plug cycles and locks in place.

Image source: Bing (Web (fair-use with source credit))

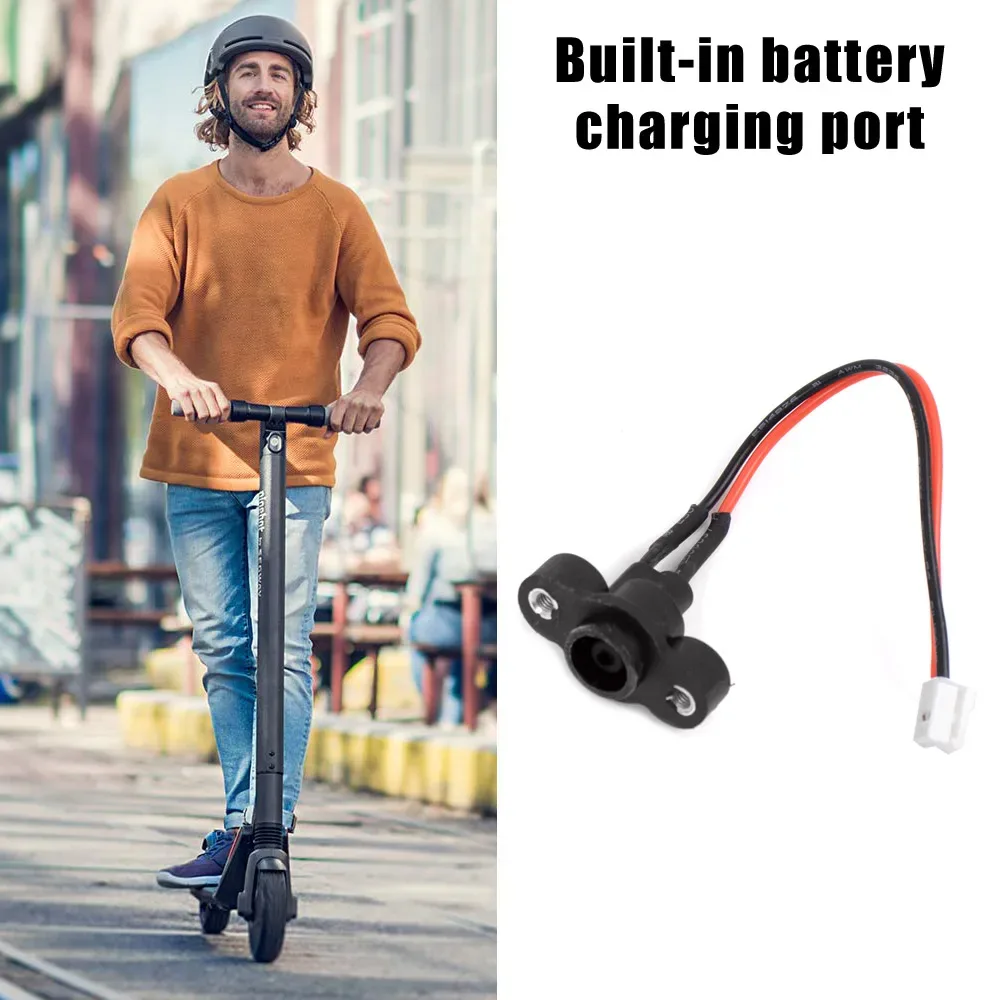

Safe DIY Port Replacement: Step-by-Step Workflow

You have decided to replace the port. Here is the full workflow from safety prep to the first successful charge.

Step 1: Disconnect the battery. This is non-negotiable. Open the deck. Find the battery connector and unplug it.

Wait 5 minutes for the capacitors in the BMS to discharge. Never work on a live charging circuit. A short across the battery terminals can deliver hundreds of amps.

Step 2: Remove the old port. Take a photo of the wiring before you disconnect anything. Desolder the wires from the old port terminals. Use a soldering iron set to 350°C to 400°C.

Apply fresh solder to loosen the old joints. Remove the mounting nut from the outside of the deck. Pull the port out.

Step 3: Prep the new port. Match the connector type and pin count to your scooter. Most scooters use a 2-pin barrel jack. Some use 3-pin connectors where the third pin carries a temperature sensor.

If yours has a third pin, buy the exact replacement. Tin the wires with solder before you make connections.

Step 4: Wire it up. Solder the positive wire to the center terminal. Solder the negative wire to the outer terminal. Double-check polarity against your reference photo.

Getting this wrong can fry the BMS instantly. Slide heat shrink tubing over each joint and shrink it.

Image source: Bing (Web (fair-use with source credit))

Step 5: Secure the mount. Insert the port through the hole in the deck. Tighten the mounting nut from the inside. Do not overtighten.

The plastic deck threads can strip. Use a zip tie to anchor the wire bundle to a nearby frame member. This prevents vibration from stressing the solder joints.

Step 6: Test before you close up. Reconnect the battery. Plug in the charger. The LED should turn red immediately.

Wiggle the plug. No flickering means you are good. Do a quick multimeter continuity check between the port and the BMS connector.

Step 7: Reassemble and test the full cycle. Put the deck cover back on. Tighten all screws. Let the scooter charge completely.

Watch the first charge cycle. If the charger turns green and the battery reports 100 percent, the repair is complete.

Common DIY Mistakes That Turn a $10 Fix Into a $500 Problem

A loose charging port seems simple. But about a third of DIY repair attempts cause more damage than they fix. Most mistakes come down to rushing, guessing, or skipping safety steps.

The biggest one is wiring the polarity backwards. If you connect positive to negative, you can fry the BMS instantly. That is a $100 to $300 part.

Always snap a photo of the original wiring before you desolder anything. Check it twice before you power up.

Cold solder joints are the second culprit. If the solder does not flow fully around the wire, it looks solid but breaks under vibration. That reproduces the exact same intermittent charging problem.

Use a clean, tinned iron at 350°C to 400°C. Let each joint cool naturally.

Here are the other common mistakes worth avoiding:

• Stripping the plastic deck threads by overtightening the mounting nut
• Forgetting strain relief, which lets vibration crack your fresh solder joints
• Mixing up connector sizes and forcing the wrong plug into the port
• Reassembling before testing, which means you have to reopen everything

One more warning. Never use the old port if it shows heat damage or blackening. The housing may be warped.

The terminals can lose spring tension. That is a fire risk, not a repair shortcut.

Costs and Specs: What a Real Repair Looks Like

A replacement port costs between $5 and $25. Shop labor for a charging port replacement runs $50 to $100. DIY, you are paying just the part cost plus maybe a soldering iron if you do not own one.

When buying a replacement, match three specs. Voltage rating, typically 42V or 54.6V. Current rating, 2A to 5A.

Pin count, 2 or 3. A 3-pin port often carries a battery temperature sensor. If yours has three pins, buy the exact same type.

DIY repair time is 30 to 90 minutes. A shop will usually have it done in a day. The real value of DIY is knowing exactly how solid your charging connection is.

Frequently Asked Questions

Can I keep riding if the port is loose?

No. A loose port can arc, overheat, and damage your battery. It can also stop charging at random, leaving you stranded.

Fix it before your next ride.

Will a loose port damage my battery?

Yes. Interrupted charging cycles confuse the BMS and can prevent full charges. Over time, the voltage drop at the port reduces battery capacity.

How long does a replacement port last?

A quality port lasts 1,000 to 5,000 insertion cycles. With daily charging, that is roughly two to five years of typical use.

What if my scooter has a USB-C port instead?

USB-C charging ports have their own wear pattern. The port itself usually fails before the cable. Check for bent pins and loose solder joints the same way you would with a barrel jack.

Replacement is more delicate, so shop repair is often safer for USB-C models.

Can I just tape the charger plug in place?

No. Taping holds the plug mechanically, but it does not fix the underlying electrical problem. The loose connection still arcs and overheats.

Tape is a temporary safety risk, not a repair.
