Electric Scooter Front Wheel Not Spinning

Your front wheel seizes up mid ride. Or maybe you flip your scooter over at home and notice the wheel barely spins by hand. Either way, you are stuck with an electric scooter that is not going anywhere.

The fix usually falls into one of three categories: a misaligned brake, seized bearings, or an electrical lock inside the hub motor. As of 2026, most consumer electric scooters built to UL 2272 safety standards use sealed cartridge bearings that cost under $10 a pair. The good news is that this is a genuinely fixable problem, even with basic tools.

Let us walk through it step by step.

Quick Answer

Lift the scooter. Spin the front wheel by hand. Listen for grinding.

Squeeze the brake lever. Release it. Does the wheel free up?

That is a brake drag issue.

If the wheel still resists, check for debris stuck between the brake rotor and caliper. No debris? Remove the wheel.

Spin the axle in your fingers. Gritty or rough feeling means the bearings are shot.

If the wheel feels smooth but the motor fights you, it is an electrical lock. Disconnect the battery. Test the phase wires with a multimeter.

Open circuit or short means a motor or controller problem.

The Quick Check Routine (Find the Obvious Cause in Under 60 Seconds)

You do not need any tools yet. You just need two hands and good ears. This quick check will rule out the simplest causes before you start taking anything apart.

Spin the wheel by hand

Flip the scooter onto its back or lift the front wheel off the ground. Give the tire a firm spin. A healthy front wheel should rotate freely for several revolutions before coasting to a stop.

If it stops abruptly, something is dragging. If it will not spin at all, you have a jam.

Listen for grinding or scraping

A grinding sound usually means metal on metal. This could be a brake pad dragging against the rotor or a bearing that has disintegrated inside the hub. A scraping sound could be something stuck between the wheel and the frame.

It could also be the tire rubbing against a bent fender.

The brake drag test

Squeeze the brake lever hard and hold it. Now try to spin the wheel. Release the lever.

Spin again. If the wheel frees up when you release the lever, your caliper is misaligned or your brake cable is too tight. If the wheel stays locked regardless of lever position, the brake is not the problem.

Visual inspection for debris

Shine a light into the brake caliper. Look for small rocks, sticks, or wire ties wedged between the rotor and the pad. Also check the gap between the tire and the fender.

A pebble lodged in there can lock the wheel completely. Remove anything you find and spin again.

The Decision Tree: Walk Through the Real Causes Step by Step

Once the quick check rules out obvious debris, you need a systematic approach. This decision tree will guide you to the real cause without wasting time on parts that are fine.

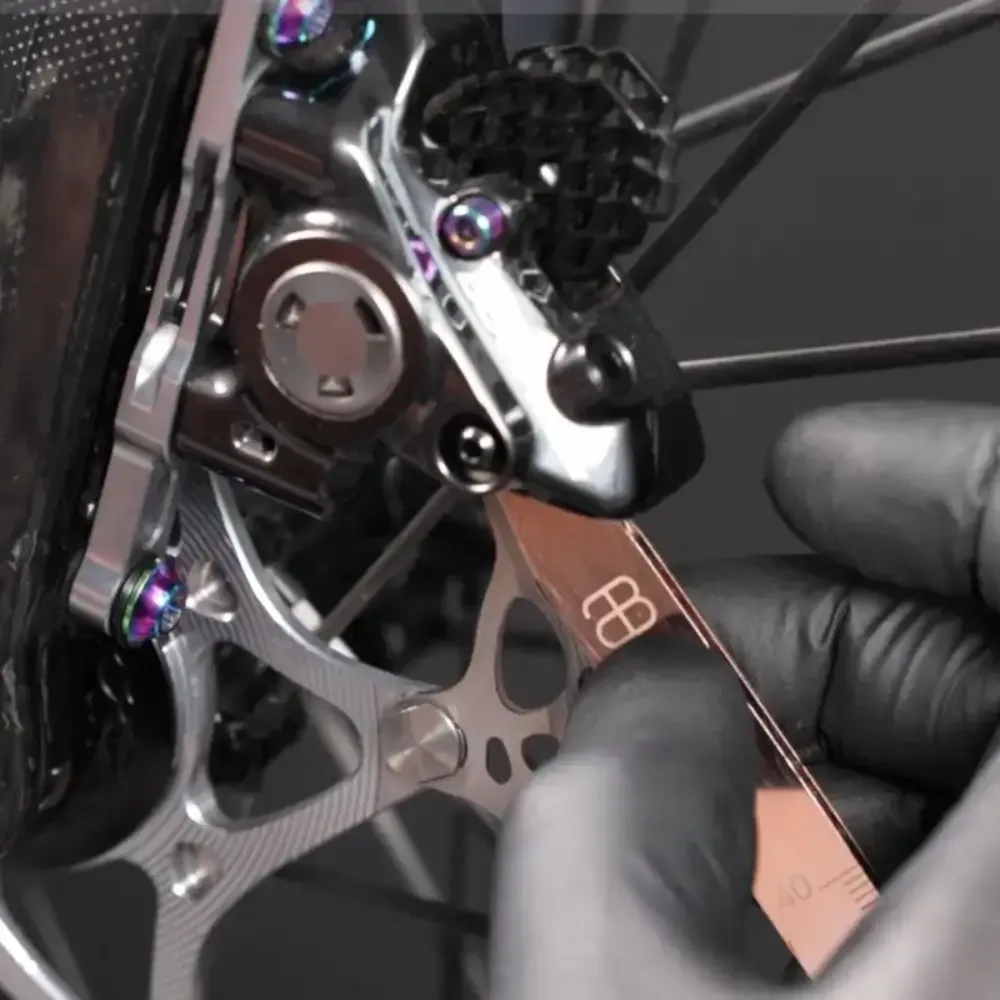

Branch 1: Brake Drag

Disc brakes on electric scooters are finicky. A hard bump or a loose mounting bolt can knock the caliper out of alignment. When that happens, one brake pad stays in constant contact with the rotor.

Symptoms: The wheel spins with a consistent scraping sound. The sound changes pitch slightly as you turn the wheel slowly. Squeezing the brake lever and releasing it does not change the resistance.

The fix: Loosen the two bolts that mount the caliper to the fork. Just a quarter turn is enough. Squeeze the brake lever firmly and hold it.

This centers the caliper over the rotor. While holding the lever, tighten the bolts back down. Spin the wheel.

If the noise is gone, you are done.

Branch 2: Seized or Rough Bearings

Bearings are the most common mechanical failure on scooters that see daily use. Water, dirt, and road salt destroy the grease inside sealed bearings. Once the grease dries out, metal grinds against metal.

Symptoms: The wheel feels gritty when you spin it. You may hear a dry rumbling sound. If you grab the wheel and try to wiggle it side to side, there is noticeable play.

This play is the bearing race wearing down.

The test: Remove the wheel from the scooter. Place the axle on a flat surface. Spin the axle with your fingers.

Seized bearings will not spin smoothly. They will feel rough or not spin at all. If the bearings are bad, you replace them.

You do not lubricate them. Once the seals break, dirt gets in and the bearing is finished.

Branch 3: Motor Lock (Hub Motor Locked or Controller Issue)

This one tricks a lot of people. The wheel feels completely locked, but when you remove it and spin the motor free of the scooter, it spins smoothly. That is a dead giveaway that the problem is electrical.

Symptoms: The wheel resists all motion. There is no grinding sound. No play in the bearings.

The resistance feels like a magnetic brake even when the scooter is turned off.

The cause: A short circuit in one of the three thick phase wires connecting the motor to the controller. Alternatively, a blown controller that is sending power to the motor even with the throttle released.

The test: Disconnect the battery. Unplug the motor connector near the controller. If the wheel suddenly frees up, the problem is in the controller.

If the wheel stays locked, the problem is inside the motor windings.

Image source: Bing (Web (fair-use with source credit))

What to Do When You Have to Remove the Wheel (It's Not as Hard as It Looks)

If your quick check and decision tree point to bearings or an axle issue, you need to get the wheel off the scooter. This is straightforward on most models, but there are a few traps to avoid.

Axle nut sizes and removal tips

Most electric scooters use a 17mm or 19mm axle nut. Some budget models use a 15mm nut. You will need a socket wrench or a combination wrench.

Do not use pliers. You will strip the nut.

How to avoid damaging the wires

If your scooter has a front hub motor, there are wires coming out of the axle. These wires route through a slot in the fork dropouts. Before you slide the wheel out, trace the wires back and unplug them from the controller if possible.

If you cannot unplug them, carefully guide the wheel out without yanking the wires. Snapped phase wires mean a motor replacement.

Inspecting the axle for bends or damage

Once the wheel is off, roll the axle across a flat surface. A bent axle will wobble. Bent axles happen from hard curb drops or crashes.

If the axle is bent, replace the entire wheel assembly. Straightening a bent axle compromises its strength and is not safe.

Bearing replacement simplified

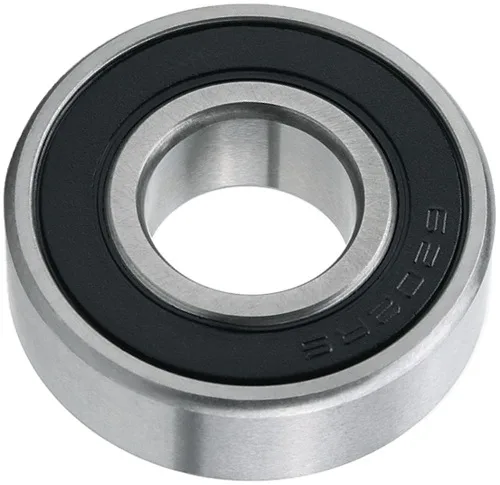

Most electric scooter front wheels use a 6202RS sealed bearing. The "RS" stands for rubber seal. These bearings measure 15mm inside diameter, 35mm outside diameter, and 11mm thickness.

To remove the old bearings:

• Use a bearing puller if you have one
• Or gently tap them out from the opposite side using a socket that matches the bearing outer diameter
• Work slowly to avoid damaging the hub

To install the new bearings:

• Press them in evenly using a vice or a hammer and a block of wood
• Never hit the inner race directly with a hammer
• Seat them flush with the hub surface

When to replace the whole wheel

If the rim is bent, the spokes are loose, or the hub is cracked, replacing the entire wheel is cheaper than trying to repair individual parts. A complete front wheel assembly for most scooters runs $30 to $60.

Image source: Bing (Web (fair-use with source credit))

When the Problem Is Electrical: Testing the Motor and Controller

Electrical problems are less common than brake or bearing issues, but they happen. The key is knowing how to tell the difference before you spend money on parts you do not need.

Why a locked motor can feel just like a seized bearing

A brushless DC motor becomes a generator when you spin it by hand. If the phase wires are shorted together, the motor resists spinning. This is called regenerative braking.

A controller that has failed in the "on" position does the same thing. Both feel like the wheel is physically locked.

Safe multimeter steps

Disconnect the battery first. This is non negotiable. You are working with high current DC circuits.

A shorted wrench can weld itself to the frame.

Set your multimeter to resistance mode (ohms). Touch the probes to any two of the three phase wires. A healthy motor measures 0.1 to 0.5 ohms between any two phases.

All three readings should be roughly equal.

• If one pair reads infinite resistance (OL), you have an open circuit. The motor has a broken winding.
• If one pair reads zero resistance, you have a short circuit inside the motor.
• If all three read very low but equal, the motor is likely fine. The problem is in the controller.

The swap test method

If you have a spare controller from a previous scooter or a friend's scooter with the same connector, plug it in temporarily. If the wheel frees up, your original controller is dead. Controller replacement for most scooters costs $20 to $45 as of 2026.

Hall sensor failure

Hall sensors tell the controller which position the rotor is in. If one fails, the motor will vibrate or stutter but usually will not lock completely. Hall sensor failure is rare on front wheels.

Rear hub motors fail more often because they handle more torque and heat. For front wheel lock issues, focus on the phase wires and controller first.

Costly Mistakes People Make When Diagnosing a Stuck Front Wheel

These errors waste time and money. Avoid them.

Over tight axle nuts

Tightening axle nuts beyond spec crushes the bearing races. This causes drag that mimics seized bearings. Torque spec is 20 to 25 Nm for most scooters.

If you do not have a torque wrench, snug plus an eighth turn is enough.

Spraying lubricant into bearings

WD 40 and similar solvents dissolve bearing grease. They do not lubricate sealed bearings. They wash out what little grease remains.

Once a sealed bearing feels rough, the damage is done. Replace it.

Forcing a jammed wheel

If something is stuck between the brake pad and rotor, forcing the wheel can bend the rotor. A bent rotor requires replacement. Stop.

Remove the wheel. Clear the obstruction by hand.

Skipping the electrical test

Replacing bearings when the problem is a shorted motor wire is frustrating. The new bearings spin fine, but the wheel still locks. Always test the phase wires before you order parts.

Ignoring the brake first

Brake drag is the easiest fix on this list. It takes 30 seconds to check. Yet many people skip straight to removing the wheel.

Start with the brake test. It saves time.

The Post Fix Check: Making Sure Everything's Safe Before You Ride

You fixed the issue. Now verify the repair before you ride.

Spin test

Lift the front wheel. Give it a firm spin. It should rotate freely with no grinding, scraping, or clicking.

It should coast for several revolutions before stopping.

Brake test

Squeeze the brake lever. It should feel firm, not spongy. Release the lever.

The wheel should spin freely with no drag. Repeat this three times.

Axle nut check

Confirm both axle nuts are tight. Use your wrench. A loose axle nut can shift the wheel mid ride.

That is dangerous.

Tire pressure and rim wobble

Check tire pressure. Pump to 30 to 50 PSI depending on your scooter model. Spin the wheel and look at the rim from the side.

A wobble of more than 2mm indicates a bent rim.

Short test ride

Ride slowly in a safe area for one minute. Brake gently. Listen for any returning noise.

If everything feels normal, you are good to go.

Frequently Asked Questions

Can I use WD 40 on a seized bearing?

No. WD 40 is a solvent, not a lubricant. It dissolves the existing grease and leaves the bearing dry.

Replace rough bearings. They cost under $10.

How tight should the front axle nut be?

20 to 25 Nm is standard. If you do not have a torque wrench, tighten snug plus an eighth turn with a standard wrench. Over tightening crushes the bearings.

The wheel spins fine off the ground but locks when I sit on it. What is wrong?

This usually means the wheel is rubbing against the fender or frame under load. A bent rim or a misaligned fender is the likely cause. Look for rub marks on the tire.

Do I need a special tool to remove scooter bearings?

Not necessarily. A socket that matches the bearing outer diameter works as a drift. A bearing puller makes it easier, but a hammer and a block of wood will do the job.

Will riding with a grinding front wheel damage the motor?

Yes. Grinding generates heat. Heat can warp the rotor or melt the bearing seals.

In a hub motor, debris from a failed bearing can damage the stator windings. Fix it promptly.

How much will a shop charge to fix this?

Expect $40 to $80 for diagnosis. Bearing replacement adds another $30 to $60 in labor. If you DIY, bearings cost under $10 and the job takes about an hour.
