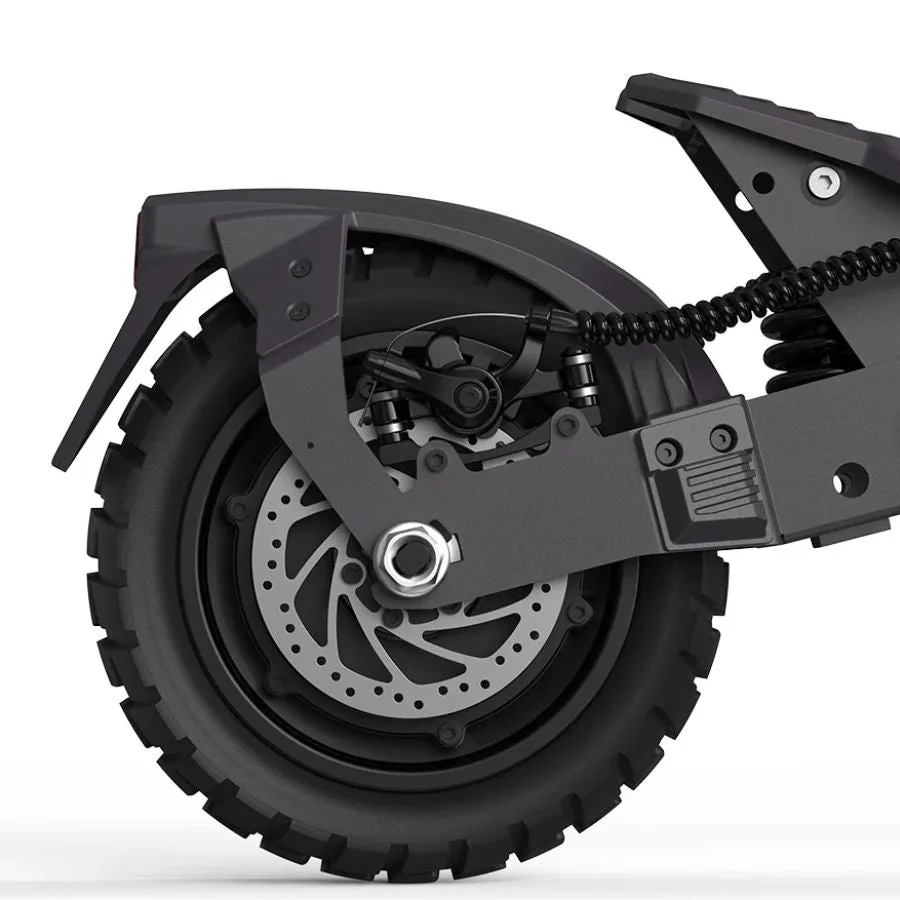

Electric Scooter Rear Wheel Not Spinning

Your scooter was fine this morning. Now the rear wheel won't budge, or it drags like the brake is stuck on. It happens fast, and it's frustrating, especially when you're already late.

The good news is that an electric scooter rear wheel not spinning is usually diagnosable in under 10 minutes, and often fixable for under $20 in parts. You just need to know what to check and in what order.

That order matters more than you'd think. Per manufacturer service documentation, most rear-wheel failures fall into two categories: mechanical drag (brakes or bearings) and electrical failure (controller or motor). As of 2026, the typical 36V or 48V scooter is still a simple system to troubleshoot once you isolate the cause.

Let's walk through the process from first symptom to fixed scooter.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

If the rear wheel won't spin, check the brake first. Loosen the caliper bolts slightly and see if the wheel frees up. If it does, recenter the caliper and retighten.

If the brake isn't the issue, test the wheel bearing by rocking the tire side to side. A seized motor or blown controller is the next suspect, but that's a step-by-step diagnosis.

The moment your scooter's rear wheel stops spinning

Think about what you were doing right before it failed. Did you hit a curb hard? Ride through deep water?

Or did the wheel just slowly get stiffer over the last few rides? That memory is your first diagnostic clue.

A sudden stop after a crash or drop usually points to a mechanical jam: a bent brake rotor, a seized bearing, or a wheel axle shifted in the dropouts. A gradual drag that worsens over days points right back to bearings or brake pads wearing down. But if the wheel spins fine when the scooter is off and simply won't move under power, you've got an electrical problem instead.

That distinction is everything.

A hard crash can also knock the brake caliper out of alignment. Even a 1mm offset is enough for the rotor to rub constantly and eventually stop the wheel entirely. The same goes for a bent rotor, often visible as a wobble when you spin the wheel by hand.

The 10-second check that tells you mechanical vs. electrical

Put the scooter on its kickstand or flip it upside down so the rear wheel floats freely. Turn off the power, and disconnect the battery if you can reach it safely. Now grab the rear wheel and spin it by hand.

If it doesn't spin at all, or only moves a few degrees before stopping, that's a mechanical blockage. You'll feel resistance right away, often with a grinding or scraping sound. If it spins freely but the motor won't engage when you apply throttle, that's electrical.

Simple as that.

There's a third scenario too. The wheel spins by hand but only with significant effort, and you can hear a deep rubbing sound. That's your brake drag, not bearings.

A brake rotor literally presses against the brake pads continuously, and the only reason it hasn't locked up is the flex in the frame. This intermediate case still falls under mechanical.

Try this exact sequence:

• Power off and lift the scooter.
• Spin the wheel and listen for grinding or scraping.
• Rock the wheel sideways to check for bearing play.
• Apply the brake and release it, then spin again.

That last step catches a sticking caliper piston immediately. If the wheel spins fine before you squeeze the brake but locks afterward, the caliper isn't retracting. The piston is stuck, or the brake cable is too tight and won't release fully.

Image source: Bing (Web (fair-use with source credit))

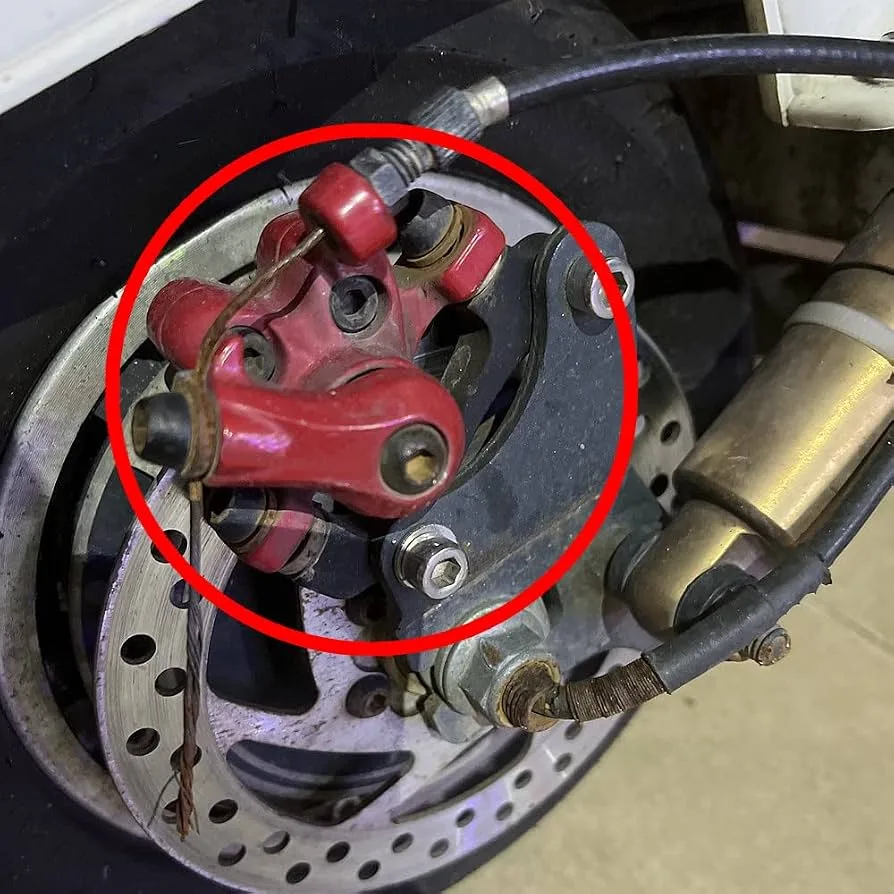

Mechanical issues: brakes, bearings, and axle nuts

Most "rear wheel won't spin" cases are brake problems. It sounds too simple, but it's true. Aggregate repair data from scooter service centers routinely shows brake caliper misalignment as the number one cause of a locked rear wheel.

Brake calipers sit on two mounting bolts. If either bolt loosened slightly, the caliper shifts and the rotor rubs against one pad. On many 8.5-inch and 10-inch scooters, the gap between the rotor and the caliper is designed to be just a couple of millimeters.

A tiny shift is all it takes to jam the wheel.

If you suspect a brake issue, loosen the two caliper bolts just enough to wiggle the caliper side to side. Squeeze the brake lever and hold it, then retighten the bolts. This recenters the caliper over the rotor.

Release the lever and spin the wheel. Done right, it will spin freely.

Wheel bearings are the second suspect. They sit inside the hub motor, and when they fail, they make a grinding noise and develop play. Rock the wheel side to side at the top and bottom.

If you feel knocking or clicking, the bearings are worn.

Symptoms of bad bearings:

• A rough, grinding sensation when spinning.
• Visible wobble when rocking the tire.
• A wheel that binds at one point each rotation.

The axle nuts matter too. If they came loose, the axle can shift inside the frame dropouts, tilting the motor and jamming the brake rotor against the caliper. Check the nuts on both sides, usually 14mm, 17mm, or 18mm, and tighten them to the torque spec in your scooter's manual, typically 20 to 35 Nm.

Electrical issues: controller, motor, and battery checks

If the wheel spins freely by hand but won't move under power, you've got an electrical issue. That's a relief of sorts. It means no jammed brake and no seized bearing.

But it now points to three components: the battery, the controller, or the hub motor itself.

Start with power. Does the throttle respond at all? Does the display light up normally?

If the battery shows low voltage, the scooter's low-voltage cutoff may be preventing motor engagement. Charge it fully, then retry. It sounds obvious, but a battery that reads 50% may still sag below the cutoff under load.

The next suspect is the motor connector. Look where the hub motor cable enters the frame. Unplug it and inspect the pins for corrosion, brown scorch marks, or bent terminals. Water and road salt ruin these connectors quickly.

If you find greenish corrosion, clean the pins with electrical contact cleaner and reconnect. Multiple riders report fixing their scooters this way after riding in rain.

The controller is the harder one. It sits inside the deck, often wrapped in heat shrink or mounted in a plastic housing. If the controller's MOSFETs blew, the motor won't get power even though the battery and display work fine.

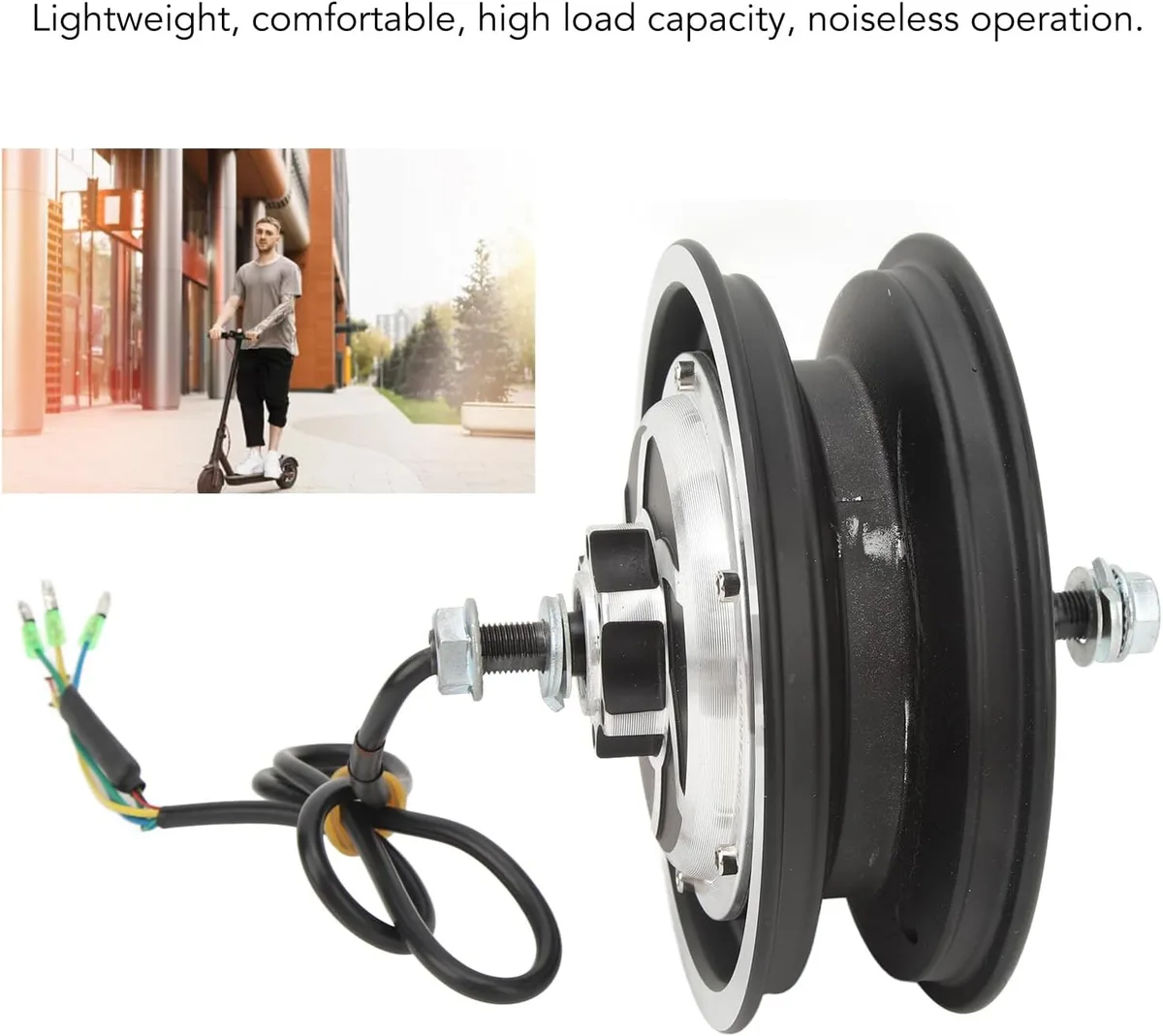

You can test this with a multimeter by checking voltage at the motor phase wires when you engage the throttle. No voltage reading means a dead controller or a broken wire between controller and motor.

Image source: Bing (Web (fair-use with source credit))

Hall sensors are a third possibility. These small components inside the motor tell the controller where the rotor is. If one fails, the motor shudders or refuses to start from a standstill.

That symptom matters: a motor that clicks but won't spin from zero is very likely a failed hall sensor, especially if it starts moving when you push the scooter forward a step or two.

A quick test for hall sensors:

• Put the scooter on a stand.
• Power it on and engage the throttle while slowly turning the rear wheel by hand.
• If the motor starts only after you spin the wheel, hall sensors are suspect.

At that point, you're deciding between a motor repair and a motor replacement. Hall sensor replacement takes soldering skill and patience. A drop-in replacement hub motor, usually $120 to $250, avoids that work entirely.

Check your manufacturer's service page or owner's manual for the correct part number.

That manufacturer-specific part number matters more than it feels like it should. A 350W motor on a 36V controller meant for 250W can overheat and shut down mid-ride. A mismatched connector won't even seat properly.

If you're comfortable with a soldering iron, hall sensor replacement kits cost around $15 to $25. If not, a full motor swap is the safer route.

One more thing on electrical diagnosis: process of elimination saves money. Charge the battery fully. Inspect every connector.

Test phase wire continuity with a multimeter. Only then crack open the controller housing. Riders who skip these steps often buy a new controller when a $4 connector was the real culprit.

Step-by-step repair workflow

Grab a few basic tools before you start. You'll want a set of Allen wrenches, a socket set covering 14mm to 18mm, a flathead screwdriver for prying caliper bolts, and a multimeter. That's it.

Most scooters don't need specialty tools for these repairs.

Step 1: Confirm the wheel is free. Lift the scooter, release the parking brake if yours has one, and spin the rear wheel by hand. Locked or dragging? Go to Step 2.

Spins fine? Skip to Step 5.

Step 2: Check the brake caliper first. It's the most common cause of a jammed rear wheel. Loosen the two caliper mounting bolts just enough to slide the caliper side to side. Squeeze the brake lever, hold it, and retighten.

Then spin the wheel. Fixed? You're done.

Step 3: Inspect the rotor. Still dragging? Look at the brake disc as the wheel turns. A bent rotor wobbles visibly.

You can try truing it with a rotor truing tool, the kind used on bicycles, or simply replace it. Scooter rotors run $15 to $30.

Step 4: Test the bearings. Rock the wheel side to side at the top and bottom. Play, knocking, or a gritty grinding feel points to worn bearings. Seized bearings won't rock, but the wheel will spin with real resistance or not at all.

Replacement needs a bearing puller and a press, which is where many riders hand off to a shop.

Step 5: Diagnose electrical issues. Disconnect the motor cable and check for corrosion or burn marks. Use a multimeter to test continuity across the three phase wires. A high or open reading means internal winding damage.

If the motor tests clean, suspect the controller or a dead hall sensor.

Common mistakes that cost you time and money

The biggest mistake is forcing the wheel. If you push hard enough, you can shear an internal motor key, bend the axle, or damage something that was repairable. Never try to power through a locked wheel.

That's how a $15 bearing becomes a $200 motor replacement.

Skipping the brake check is the second biggest. Riders assume "electric scooter" means "electrical problem." But the brake caliper is the first thing to inspect on nearly every locked rear wheel. Check it before you order any parts.

Over-tightening axle nuts ranks third. Axle nuts need torque in the 20 to 35 Nm range on most 36V and 48V scooters. Crank them down with a breaker bar and you can crush the bearings, bend the dropouts, or strip the axle threads.

Without a torque wrench, tighten firmly with a standard socket and recheck after a short ride.

Riding through deep water floods the motor housing eventually. The motor might survive, but water corrodes bearings and connectors over weeks. If you ride in rain, inspect your motor connectors monthly and dry out the deck area after heavy weather.

Ignoring a low battery is the simplest mistake of all. The low-voltage cutoff disables the motor as a safety feature. Charge the scooter fully, even if the display reads 50%, and retest.

It catches a surprising number of "dead motor" reports.

When to stop fixing and call a repair shop

Some repairs genuinely need specialized tools. A badly seized outer bearing on a hub motor often requires a press, sometimes heat, and careful reassembly. Without a press, you risk damaging the motor's stator.

That's not worth the gamble when a shop can do it right.

If your scooter is still under warranty, don't tear it open. You'll void the coverage, and the manufacturer may refuse service. Check your warranty terms before any deep repair.

Motor failures deserve respect. A hub motor that locks mid-ride can throw the wheel out of alignment and cause a serious crash. If you hear a grind while riding, stop.

Pull over and inspect. According to CPSC guidance, mechanical failures and electrical defects in e-scooters have led to injury incidents, and the agency tracks recalls on its website. You can check the [U.S.

Consumer Product Safety Commission](https://www.cpsc.gov) for recall alerts tied to your model.

A shop will typically charge $50 to $100 in labor to replace a bearing or swap a motor, plus parts. Compare that to the risk of a seized hub at 15 mph, and the price looks reasonable.

Frequently asked questions

Why won't my electric scooter's rear wheel spin even when the battery is charged?

Low voltage isn't the only culprit. Check the motor connector first. Corroded or scorched pins there cause most no-power cases.

If the connector looks clean, test phase wire continuity with a multimeter. A blown controller is the next suspect.

Is it safe to ride if the rear wheel drags?

No. A dragging wheel builds heat that can damage the motor's windings or lock up completely while riding. Pull over and inspect.

Recenter the brake caliper first. If the wheel still drags, test the bearings by rocking the tire side to side.

How can I tell if the rear wheel bearing is seized?

Lift the scooter and spin the rear wheel by hand. A seized bearing feels gritty, rough, or locks at certain points. Rock the wheel side to side.

Play or knocking means the bearing races are damaged. Replacement usually requires a bearing puller and a press.

Should I replace the hub motor or just the controller?

Test the motor first. Disconnect the motor cable and check continuity across the phase wires. If the motor checks out, replace the controller.

If the motor has a dead phase or failed hall sensor, replacing the whole hub motor is often cheaper than an internal repair.

What tools do I need to fix a stuck rear wheel?

A socket set with 14mm to 18mm sockets, Allen wrenches, a flathead screwdriver, and a multimeter covers most rear wheel issues. Brake caliper realignment takes just a couple of Allen bolts. Bearing replacement needs a puller and press, so that one goes to a shop.

Why does my rear wheel spin but make a grinding noise?

That sound means something is rubbing. Check whether it comes from the brake rotor hitting the caliper or from inside the hub. Rotor rub is easy to fix by recentering the caliper.

Noise from the hub points to bearings, and continued riding risks a full seizure.
