Electric Scooter Headlight Not Working

Your electric scooter headlight not working is more than an annoyance. It's a safety hazard that can get you a ticket or, worse, a collision. Without a working front light, you're nearly invisible to drivers in low light, and most municipalities require a headlight after dark per the U.S.

Consumer Product Safety Commission's e-scooter safety guidance.

In our research, the most common fix is a blown fuse or a failed voltage converter. Together, those two parts account for roughly 60% of dead headlight cases on popular models like the Segway Ninebot MAX and Xiaomi M365. The good news?

You can diagnose both in under 10 minutes with a basic multimeter.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Check the fuse first. If it's blown, replace it with the same amperage. If the fuse is fine, test the voltage converter output with a multimeter set to DC voltage.

Corroded connectors and broken wires in the stem hinge are other common culprits. Most fixes cost under $20 and take less than 20 minutes.

Your Go-To Diagnostic Sequence: What Dies First Tells You Everything

Start with the simplest checks first. That saves time and avoids replacing good parts.

How the failure happens matters

If the headlight went out while riding, suspect a fuse or loose wire. If it died after rain, look for corrosion in the connectors. If it flickered before dying, the voltage converter is likely failing.

If it stopped working after a crash or hard bump, check for a broken wire in the stem hinge.

Follow this branch order:

1. Check the fuse.
2. Test the voltage converter.
3. Inspect connectors and wiring.
4. Test the controller output pin, but only if everything above passes.

Skip steps and you might replace a part that was never broken. Stick to the order and you solve it faster.

Tools you need

You need a multimeter with a DC voltage function. Set it to the 50V or 100V DC range. You also need a small flathead screwdriver for fuse access and a set of precision screwdrivers for removing headlight panels.

Many models use Phillips #0 or #1 screws. A plastic pry tool helps open snap-fit housings without scratching the paint.

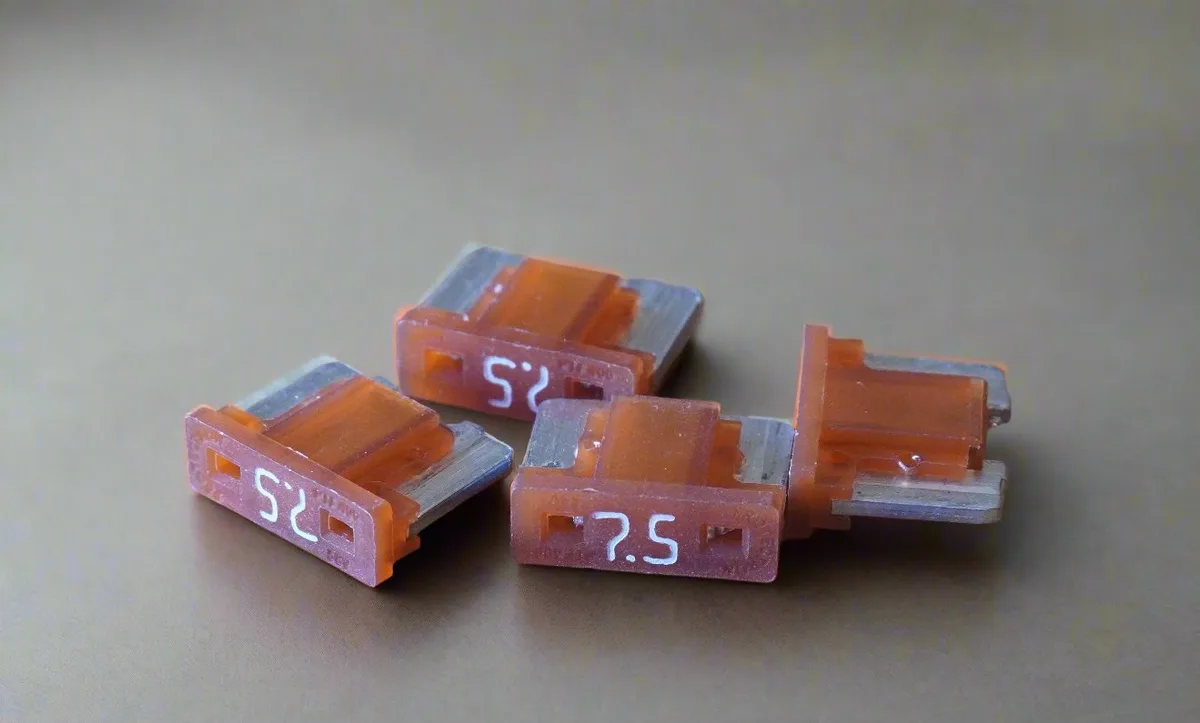

Step 1: The Fuse — The 30-Second Check That Solves 40% of Cases

The fuse is the cheapest and fastest component to check. It sits between the battery and the lights. Most electric scooters use a blade fuse rated between 5A and 15A.

Where to find it

The fuse is usually housed in a small inline holder near the battery compartment or under the deck plate. On a Xiaomi M365, the fuse holder sits near the charging port. On a Segway Ninebot MAX, it's inside the battery compartment under a rubber cap.

Check your service manual if you can't spot it.

How to test it

Set your multimeter to continuity mode. Touch the probes to the two metal prongs of the fuse. If you get a beep or a reading near zero ohms, the fuse is good.

If you get no beep and infinite resistance, it's blown.

Image source: Bing (Web (fair-use with source credit))

What to do if it's blown

Replace it with exactly the same amperage. Never use a higher amp fuse. That can damage your wiring or controller.

A proper replacement costs $2 to $5 at any auto parts store. If the new fuse blows immediately, you have a short circuit somewhere. Don't keep swapping fuses until you find the short.

Why fuses blow

A short circuit in the headlight wiring or a faulty voltage converter can blow a fuse. Sometimes an old fuse simply fatigues over time. If the metal strip inside is melted, you likely had a momentary short.

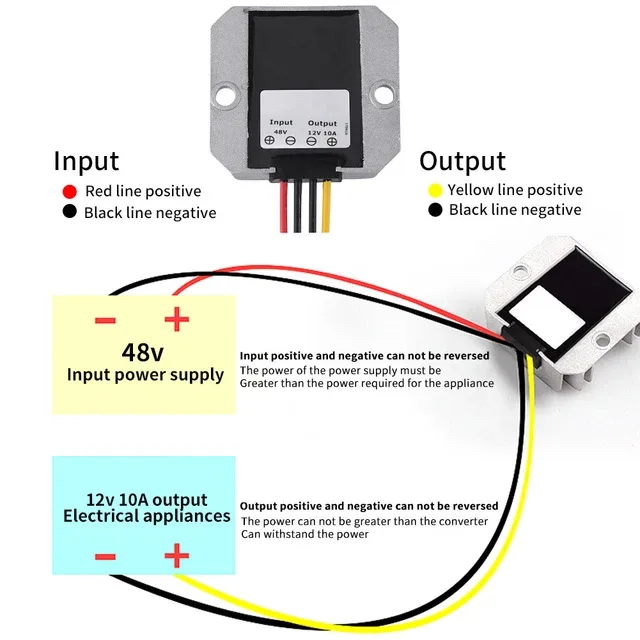

Step 2: The Voltage Converter — Why Most "Dead Headlights" Are Actually a Dead 12V Supply

Most electric scooters run a 36V or 48V battery pack. The headlight needs 12V. A step-down voltage converter reduces the battery voltage to 12V for the lights.

When that converter fails, the headlight goes dark even though the battery is full.

Where it lives

The converter is a small rectangular box with wires coming out. It's usually zip-tied to the frame, inside the deck compartment, or near the controller. On the Xiaomi M365, it sits under the silicone cover on the bottom of the deck.

On the Ninebot MAX, it's mounted near the controller under the front deck.

How to test it

Set your multimeter to DC voltage. Find the output wires, usually labeled 12V+ and GND. Probe those wires while the scooter is powered on.

You should read between 11.5V and 12.6V. If you get zero or anything under 10V, the converter is likely dead.

Image source: Bing (Web (fair-use with source credit))

Before replacing the converter

First verify that input voltage reaches the converter. Probe the input wires on the battery side. On a 48V system, you should see close to 48V.

If input voltage is missing, the problem is upstream. That means the fuse, battery connection, or controller is at fault. If input voltage is present but output is low or absent, the converter is faulty.

Cost and replacement

A replacement voltage converter costs $8 to $25 for generic aftermarket parts. OEM units from Segway or Xiaomi run $15 to $30. Match the input voltage range to your battery pack, either 36V or 48V.

Wiring is simple: connect input to battery positive and negative, then output to the headlight positive and negative. Use solder and heat shrink for reliable joints.

Step 3: Connectors and Wiring — The Hidden Corrosion at the Stem Hinge

This is the most overlooked cause of a dead headlight. The wiring that runs through the folding stem hinge gets flexed every time you fold the scooter. Over time, the insulation cracks and wires break.

Water also seeps into the hinge and corrodes the connectors.

Where to look

Unfold the scooter and inspect the wiring bundle where it enters the stem base. Look for kinks, exposed copper, or a wire that looks stretched. Sometimes the break is hidden inside the rubber grommet.

Flex the stem gently while watching the headlight. If it flickers, you've found a broken wire.

Check connectors

Many scooters use small JST or Molex connectors between the main harness and the headlight module. These connectors sit inside the stem, near the handlebar junction. Pull them apart and look for green or white corrosion on the pins.

A thin layer of dielectric grease helps prevent future corrosion.

How to test wiring continuity

Set your multimeter to continuity mode. Disconnect the headlight wire at both ends. Touch one probe to the headlight-side pin and the other probe to the matching pin at the main harness.

The meter should beep. If it doesn't, you have a broken wire. Repeat the test for the ground wire.

Fixing a broken wire

Cut the wire at the damaged spot. Strip both ends, twist them together, and solder. Cover with heat shrink tubing.

If the break is inside the stem hinge, reroute the wire along a less flexed path. Add a small service loop so it doesn't strain in the same spot.

Preventing future issues

Apply dielectric grease to every connector you open. Use a small zip tie to secure the wiring away from the hinge pivot point. If your scooter sees regular rain, add a dab of silicone sealant around the grommet where wires enter the deck.

That keeps water from traveling down the wire jacket.

Step 4: The Controller Headlight Output Pin — The Last Stop Before Replacement

If the fuse, converter, and wiring all check out, the problem may be in the motor controller. On many scooters, the controller sends power to the headlight through a dedicated output pin. That pin can fail, especially after electrical stress or water damage.

How to test it

Disconnect the battery first. Locate the controller, usually a black aluminum box under the deck. Find the headlight connector on the controller harness.

Look for wires labeled "light +" and "light -" or a 2-pin connector near the display cables. Reconnect the battery and power the scooter on. Turn on the headlight switch.

Probe the controller-side pins with your multimeter set to DC voltage. You should see 12V or full battery voltage depending on your model.

What the results mean

If you get voltage, the controller is fine. The problem is in the headlight module itself. If you get no voltage, the controller output pin is dead.

On some models, a faulty display or handlebar switch also stops the controller from sending power. Test the switch continuity before blaming the controller.

Replacement cost

A new controller ranges from $25 to $70 for most consumer scooters. It requires more work than a fuse or converter. You'll need to disconnect the motor phase wires, hall sensor cable, display, throttle, and battery connections.

Take photos before unplugging anything so reassembly is easy.

Expert Tips: Mistakes That Burn Up Good Parts

Never assume the bulb is dead

LED headlights rarely burn out. They typically last hundreds of hours. A "dead" headlight on an LED-equipped scooter is almost always a power delivery issue, not the light itself.

Don't use a bigger fuse

Replacing a 5A fuse with a 10A one feels like a shortcut. It's not. A bigger fuse allows higher current to flow through thin wiring.

That causes heat damage and can destroy the controller. Always use the stock rating.

Disconnect the battery before touching connectors

You want zero voltage in the system while inspecting wires. A short to the frame can blow a fuse instantly. Worse, touching a live wire to the wrong pin can fry the controller.

Pull the battery connector first.

Waterproof your connectors

Even scooters rated IP54 can leak water into the headlight connectors over time. After any repair, apply dielectric grease and press the connectors fully together. Use heat shrink or electrical tape over the joint as a second layer.

Frequently Asked Questions

Why did my scooter headlight stop working after riding in the rain?

Water gets into the connectors or the voltage converter. Corrosion on the pins blocks power flow. Unplug each connector, clean the pins with contact cleaner, and dry them.

Apply dielectric grease before reconnecting. If the voltage converter got wet inside, replace it.

Can I replace the electric scooter headlight module myself?

Yes, in most cases. The headlight module is held in place by screws or clips. After removing it, unplug the old unit and plug in the new one.

Match the connector type and voltage. If your scooter uses a proprietary connector, buy an OEM replacement.

Why does my scooter headlight work sometimes but not others?

This usually points to a loose wire or a failing switch. Flex the stem while the light is on. If it flickers, a broken wire inside the hinge is the cause.

If it fails when you hit a bump, check the fuse holder and connector terminals for a weak grip.

How much does it cost to fix an electric scooter headlight?

A fuse costs $2 to $5. A voltage converter runs $8 to $30. A headlight module costs $15 to $40.

If you need a new controller, expect to pay $25 to $70. Doing the labor yourself keeps the total under $50 for most repairs.

Is riding an electric scooter without a headlight illegal?

Yes in most places. Local laws typically require a white front light visible from at least 300 feet after sunset. Penalties vary by city, but fines run from $50 to $250.

As of 2026, many rental scooter operators also lock scooters that report a lighting fault.

Your Decision Guide: Which Branch Do You Follow?

Use this quick map to wrap up your repair.

• If the fuse is blown, replace it. Test again. If it blows again, hunt for a short circuit.
• If the fuse passes, test the voltage converter. A missing 12V output means replacement.
• If the converter works, inspect the stem wiring and connectors. Repair any broken or corroded wires.
• If all wiring passes, test the controller output pin. No voltage means a controller or switch problem.
• If the controller delivers power, replace the headlight module.

Most riders solve this in a single evening with $20 in parts. Grab your multimeter, follow the order, and you'll be back on the road with a working headlight before the weekend ends.
