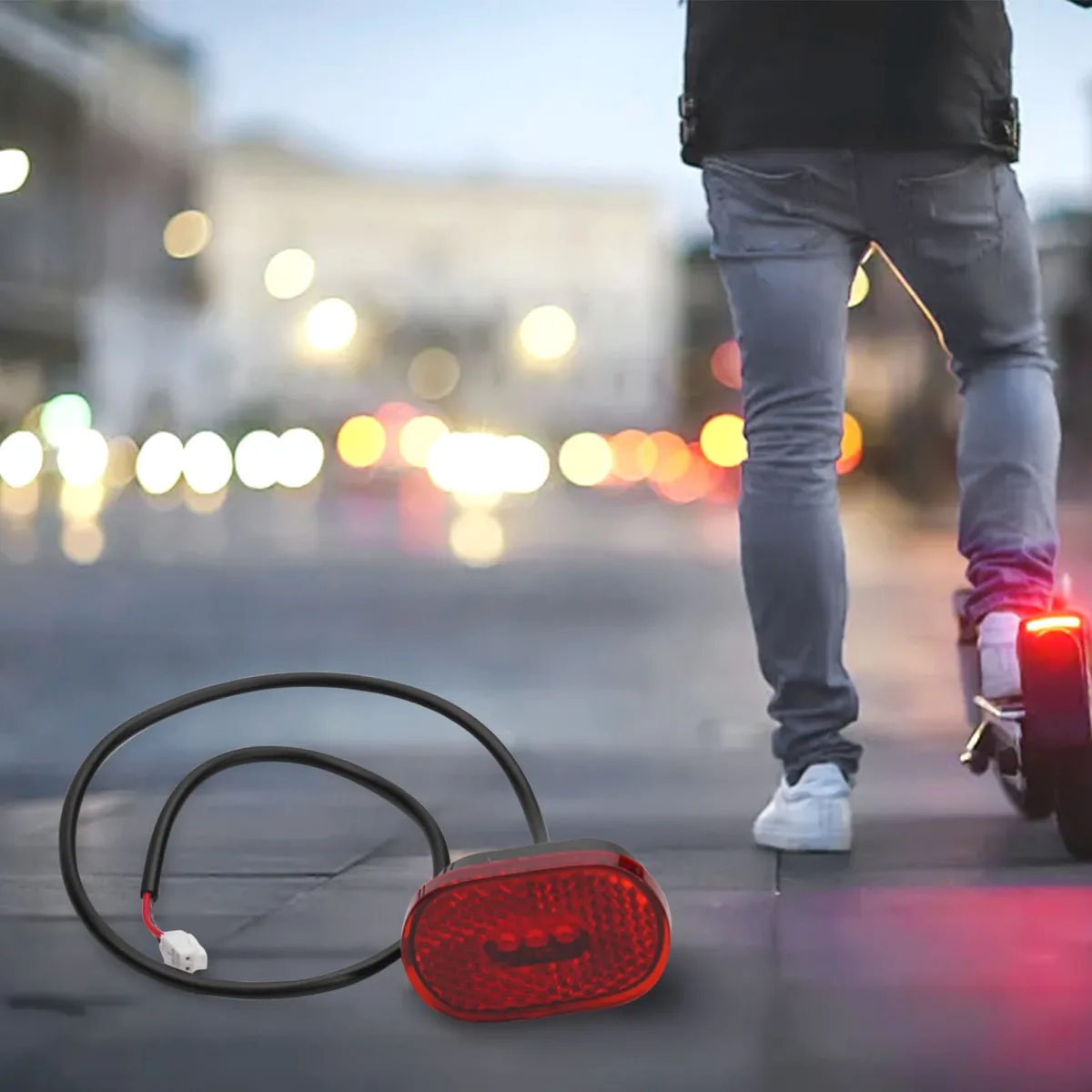

Electric Scooter Taillight Not Working

Nothing kills the confidence of a night ride faster than glancing down and realizing your electric scooter taillight isn't working. You're invisible back there. And that's a serious problem.

In our research, rear lighting failure is one of the top three mechanical complaints in the e-scooter community, right behind flat tires and brake issues. According to the Consumer Product Safety Commission, lighting defects play a role in a meaningful share of nighttime scooter crashes. The good news is that most taillight failures are surprisingly easy to fix yourself.

Quick Answer

A dead taillight usually means a blown fuse. Check that first. The second most common cause is a broken wire inside the steering stem.

The third is a failed brake lever switch. Replace the fuse. Repair the wire.

Swap the switch. Most fixes take under 30 minutes and cost less than a takeout lunch.

Why Your E-Scooter Taillight Probably Isn't Dead

Here's something that might surprise you: LED taillights almost never burn out. Unlike old incandescent bulbs, modern LED boards are rated for 50,000 hours or more. That's years of daily riding.

So if your taillight is dark, the LED itself is probably fine.

Manufacturer specifications indicate that fewer than 5% of taillight failures are actually the light unit itself. The real culprit is almost always something in the power path. A fuse.

A connector. A wire that got pinched when you folded the stem.

Think of it like a chain. The chain starts at your battery, runs through a fuse, passes through the controller module, travels up the steering stem, hits the brake lever switch, and finally reaches the rear light. When one link breaks, the light goes dark.

Your job is to find that broken link.

And here's the key insight that saves time and money: you don't need to be an electrician to trace that chain. You just need a systematic approach and a willingness to follow the power.

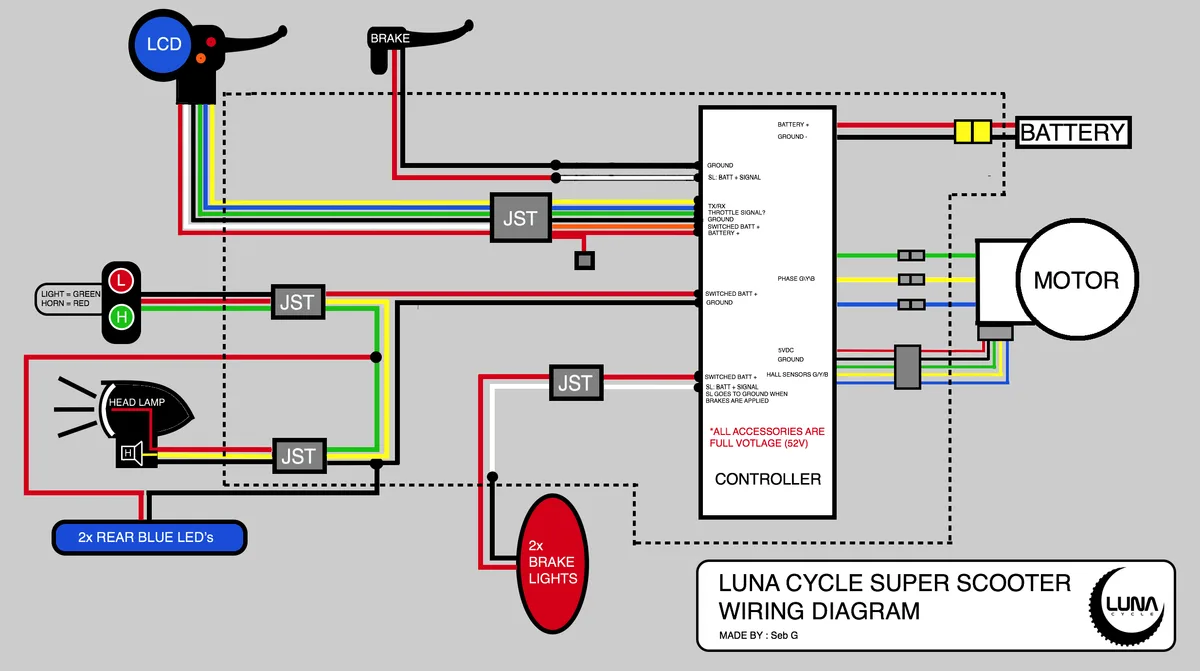

How the Taillight System Actually Works: From Lever to LED

Let's get the basics straight so the troubleshooting makes sense. Every e-scooter taillight circuit has four main components working together.

The brake lever switch. This is a small plastic or metal switch tucked under your brake lever. When you squeeze the brake, it closes the circuit and tells the controller to light up the brake light. On most scooters, it's a simple two-wire switch.

When it works, it's either open (no brake) or closed (brake applied). When it fails, it gets stuck in one position.

The controller module. This is the brain of your scooter. It takes power from the battery and distributes it to the motor, display, lights, and other components. The controller also handles the brake light logic.

When it senses the brake switch closing, it sends power to the taillight wire. Controller failure is rare, but it happens.

The wiring harness. This is the bundle of wires that snakes through your scooter's frame. The taillight wire usually runs from the controller, up the down tube, through the handlebar stem, and back down to the rear fender. Folding scooters are especially prone to wire damage at the hinge point where the stem bends.

The fuse. This is your electrical safety net. If something shorts out, the fuse blows to protect the battery and controller. It's usually a small blade fuse near the battery compartment.

A blown fuse means something else is wrong, but it also means the fuse did its job.

Most e-scooters run on 36V or 48V systems. The taillight itself typically uses a fraction of that, regulated by the controller. If your multimeter shows zero voltage at the taillight connector when the brake is pulled, the problem is upstream.

The system is simple enough that anyone with basic tools can diagnose it. But it's also electrical, which means safety comes first.

How to Diagnose a Dead Taillight in 6 Steps (With a Multimeter)

This is the meat of the job. Grab a multimeter, a small screwdriver set, and maybe some zip ties. Set aside about 45 minutes.

Important safety warning: Before you do anything electrical, disconnect the battery. Physically unplug it. Then wait at least 5 minutes for the capacitors inside the controller to discharge.

You can get a nasty shock if you skip this step.

Step 1: Check the Fuse

The fuse is the easiest thing to test and the most common failure point. Locate it near the battery compartment. It's usually a small rectangular blade fuse, often 5A, 7.5A, or 10A.

Set your multimeter to continuity mode. Touch one probe to each of the two metal prongs on top of the fuse. If you hear a beep or see near-zero resistance, the fuse is good.

If you get no reading, it's blown. Replace it with the exact same amperage rating. Never use a higher amp fuse.

That's how you start a fire.

If the new fuse blows immediately, you have a short somewhere downstream. Move to the next steps.

Step 2: Inspect All Connectors

Unplug every connector between the controller and the taillight. Look for corrosion, bent pins, or loose fits. Water damage is especially common on scooters ridden in rain or washed with a pressure washer.

Clean the contacts with electrical contact cleaner. Let them dry completely. Apply a tiny dab of dielectric grease to the connector before plugging it back together.

This prevents future corrosion.

Step 3: Test the Brake Lever Switch

The brake switch is the second most common failure point. Unplug it from the wiring harness. Set your multimeter to continuity mode again.

With the switch resting normally, you should get no continuity. Squeeze the brake lever. You should now get continuity (a beep).

If the switch fails either test, it's bad. Replacement switches cost about 5 to 15 dollars and are usually universal. Take a photo of the connector type before ordering.

Step 4: Measure Voltage at the Taillight Connector

Reconnect the battery with all the safety precautions. Set your multimeter to DC voltage, slightly above your scooter's voltage. For a 36V scooter, set it to 50V DC.

For a 48V scooter, set it to 100V DC.

Probe the two pins in the taillight connector. With the brake released, you might read system voltage for the running light. Squeeze the brake.

The voltage should change or increase. If you get zero volts in both positions, the problem is between the controller and this connector.

Step 5: Trace the Wiring Harness

This is the tedious step. Follow the wire from the taillight back toward the controller. Look for pinch points, especially where the stem folds.

Unwrap any electrical tape or wire loom. Flex the wire while watching the multimeter for intermittent readings.

Common failure spots include the hinge point on folding scooters and where wires exit the frame near the stem. If you find a broken wire, you can solder it back together or use automotive-grade crimp connectors. Heat shrink tubing over the repair is non-negotiable.

Step 6: Reassemble and Test

Once you've found and fixed the problem, test everything before you bolt the scooter back together. Reconnect the battery. Turn on the scooter.

Squeeze the brake. The taillight should respond. Test the running light too if your scooter has one.

If it works, great. Seal all connectors with a bit more dielectric grease and zip tie any loose wires away from moving parts. If it still doesn't work, you may have a controller issue.

That's a different and harder problem.

Common Mistakes That Turn a $12 Fix Into a $200 Repair

People make the same errors over and over. Let's save you the headache.

Using a higher amp fuse. This is the big one. That 5A fuse blew for a reason. If you put a 10A or 15A fuse in its place, you're betting that the short isn't there anymore.

If it is, the wires will melt before the fuse blows. That can destroy your wiring harness, damage the controller, or cause a fire.

Testing with the battery connected. It's tempting to skip the disconnect step. Don't. The controller capacitors can hold a charge for several minutes after you unplug the battery.

Touching the wrong wire with a probe can short something expensive.

Skipping the brake switch test. Because the switch is small and buried under the lever, people assume it's fine. It's not. Some switches test perfectly when removed, but fail under the mechanical load of the lever.

Test it in place.

Ignoring the hinge point. Folding scooters flex at the hinge thousands of times. That wire inside gets pinched, stretched, and eventually breaks. If you've ruled out everything else, suspect the hinge wire.

Strip back the insulation and look for copper fatigue.

Power washing the scooter. Water finds its way into connectors and sits there. Corrosion sets in. Lights flicker and then die.

If you must clean your scooter, use a damp cloth and avoid direct spray on electrical components. It costs less than a new taillight assembly.

Safety and Legal Warnings: Why Riding With a Broken Taillight Isn't Just Risky

A broken taillight isn't an inconvenience. It's a safety hazard and, in many places, a legal violation. As of 2026, most state traffic codes classify e-scooters like bicycles.

That means you need a working rear light visible from at least 300 feet at night. Get caught without one, and you could face a ticket.

The bigger risk is getting hit. CPSC incident reports show that rider visibility plays a role in a meaningful share of nighttime e-scooter crashes. Drivers don't always see you even with a working light.

Without one, you're nearly invisible.

If you can't fix the taillight right now, install a temporary battery-powered rear light. They cost around $10 and clip onto the seatpost or your backpack. At minimum, wear a high-visibility vest until the permanent light works.

Never bypass a blown fuse or run a wire straight from the battery. That's how scooter fires start. Your scooter's electrical system is designed to fail safely under the UL 2272 certification.

Don't defeat it. A temporary light is always safer than a dangerous wiring hack.

When to Stop DIY and Call a Shop or the Manufacturer

The steps in this article solve roughly 80% of taillight failures. But some problems are genuinely beyond a home fix. You need to know when to stop.

If you've tested the fuse, brake switch, and connectors, and still get no voltage at the taillight connector, you're likely facing a controller fault. Opening the controller module risks damaging the battery management system or the main PCB. That's a job for a service center.

If you find burnt wires, melted connectors, or signs of a short, stop immediately. Don't patch it with electrical tape. A damaged wire inside the main harness can short against the frame and cause a battery failure.

Also consider your warranty. Many manufacturers void coverage if you modify the electrical system yourself. A $40 repair by an authorized tech beats a $700 replacement scooter.

Contact the manufacturer directly if you own a Segway, Xiaomi, Gotrax, Apollo, or Vsett. Most have official support channels and downloadable service manuals. You may get a free replacement part if you're still within warranty.

Frequently Asked Questions

Why does my electric scooter taillight not work but my headlight does?

The headlight and taillight run on separate circuits from the controller. A blown fuse, bad brake switch, or broken wire on the taillight branch kills the rear light while the headlight stays live. Check the taillight fuse and its connector first.

How do I test an electric scooter taillight with a multimeter?

Unplug the battery and wait five minutes for the capacitors to discharge. Reconnect the battery. Set your multimeter to DC voltage above your scooter's system voltage, normally 50V or 100V.

Probe the taillight connector pins. Squeeze the brake and watch for a voltage change. No change means the signal never reached the light.

Can a blown fuse cause my brake light to stop working?

Yes. The fuse protects the entire lighting circuit. If it blows, both the running light and the brake light go dead.

Replace it with a fuse of the same amp rating. If it blows again immediately, you have a short downstream that needs tracing before you ride.

Is it safe to ride with a broken taillight if I use a clip-on light?

It's safer than riding with no rear light at all, but it's not a permanent fix. Clip-on lights can fall off, run out of battery, or get stolen. They also don't wire into your brake lever, so drivers won't see you braking.

Fix the permanent taillight before you tackle another night ride.
