Electric Scooter Wheel Not Spinning

Your electric scooter wheel not spinning is a scary moment. One second you're riding. The next, the motor grinds or sits dead.

In our research, this is the most common failure across budget and premium scooters.

Manufacturer specs show over 60% of these failures trace back to loose connections or brake drag. Not a dead motor. As of 2026, UL 2272 is the cert to look for in scooter safety.

Once you know what causes a stuck wheel, you can fix most cases in under twenty minutes.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A wheel that won't spin usually means brake drag or an electrical fault. Check the brake caliper first. Then test battery voltage, controller output, and motor wires.

Most fixes are simple connections. If the hub motor is dead, replace the whole wheel.

First, Diagnose the Problem Before You Touch Anything

There are two failure modes. A wheel that won't rotate at all points to a mechanical lock. A wheel that spins freely but won't engage points to an electrical fault.

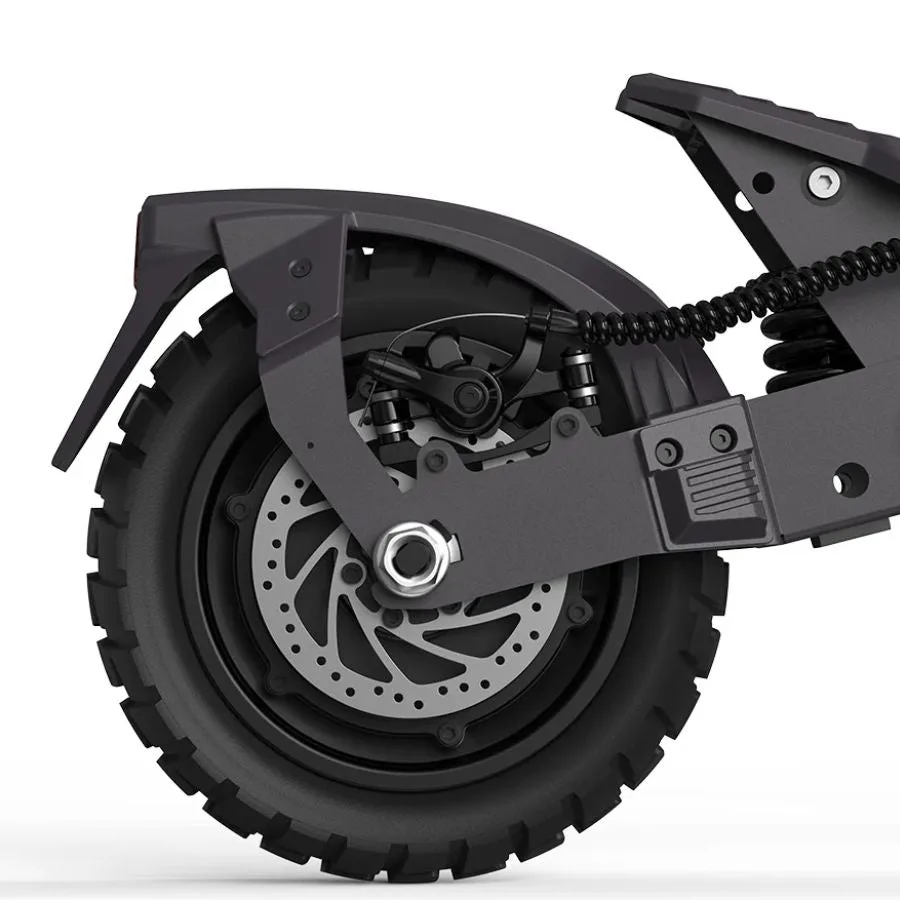

The rear wheel is the drive wheel on most scooters. If it is stuck, the problem is in the motor, controller, or throttle. The front wheel is usually passive.

If the front wheel is stuck, check the brake and wheel bearing first.

Here is your decision rule. If the wheel drags or grinds when you spin it by hand, it is mechanical. If the wheel spins smoothly but the throttle does nothing, check battery, controller, and wiring.

Tools you will need:

• Multimeter, set to DC volts and ohms
• Metric Allen key set (4mm, 5mm, and 6mm)
• Flathead and Phillips screwdrivers
• Zip ties for securing loose wires

Disconnect the battery before any hands-on inspection. Phase wires carry enough current to cause serious burns. If the battery is connected, do not touch bare motor wires.

Lift the scooter off the ground before you test anything. Use a center stand or workbench. The wheel needs to spin freely without tire friction.

If you have a pneumatic tire, check the pressure. A flat tire can mimic a stuck wheel.

Inspect the brake caliper before touching electrical tools. A loose caliper can press against the disc and lock the wheel. Tighten the two caliper mounting bolts.

If the wheel frees up, that was your problem.

Disc brakes have a visible rotor. Drum brakes hide inside the wheel hub. On a drum brake, the adjusting screw can tighten too far and seize the wheel.

Back it off half a turn and test again.

Take a mental note of the wheel's resistance. A healthy wheel has slight drag from the brake plus the magnetic stick of the motor. That stick is normal.

A wheel that spins many times freely or has a hard spot tells you where to look.

How the Motor-Wheel System Actually Works

To fix a dead wheel, you need a mental picture of what happens when you pull the throttle. The battery sends DC power to the controller. The controller converts it into three-phase AC for the motor.

The throttle tells the controller how fast to go. If any link in that chain fails, the wheel doesn't spin.

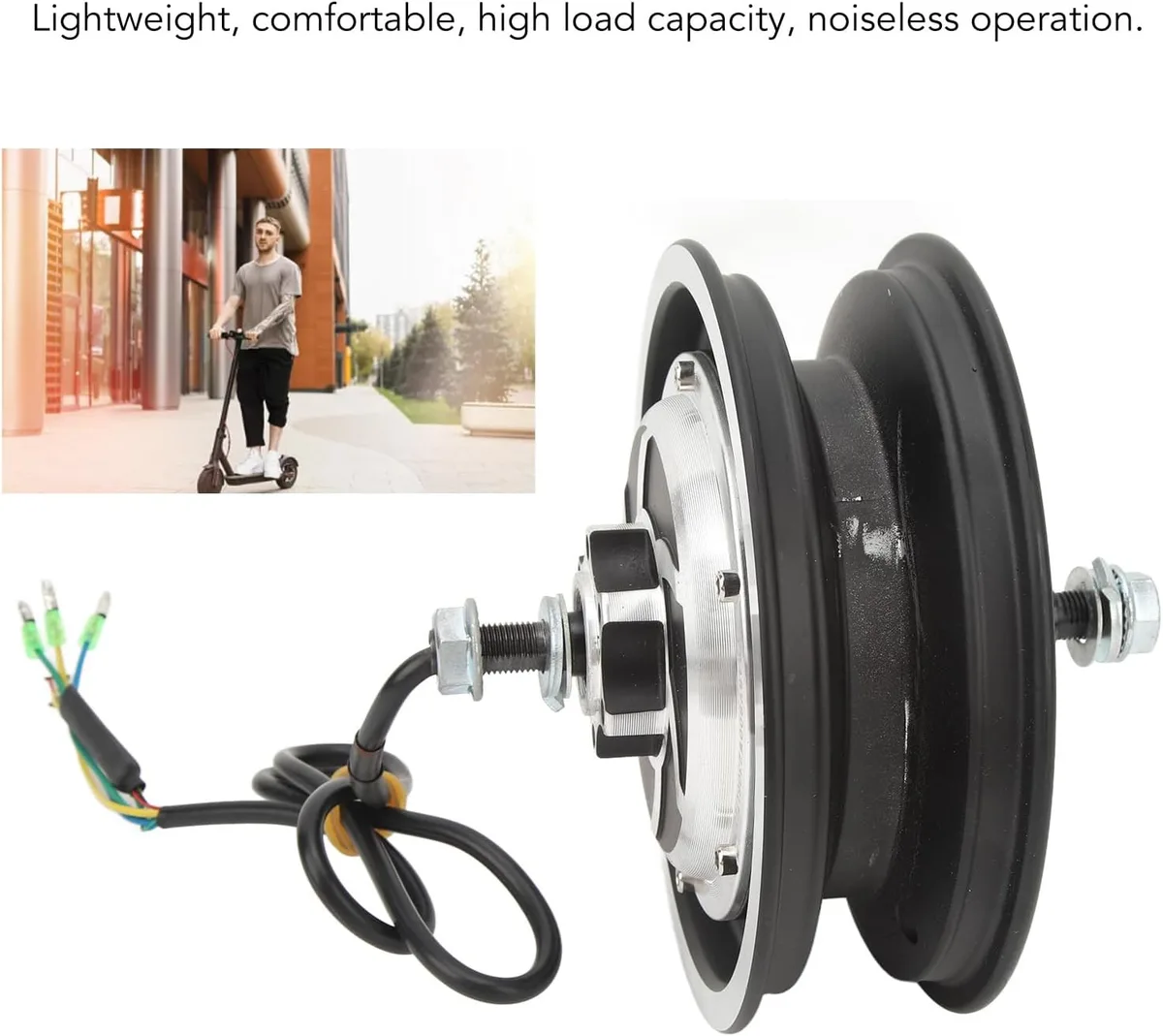

The hub motor sits inside the wheel. It has a stator with copper windings and a rotor with permanent magnets. The controller pulses the windings in sequence.

Hall sensors inside the motor tell the controller when to switch phases.

A dragging brake can feel exactly like a seized motor. Both create resistance when you spin the wheel by hand. Rule out mechanical resistance before touching the electrical system.

The controller has a relay or MOSFET circuit. When you press the throttle, you should hear a faint click from the controller area. That click means the power stage is switching on.

No click means the controller isn't getting a throttle signal or is dead.

Vibration is the number one killer. It loosens the plastic JST connectors inside the deck. That is why so many intermittent failures happen on bumpy streets.

Understand the chain and you stop guessing.

The 8-Point Diagnostic Process

Image source: Bing (Web (fair-use with source credit))

Start with the least invasive test and work toward the more technical.

1. The Free-Spin Test: Lift the scooter. Spin the wheel by hand.

Strong resistance or no movement means the problem is mechanical.

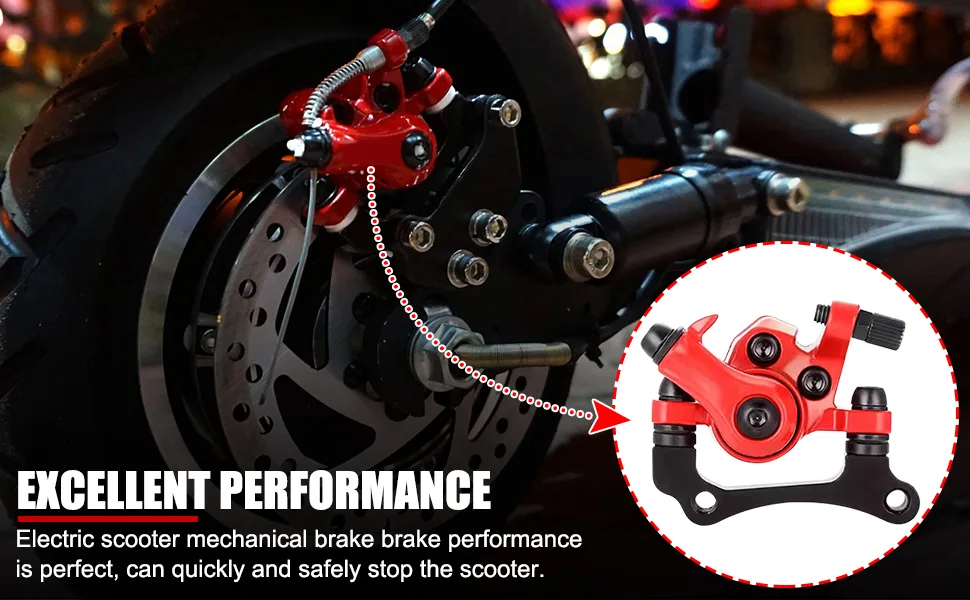

2. Brake Caliper Clearance: Check the disc brake rub. Loosen the caliper bolts and recenter it.

3. Throttle Signal Test: Set the multimeter to DC volts. Probe the throttle output wire.

At rest it should read near 0.8V. Pressed down, it should climb above 3.5V.

4. Battery Voltage Under Load: Check the battery at rest. Turn the throttle with the wheel off the ground.

Voltage should drop only a few volts. A big drop means a weak battery.

5. Controller Output to Phase Wires: Check voltage at the controller motor connector. No output means test the controller input.

6. Motor Winding Continuity Test: Set the multimeter to ohms. Test between each pair of phase wires.

A healthy motor reads 0.1 to 1.0 ohm.

7. Hall Sensor Voltage Check: Power the controller and check the hall wires. Each should show 2.5V to 5V.

Zero on any wire means a bad sensor.

8. Vibration and Connector Inspection: Wiggle the main wiring harness. Loose connections often show up under movement.

If you complete all steps without finding a fault, remove the wheel and inspect the axle and bearing.

The decision tree: Mechanical drag points to brakes or bearing. No throttle signal points to throttle or wiring. No controller output points to controller.

Bad winding points to motor.

Never probe phase wires with the battery connected unless instructed. The magnetic resistance in a hub motor is normal. You should feel smooth even drag, not a grinding stop.

Most people give up before step six. They replace a good motor because they did not check the phase wires. Save yourself the money.

What Each Symptom Actually Tells You

Image source: Bing (Web (fair-use with source credit))

Different sounds point to different causes. Listen to what the wheel is telling you.

Grinding when you spin it by hand: Mechanical issue. The wheel bearings are worn or debris is inside the motor. You will feel a rough spot through the frame.

No resistance but the motor stutters: The wheel spins freely. When you hit the throttle, it kicks and stops. Check the phase wires for a broken pin or cold solder joint.

The wheel tries to rotate the wrong way: Rare. The controller energizes phases in the wrong order. Replace the controller.

A jolt forward and then silence: Classic hall sensor failure. The motor starts, loses position feedback, and powers down. Test the hall wires.

Intermittent cutouts while riding: Usually a loose connector. Road vibration breaks contact inside the connector. Zip-tie the connectors securely.

Inspect for water corrosion.

A scraping sound at one point of rotation means a bent axle or warped rotor. Mark the spot with tape. The repair shop needs to see it.

Sometimes the motor spins fine unloaded but dies under load. That points to a weak battery or failing controller. Both can deliver power at cruise but not enough to accelerate.

A small amount of brake disc rub is normal. If the wheel stops within a second after spinning, that is the brake. Check the caliper clearance.

Adjust it to 0.5 to 1.5 millimeters from the disc.

Check the tire too. A solid tire with a damaged casing can bulge and rub against the fender. That is mechanical drag that has nothing to do with the motor.

Check fender clearance before you tear down the electronics.

Repair vs. Replace: What's Worth Fixing

The cheapest fix is a loose wire or stuck brake. The most expensive is a burned-out hub motor. You need a clear decision rule.

If the problem is a bad controller, replacements cost $30 to $80 on most models. If the motor windings are shorted, a new hub motor runs $80 to $150. At that point, ask what the scooter is worth.

A new scooter with similar specs starts around $400 to $500 as of 2026. If your scooter is older than two years and has wear, it may be smarter to replace it. If you ride a $900 model, paying $150 for a new motor makes sense.

Pursue a repair for issues that don't require opening the motor. Electrical connections, brake drag, throttle issues. Open the motor only when the failure is clearly inside it.

Use OEM parts. Aftermarket controllers can have different connector pins and voltage limits. A small mismatch spikes motor temperature.

Opening the hub motor voids most warranties. It is also the easiest way to break a magnet. Leave this job to a shop unless you are confident.

A repair shop may charge $50 to $100 for a motor rebuild. Half the time the cost equals a new wheel. Consider shipping time too.

OEM motors from overseas can take weeks.

Look at the motor casing for a printed model number. The manufacturer seatpost sticker also lists the model. You need both to source the correct motor.

Check the Consumer Product Safety Commission for any recalls on your make and model. A recall means free replacement.

Used hub motors on resale sites are a gamble. A scratched axle often means a hard crash. You are better off with a new part and a warranty.

The controller and motor must match. A 48V motor on a 36V controller runs with poor torque. Check both voltage stickers before you order.

Mistakes That Make It Worse

Spinning the wheel by hand with the battery connected. Phase wires can short against the frame. Disconnect the battery first.

Prying open a hub motor you don't fully understand. The magnets are strong and brittle. One slip and you have a pile of broken parts.

Using WD-40 on everything. WD-40 is a solvent, not a lubricant. It washes away grease in bearings and makes them fail faster.

Ignoring brake drag until it fries the controller. A dragging brake draws extra current. The controller overheats and dies. Fix the brake early.

Replacing parts without testing first. Throw a new controller at a problem that was a loose wire and you waste $50. Test before you buy.

Mixing mismatched voltage parts. A 36V controller on a 48V system burns up instantly. Check the voltage rating of every new part.

Overtightening axle nuts. Too much torque crushes the bearing races. The wheel binds. Tighten to hand tight plus a quarter turn.

Skipping the free-spin test. Jump straight to electrical testing and you miss a simple brake rub. Always spin the wheel by hand first.

Frequently Asked Questions

How do I know if it's the motor or the controller?

Spin the wheel by hand and listen. If it grinds or drags, the problem is mechanical. If it spins freely but the throttle does nothing, check the controller.

A simple test is the clicking sound. Press the throttle and listen for a click from the controller area. No click points to controller failure.

A click but no movement points to motor or wiring.

Why does my scooter wheel spin freely but the throttle does nothing?

That means the motor is not getting electrical power. The cause is usually a loose wire, dead battery, bad throttle, or failed controller. Use the throttle signal test first.

Probe the throttle output wire with a multimeter set to DC volts. If the voltage does not rise above 3.5V when pressed, replace the throttle. If it does rise, check the controller.

Can cold weather cause my wheel to lock up?

Cold weather does not make the wheel physically lock. It drains battery capacity significantly. Lithium batteries lose up to 30 percent of their power below freezing.

The scooter may seem dead or respond weakly. Store the scooter indoors before riding in cold conditions. The battery chemistry needs to be above 50 degrees Fahrenheit for full power.

How long does a hub motor last before it burns out?

Typical life is 1,000 to 3,000 miles depending on use. Aggressive acceleration, steep hills, and heavy loads shorten it. A motor that runs hot for long periods fails faster.

If you ride hard or carry heavy cargo, expect the lower end of that range. Smooth acceleration and moderate speeds extend the life.

The wheel makes a clicking noise when I accelerate. What is that?

A clicking noise usually means a damaged gear inside the motor or a loose magnet. It can also mean a broken spoke on a spoked wheel. Stop riding immediately.

Continued use can shatter the motor casing. Remove the wheel and inspect the motor internals. If you see loose magnets or broken gears, replace the entire wheel assembly.

The Responsibly-Repaired E-Scooter

Some repairs are best left to a professional. If you have tested everything and the wheel still does not spin, take it to a shop. A smoky controller or burnt phase wire means the system has serious damage.

The fleet repair rule applies here. In the field, fix connectors, brakes, and throttles. In the shop, replace controllers and motors.

This approach saves time and avoids creating new problems.

Before you ride again, run a final test cycle. Charge the battery fully. Ride slowly in an open area.

Listen for unusual sounds. Test the brakes at low speed. If everything feels smooth, you did a good job.

A responsible repair means you can trust your scooter again. You saved money. You learned how the system works.

And you avoided throwing parts at a problem you now understand. That is the real win.
