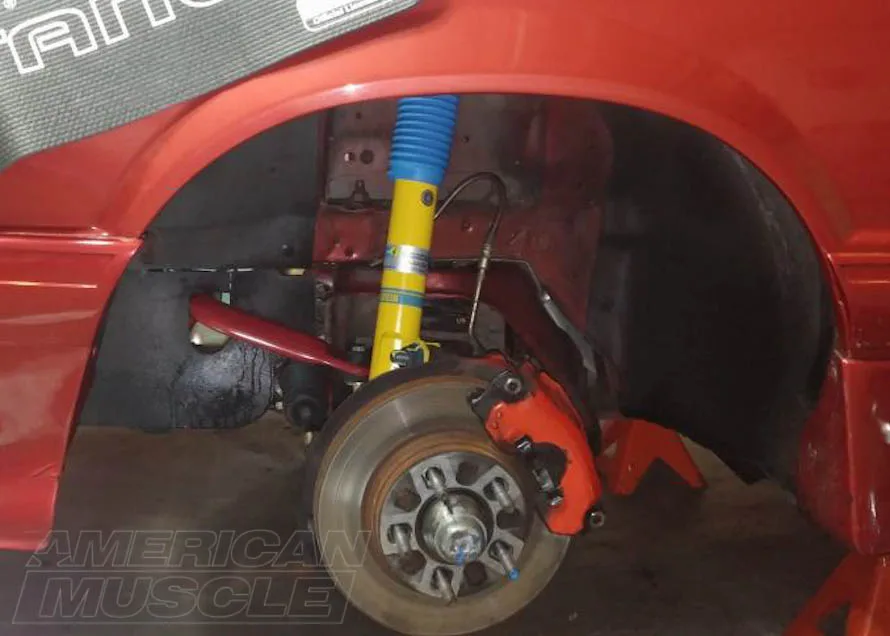

Ford Mustang Suspension Noise

The clunk comes first. Then the dread. Every Mustang owner knows that moment when a smooth drive turns into a symphony of rattles, knocks, and creaks.

Ford Mustang suspension noise is one of the most common complaints across every generation, from the Fox Body to the latest S650.

The good news? Most suspension noises aren't catastrophes. They're worn components with a finite lifespan.

OEM bushings typically last 60,000 to 80,000 miles before they start complaining, and factory struts often need attention between 50,000 and 100,000 miles. The real challenge isn't fixing the problem. It's finding it.

That's where a structured diagnostic approach beats blindly replacing parts.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Ford Mustang suspension noise usually comes from worn sway bar end links, failed strut mounts, loose subframe bolts, or deteriorated bushings. Focus on the symptom, not the part. Pinpoint when the noise happens, where it comes from, and what it sounds like.

Then inspect the likely culprit. Never guess.

Diagnose the Noise First: Clunks, Creaks, and Rattles Explained

Your Mustang is trying to tell you something. You just need to learn the language. Each noise type points to a different family of suspension components, and recognizing the sound narrows your search dramatically.

Clunks are the most common. They usually mean metal-on-metal impact, worn bushings, or loose hardware. Creaks and squeaks point to rubber components that have dried out, cracked, or lost their lubrication.

Grinding sounds are more serious. They signal worn bearings, seized joints, or metal debris in a critical assembly. Rattles are often cosmetic, but they can also mean loose heat shields or missing clips.

Here's a quick reference table to match the noise to the likely source:

Quick Symptom Lookup: What Each Noise Usually Means

If you hear a clunk when pulling into a driveway, think sway bar links. If it happens when you turn the wheel at a stop, suspect the strut mounts or ball joints. A creak from the rear over a speed bump?

That's likely a control arm bushing. The more specific you get about the sound and timing, the faster you'll find the problem.

When a "Minor Noise" Is Really a Safety Warning

Some noises are annoying. Others are dangerous. A metallic pop that happens only during full steering lock needs attention immediately.

That could be a cracked spring or a failing ball joint. Same goes for any grinding that changes pitch with vehicle speed. That's a wheel bearing or CV joint nearing failure.

Per manufacturer specifications, a ball joint with visible play is a safety hazard. Don't drive on it. Check the NHTSA website for any open recalls related to your Mustang before you start repairs.

Front or Rear? Location and Timing Point to the Culprit

Once you've identified the noise type, pinpoint the location. Front-end noise and rear-end noise rarely share the same root cause, especially on different Mustang generations.

Front-End Noise Sources

The front suspension on every Mustang uses MacPherson struts. That design bundles the spring and shock absorber into one assembly connected to the steering knuckle. When you hear front-end noise, these are the usual suspects:

• Sway bar end links, which connect the bar to the strut. These wear quickly and produce classic clunks over uneven surfaces.
• Strut mounts and bearings, which let the strut pivot when you turn. When they fail, you get popping or creaking during steering.
• Ball joints and tie rod ends, which connect the steering and suspension. Worn ones cause knocks over bumps and sloppy steering.

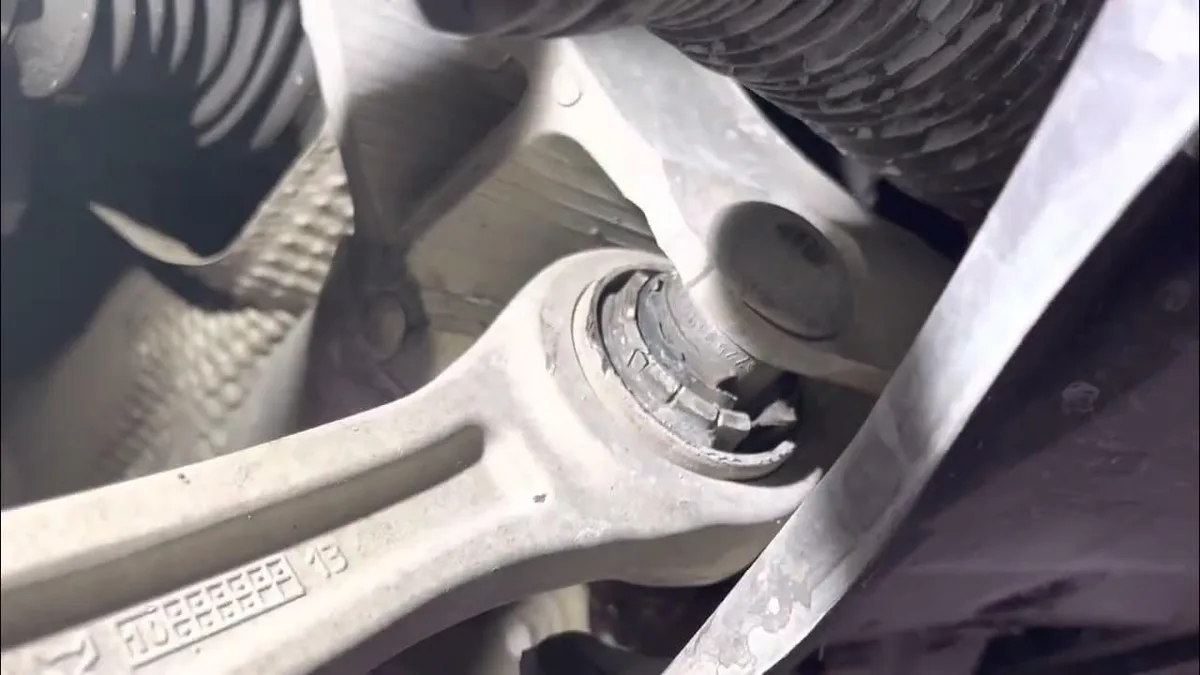

• Control arm bushings, which hold the lower arm in place. Dried rubber here means creaks and vague handling.

Rear-End Noise Sources

Rear suspension design depends on your Mustang's year. The S197 and earlier models use a solid rear axle with leaf springs. The S550 and S650 use an independent rear suspension, or IRS.

That changes what you're listening for.

On solid-axle cars, rear clunks often come from worn shock bushings, loose U-bolts, or a failing pinion bearing. On IRS cars, the culprits are usually rear control arm bushings, subframe bolts, or half shaft CV joints. The IRS layout has more moving parts, which means more potential noise sources.

Timing Variables That Matter: Bumps, Turns, Braking, and Cold Weather

Timing is your best diagnostic clue. A noise that only happens over sharp bumps points to end links, bump stops, or struts. Noise during braking suggests loose calipers, worn control arm bushings, or a failing lower ball joint.

Cold weather hardens rubber bushings. That stiffness makes them squeak and creak over bumps. If the noise never goes away on a warm day, the bushing is likely torn and needs replacement.

The Mustang Suspension Noise Decision Tree

This is the practical part. Follow the branches that match your symptoms. The tree uses if-then logic, the same process professional mechanics use to avoid guesswork.

As of 2026, the S550 subframe bolt clunk is still one of the most common causes of rear suspension noise on independent rear suspension cars.

Image source: Bing (Web (fair-use with source credit))

Reading the Tree: How to Follow It Without Guessing

Start at the first branch. What does the noise sound like? Then move to the next branch.

Where does it come from? Then the final branch. When does it happen?

The answer points you to the inspection checklist in the next section.

If the noise is a clunk over bumps:

→ Check sway bar end links first. They're cheap, easy to inspect, and fail often.

→ If the links look fine, check the strut mounts and subframe bolts. Loose subframe bolts are a known issue on S550 IRS cars.

If the noise pops when turning:

→ Inspect the strut bearings and ball joints.

→ A worn CV joint on IRS rear axles also produces a clicking or popping sound during tight turns.

If the noise is a creak or squeak:

→ Look at the control arm bushings and sway bar bushings.

→ Dry rubber is the most common cause. Replacing the bushings is the permanent fix.

If the noise grinds or knocks:

→ Stop driving and inspect the wheel bearings, differential, and half shafts. This is urgent.

Confirm It in the Garage: Step-by-Step Suspension Inspection

Now it's time to confirm the diagnosis. You'll need a floor jack, jack stands, a pry bar, and a good flashlight. Never work under a car supported only by a jack.

Use stands rated for your Mustang's weight.

Image source: Bing (Web (fair-use with source credit))

Bounce Test, Dry Park Test, and What They Tell You

Start with the bounce test. Push down firmly on each corner of the car and release. If it bounces more than twice or you hear a noise, the shock or strut is weak.

Next, do the dry park test. Turn the steering wheel lock to lock while the car is stationary. Listen for pops or creaks.

That motion loads the strut mounts, bearings, and ball joints. Any noise during this test confirms wear in that area.

Pry Bar, Jack Stands, and Checking Moving Parts for Play

Raise the vehicle and support it on jack stands. Then get under it with your pry bar. Insert the bar between the control arm and the bushing, or between the ball joint and knuckle.

If you see movement, the component is worn. Factory service manuals specify zero play in these joints.

• Check wheel bearings by grabbing the tire at the top and bottom and rocking it. Movement means a worn bearing.
• Check tie rod ends by squeezing the boots and looking for cracks or leaking grease.
• Check sway bar links by pulling on them directly. Worn links move freely or feel loose.

Torque Checks: The S550 Subframe Bolt Trap and Other Hidden Culprits

The S550 Mustang has a known issue with subframe bolts. If you hear a clunk from the rear but everything looks tight, check the subframe bolts and alignment dowels. They work loose over time.

Ford specifies a torque value for these bolts, and they must be tightened to spec. Some S550 owners report a fully cured clunk after re-torquing all subframe and control arm bolts. It's a five-minute fix that can save you hundreds.

Also check the trunk latch and exhaust hangers. You'd be surprised how often a "suspension noise" turns out to be something loose in the body or drivetrain.

Fix Options and What They Really Cost

Once you've confirmed the source, you can decide who does the repair. Some fixes are genuinely DIY-friendly. Others need a shop with specialized tools and a proper four-wheel alignment.

DIY-Friendly Repairs: End Links, Strut Mounts, and Torque Fixes

Sway bar end links are the easiest place to start. They bolt on and off, they're inexpensive, and they only need basic hand tools. Plan on $40 to $100 for a pair.

Sway bar bushings are nearly as simple. Strut mounts require disassembling the strut assembly, which means a spring compressor. If you don't have one, that's a job for a shop.

Subframe bolt re-torquing is also a DIY win. You just need a torque wrench that meets the factory specification for your model year. Check the Ford workshop manual for the exact value.

When to Hand It to a Pro: Alignment, Riveted Parts, and Warranty Concerns

Some repairs are smarter to delegate. Ball joints may need to be pressed out and in. That requires a press, not a pry bar.

Control arm replacements also come with alignment implications. Any component that changes steering geometry means a four-wheel alignment afterward. That costs $80 to $150 at most shops.

Full strut assemblies are a good middle ground. They come pre-assembled with the spring, mount, and bearing, so you don't need a spring compressor. They're more expensive, around $150 to $400 each, but the swap is straightforward.

If you have an IRS car with a rear subframe issue, consider having a pro handle it. The labor is intensive, and getting it wrong means the clunk comes back.

Mistakes to Avoid When Tracking Down Suspension Noise

Guessing is the most expensive diagnostic tool you own. It costs you money, time, and sometimes the very part you needed. Most Mustang owners fall into the same traps, and they're all avoidable.

The Parts Cannon Problem

The "parts cannon" is what mechanics call buying replacement parts until the noise goes away. It's a losing strategy. Replacing end links when the real issue is a strut mount means you paid for parts you didn't need.

A structured diagnostic approach solves the problem on the first attempt in most cases. Follow the decision tree, not your gut.

Skipping the Torque Specs and Other Install Errors

Over-tightening a bolt is just as bad as leaving it loose. Torque specs exist to maintain the correct clamping force and bushing preload. Get it wrong and the bushing twists, causing a new creak.

Always use a calibrated torque wrench and follow the Ford factory values for your model year.

Also, never replace just one side of a pair. Shocks, struts, and control arms wear together. Replace them in pairs, or the new part works harder than the old one and wears out early.

Mustang Suspension Noise FAQs

Here are the questions owners search for most. Each answer is short and direct.

Can I still drive with a clunking suspension?

Short-term, yes. Long-term, no. A clunk from worn end links is annoying, but a grind from a wheel bearing is a safety risk.

Use the decision tree to find the source. If you can't identify it, have a professional inspect it before your next highway trip.

Why does my Mustang squeak in cold weather?

Cold air hardens rubber bushings. That stiffness makes them squeak and creak over bumps. It's often harmless in colder climates.

If the noise persists on a warm day after the car sits, the bushing is likely dry or cracked and needs replacement.

Do I need an alignment after replacing suspension parts?

Yes, in most cases. Any repair touching control arms, struts, or tie rod ends changes the suspension angles. Skipping a four-wheel alignment means uneven tire wear and a crooked steering wheel.

Budget for it after major work.

Are aftermarket sway bar links worth it?

Some are. Adjustable or greasable links last longer than sealed OEM-style links on daily-driven cars. But cheap aftermarket links can rattle immediately.

Stick with trusted brands and check reviews. Grease fittings let you maintain them instead of replacing them.
