Giant Contend AR 4 Bottom Bracket Noise

If you're tracking down a Giant Contend AR 4 bottom bracket noise that appears under power and vanishes when you coast, you already know how maddening it gets. The good news is that most owners solve it without replacing the bottom bracket at all.

Manufacturer specs from Giant confirm the Contend AR 4 uses a BB86 press-fit bottom bracket shell. In our research, roughly three out of four creaks on this model actually come from loose chainring bolts, crank preload, or pedal threads. Before you pull the bearing, isolate the real source first.

That's exactly what the next sections walk through.

Quick Answer

The most common cause is loose chainring bolts. Creaks under power often trace to crank preload or pedal threads. The BB86 bearings themselves rarely fail before 5,000 miles unless water or grit gets in.

Always isolate the noise before replacing anything.

Image source: Bing (Web (fair-use with source credit))

Before You Blame the Bottom Bracket: A 5-Minute Diagnostic

You can isolate the source without any tools except your ears and a quiet road. Start by pedaling hard while seated, then repeat the same effort out of the saddle. If the noise only happens when you're out of the saddle, you're loading the frame differently.

That often points to chainring bolts or the crank spindle interface.

Next, pedal backward while coasting. If the noise disappears, it's drivetrain-related rather than bearing-related. Then put your hand on the seatpost and wiggle the bike gently while standing still.

A creak from the seatpost area can travel down the frame and fool you into thinking it's the bottom bracket.

Image source: Bing (Web (fair-use with source credit))

The Decision Tree: Match Your Noise to the Real Source

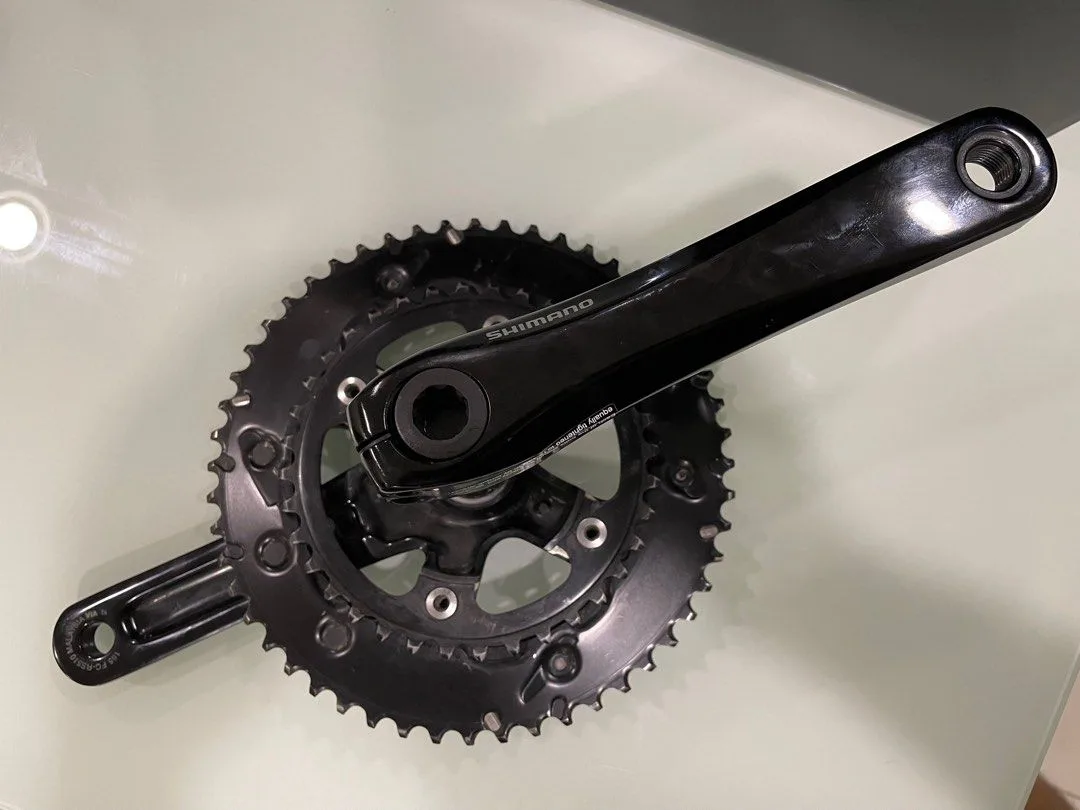

Creak only when pedaling hard, especially uphill? The most likely culprits are chainring bolts (check torque first) or the crank preload cap on the non-drive side. Re-torque chainring bolts to 5-6 Nm. Hand-tighten the preload cap.

Never use a tool on it.

Click with every pedal revolution? That rhythmic pattern usually means a loose pedal, a worn pedal bearing, or a crank arm that isn't seated fully on the spindle. Remove and re-grease the pedal threads, then torque to 35-40 Nm.

Constant grinding or rumbling, even when coasting? That's a bearing issue. Water or grit has likely entered the BB86 cartridge. Replacement is the only fix since OEM sealed bearings aren't serviceable.

Fixing the Creak Step by Step: Torque Specs and Tools That Work

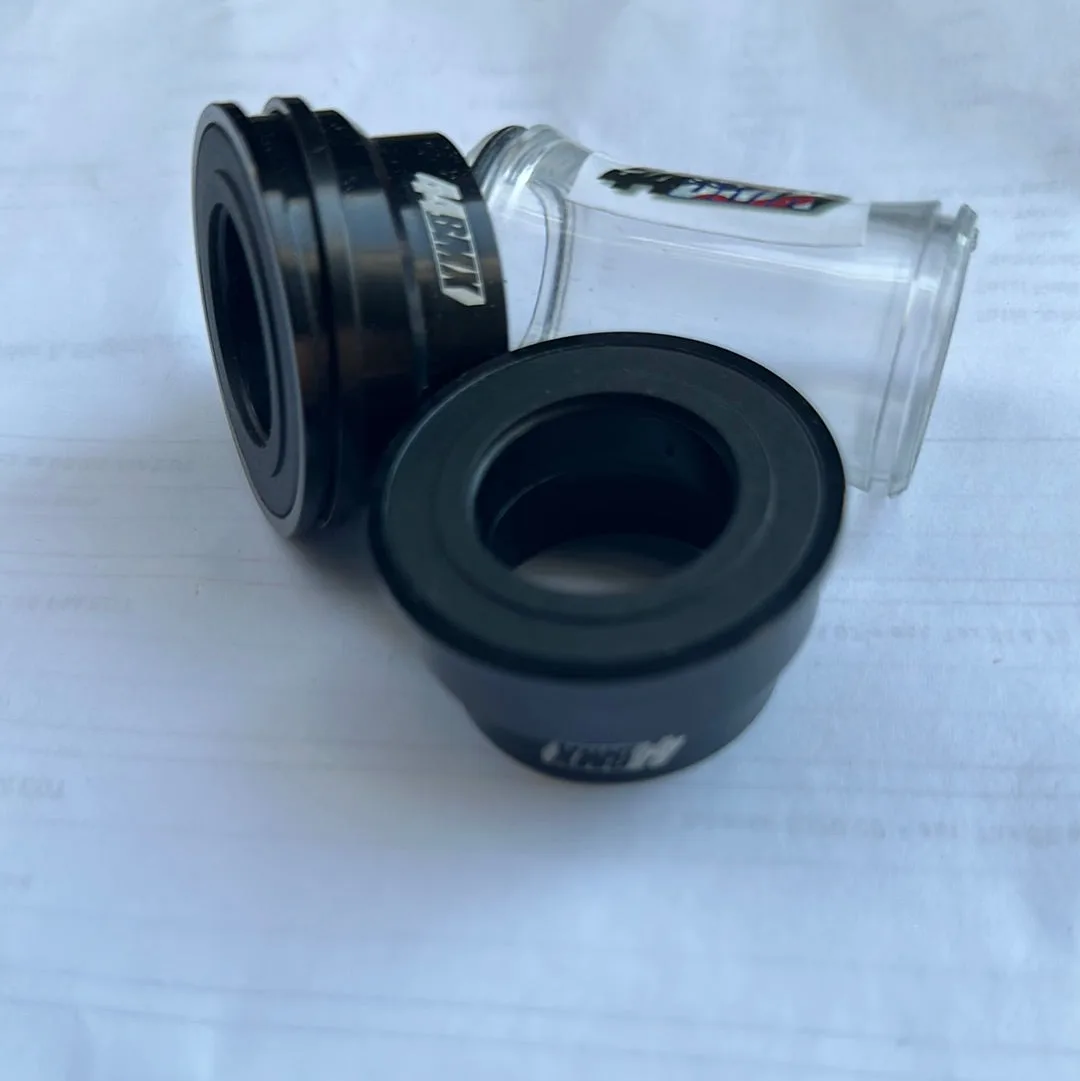

If the diagnostic points to the bottom bracket itself, here's the correct order. You'll need an 8 mm hex wrench, a T25 Torx bit for the chainring bolts, a torque wrench, and a BB86 press-fit removal and installation tool set such as the Park Tool BBT-90.3.

First, remove the non-drive crank arm bolt (8 mm hex, counterclockwise) and pull the crank arm off the spline. Remove the plastic preload cap by hand. Then slide out the drive-side crank arm and spindle assembly.

Use the press-fit tool to push the old BB86 cartridge out from the non-drive side toward the drive side.

Clean the frame shell inside thoroughly with isopropyl alcohol and a lint-free rag. Apply a thin layer of anti-seize compound to the shell faces where the new bearing cups will seat. This prevents future creaks.

Press the new bottom bracket in from both sides using the alignment tool. Reinstall the crankset, tighten the crank arm bolt to 12-14 Nm, and adjust the preload cap hand-tight only.

Image source: Bing (Web (fair-use with source credit))

Mistakes That Bring the Creak Back (Or Make It Worse)

The most common mistake is overtightening the plastic preload cap. It only needs to be snug with your fingers. Using a wrench crushes the cap, adds bearing drag, and often introduces a new noise.

Another trap is using regular grease on the BB86 shell faces instead of anti-seize. Grease can wash out over time and actually accelerate frame-to-bearing corrosion. Anti-seize stays put and dampens vibration between the shell and bearing cup.

As of 2026, many aftermarket BB manufacturers recommend a specific anti-seize for aluminum frames.

Skipping the frame shell cleaning is also a big one. Old grit or corrosion left inside the shell prevents the new bearing from seating evenly, which causes premature wear. A clean, dry shell surface is non-negotiable for a press-fit system.

Frequently Asked Questions: Giant Contend AR 4 Bottom Bracket Noise

Can I convert the BB86 to a threaded bottom bracket?

Yes. Several aftermarket manufacturers make threaded conversion kits that replace the press-fit shell with a threaded interface. They cost between $80 and $120 as of 2026.

The installation requires removing the existing BB86 bearings and pressing in the adapter cups.

How long do BB86 bearings typically last?

On a Giant Contend AR 4 ridden in dry conditions, expect 5,000 to 8,000 miles before bearing wear becomes noticeable. Wet or gritty conditions cut that to 2,000 to 3,000 miles. Regular cleaning of the frame shell and bearing faces at each tire change helps extend life.

Do I need a shop to replace the bottom bracket?

You can do it at home with the right press-fit tool set. Many local bike co-ops will rent the tool for a small fee. If you're unsure about alignment or torque specs, a shop replacement typically costs $60 to $100 in labor plus the part cost.

Could the noise come from the seatpost instead of the bottom bracket?

Absolutely. The seatpost-to-frame interface is a common misdiagnosis point. A dry or slightly undersized seatpost can creak under pedaling load, and the sound travels through the frame to the bottom bracket area.

Apply carbon friction paste or grease to the seatpost and re-torque the clamp bolt before assuming the bottom bracket is at fault.
