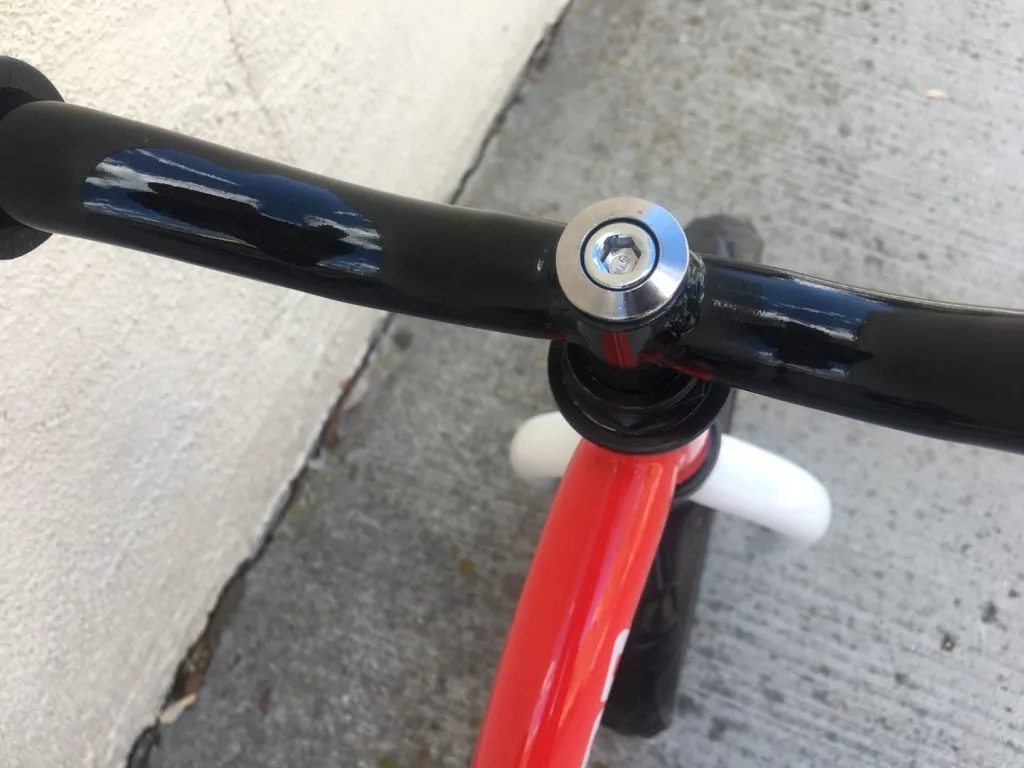

Schwinn Koen Headset Loose

That annoying rattle in your Schwinn Koen's front end is more than just a nuisance. A loose headset affects steering control, and that makes it a safety issue. The good news is that fixing it takes about 15 minutes with a couple of Allen keys.

Manufacturer specs for threadless headsets, like the one on the Koen, typically call for stem bolt torque between 5 and 7 Newton-meters. The top cap adjustment, however, is done by feel. Let's walk through the exact workflow to diagnose and solve it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A loose Schwinn Koen headset causes a knocking sound and front-end wobble. The fix involves loosening the stem bolts and carefully tightening the top cap bolt to remove play. Never over-tighten the top cap, as this crushes the bearings and ruins steering feel.

Always realign your stem and wheel before final tightening.

How to Fix It: The Step-by-Step Workflow

This process follows clear logic: diagnose, prepare, adjust, verify. The Schwinn Koen uses a threadless headset, adjusted via the top cap and stem. If your bike has a threaded system with a quill stem and a large locknut on top, the method differs, but the Koen is almost certainly threadless.

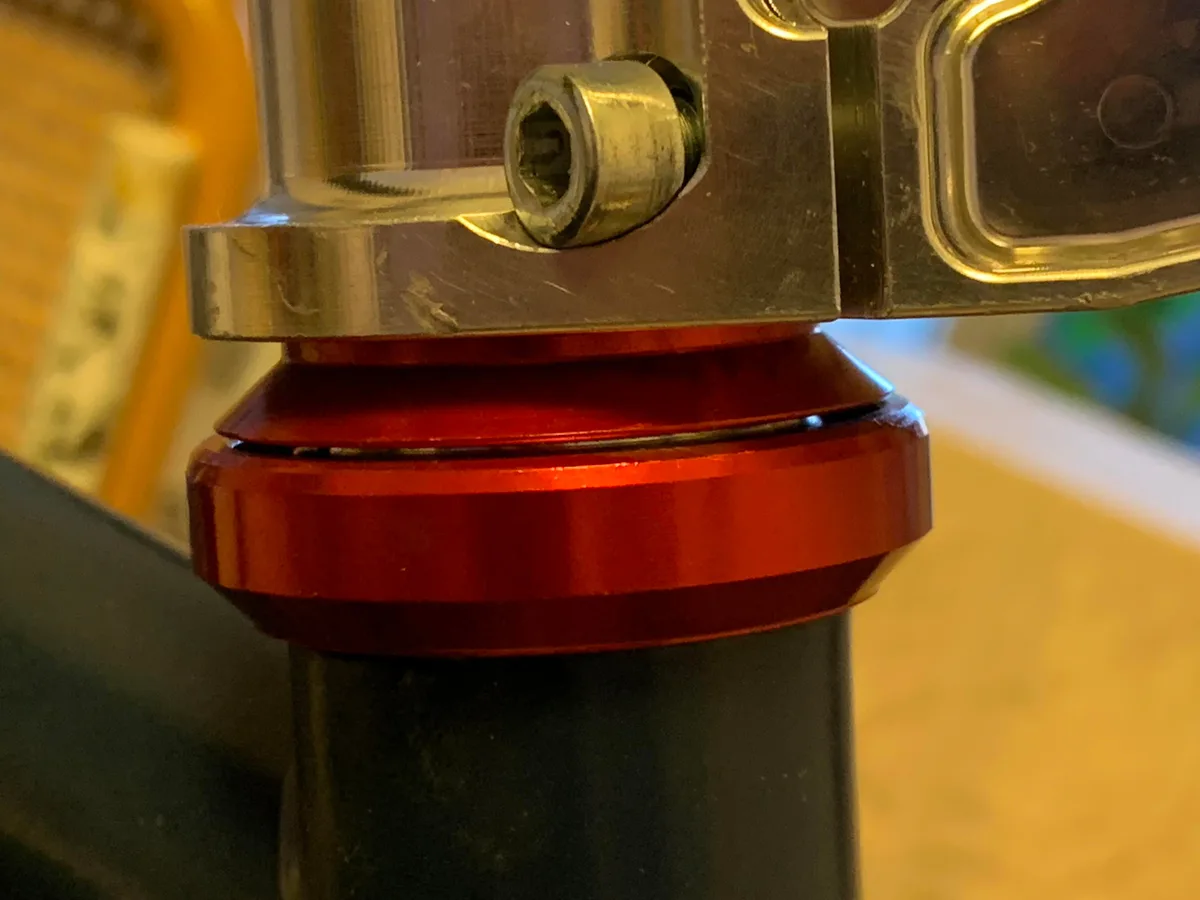

Step 1: Diagnose the Exact Problem (The Rocking Test)

First, confirm it's the headset and not a loose wheel or stem. Stand over the bike's top tube with the front brake held shut. Push and pull the handlebars forward and backward.

You'll feel and hear a distinct knock if the headset bearings are loose. If movement feels solid and smooth, the headset is fine and the noise comes from elsewhere.

Image source: Bing (Web (fair-use with source credit))

Step 2: Gather Your Tools

You'll need a 4mm Allen key for the top cap bolt and a 5mm Allen key for the stem clamp bolts. That covers most Schwinn kids' bikes. A torque wrench helps with the final stem bolt tightness, but it's not required for this job.

Step 3: The Adjustment Process (Threadless Headset Method)

This is the core workflow. Follow these steps in order.

Loosening the Stem Bolts

Locate the two bolts on the back of the stem that clamp it to the fork's steerer tube. Using your 5mm Allen key, loosen each bolt about one full turn. They should be loose enough that you can move the stem by hand, but not flopping around.

If the stem stays clamped tight, you cannot adjust the headset preload correctly.

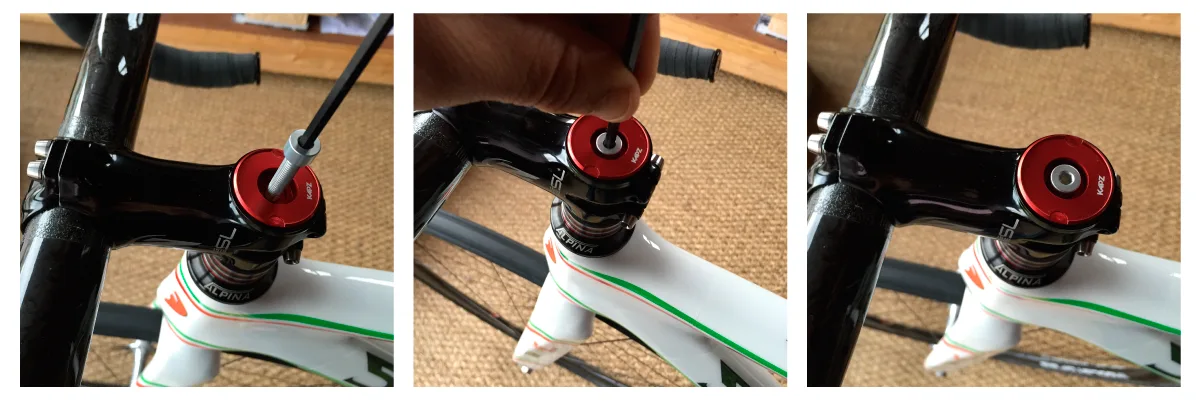

Setting the Top Cap Preload

Turn to the single bolt on the very top of the stem. With your 4mm Allen key, tighten it clockwise about a quarter-turn at a time. After each turn, go back to the rocking test from Step 1.

The goal is to tighten just until the play disappears completely. The moment you can no longer feel any knock, stop. You have found the correct preload.

Image source: Bing (Web (fair-use with source credit))

Aligning the Stem and Wheel

The stem may now be crooked. Stand in front of the bike and straighten the handlebars so the stem and front wheel are perfectly aligned. This is critical before final tightening.

Final Tightening and Verification

Re-tighten the two stem clamp bolts evenly, alternating between them to ensure even clamping pressure. Use a torque wrench set to about 5 Nm, or tighten firmly by hand. Perform one last rocking test and spin the front wheel.

Steering should feel smooth with no play or binding.

Common Mistakes That Make It Worse

Avoid these frequent errors that can damage your bike or leave the problem unsolved.

• Over-tightening the top cap. This is the most common mistake. Cranking down on the top cap bolt crushes the headset bearings. This creates grinding, rough steering and permanently damages them. The correct tightness is the minimum needed to remove play. Nothing more.

• Tightening stem bolts before adjusting preload. If the stem is already clamped tight to the steerer tube, turning the top cap bolt does nothing. It just stretches the bolt. Loosen the stem bolts first.

• Ignoring alignment. If you tighten everything with the wheel crooked, the bike will pull to one side. You will have to start over.

• Using the wrong tools. Pliers or adjustable wrenches round off bolt heads. Always use the correct size Allen key. For other wheeled equipment, like an A6 deck that rattles, proper tools matter just as much.

When the Fix Doesn't Work

If you followed the workflow perfectly but still feel a knock, or if steering feels gritty after adjustment, the problem goes beyond simple tightening. Worn bearings or a damaged star nut are the usual culprits at this point.

You have two paths.

Replacement parts. New headset bearings or a star nut may solve the issue. Both require specialized tools like a bearing press and star nut setting tool. Most home mechanics do not own these.

Professional service. A local bike shop has the tools and expertise to disassemble, inspect, and replace components correctly. Given that this involves steering that affects rider safety, professional help is the right call when DIY fixes fall short.

Typical headset service runs $15 to $40 as of 2026, not including parts. New bearings add another $10 to $25. For a child's bike, that cost is minor compared to the risk of steering failure.

Headset Adjusted? Quick Safety Checklist

Run through this before your next ride. Each item takes seconds but could prevent an accident.

• Rocking test passed. No knock or play when you push and pull the handlebars with the front brake locked. This is your primary confirmation.

• Steering spins freely. Turn the handlebars left to right. Movement should feel smooth with no grinding, clicking, or tight spots. Roughness means the top cap is too tight.

• Wheel spins freely. Lift the front wheel off the ground and spin it. It should rotate for several seconds without stopping abruptly. Quick stopping means too much preload.

• Stem bolts torqued. Both stem clamp bolts are tight and even. Give each bolt a firm check with your Allen key. They should not move.

• Wheel alignment confirmed. Stand over the bike and look down. The front wheel points straight ahead, perfectly in line with the stem.

• Test ride completed. Take a slow ride around the block. Apply the front brake gently at low speed and feel for any remaining play or unusual sounds. Everything should feel solid.

If any item fails, repeat the adjustment. Skipping verification is how the same problem returns a week later. Consistent attention to small fixes keeps everything rolling safely, from loose handlebars to recurring rattles.

Your Decision Guide: Adjust It Yourself or Call a Shop?

If the diagnostic test confirms play and your Koen has a standard threadless headset, the adjustment is straightforward. Most parents can complete it in 15 minutes with two Allen keys. The process is fully reversible, so if something doesn't feel right, you can loosen everything and start over without damage.

When DIY Works

You're a good candidate if you have basic tools, steering feels smooth after removing the play, and the star nut holds firm when you tighten the top cap. Follow the workflow carefully and resist the urge to over-tighten. That single habit prevents most problems.

When to Call a Professional

Take the bike to a shop if any of these conditions apply:

• Steering feels gritty or rough after adjustment, pointing to worn bearings.
• Play returns within a few rides despite correct preload.
• The top cap spins freely without tightening anything, meaning the star nut has slipped.
• The fork appears bent or shows impact damage.
• You are uncertain about any step and want guaranteed peace of mind.

Professional service also makes sense if multiple family bikes need attention at once. A shop can handle a stem problem on one bike while adjusting the headset on another.

Frequently Asked Questions

How do I know if my Schwinn Koen headset is actually loose?

Stand over the bike with the front brake held shut. Rock the bike forward and backward. A distinct knock or clunk in the front end means the headset bearings have play.

If movement feels solid and smooth, the headset is not loose and the noise comes from elsewhere.

Can I damage my bike by tightening the headset too much?

Yes. Over-tightening the top cap crushes the bearings inside the headset cups. This causes rough, gritty steering and accelerates wear.

The correct tightness is the minimum needed to eliminate play. Once the knock disappears, stop.

What size Allen keys do I need for the Schwinn Koen headset?

Most Schwinn Koen models use a 4mm Allen key for the top cap bolt and a 5mm Allen key for the stem clamp bolts. Check your specific model to confirm, as hardware can vary between production years. Having both sizes on hand covers the job.

How long does this adjustment take?

For a first-timer, plan on 15 to 20 minutes. Experienced mechanics finish in under 5 minutes. The time comes from careful diagnosis, alignment, and verification, which you should never rush.

Should I use grease on the top cap bolt?

A thin layer of grease on the bolt threads prevents seizing and makes future adjustments easier. It is not strictly required for a one-time fix, but it is good practice. Avoid getting grease near brake components.

My headset still knocks after adjustment. What now?

If the knock returns after riding, your bearings are likely worn or pitted. A star nut that has slipped inside the steerer tube can also cause this. Both issues require disassembly and part replacement.

A local bike shop visit is the right move here, especially for a child's safety.
