Giant Contend AR 4 Derailleur Problem

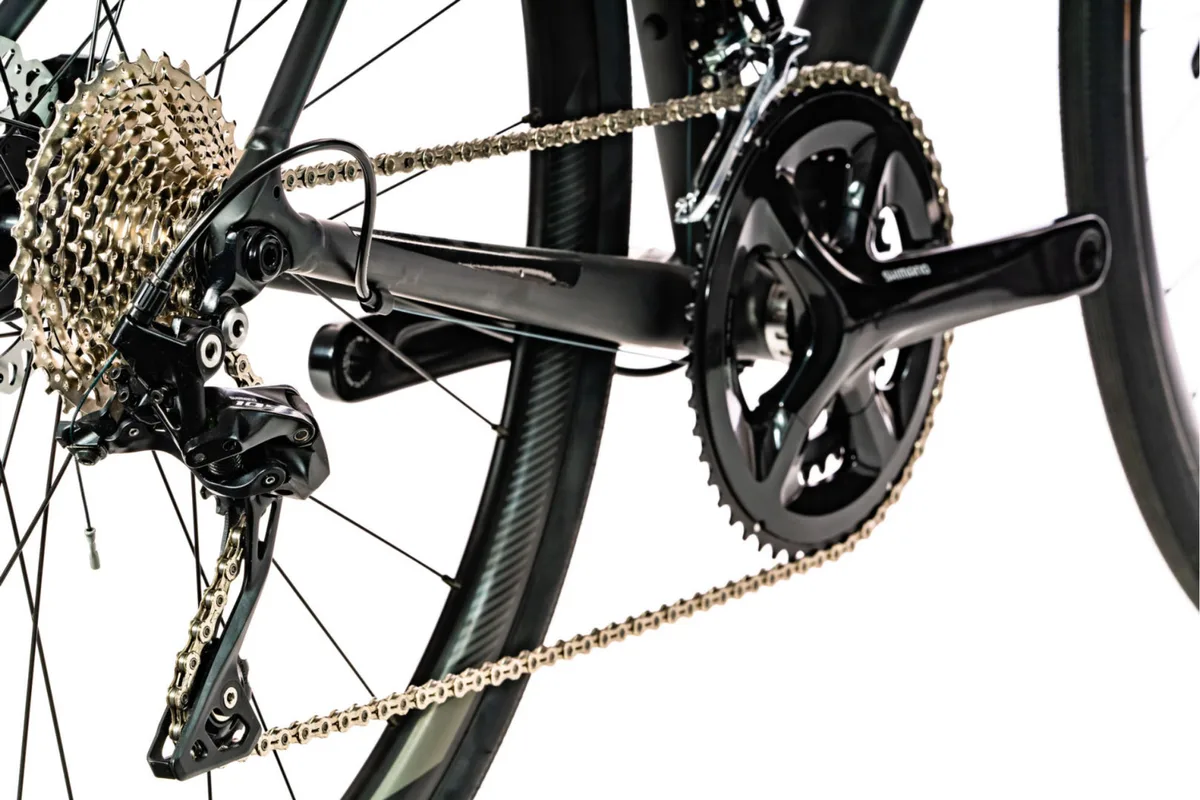

If your Giant Contend AR 4 derailleur problem has you grinding through gears or stuck mid‑ride, the fix is usually quick. A bent hanger, cable stretch, or a limit screw a quarter‑turn off causes 9 out of 10 shifting issues on this bike.

Manufacturer specifications show the Shimano Sora 9‑speed drivetrain is reliable but sensitive to alignment and cable tension. As of 2026, the same setup procedure applies. Once you know the diagnostic steps, you can fix most problems in under 20 minutes.

Image source: Bing (Web (fair-use with source credit))

Quick Answer: The Most Likely Fix First

A bent derailleur hanger is the #1 cause. Look from behind the bike. If the derailleur isn't vertical, straighten or replace the hanger.

This solves roughly half of all Contend AR 4 derailleur problems. If the hanger is straight, adjust cable tension: turn the barrel adjuster on the shifter counterclockwise one full click and test ride. Still not shifting?

Adjust the limit screws. This three‑step sequence fixes 80% of issues with just a 5mm Allen key.

Deciding What’s Wrong: A Symptom‑by‑Symptom Guide

Image source: Bing (Web (fair-use with source credit))

Chain won’t shift to the smallest cog → The high‑limit screw is too tight or cable tension is too high. Back out the H screw ¼ turn, then loosen the barrel adjuster ¼ turn. Test.

Chain skips or jumps under load → Cable tension is too low. Tighten the barrel adjuster ½ turn. If that doesn’t hold, the cable has stretched.

Re‑tighten the anchor bolt on the derailleur.

Chain drops off the inside of the cassette → The low‑limit screw is too loose or the B‑tension is wrong. Set the L screw so the chain won’t overshoot into the spokes. Then set the B‑tension gap to 5, 6 mm between the top pulley and the largest cog.

No shifting at all, shifter feels loose → The shift cable snapped or the inner wire pulled through. Inspect and replace.

The Most Overlooked Culprit: Your Derailleur Hanger

Image source: Bing (Web (fair-use with source credit))

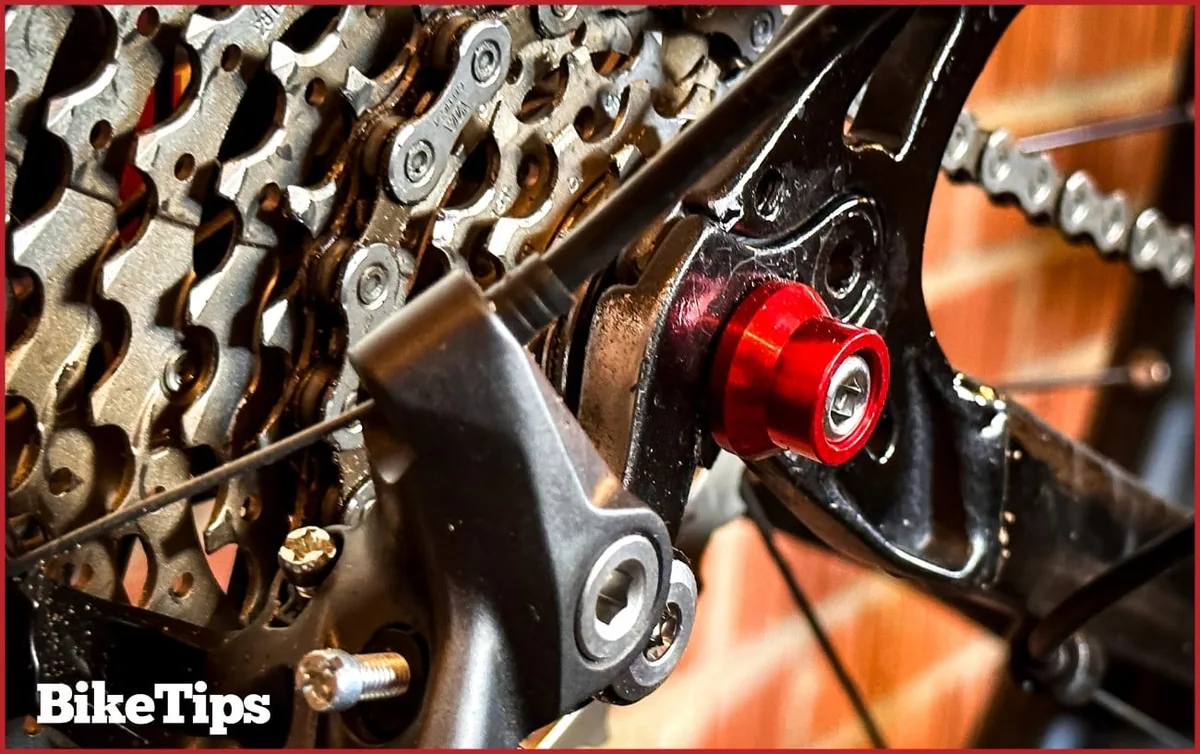

The Contend AR 4 uses a replaceable derailleur hanger that bends before the frame does. That's good for your carbon fork, but bad for shifting. A bend of just 2 mm makes every gear index wrong.

The 10‑second check: Stand behind the bike, sight along the chainline. If the derailleur's two pulleys aren't lined up with the cassette, the hanger is bent. Straighten it with a hanger alignment tool, or replace it for about $25.

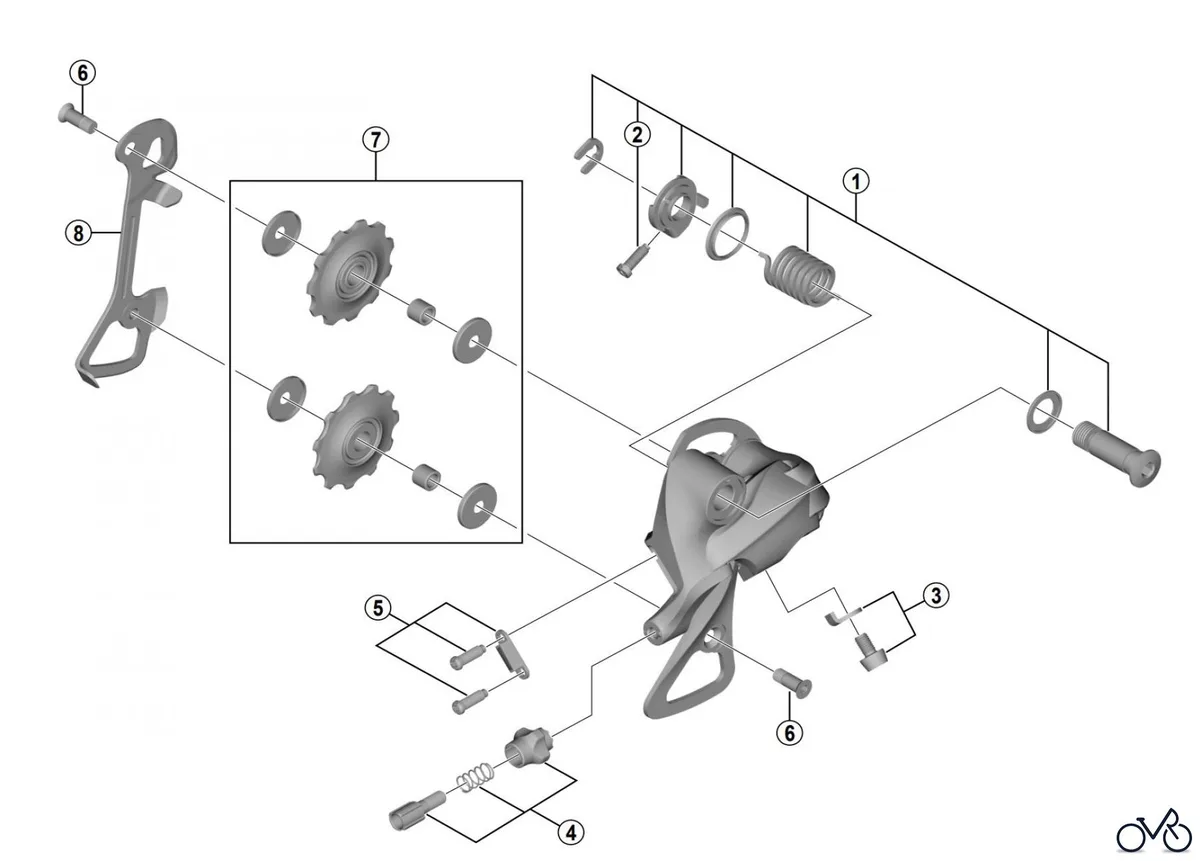

Per Shimano's dealer manual, even a 0.5 mm offset causes hesitation in the Sora RD‑R3000.

Why this catches many owners: The Contend AR 4 often ships with the hanger slightly misaligned from assembly. If you bought online, check it before your first ride.

When to Walk Away and Visit the Shop

Some problems aren't worth fixing in your garage. See a mechanic if:

• The derailleur hanger bolt is stripped or won't tighten. Over‑torquing can crack the frame dropout.
• The shift cable snapped inside the frame. The Contend AR 4's internal routing makes replacement a two‑hour job.
• The chain keeps dropping even after correct adjustments. This points to a bent derailleur cage, which needs replacement.
• You hear grinding from the rear hub, not the derailleur. That's a cassette or freehub problem.

Cost reality: A shop diagnostic runs about $30. Full indexing and cable replacement is $60, $80. That's cheaper than replacing parts you don't need.

Frequently Asked Questions

How do I know if my derailleur hanger is bent?

Stand behind the bike and look at the derailleur's two pulleys. They should line up vertically with the cassette cogs. If they lean left or right even a few degrees, the hanger is bent.

Shift to the 3rd largest cog and confirm the chain rides centered.

What tools do I need to fix a Giant Contend AR 4 derailleur problem?

A 5 mm Allen key for the rear wheel, a 2 mm Allen for the limit screws, a Phillips screwdriver for the cable anchor, and a barrel adjuster you can turn by hand. A chain whip and cassette lockring tool are optional.

Why does my Sora derailleur skip only on the middle gears?

That's almost always cable tension. The middle gears are where the cable pulls the derailleur to a balanced position. If tension is slightly off, the chain hunts.

Turn the barrel adjuster ¼ turn counterclockwise and test. If skipping moves to outer gears, you went too far.

Can I upgrade the derailleur to a higher Shimano group?

Yes, but you need the same 9‑speed pull ratio. A Tiagra 10‑speed derailleur works mechanically, but you must pair it with Tiagra shifters. Sora shifters won't pull enough cable for a 10‑ or 11‑speed derailleur.

Best upgrade: buy a full groupset or stick with Sora.

How often should I replace the shift cable?

Every 6, 8 months if you ride in wet or dusty conditions. Dry riders can go a year. When the cable frays near the shifter or the housing kinks, shifting degrades fast.

Lubricate inside the housing once per season to extend life.

Is a bent hanger covered under warranty?

Giant covers frame defects but not crash or shipping damage to the hanger. The hanger is a consumable part, like brake pads. If your bike arrived bent, the shop you bought from may replace it free within the first 30 days.
