Giant Contend AR 4 Chain Keeps Falling Off

Your Giant Contend AR 4 chain keeps falling off, and it's probably not the bike's fault. Nine times out of ten, a front derailleur that's slightly out of position or a shift cable that's gone slack is the real culprit. Shimano's own specs for the Claris R2000 front derailleur call for a 2-3 mm gap between the derailleur cage and the large chainring teeth, plus a cage that sits parallel to the rings.

Most riders never check those two measurements after a shop tune-up, and that's where the trouble starts.

Here's the thing: a dropping chain on a Contend AR 4 usually follows a pattern. The same symptom happens at the same shift, over and over. Once you spot that pattern, the fix takes about ten minutes and a 4 mm hex wrench.

Image source: Bing (Web (fair-use with source credit))

Is Your Chain Dropping Off the Big Ring, Small Ring, or Both?

The answer tells you exactly which limit screw to adjust. If the chain falls off the outside of the big ring when you shift up, the H (high) limit screw allows too much travel. If it drops between the two chainrings when you shift down into the small ring, the L (low) limit screw is the problem.

A chain that drops in both directions means the derailleur cage height or angle is wrong.

Here is a quick breakdown based on common Claris drivetrain issues:

• Off the big ring (outside): Turn the H limit screw clockwise by 1/4 turn.
• Between rings (inward drop): Turn the L limit screw clockwise by 1/4 turn, then check cable tension.
• During bumpy descents, with no shift happening: The derailleur cage is too high or not parallel to the rings.
• Only under heavy pedal load: Ease off the power for one pedal stroke while shifting. Cross-chaining with full force is the classic trigger.

The 10-Minute Tuning Flow: Limit Screws, Cable Tension, and Cage Height

Start on a bike stand or flip the bike upside down. Shift onto the small chainring and the largest rear cog. Loosen the front derailleur clamp bolt just enough to move the cage by hand.

Set the cage height so there is a 2-3 mm gap between the outer plate and the tallest tooth on the big ring. Then swivel the cage until it sits parallel to the rings when viewed from above.

Tighten the clamp bolt to 5-6 Nm. Shift the rear to the smallest cog and the front to the big ring. Turn the H limit screw until there is a 0.5 mm gap between the inner plate and the chain.

Shift to the small ring and the largest rear cog. Adjust the L limit screw the same way. Finally, check cable tension by shifting through the full range.

If the front derailleur hesitates on the upshift, turn the barrel adjuster a half turn counterclockwise to add tension.

As of 2026, the Shimano Claris dealer manual still describes this exact sequence for the R2000 front derailleur. It is a repeatable one-hour process if you work slowly, or ten minutes if you have done it before.

The Two Mistakes That Turn a Chain Drop Into a Jammed Rear Wheel

A chain that wedges between the crank arm and the chainring can lock the rear wheel instantly. That is a crash risk, especially if you are pedaling hard up a climb or crossing an intersection. Most riders ignore the early warning signs: a chain that chatters against the front derailleur cage, or skips slightly during upshifts.

Fix those two symptoms before they become a locked wheel.

The second mistake is cross-chaining while pedaling out of the saddle. The Giant Contend AR 4 uses a compact 50/34T crankset with an 11-34T cassette. The extreme chain angle from the big ring to the biggest rear cog, combined with frame flex from a sprint, can overpower the front derailleur's guide plate.

Shift before you stand up, and you eliminate the majority of force-related drops.

When "Adjustment" Won't Fix It: Bent Hangers, Stretched Cables, and Claris Limits

Sometimes the derailleur is not the problem. A bent derailleur hanger makes the front derailleur sit at the wrong angle no matter how you adjust the screws. You can spot a bent hanger by sighting along the rear wheel from behind: the derailleur hanger should appear perfectly vertical.

A misalignment of even 2-3 degrees can cause a chain drop.

Image source: Bing (Web (fair-use with source credit))

Old or stretched shift cables are another hidden cause. The Claris shift lever pulls a specific amount of cable per click. If the cable has frayed strands or the housing has compressed, the derailleur never reaches its intended position.

Replace the cable and housing once per year, or sooner if you ride in wet or sandy conditions.

Image source: Bing (Web (fair-use with source credit))

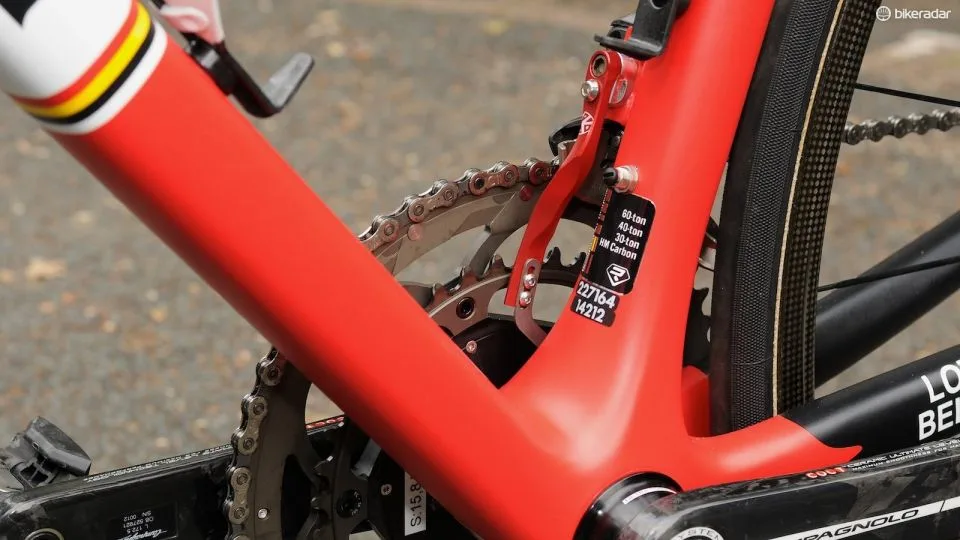

For repeat drops that keep happening after every adjustment, a chain catcher is practical insurance. It bolts to the seat tube just below the front derailleur and physically blocks the chain from falling between the rings. It is not a fix for the root cause, but it buys you time to diagnose the hanger or cable issue safely.

Frequently Asked Questions

Why does my chain only fall off when I shift into the small ring?

The L limit screw is letting the derailleur travel too far inward. Turn the L screw clockwise by 1/4 turn and test the shift again. If the chain still drops, check the cable tension; a loose cable lets the derailleur overshoot the small ring.

Can a worn chain cause the chain to fall off?

Yes. Once a chain stretches beyond 0.5% wear, the rollers sit slightly higher on the chainring teeth. That changes the chainline just enough for the front derailleur to lose guidance.

Replace the chain, and the drop often disappears.

How do I know if my derailleur hanger is bent?

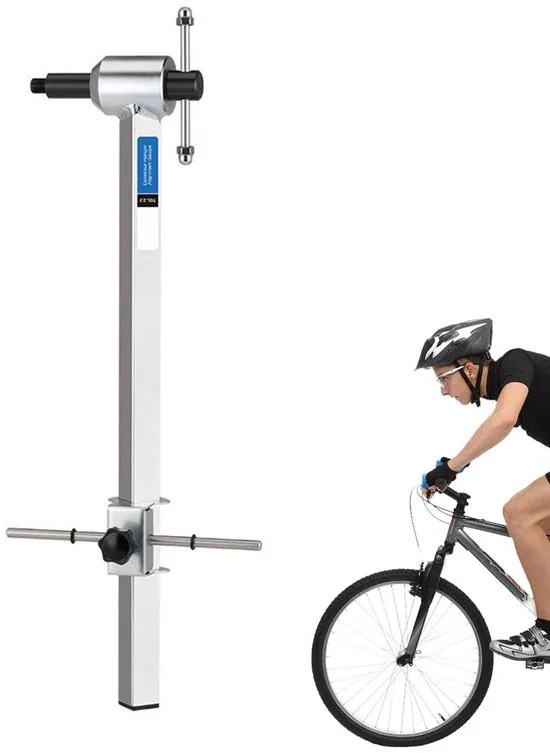

Look at the rear derailleur from directly behind the bike. If the derailleur body appears tilted relative to the cassette, the hanger is bent. A shop can check it with a hanger alignment gauge in about 30 seconds.

Should I upgrade to a 1x drivetrain to stop chain drops?

A 1x system eliminates the front derailleur entirely, so chain drops between rings cannot happen. But it requires a narrow-wide chainring, a clutch rear derailleur, and a new shifter. For most Contend AR 4 owners, proper adjustment solves the problem without the cost.

How often should I check my front derailleur adjustment?

Every 500 miles, or after any crash or transport knock. Cable tension on a Claris drivetrain drifts slightly as the housing and cable settle in. A 30-second check at the start of a ride prevents an inconvenient walk home.
