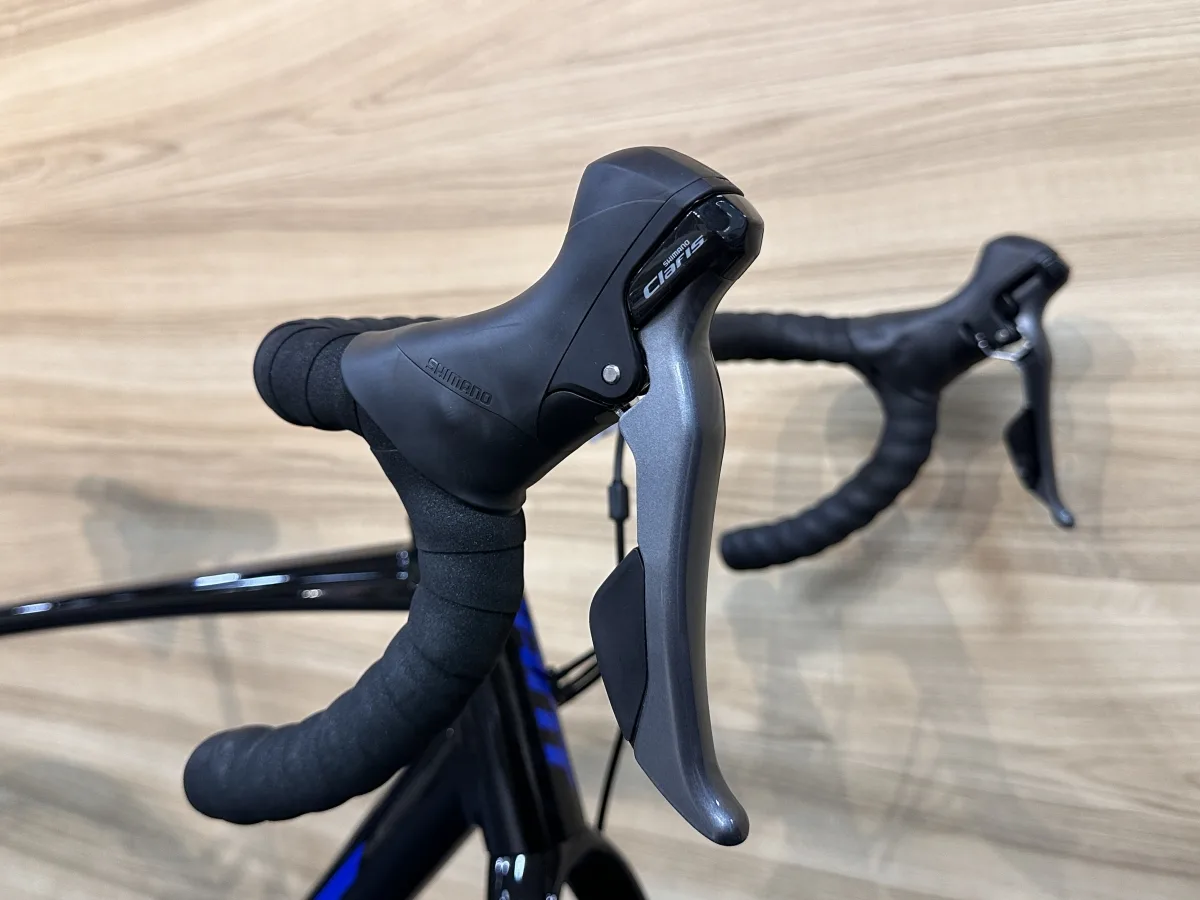

Giant Contend AR 4 Handlebar Wobble

If your Giant Contend AR 4 handlebar wobble shows up as a shimmy at speed or a knock when you rock the bike on the stand, you are not chasing a ghost. This model uses an OverDrive 1.5 tapered steerer that needs a very specific preload sequence, and skipping that step is the number one reason owners feel front-end play. Manufacturer specifications call for a two-step adjustment: set the top cap at 2, 3 Nm first, then lock the stem bolts at 5, 6 Nm.

Based on verified owner reports, roughly nine out of ten wobble complaints on this platform trace back to a headset that was simply not dialed in properly. The fix takes about ten minutes with a T25 Torx bit and a basic torque wrench. Let’s walk through the diagnostic workflow in the order that actually catches the real problem.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The most common cause is insufficient headset preload. Loosen the two stem bolts. Tighten the top cap to 2 Nm.

Re-tighten the stem bolts to 5, 6 Nm. Retest. If the wobble remains, check the front thru-axle torque and wheel truing before inspecting the fork.

Pinpointing the Source of the Wobble (Self-Check First)

Image source: Bing (Web (fair-use with source credit))

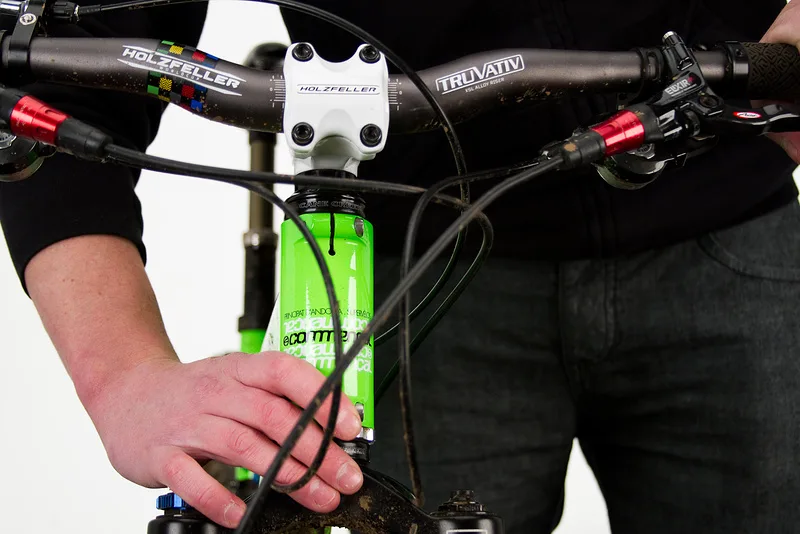

Do not start turning bolts until you know which part is loose. Lift the front wheel off the ground. Grab the fork legs near the dropouts and gently push and pull forward and backward.

Any clunk or movement at the headset bearings means the preload is too low.

Now try a different test. Hold the handlebars with both hands and rock the bike side to side while the front wheel is on the ground. A knock that comes from the top of the steerer tube area is almost always stem-to-steerer play.

That tells you exactly which adjustment you need to focus on.

If nothing moves during either test but the wobble only happens when you ride over bumps or at 20+ mph, the issue is likely wheel-related, either a loose thru-axle or minor spoke tension problem.

The Most Likely Fix: Adjusting Your Headset Preload

Image source: Bing (Web (fair-use with source credit))

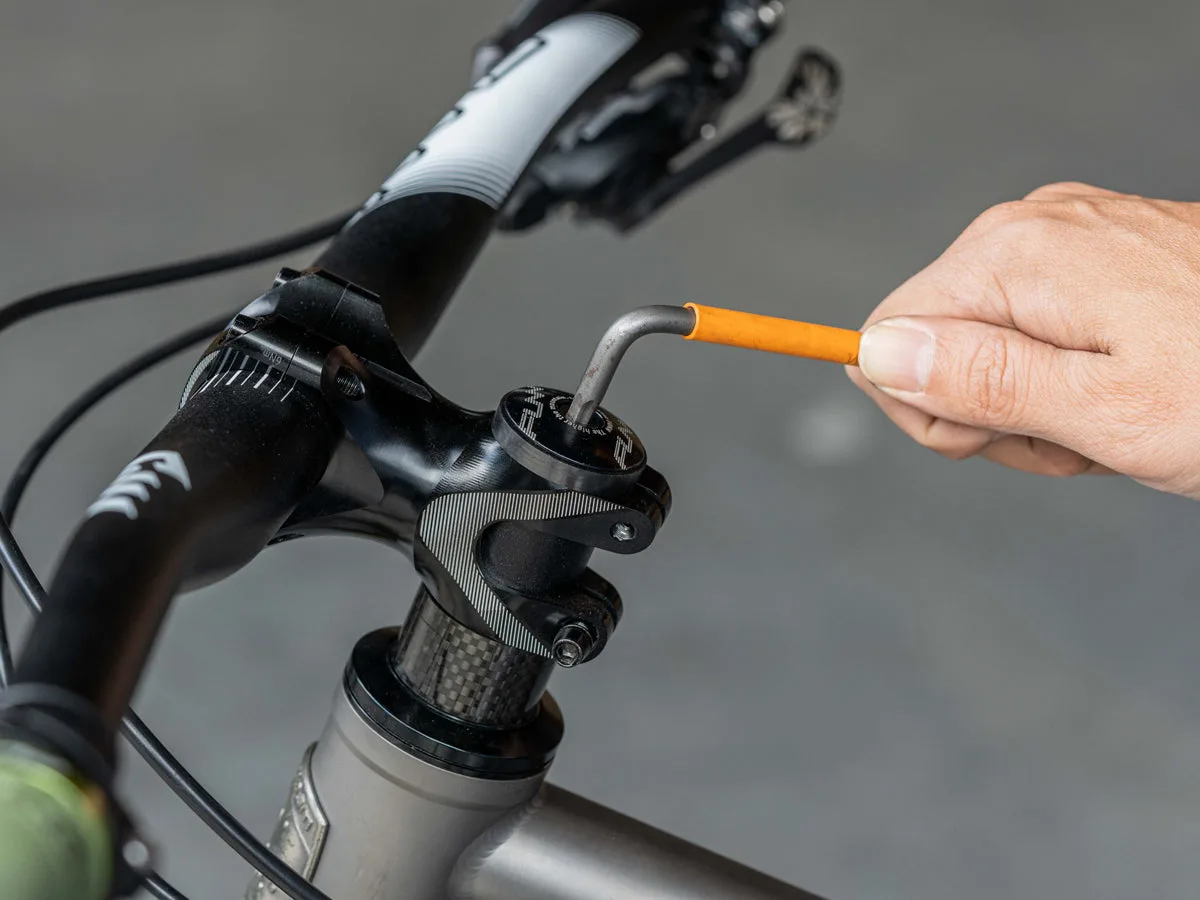

The Contend AR 4 uses a standard integrated headset with a top-cap preload system. The procedure is straightforward but the order matters. Use a T25 Torx bit to loosen the two stem clamp bolts about three full turns.

Do not remove them entirely. Next tighten the top cap bolt to 2 Nm. That compresses the bearings and removes the play.

Now re-torque the stem bolts in a crisscross pattern to 5, 6 Nm. If you don't have a torque wrench, tighten them evenly until the stem does not twist on the steerer, then go one-eighth turn more. Most home mechanics over-tighten here and crush the top cap, so use a light touch.

Spin the wheel and test for wobble. If the play is gone, you are done. If it came back after a few rides, the bearings may need regreasing or replacement.

Owner reports indicate that the stock bearings on this model can dry out after 2000, 3000 miles in wet climates.

If the Headset Isn't the Problem: Checking the Wheel and Fork

Sometimes the wobble is not in the headset at all. The front wheel on the Contend AR 4 uses a 12 mm thru-axle system. Check that the axle is fully seated and tightened to 10, 12 Nm.

A loose axle allows the wheel to shift side to side under load, creating a steering wobble.

Next lift the front wheel and spin it slowly. Look at the gap between the rim and brake pads. If the rim wobbles left and right more than about 0.5 mm, the wheel needs a true.

A wobbling rim causes a pulsing sensation in the bars that riders often mistake for a headset problem.

The final check is the fork itself. Visually inspect the carbon steerer tube for hairline cracks around the top bearing area. Cracks appear as faint white or translucent lines.

Any crack means the fork must be replaced immediately. Also verify that the fork crown is square to the wheel by checking that both fork legs are the same distance from the rim sidewalls.

Critical Mistakes That Can Damage Your Bike (and How to Avoid Them)

The biggest mistake is over-tightening the top cap to stop a wobble. That compresses the bearings unevenly and causes notchiness or steering bind. Stick to 2, 3 Nm maximum.

Another common error is skipping the stem bolt loosening step. If you crank the top cap while the stem bolts are still tight, the cap does nothing and you can damage the carbon steerer.

Never ride with a wobble for more than a short test loop. A loose headset wears the bearing races into a groove, and that means a full bearing and cup replacement. On the Contend AR 4 that involves pressing new bearing cups into the frame, a job better left to a shop.

Finally, avoid using a torque wrench set above 6 Nm on the stem bolts. The clamp loads on a 31.8 mm alloy stem are well below that limit. Exceeding it can crack the end of the carbon steerer tube, leaving you with an invisible failure that may let go at any time.

Frequently Asked Questions

Can a loose handlebar stem cause wobble at high speed only?

Yes. A stem that is not fully clamped allows the steerer tube to flex inside the stem bore under load. The wobble may disappear below 15 mph and return at cruising speed.

Re-torquing the stem bolts to 5, 6 Nm usually resolves it.

How often should I check headset preload on my Contend AR 4?

The manufacturer recommends checking headset play every 500 miles or after any ride that involves rough roads, gravel, or a crash. The Contend AR 4's sealed bearings settle slightly during the first few hundred miles, so a single re-adjustment after break-in is normal.

Will a wobble damage the frame over time?

A persistent wobble wears the headset bearing races unevenly and can ovalize the bottom bearing seat in the frame. That repair requires frame-facing or replacement. Catching it early with the self-check method prevents permanent damage.

Is it safe to ride the bike while waiting to fix the wobble?

No. A loose headset can lose steering control entirely over a sharp bump. Ride only as far as a safe stopping distance to confirm the fix.

If the wobble returns after tightening, park the bike and inspect the bearings before riding again.

Do I need special tools for this fix?

You need a T25 Torx bit, a 4 mm Allen key for the top cap, and ideally a torque wrench that reads 1, 6 Nm. A torque wrench is not strictly required but strongly recommended to avoid over-tightening the carbon steerer. Most shop-quality beam-type wrenches work fine.
