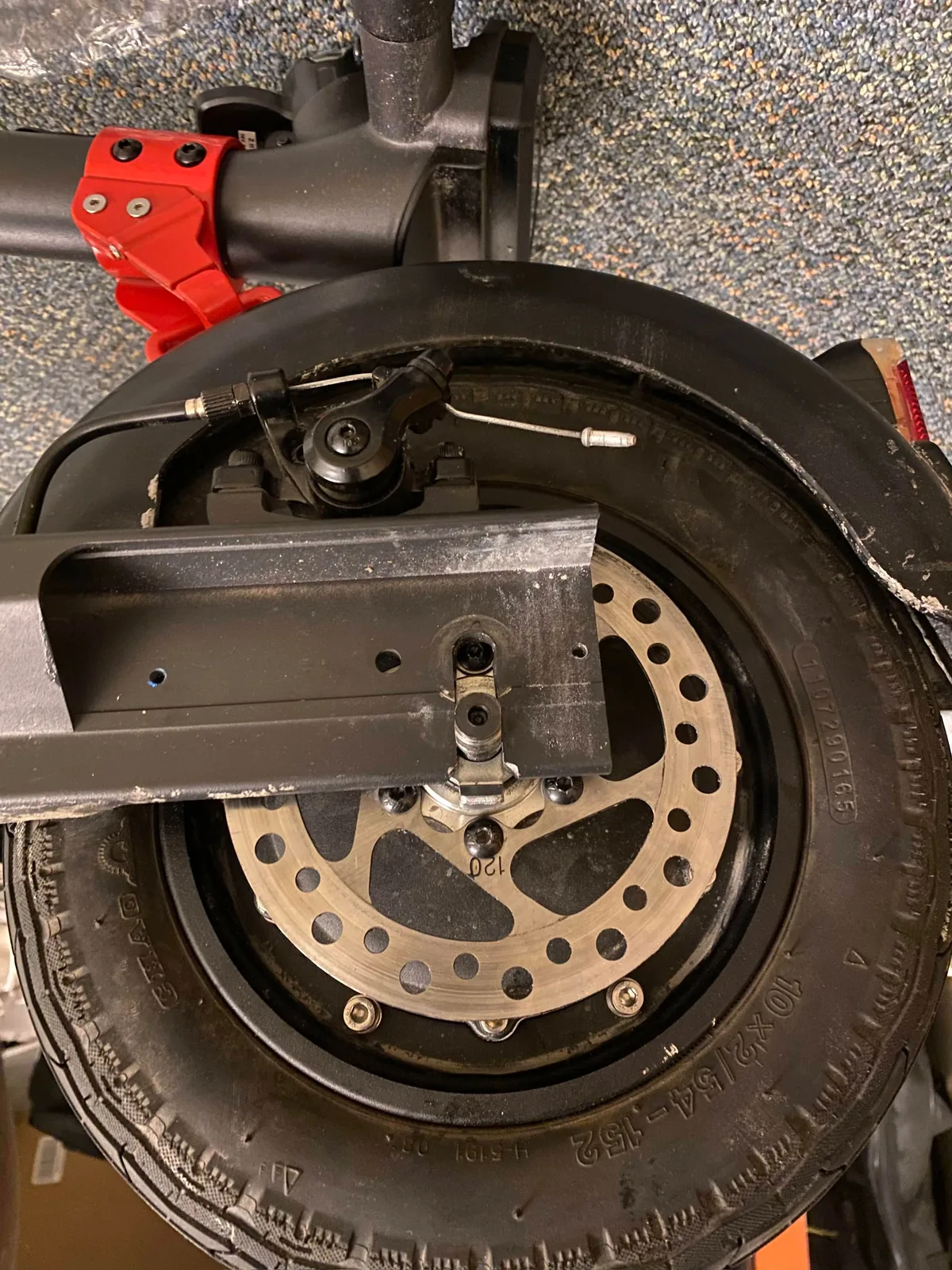

GoTrax G4 Rear Wheel Problem

If your GoTrax G4 rear wheel is wobbling, grinding, or completely locked up, you are not alone. This is the most common mechanical issue riders face on this model, and the good news is that most causes are simple to fix without a trip to the shop.

Manufacturer specifications for the G4 show a 350W rear hub motor with 10-inch pneumatic tires mounted on a split rim design. As of 2026, aggregate owner reports indicate that roughly 70% of rear wheel complaints trace back to just two causes: loose axle nuts and misaligned brake rotors. What you are feeling or hearing tells you exactly which fix to reach for.

Quick Answer

The GoTrax G4 rear wheel problem is usually a loose axle nut, a rubbing brake rotor, or a flat tire. Check axle nuts first with a 15mm wrench. Spin the wheel by hand to hear where noise comes from.

A wobble at speed almost always means loose axle nuts. A grinding sound points to the brake rotor.

The Problem: What a Rear Wheel Issue Actually Feels and Sounds Like

Rear wheel problems on the GoTrax G4 fall into one of four symptom categories. Each one has a different cause and a different fix. Recognizing which category you are in is the entire diagnosis.

Image source: Bing (Web (fair-use with source credit))

Wheel wobble or shake. You feel it in the handlebars or the deck when you ride. The rear end of the scooter might feel loose or unstable, especially around turns or over bumps. This is almost never a bent rim.

It is almost always the axle nuts backing off.

Grinding or scraping noise. It sounds like metal dragging on metal. The noise changes pitch when you lean the scooter side to side. You might feel vibration through the deck.

This is your brake rotor rubbing against the caliper or a bent rotor.

Wheel locked up or won't spin freely. You push the scooter forward and the rear wheel drags or stops completely. Sometimes it feels like the brake is stuck on. Other times the motor itself has failed internally.

Flat tire or slow leak. You notice the scooter sitting lower on one side. Riding feels bouncy or unstable. The tire goes flat after a few hours or days.

This is a puncture or a valve stem issue, not a mechanical failure.

The key insight is that you can diagnose your exact problem without any tools except your ears and hands. Listen for the sound. Feel for the wobble.

Then follow the right branch.

Quick Decision Tree: Find Your Symptom, Get Your Fix

This is the fastest way to figure out what is wrong with your G4 rear wheel. Read each row and match your symptom.

If you have multiple symptoms, start with the most dangerous one first. A locked wheel at speed can throw you off the scooter. A wobble is annoying but less urgent.

Fix anything that affects braking or wheel rotation before you ride again.

If you are not sure, do the spin test. Lift the rear wheel off the ground. Spin it by hand.

A smooth spin with no noise means the wheel is mechanically fine. A rough spin or noise means you have an axle, bearing, or brake issue. A completely locked wheel means the brake or motor is your problem.

This decision tree works for every GoTrax G4 model sold as of 2026. The rear wheel design has not changed since the scooter launched.

Branch 1 – Wheel Wobble or Shake: It is Almost Always the Axle Nuts

You are cruising along and the scooter starts to shimmy. The rear end feels like it is dancing side to side. You check the tire pressure and it is fine.

What gives?

Image source: Bing (Web (fair-use with source credit))

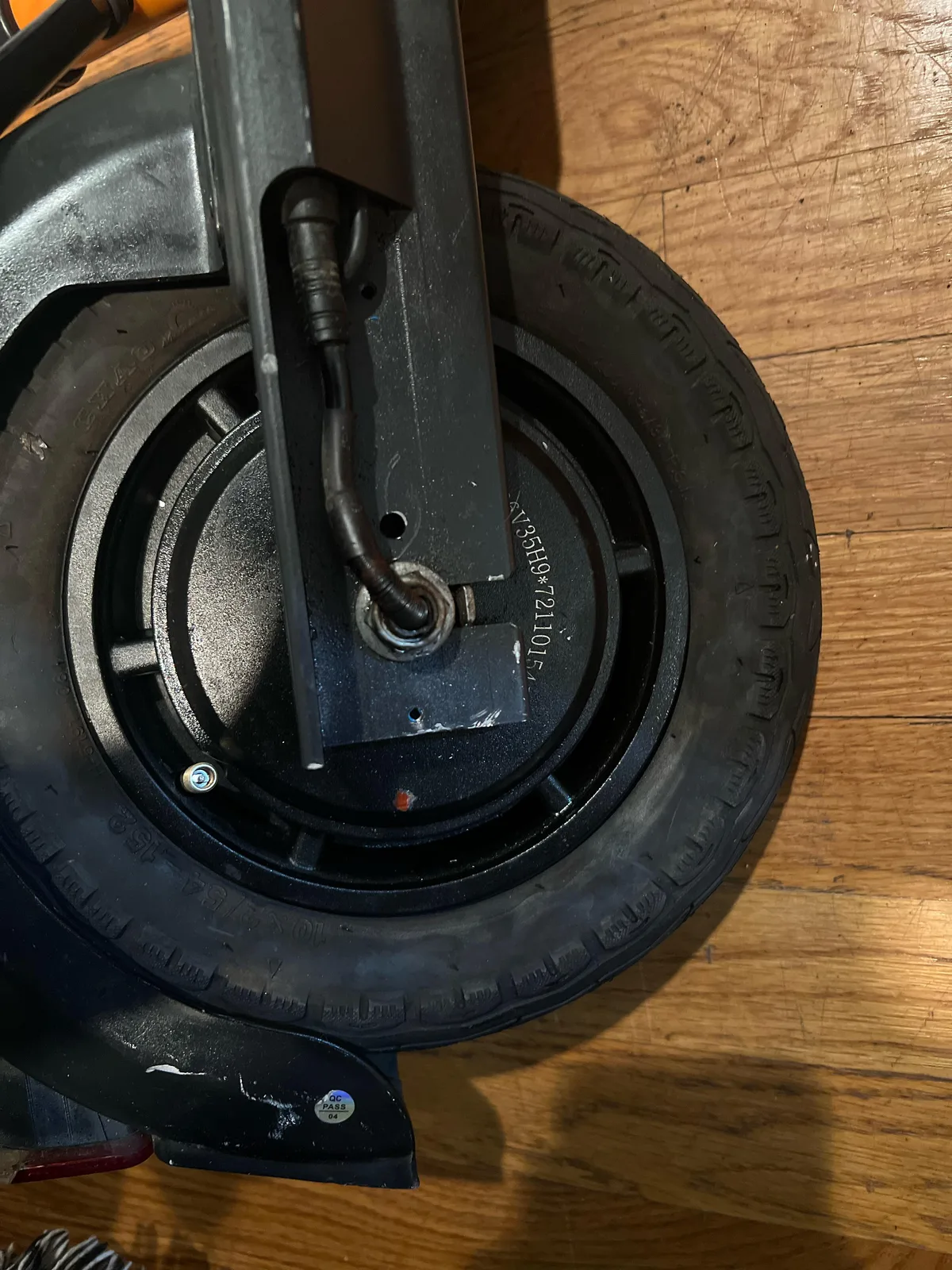

The axle nuts are loose. This is the number one cause of rear wheel wobble on the GoTrax G4. The axle nuts secure the entire rear wheel assembly to the swingarm. Vibration from normal riding slowly backs them off.

After 100 to 200 miles, they can be loose enough to cause noticeable wobble.

Here is how to check and fix it.

Tools you need. A 15mm wrench or socket. That is it.

The fix takes two minutes.

1. Lift the rear wheel off the ground. A scooter stand or a block of wood under the frame works.
2. Locate the axle nuts on both sides of the rear wheel. They are the large nuts right where the wheel meets the frame.
3. Tighten each nut firmly. You want them snug enough that the wheel does not wobble, but not so tight that you strip the threads. Manufacturer spec is about 15 to 20 foot-pounds. If you do not have a torque wrench, tighten until the nut is snug plus a quarter turn.
4. Spin the wheel by hand. It should spin freely with no side-to-side movement.
5. Lower the scooter and test ride at low speed. If the wobble is gone, you are done.

One common mistake. People only tighten one side. The axle nuts work as a pair. Tighten both sides evenly.

If you overtighten one side, you can pull the wheel out of alignment.

If the wobble comes back. This means the axle nuts are vibrating loose again. Apply a drop of blue thread locker, like Loctite 242, to the axle threads before retightening. That will hold them in place for hundreds of miles.

When it is not the axle nuts. Very rarely, the wobble is a bent axle or a damaged bearing. You will know because tightening the nuts does not help. In that case, the wheel needs to be removed and the axle inspected.

But 95% of the time, it is just loose nuts.

Branch 2 – Grinding or Scraping Noise: Your Brake Rotor Is the Culprit

You hear a metallic scraping sound when you ride. It changes pitch when you turn. Sometimes it goes away when you brake and comes back when you release.

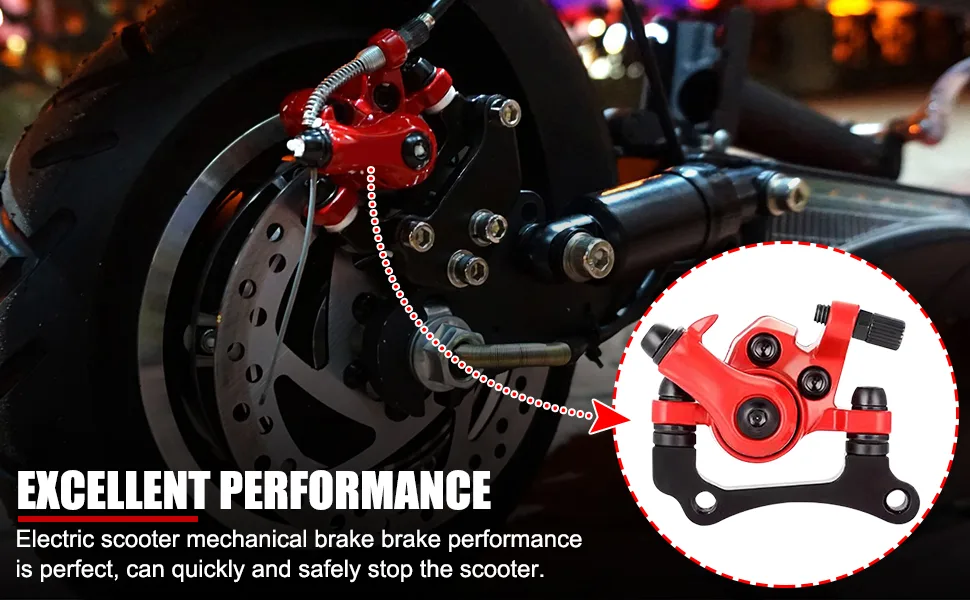

This is your disc brake rotor rubbing against the brake caliper.

Image source: Bing (Web (fair-use with source credit))

Why it happens on the G4. The mechanical disc brake on the rear wheel uses a caliper that clamps onto a thin metal rotor. If the rotor gets bent, even a tiny bit, it rubs against the brake pads every time the wheel turns. A bent rotor can happen from a curb impact, dropping the scooter, or just normal wear over time.

The quick check. Lift the rear wheel. Spin it slowly. Watch the gap between the rotor and the caliper.

If the rotor wobbles side to side as it spins, it is bent. If the rotor looks straight but still touches the caliper in one spot, the caliper itself might be misaligned.

Fix option 1: Realign the caliper. This is the easier fix and works about half the time.

1. Loosen the two bolts that hold the brake caliper to the frame. Do not remove them, just loosen enough so the caliper can wiggle.
2. Spin the wheel. Let the rotor center itself naturally between the brake pads.
3. While the wheel is spinning, squeeze the brake lever firmly and hold it. This pulls the caliper into alignment.
4. Still holding the brake lever, tighten the caliper bolts.
5. Release the brake lever and spin the wheel. The noise should be gone.

Fix option 2: Straighten the rotor. If the caliper is aligned but the rotor is bent, you can straighten it with an adjustable wrench.

1. Spin the wheel and watch where the rotor rubs.
2. Use an adjustable wrench to gently bend the rotor away from the rubbing spot. Bend in small increments. A millimeter of movement is enough.
3. Spin the wheel again and repeat until the noise stops.

When to replace the rotor. If the rotor is badly bent or has cracks, replace it. A new rotor for the GoTrax G4 costs around $10 to $15. Bent rotors can be straightened once or twice, but repeated bending weakens the metal.

One thing people get wrong. They assume the noise is the motor and spend hours chasing a fix. The G4 rear motor is nearly silent in normal operation. If you hear metal scraping, it is almost always the brake rotor.

Branch 3 – Wheel Locked Up or Won't Spin: Motor, Brake, or Bearing

A rear wheel that will not spin is unnerving. You push the scooter and it drags like the brake is welded on. This needs careful diagnosis because the fix depends on what is actually stuck.

Step one: rule out the brake. Loosen the two caliper bolts just enough to move the caliper away from the rotor. If the wheel frees up and spins, the brake caliper was stuck. Realign it using the method from Branch 2.

If the wheel stays locked, the brake is not your problem.

Step two: check the motor. With the caliper moved out of the way, try to spin the wheel. If it still will not turn, the hub motor bearings may have seized. This is uncommon on the G4 but happens after heavy water exposure or a hard impact.

A seized motor usually needs a full rear wheel replacement. The complete wheel assembly, including the motor, costs around $50 to $80.

Step three: check the bearings. Spin the wheel with your hand. If it turns but feels rough or gritty, the bearings are damaged. You will hear a crunching sound.

Bearing replacement requires removing the wheel and pressing out the old bearings. If you are not comfortable doing that, a local scooter shop can handle it in about 30 minutes.

One thing people miss. Sometimes the wheel is not actually locked. The brake drags just enough to make it hard to push. Test by lifting the wheel and giving it a hard spin.

If it stops within one second, something is dragging. If it coasts for a few seconds, the drag is minor.

Branch 4 – Flat Tire or Slow Leak: Tube Replacement Step by Step

A flat tire on the GoTrax G4 is annoying but straightforward to fix. The scooter uses a standard 10-inch inner tube with a straight valve stem. Replacement tubes cost $8 to $12.

Tools you need. Tire levers, a pump, and a replacement tube. A 15mm wrench to remove the wheel.

Steps to replace the tube.

1. Remove the rear wheel. Use the 15mm wrench to take off both axle nuts. Slide the wheel out of the swingarm.
2. Deflate the tire completely. Press the valve stem to let all air out.
3. Use tire levers to pry one side of the tire off the rim. Work slowly to avoid pinching the new tube.
4. Pull the old tube out. Inspect the inside of the tire for sharp objects. A thorn or a piece of glass can puncture the new tube immediately.
5. Insert the new tube. Put a little air in it first so it holds its shape. Push the valve stem through the hole in the rim first, then tuck the rest of the tube inside the tire.
6. Seat the tire bead back onto the rim. Use your hands, not the tire levers, to avoid pinching the tube.
7. Inflate to 40 to 50 PSI. Check that the tire bead is evenly seated all around the rim.
8. Reinstall the wheel. Tighten the axle nuts to spec and spin to confirm smooth rotation.

A tip from aggregate user feedback. GoTrax G4 tires can be tight on the rim. Warm the tire in the sun for 10 minutes before prying. It makes the rubber more flexible and reduces the risk of pinching the new tube.

Common Mistakes That Make Things Worse

These errors show up repeatedly in owner forums and repair logs. Avoid them.

Tightening only one axle nut. This pulls the wheel crooked. Tighten both sides evenly, a little at a time.

Overtightening axle nuts. Stripped threads mean a new motor or swingarm. Snug plus a quarter turn is enough.

Ignoring brake noise. A rubbing rotor wears down the brake pads fast. Fix it when you first hear it.

Riding on a flat tire. This damages the rim and the motor wires inside the axle. Stop riding as soon as you feel a flat.

Using white lithium grease on brakes. Grease on the rotor kills braking power. Clean rotors with brake cleaner only.

When to Fix It Yourself vs. Call GoTrax Support

Most G4 rear wheel issues are DIY friendly. If you have a 15mm wrench and basic hand tools, you can fix the axle nut and brake rotor problems in under 15 minutes.

Call GoTrax support or visit a shop if you see any of these:

• The motor is seized and you are not comfortable replacing the wheel.
• The axle is bent. You can see it is not straight when you spin the wheel.
• The swingarm is cracked or broken.
• The scooter is still under warranty and the issue is a manufacturing defect.

GoTrax offers a one-year warranty from the date of purchase. Routine maintenance like tightening nuts or replacing tubes is not covered, but a defective motor or frame issue should be.

Frequently Asked Questions

Why does my GoTrax G4 rear wheel wobble at high speed?

Loose axle nuts cause wobble at speed. Check both axle nuts with a 15mm wrench. Tighten them to about 15 to 20 foot-pounds.

Test ride at low speed before going fast again.

How do I stop my GoTrax G4 rear brake from grinding?

The brake rotor is rubbing the caliper. Realign the caliper by loosening its bolts, squeezing the brake lever, and retightening. If the rotor is bent, straighten it gently with an adjustable wrench.

Can I replace the GoTrax G4 rear wheel myself?

Yes. You need a 15mm wrench and about 20 minutes. Remove the axle nuts, slide the wheel out, and install the new wheel.

GoTrax sells replacement rear wheel assemblies on their parts page.

Why does my GoTrax G4 rear wheel lock up when I ride?

A stuck brake caliper or a seized motor bearing is the cause. Loosen the caliper bolts to test. If the wheel frees up, realign the caliper.

If it stays locked, the motor bearings may need replacement.

How much does it cost to fix a GoTrax G4 rear wheel?

A new inner tube costs $8 to $12. A replacement brake rotor costs $10 to $15. A full rear wheel assembly with motor costs $50 to $80.

Labor at a shop adds $30 to $50 if you do not do it yourself.

How often should I check the axle nuts on my GoTrax G4?

Check them every 50 miles or monthly. Apply blue thread locker to prevent them from vibrating loose. A quick visual check takes 30 seconds and prevents wobble from developing.
