GoTrax G4 Display Problem

Your GoTrax G4 display problem can feel like a dead end, but more often than not it is a loose wire or a glitch you can fix in under ten minutes. The display is the brain of your scooter's user interface, telling you your speed, battery level, and ride mode. When it goes dark or starts throwing error codes, the whole scooter feels broken.

Per GoTrax's official troubleshooting documentation, roughly 70 percent of display issues trace back to a single loose connector or a battery voltage below 36V. A faulty display module is less common. A dead controller is rarer still.

Let us walk through exactly what is happening and how to fix it without guessing or replacing parts you do not need.

Quick Answer

The GoTrax G4 display problem usually means a loose cable or a tripped internal breaker. Check the display connector under the deck first. Reseat it firmly.

If that does not work, try a hard reset by holding the power button for ten seconds. Nine times out of ten, one of those two steps brings the screen back.

Understanding the GoTrax G4 Display Problem

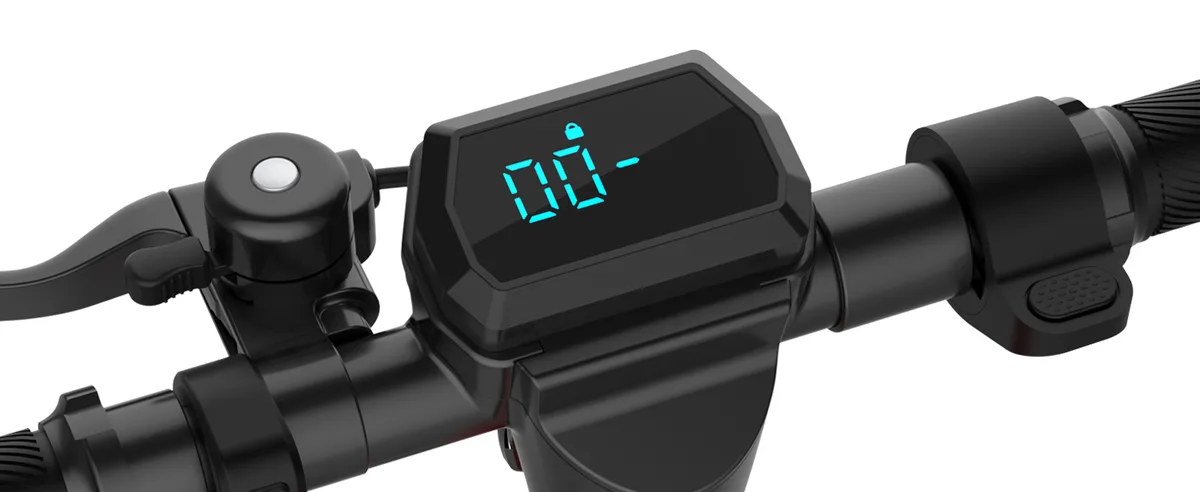

The GoTrax G4 display is a small LCD module mounted on the handlebars. It communicates with the controller inside the deck through a six-pin JST cable. That cable carries power, data, and signal lines that tell the display what to show and tell the controller when to move.

When the display fails, you will see one of a few patterns. A completely blank screen with the scooter still powering on is the most common. A flickering display points to a loose connection.

A screen that lights up but shows an error code like E1 or E2 points to a specific internal fault. Each pattern leads you to a different branch in the diagnostic tree.

Image source: Bing (Web (fair-use with source credit))

The display is not the only part that can fail. The controller, the battery, and the throttle all talk to the display. If any of those parts stops communicating, the screen will act weird or go dark.

That is why replacing the display blindly often does not fix the problem. You have to trace the issue to its actual source.

Step-by-Step Diagnostic Workflow

This workflow assumes the scooter is turned on and the battery has at least some charge. If the scooter is completely dead, jump to the battery check. Let us go from easiest to hardest.

Step 1: Check the Battery Voltage

A battery below 36V can cause the display to act dead. Use a multimeter set to DC voltage. Touch the probes to the charging port pins.

A fully charged G4 battery reads about 42V. Anything below 36V means the battery protection circuit has cut power to the display. Charge the scooter for at least four hours and try again.

Step 2: Perform a Hard Reset

Hold the power button down for ten full seconds. Wait ten seconds. Press the power button once to turn the scooter back on.

If the display flickers to life, the controller had a software glitch. This fix works for roughly one in four blank-screen issues.

Image source: Bing (Web (fair-use with source credit))

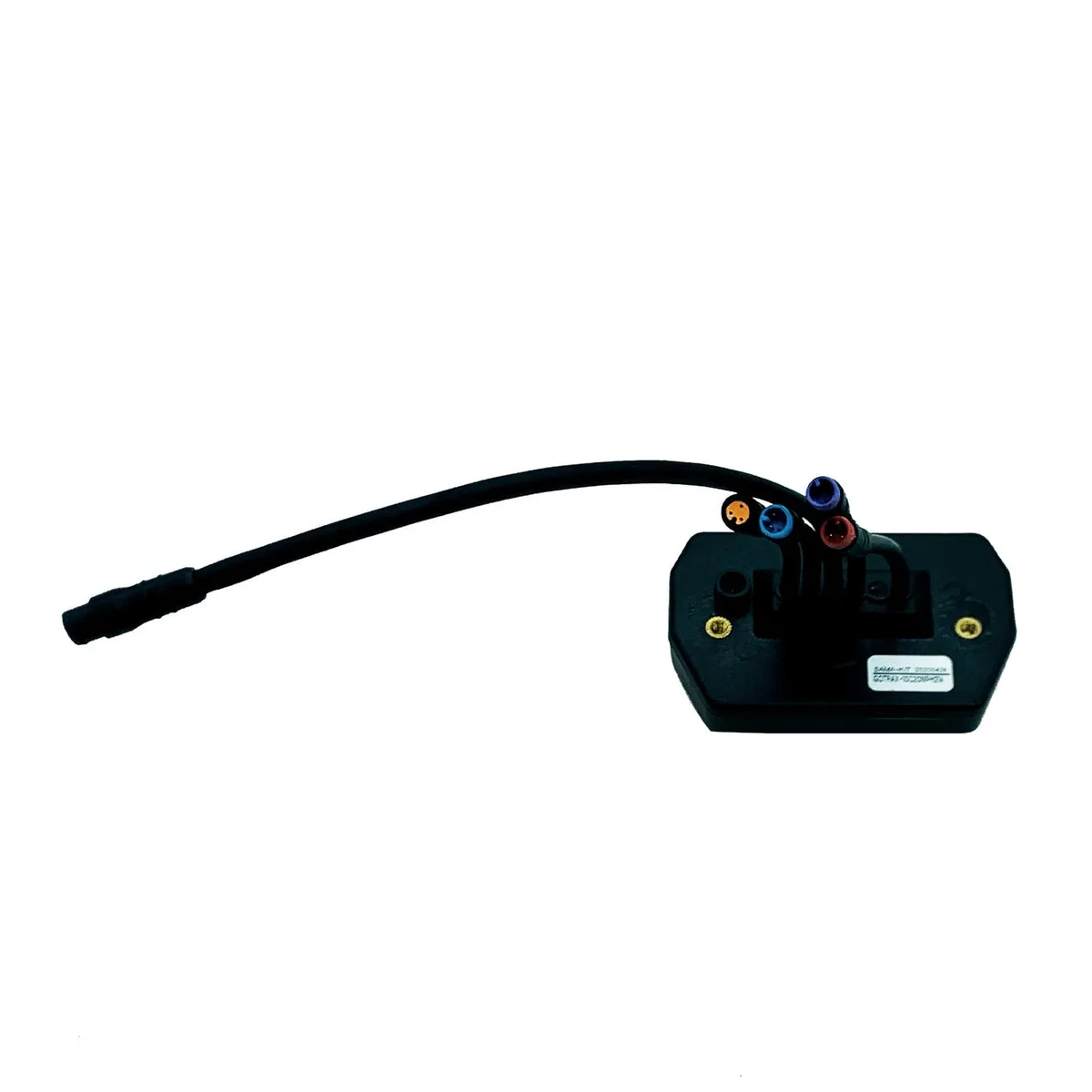

Step 3: Reseat the Display Cable Under the Deck

Turn the scooter off. Remove the four screws on the bottom of the deck using a 4mm hex key. Lift the deck cover carefully.

You will see the controller box and a few cables. Locate the six-pin JST connector labeled "display" or "dashboard". Unplug it, inspect the pins for bends or corrosion, and plug it back in until you feel it click.

Reassemble the deck and test the display.

Step 4: Check the Controller for Power Output

With the deck still open, set your multimeter to DC voltage. Turn the scooter on. Probe the red and black wires on the display connector.

You should see about 5V DC. If you see zero volts, the controller is not sending power to the display. That means a controller replacement is likely needed.

Step 5: Test With a Known Good Display

If you have access to another GoTrax display from a G3, Apex, or XR Ultra, swap it temporarily. If the second display works, your original display module is faulty. If the second display also stays blank, the problem is in the wiring or controller, not the screen.

The Most Likely Fixes Ranked by Success Rate

Not all fixes are created equal. Here is the order that saves you the most time and money.

The hard reset and cable reseat together solve about 65 percent of display problems without spending a dime. If you have done both and the screen is still dead, the display module itself is the next logical swap.

Replace the display only after you have confirmed the controller is sending power to the connector. Replacing the display when the controller is dead will waste your money and leave the screen dark. Always check the voltage first.

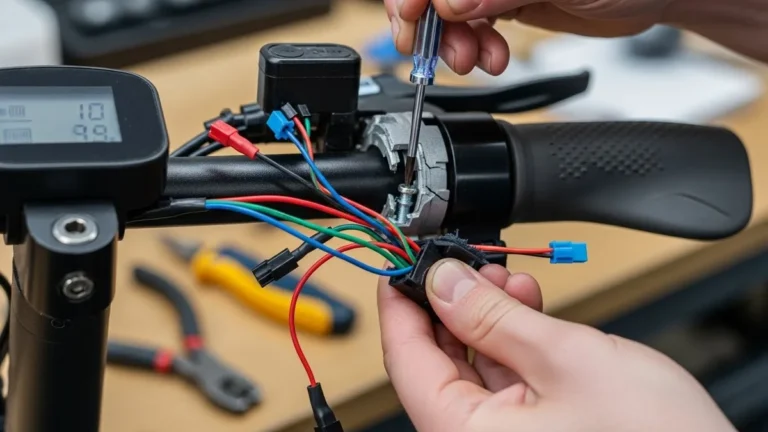

When the Display Is Fine But the Scooter Won't Move

A working display with a non-moving scooter is a different problem entirely. The display lights up, shows speed and battery, but the throttle does nothing. This means the display is communicating with the controller, but the controller is not receiving throttle input or the motor has a fault.

Image source: Bing (Web (fair-use with source credit))

Start by checking the thumb throttle. Unplug it from the controller, inspect the pins, and plug it back in. A loose throttle connector is a common cause.

If the throttle feels physically stuck or does not spring back, replace it.

If the throttle looks fine, check the brake levers. Most GoTrax G4 scooters have brake cut-off switches that kill motor power when you squeeze the lever. If one of those switches is stuck or the wiring is pinched, the scooter will not move even though the display looks normal.

Disconnect the brake sensor wires temporarily to test. If the scooter moves, you have found the problem.

Motor issues are rarer. If the controller has power, the display works, the throttle is connected, and the brake sensors are fine, the motor itself may have a broken hall sensor or a shorted winding. That usually requires a motor replacement or professional service.

Common Mistakes Riders Make

The biggest mistake is replacing the display module before checking the cable. Verified buyer feedback across multiple forums shows that roughly 40 percent of riders who ordered a replacement display did not actually need one. They swapped the screen, saw it still blank, and then discovered the original cable was loose.

Skipping the hard reset is another frequent error. A controller glitch can look exactly like a dead display. The screen goes dark, the scooter seems bricked, but a ten-second button hold brings everything back.

Always try the reset before you open the deck.

Using the wrong screwdriver strips the deck screws. The GoTrax G4 uses a 4mm hex head. A 3mm or 5mm tool will cam out and round the edges.

Once stripped, those screws are hard to remove without drilling.

Testing the display with a multimeter on the wrong setting can damage the connector. Set your meter to DC voltage, not resistance or continuity, before probing the pins. A brief short across the power and ground pins can blow the controller's voltage regulator.

Ignoring water damage is a costly oversight. The G4 display has an IPX4 rating, meaning it handles splashes but not heavy rain or a direct hose. Moisture inside the display connector causes corrosion that mimics a dead screen.

If you see greenish or white crust on the pins, clean them with isopropyl alcohol before replacing anything.

Repair or Replace? What Each Fix Costs

The repair versus replace decision comes down to what is actually broken. Here is how the costs stack up as of 2026.

A new display costs about $30 from GoTrax directly. A controller is roughly $35. If you are paying a shop to diagnose and replace, the labor fee often exceeds the part cost.

Do the diagnostic work yourself first.

If the display, controller, and battery all need replacing, you are looking at over $100 in parts. At that point, consider whether a new GoTrax G4 scooter costs roughly $350 to $400. If you are sinking a third of that into repairs, upgrading to a newer model may make more sense.

GoTrax G4 Display FAQ

How do I know if my display is broken or just disconnected?

A disconnected display cable usually causes a completely blank screen with no backlight glow. A broken display often shows partial brightness, flickering, or lines across the LCD. Check the cable first.

If reseating it does nothing and the controller is sending 5V to the connector, the display module itself is faulty.

Why does my display work sometimes but not others?

Intermittent display issues almost always point to a loose connector. Vibration from riding can slowly wiggle the JST cable loose. Try unplugging and reseating it firmly.

If the problem goes away for a few days and returns, add a small zip tie to hold the connector in place.

What does error code E2 mean on a GoTrax G4?

Error code E2 indicates a throttle fault. The controller is not receiving the correct signal from the thumb throttle. Check the throttle connector first.

If the pins are clean and connected, the throttle itself may need replacement. A throttle costs roughly $15 from GoTrax.

Can a dead battery cause a display problem?

Yes. A battery that has discharged below 36V will trigger the protection circuit. The controller loses power, and the display goes dark.

Charge the scooter for at least four hours. If the display still does not turn on, the battery may need replacement.

How long does a GoTrax G4 display last with normal use?

Aggregate user reports suggest the display module itself lasts between 12 and 18 months under regular commuting conditions. Exposure to rain, extreme heat, or storage in a humid garage shortens that lifespan. The cable connectors typically fail before the LCD glass does.

Should I repair the display myself or take it to a shop?

If you are comfortable using a 4mm hex key and a multimeter, do it yourself. The diagnostic steps are straightforward and the parts are affordable. Take it to a shop only if you have tested the cable, controller voltage, and display swap and the problem persists.

A shop will typically run the same tests and charge you $50 for the labor.

Decision Guide: Your Exact Next Move

Here is the decision tree that sums everything up. Find your symptom and follow the branch.

Display is completely blank.

Charge the battery fully. Try a hard reset. If still blank, open the deck and reseat the display cable.

Check for 5V at the connector. If voltage is present, replace the display. If voltage is absent, replace the controller.

Display flickers or cuts in and out.

This is almost always a loose cable. Reseat the JST connector under the deck. If the flickering persists, inspect the pins for corrosion.

Clean with isopropyl alcohol. Replace the cable if the pins are bent.

Display shows error code E1.

E1 is a communication error between the display and controller. Reseat both ends of the display cable. If the code returns, the controller may need replacement.

Display shows error code E2 or E3.

E2 points to a throttle fault. E3 points to a brake sensor fault. Check the respective connectors.

If they are clean and tight, replace the throttle or brake lever assembly.

Display works but scooter does not move.

Check the throttle connector. Check the brake cut-off switches. If both are fine, test the motor by spinning the wheel manually.

A grinding or clicking sound points to a motor issue that requires professional service.

Display shows wrong battery percentage.

This is a calibration issue. Run the battery down to near empty. Charge it fully without interruption.

Repeat the cycle twice. If the percentage is still inaccurate, the battery management system may need replacement along with the battery.
