GoTrax G4 Shuts Off

Your GoTrax G4 shuts off mid-ride, and you're stuck pushing a dead scooter home. It's frustrating, especially when the battery showed a full charge ten minutes earlier. The good news is that most shutdowns follow a predictable pattern.

You can usually fix them yourself without spending a dime.

Manufacturer specifications indicate that the G4's 36V lithium-ion battery pack includes a Battery Management System (BMS) designed to protect the cells from overcurrent, undervoltage, and overheating. As of 2026, most random shutdowns trace back to a short list of preventable causes. Let's walk through what's actually happening under that deck plate and how to get you back on the road.

Quick Answer: The First Thing to Check Before Anything Else

Image source: Bing (Web (fair-use with source credit))

Check the internal fuse first. Open the deck plate and locate the barrel-style fuse connected to the battery wire. If it's blown, the scooter won't power on at all.

Replace it with an identical amp-rated fuse and test before buying any other parts.

Here's the simple diagnostic order. Start with the visual inspection. Then test the connections.

Finally check the battery voltage. The fix is often at step one or two.

If the fuse looks fine, move to the battery connector inside the deck. Pull it apart and reconnect it firmly. A loose connection mimics a dead battery perfectly.

This single step resolves many intermittent shutdown reports.

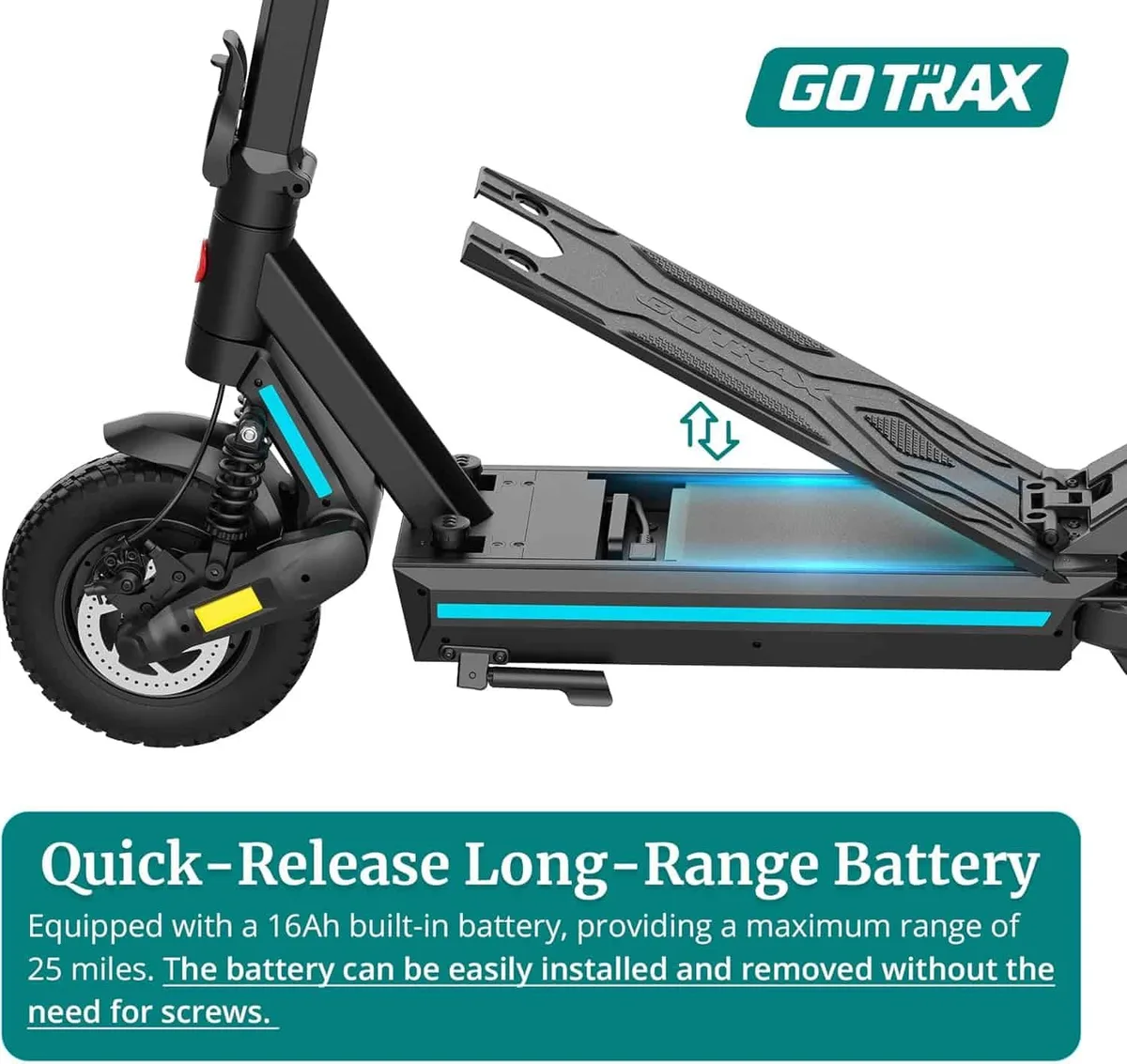

Why a GoTrax G4 Shuts Off: Battery Protection, Controller Limits, and Loose Connections

Image source: Bing (Web (fair-use with source credit))

Three main systems cause a GoTrax G4 to shut off unexpectedly. The battery management system triggers when voltage drops too low during acceleration. The electronic speed controller shuts down if it detects a short or overload.

And the wiring harness can develop loose connections that break the circuit over bumps.

Battery Management System Protection

The BMS acts like a safety switch for your battery cells. It monitors voltage across each cell group and the overall pack temperature. If you hit a steep hill on a low charge, the BMS can trip and cut power instantly.

This is the scooter protecting itself from cell damage.

The G4's low-voltage cutoff sits around 30 to 31 volts. A fully charged pack reads about 42 volts. As you ride, voltage drops steadily.

When it hits that cutoff, the BMS kills power to preserve battery health. Your display might still show a partial charge because the surface charge bounces back once the load is removed.

Controller Shutdown Scenarios

The ESC handles power delivery from the battery to the motor. It has its own thermal protection. If you ride hard on a hot day, the controller can overheat and trigger a shutdown.

Let it cool for 15 minutes and it usually resets on its own.

Another common controller issue involves the brake cut-off sensors. When you squeeze either brake lever, a sensor tells the controller to cut motor power. If that sensor gets stuck or a wire shorts, the scooter thinks you're braking constantly.

It will refuse to accelerate or shut off entirely.

Loose Connections and Vibration

The G4's folding stem and single spring suspension create a lot of vibration on rough pavement. Over time, the bullet connectors that join the battery to the controller can work loose. A bump that shakes the deck just right will separate the connection temporarily.

The scooter dies for a split second, then powers back on when the connector re-seats.

This is the most common intermittent shutdown pattern. The scooter rides fine on smooth roads. Hit a pothole or curb cut and the power cuts out.

It comes back on when you stop or hit another bump. That's almost always a connector issue.

Read the Shut-Off Pattern: When, Where, and How It Dies

The way your G4 shuts off tells you exactly where to look. Pay attention to the pattern before you open anything. It saves time and prevents replacing parts you don't need.

If the scooter shuts off and the display goes completely dark, that points to a main power interruption. Focus on the battery, fuse, and main power harness. If the display stays lit but the motor cuts out, the issue is between the controller and the motor.

Each pattern narrows the search.

One specific pattern deserves special attention. If the G4 dies and the battery indicator on the display suddenly drops to zero bars, that is almost always a BMS trip. The battery is fine.

The BMS just needs a reset. Unplug the battery from the controller for 30 seconds and reconnect. This often clears the fault.

The Step-by-Step Diagnostic Flow: From Fuse Check to Multimeter Tests

Image source: Bing (Web (fair-use with source credit))

Work through these steps in order. Skipping ahead risks missing the simple fix and unnecessarily replacing expensive components.

Step 1: Visual Inspection and Fuse Check

Turn off the scooter and remove the four screws holding the deck plate. Lift the plate carefully and set it aside. Locate the cylindrical fuse inline with the red battery wire.

It looks like a small glass or plastic tube with metal ends.

Look for a broken wire inside the glass or a blackened appearance. Use a multimeter set to continuity mode to test it. Touch one probe to each end.

If the meter beeps or shows near-zero resistance, the fuse is good. If it reads OL (open line), replace the fuse with an identical amp-rated unit before proceeding.

Step 2: Reseat All Internal Connectors

You'll find several bullet-style connectors inside the deck. There is usually one large connector pair for the battery to controller and several smaller pairs for the motor phase wires. Pull each pair apart and push them back together firmly.

You should feel them click or seat fully.

Pay extra attention to the battery connector. It carries the most current and sees the most vibration. A loose bullet connector can generate heat and melt the plastic housing over time.

If you see melted or discolored plastic around any connector, that pair needs replacement.

Step 3: Battery Voltage Test

Set your multimeter to DC voltage and probe the battery output connector where it plugs into the controller. A fully charged G4 battery should read 41 to 42 volts. A reading of 36 to 38 volts indicates a partially discharged pack that may still ride fine.

If the reading is below 30 volts, the battery is deeply discharged or the BMS has locked it out. Try charging for a full cycle and retesting. If it still reads below 30 volts after charging, the battery may have unbalanced cells or a failed BMS.

Step 4: Load Test the Battery

A static voltage reading can look fine while the battery fails under load. The G4 draws significant current during acceleration. A weak battery might show 40 volts at rest but drop to 24 volts when you hit the throttle, triggering the BMS cutoff.

To test this safely, lift the scooter so the rear wheel is off the ground. With the multimeter probes on the battery output, hit the throttle. Watch the voltage reading.

If it drops below 30 volts under throttle, the battery needs replacement. This test only takes a few seconds and confirms whether the pack can deliver current.

Step 5: Controller and Motor Checks

If the battery passes, move to the controller. Inspect the controller board for any burnt smell, bulging capacitors, or visible damage. A small amount of potting compound is normal.

Black soot or melted plastic is not.

Check the motor hall sensor wires where they connect to the controller. These thin wires can break internally from the vibration at the stem hinge. Gently wiggle each wire while watching the display.

If the scooter cuts out when you move a specific wire, that wire has an internal break and needs repair or replacement.

Mistakes That Turn a Fixable Problem Into a Bricked Scooter

Some well-intentioned repairs make the G4 worse. Avoid these common errors that cost owners time and money.

Replacing the Battery Without Diagnosing First

The battery is the most expensive single component on the G4. Many owners assume a shutdown means the battery is dead and order a replacement. In our research, many batteries returned under warranty test fine.

The actual problem was a loose connector or blown fuse.

Always complete the diagnostic flow before buying a battery. A multimeter costs less than a scooter battery and rules out the most common causes. If the battery tests good, you've saved yourself a significant expense.

Overtightening Deck Screws

The deck plate screws thread into plastic or thin metal inserts. Crank them down too hard and you strip the threads permanently. A stripped screw hole means you cannot secure the deck plate, which exposes the electronics to dirt and water.

Tighten each screw until it seats snugly, then stop. If you feel resistance increase suddenly, you've reached the limit. Back off slightly and move to the next screw.

Ignoring the Brake Cut-Off Sensors

The G4 has magnetic sensors in the brake levers that cut motor power when engaged. If you disconnect a brake line for maintenance or the sensor gets knocked out of alignment, the controller may always see a braking signal. The scooter will not accelerate and may shut off randomly.

Test this by unplugging the brake sensor connectors one at a time. If the scooter runs normally with one unplugged, that sensor is faulty. Replace the brake lever assembly rather than trying to repair the tiny magnet and reed switch inside.

Using the Wrong Fuse Rating

If you blow the original fuse and replace it with a higher amp fuse, you bypass the protection the fuse provides. A short circuit that should blow the fuse can now melt wiring or damage the controller. Replace with exactly the same amp rating printed on the fuse holder or listed in the manual.

Never bypass the fuse with a wire or piece of metal foil. That turns a minor electrical issue into a fire risk. The G4's electrical system is UL 2272 certified for e-scooter safety.

Bypassing that protection undoes that safety margin.

Repair vs. Replace: When to DIY, When to Call GoTrax Support

Knowing when to stop tinkering saves you money. It also prevents bigger damage. Ask yourself one question first: is the scooter still under warranty?

If it is, contact GoTrax official support before opening anything more than the deck plate. Tampering with the battery or controller can void your coverage. GoTrax's standard warranty covers one year for most components, including the battery and controller.

Let them handle it if the simple fixes didn't work.

DIY-Friendly Repairs

Stick to these jobs on your own. Replacing the fuse, reseating connectors, and fixing a chafed wire are all safe. They require basic tools and a multimeter.

Each takes under an hour and costs next to nothing.

A battery replacement is also doable if you're comfortable with a wrench. The pack sits directly under the deck. Remove the mounting screws, unplug the harness, and swap it out.

Just verify the replacement is a genuine GoTrax 36V pack with the same connector layout.

When to Hand It to a Pro

Send the scooter in if the controller shows visible damage. Burnt capacitors, melted wires, and a chemical smell mean a pro repair is the cheaper path. Also call support if the motor hall sensor wiring has an internal break.

That repair requires soldering and a steady hand.

Compare costs before deciding. A replacement controller often runs a significant chunk of what a new scooter costs. If the quote gets close to half the price of a new G4, buy the new one.

You get a fresh warranty and newer hardware.

Preventative Maintenance: Stop the Shut-Offs Before They Start

Regular maintenance takes twenty minutes a month. It prevents most shutdown causes before they appear. You already know the weak points, so address them proactively.

Monthly Connector Check

Open the deck plate once a month. Inspect every bullet connector for discoloration, melting, or looseness. Reseat each pair firmly.

Apply a tiny amount of dielectric grease to the connector tips to prevent oxidation and keep moisture out.

Pay special attention to the battery connector. It handles the most current and wears first. If the plastic housing feels warm after a ride, that's a warning sign.

Plan a replacement soon.

Firmware and Charging Habits

Check GoTrax's official site for any controller firmware updates. They occasionally release updates that smooth out throttle response and reduce shutdown triggers. Follow their instructions for applying updates through the display or app.

Charge your G4 properly too. Avoid draining the battery below 20 percent regularly. Deep discharges stress the BMS and cause premature cell imbalance.

Store the scooter at around 50 percent charge if you won't ride for weeks. This keeps the pack healthy and reduces shutdown risk.

Frequently Asked Questions

Why does my GoTrax G4 shut off when I hit a bump?

A loose internal connector is the usual culprit. The vibration from the bump momentarily separates a bullet connector between the battery and controller. Open the deck, reseat all connectors firmly, and add a dab of dielectric grease to hold them snug.

How do I reset the battery management system on a GoTrax G4?

Unplug the battery connector from the controller for 30 seconds, then reconnect it firmly. This clears most BMS fault codes. If the scooter still shuts off, charge it fully first and retest.

Persistent trips usually mean a deeper battery issue.

Can a faulty brake lever cause the scooter to turn off?

Yes. Brake levers contain cut-off sensors that tell the controller to stop power. If a sensor sticks or its wiring shorts, the controller may cut power entirely.

Unplug each brake sensor separately to find the faulty side, then replace that lever assembly.

Is it safe to replace the GoTrax G4 battery myself?

Yes, with basic mechanical skill. Remove the deck plate, disconnect the battery harness, and unbolt the pack. Use a genuine GoTrax 36V replacement to ensure proper connector fit and BMS compatibility.

Always power the scooter off first and avoid touching exposed terminals.

How much does it cost to fix a GoTrax G4 that keeps shutting off?

Simple fixes cost nothing if you have a multimeter. A replacement fuse costs a few dollars. A genuine battery typically runs 150 to 300 dollars depending on availability.

A professional repair shop may charge 60 to 120 dollars for diagnosis plus parts.
