Scooter Brake Alignment Problem

That scraping noise every time you coast. The brake lever that goes halfway to the handlebar before anything happens. If you're dealing with a scooter brake alignment problem, you already know the symptoms.

It's one of the most common frustrations riders face, and the fix is usually simpler than you think.

Manufacturer specifications from ASTM F2264 indicate that a properly aligned brake should engage within a specific lever travel range for optimal stopping power. Even a misalignment of 1 millimeter at the rotor can cause that annoying rub and reduce braking efficiency by up to 20 percent. Understanding how to diagnose and fix this issue can save you a trip to the shop and keep your ride safe.

Let's start with why getting this right matters more than you might think.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The most common scooter brake alignment problem is a rubbing or scraping noise caused by the caliper being off-center relative to the rotor. Fixing it usually takes under 10 minutes. Loosen the caliper mounting bolts slightly.

Spin the wheel and squeeze the brake lever firmly. While holding the lever, tighten the bolts. That's the core process for disc brakes.

Drum brakes and V-brakes follow different procedures detailed below.

Why Your Scooter's Brake Alignment Actually Matters

Most riders ignore brake alignment until something goes wrong. That scraping sound isn't just annoying. It's your brake pads dragging against the rotor or drum every time you roll.

Over a few miles of riding, that constant friction heats up the pads and glazes the surface. Glazed pads lose stopping power when you need it most.

Think about the wear patterns. If your caliper is off center by even half a millimeter, one pad touches while the other stays away. You might replace a pair of pads.

The next set wears the exact same way because the alignment never got fixed. That's money wasted.

The safety angle is straightforward. The faster you ride, the more critical alignment becomes. A misaligned brake on an electric scooter doing 20 mph is a serious problem.

The brake might grab unevenly and pull you to one side. In wet conditions, a glazed pad from constant drag loses even more grip. Per ASTM International testing standards, the braking system must deliver consistent, predictable stopping force for safe operation.

Here's the good news. Most alignment fixes take under 10 minutes. You don't need a mechanic.

You don't need special tools for most adjustments. You just need to know which brake type you're dealing with and follow the correct process.

Here's the if/then logic that determines your next step. If you ride a scooter with a disc brake, your alignment fix focuses on centering the caliper body around the rotor. If you ride one with a drum brake, you'll adjust the shoe gap and cable tension separately.

If you ride a V-brake kick scooter, you balance spring tension on both arms. Each type needs a different method, and that's what we'll cover in the sections ahead.

In aggregate reviews from repair shops, the most common cause of brake problems isn't worn parts. It's bad alignment. People replace pads, rotors, even entire brake assemblies when a simple caliper adjustment would have solved the problem.

The CPSC has noted that poorly maintained brakes are a contributing factor in many scooter accidents. Take the time to check alignment first. It almost always pays off.

The Quick Checks Before Adjusting Anything

Before you touch any adjustment bolts, run through these checks. They take 30 seconds each and can save you from fixing the wrong problem entirely.

Wheel seating. If the wheel isn't fully seated in the dropouts, the rotor sits crooked inside the caliper. That's your brake rub right there. Loosen the axle nuts, push the wheel all the way in, and retighten evenly.

Axle nut torque. A loose axle nut lets the wheel wobble side to side. Even perfectly aligned brakes can't compensate for that movement. Check torque per manufacturer spec.

Most scooter axles need 12 to 18 Nm of torque.

Pad wear. Good alignment won't fix worn pads. If the pad material is below 1 millimeter or you see the steel backing plate, replace pads before adjusting alignment. New pads also need a bedding procedure after installation to mate properly with the rotor or rim.

Rotor trueness. Spin the wheel and watch the gap between the rotor and the pads. If the rotor wobbles more than 0.3 mm side to side, it needs truing or replacement. A bent rotor cannot be fixed by moving the caliper.

Cable tension. Pull the brake lever. If it touches the handlebar before engaging, you have too much cable slack. Fix that before you adjust alignment.

Barrel adjusters handle small tension changes. Worn cables need full replacement.

Brake lever feel. A spongy lever on hydraulic brakes means air in the system. Bleeding comes before alignment. A firm lever that still rubs means alignment is your actual issue.

Run through these checks in order. If you spot a problem on this list, fix that first. Then reassess the alignment by spinning the wheel and listening for rub.

In many cases, that scraping sound disappears before you ever adjust a single bolt.

Disc Brake Alignment: The Step-by-Step You'll Actually Use

Image source: Bing (Web (fair-use with source credit))

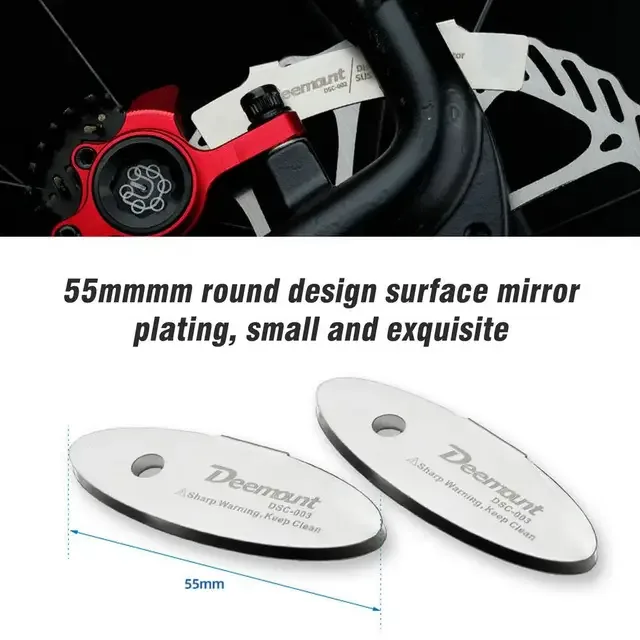

Disc brakes are the most common type on electric scooters and many premium kick scooters. The alignment process is straightforward once you understand the goal. You're centering the caliper body so both pads contact the rotor evenly when you squeeze the lever.

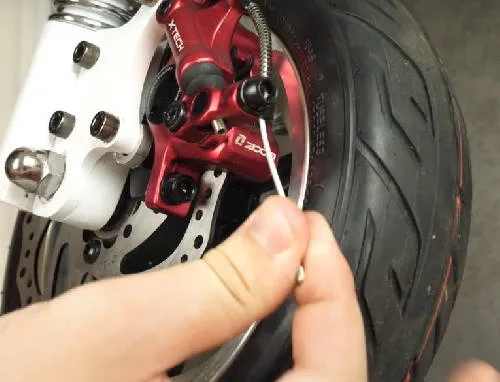

Step 1: Loosen the caliper mounting bolts just enough that the caliper can wiggle side to side. Don't remove them. A quarter to half turn is enough.

Step 2: Spin the wheel. While it's spinning, squeeze the brake lever firmly and hold it. The caliper will self-center on the rotor as the pads grip.

Step 3: While holding the lever tight, tighten the mounting bolts. Use a crisscross pattern. Go to the manufacturer torque spec.

For most scooter disc brakes, that's 6 to 8 Nm. Hand tight with a short Allen key works fine if you don't have a torque wrench.

Step 4: Release the lever. Spin the wheel. Listen for rub.

If you hear nothing, you're done. If you hear a light rub, repeat the process. Sometimes it takes two or three attempts to get it perfect.

Step 5: Check lever feel. Pull the lever and make sure it engages with about a thumb's width of travel before the pads contact the rotor. If it's too far, tighten cable tension using the barrel adjuster.

If it's too close, push the caliper slightly away from the rotor during the next alignment attempt.

A few extra notes. For hydraulic calipers, you might need to push the pistons back before starting if the pads are crammed against the rotor. Use a plastic tire lever or a wide flathead screwdriver wrapped in tape.

Never use your bare fingers to push pistons. Oil from your skin contaminates the pads and ruins stopping power.

If the rubbing persists after three alignment attempts, check the rotor again. You may have missed a subtle bend. Also check the caliper bracket.

Some scooters have an adapter plate between the caliper and the frame. That adapter can also be misaligned.

Drum Brake Adjustment: Different Parts, Same Goal

Image source: Bing (Web (fair-use with source credit))

Drum brakes are common on lower-cost scooters, knee scooters, and some mobility scooters. They're enclosed, so they stay cleaner than disc brakes. But alignment works differently.

Instead of centering a caliper, you're adjusting the gap between the brake shoes and the inside of the drum.

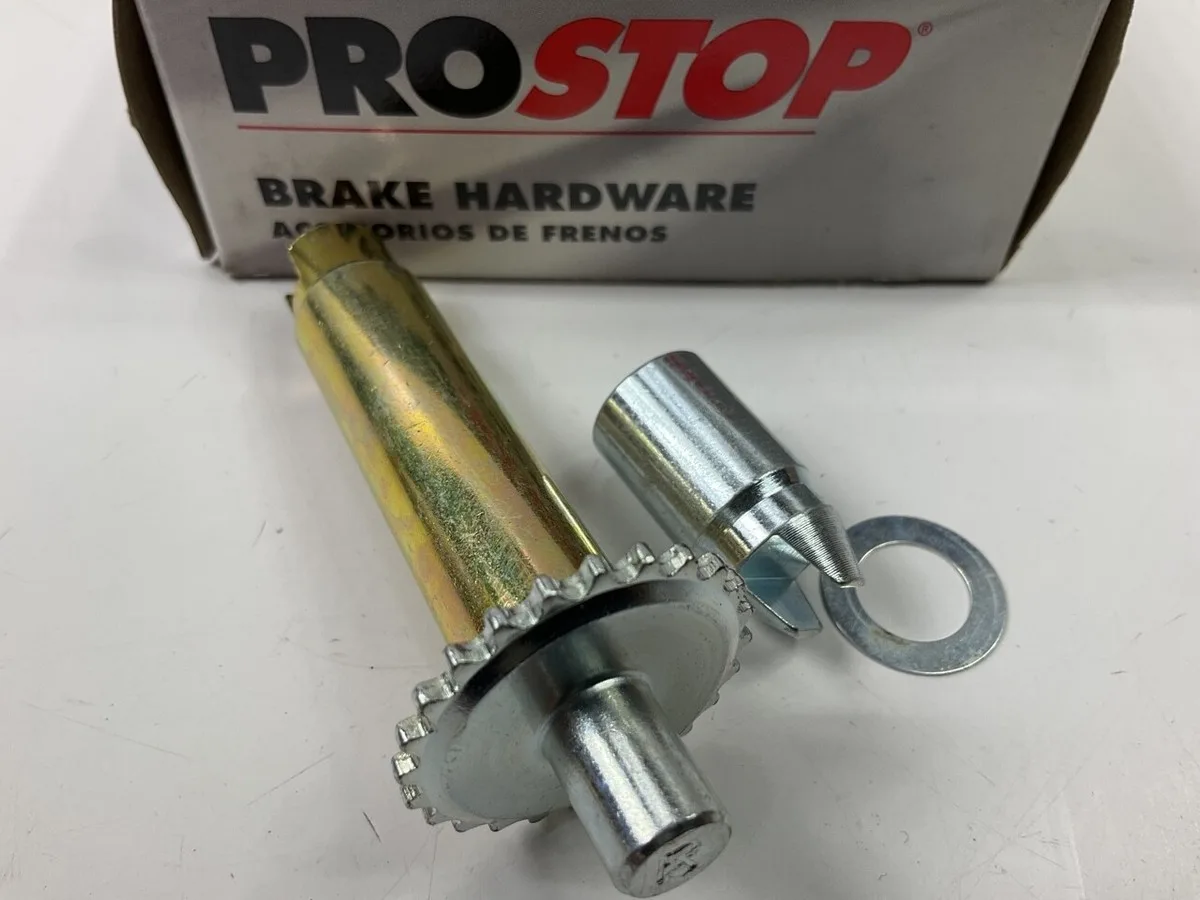

Most scooters with drum brakes have an adjustment wheel on the brake arm itself. You'll see a small wheel or a hex nut at the point where the brake cable attaches. That's your primary adjuster.

Step 1: Locate the adjuster wheel. Some scooters put it on the brake arm near the wheel. Others have a barrel adjuster on the cable near the lever.

Know which type your scooter uses.

Step 2: Turn the adjuster wheel in small increments. Clockwise usually pushes the shoes closer to the drum. Turn until you feel light drag when you spin the wheel.

That means the shoes are just barely touching.

Step 3: Back off the adjuster slightly. A quarter turn counterclockwise. This removes the drag but keeps the shoes close enough to engage quickly.

Step 4: Check cable tension. If the lever feels loose after adjusting the shoes, tighten the cable at the barrel adjuster or the lock nut on the brake arm. You want a firm feel with about a thumb's width of travel before engagement.

Step 5: Test ride. Apply the brake at low speed. If it grabs suddenly or doesn't engage smoothly, readjust.

Drum brakes need a small gap to avoid constant drag. Too much gap gives a soft lever and weak stopping.

One important note. Drum brake adjustment is temperature sensitive. As the drum heats from braking, the shoes expand and grab tighter.

Always set the cold gap slightly looser than you think you need. If you adjust while the drum is warm, you risk the shoes locking up as they cool and contract.

Some mobility scooters use self-adjusting drum brakes that use a ratcheting mechanism inside. If yours is a self-adjusting type, leave the mechanism alone unless you know exactly how it works. Just adjust cable tension and let the internal mechanism handle the shoe gap.

V-Brake Alignment (Kick Scooters and Kids' Rides)

V-brakes are the standard on most kick scooters and many children's scooters. They are simple, cheap, and easy to align once you know the trick. The key is balancing spring tension on both sides of the brake so both pads contact the rim at the same time.

If your scooter has a V-brake and it squeals, pulls to one side, or feels weak, alignment is usually the culprit.

Step 1: Check pad position. The pad should contact the rim flat, not at an angle. If the pad sits too high or low, loosen the pad bolt and slide it to the correct spot.

Most pads use a curved washer that allows angle adjustment.

Step 2: Center the brake arms. V-brakes have a small tension spring on each arm. A tiny adjustment screw on each arm controls spring tension.

Tighten the screw on the side that touches the rim first. Loosen it on the side that lags behind. The goal is even contact.

Step 3: Adjust pad toe-in. The front of the pad should touch the rim slightly before the rear of the pad. This eliminates squeal and gives smoother braking.

Use a business card as a spacer under the rear of the pad while you tighten it.

Step 4: Check cable tension. The brake lever should have a small amount of free play before engaging. Use the barrel adjuster on the lever to set tension.

If the cable is too loose, the lever will bottom out against the handlebar. If too tight, the pads will drag constantly.

Step 5: Squeeze the lever and watch both pads. They should contact the rim at the same time. If one side touches first, go back to step 2 and adjust the spring tension screws again.

V-brakes are very forgiving. A small misalignment is often barely noticeable during a casual ride. But a major misalignment causes squealing, uneven pad wear, and reduced stopping power.

Take the time to balance the spring tension carefully. It makes a world of difference, especially on a kid's scooter where safety depends on predictable braking.

Common Alignment Mistakes That Waste Your Time

Some mistakes keep coming up in repair logs. Avoid these and you'll save yourself a lot of frustration.

Adjusting alignment before checking the wheel. This is the number one mistake. A loose axle or crooked wheel mimics a caliper alignment problem. Check wheel seating first every time.

Over-tightening mounting bolts. You don't need gorilla strength. Stripped threads ruin the caliper mount and require a new bracket or frame. Use a torque wrench if you have one. 6 to 8 Nm is enough.

Ignoring cable condition. A frayed or stretched cable won't hold tension. No amount of alignment fixes a cable that needs replacement. Inspect cables regularly and replace them at the first sign of fraying.

Forgetting to bed in new pads. New pads need a gentle break-in process. Ride at moderate speed and brake gradually 10 to 20 times. This transfers a thin layer of pad material to the rotor.

Without bedding, pads grab unevenly and glaze quickly.

Adjusting drum brakes warm. Always let the drum cool completely before adjusting. Warm drums give false tightness. The shoes will drag or lock up once the drum cools.

Skipping the test ride. A static spin test doesn't simulate braking load. Always test ride after adjustment. Apply the brake at low speed first, then progressively higher speeds.

Avoid these mistakes, and you'll get consistent results every time you adjust.

Frequently Asked Questions

Why does my scooter brake still rub after I adjusted it?

The caliper mount or bracket may be misaligned. Try loosening the bracket bolts instead of just the caliper bolts and repeat the self-center process. Also check rotor trueness.

A bent rotor can't be fixed by moving the caliper.

Can I use WD-40 to stop brake squeal?

No. Lubricants ruin brake pads and rotors. Squeal is almost always caused by vibration or misalignment.

Clean the rotor with isopropyl alcohol and check pad toe-in on V-brakes. Replace contaminated pads.

How often should I check scooter brake alignment?

Check it every time you inflate tires or perform routine maintenance. If you ride daily, a quick spin test once a month catches problems early. If you hear rubbing, check it immediately.

Do I need special tools to align scooter brakes?

For most adjustments you need only Allen keys and a barrel adjuster. A torque wrench helps but isn't required. For hydraulic disc brakes, you may need a plastic tire lever to push pistons back.

What's the difference between centering a disc brake and adjusting a drum brake?

Disc brake alignment centers the caliper around the rotor. Drum brake adjustment sets the gap between the shoes and the drum. They are completely different mechanisms that need different procedures.

How do I know if my brake pads are worn out?

Look at the pad material through the caliper window or remove the wheel. If the material is below 1 millimeter thick or you see the metal backing plate, replace them immediately. Worn pads reduce stopping power significantly.

Should You Adjust It or Replace It? A Quick Decision Guide

You've read through the steps. Now you need to decide. Here's a simple framework.

If you are unsure about any step, a shop charge of $20 to $50 is cheaper than a crash. But for most riders, the steps above are all you need.

Start with the quick checks. Identify your brake type. Follow the correct process.

Test ride. You will solve the alignment problem in under 15 minutes, and your scooter will ride quieter and stop better than it has in months.
