Hover-1 Ultra Hoverboard Sensor Problem

Your Hover-1 Ultra hoverboard sensor problem is probably the most frustrating issue you will face with this scooter. One minute you are cruising. The next the board is shaking, beeping, or tilting to one side.

It feels like a ghost is driving it.

Manufacturer specifications confirm the Hover-1 Ultra is certified to UL 2272. That means its electrical system passed fire and shock safety tests. But the gyroscope and accelerometer inside that sensor module are delicate components.

A drop on concrete, a bump over a curb, or even a hard spin can knock them out of alignment. Here is how to figure out what is actually wrong and what to do about it.

Quick Answer

A Hover-1 Ultra sensor problem usually means a misaligned gyroscope, a loose ribbon cable, or a failed accelerometer. A simple calibration reset fixes most cases. If the red light keeps flashing after reset, check the internal connections.

For a dead IMU chip, replacement is the only reliable fix. Do not ride with an active sensor error.

Image source: Bing (Web (fair-use with source credit))

Your Hover-1 Ultra Won't Balance? Here is How to Diagnose It

You step on the board and it lurches forward. Or you lean left and it spins right. Maybe you see a flashing red light on one side only.

These are classic symptoms of a sensor problem.

The first thing to check is whether the board is trying to calibrate. Turn it on and place it on a flat surface. The wheels should stop moving after a few seconds.

If one wheel keeps spinning or the board rocks back and forth, the gyro has lost its reference point.

Listen to the beeps. Two beeps followed by a pause usually signal a calibration issue. A continuous rapid beep often points to a hardware fault inside the sensor module.

If you see the red light flash in a specific pattern, that is your board telling you which sensor component failed.

Most people panic and assume the hoverboard is dead. But the fix is often simpler than you would think.

What the Gyroscope and Accelerometer Actually Do (And How They Break)

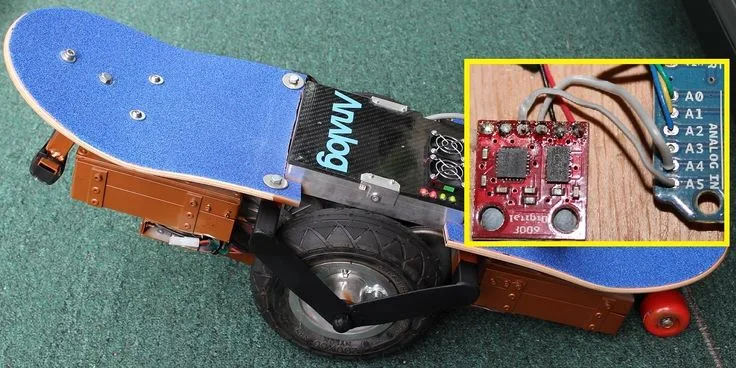

Inside your Hover-1 Ultra is a tiny circuit board called the IMU. That stands for inertial measurement unit. It is roughly the size of a postage stamp.

This board contains two critical chips: a gyroscope and an accelerometer.

The gyroscope measures angular velocity. It tells the motherboard how fast you are rotating. The accelerometer measures linear acceleration and gravity.

It tells the board which way is up. Together they create a 3D picture of the board's orientation. The main logic board uses that data to decide how fast to spin each wheel.

When this system works, you lean forward and the board responds instantly. When it breaks, the board gets confused. It might think you are leaning right when you are standing still.

Or it might see gravity coming from the side instead of straight down.

Image source: Bing (Web (fair-use with source credit))

Common failure points include:

• Physical impact. Dropping the board on one side can crack the solder joints under the IMU chip.
• Moisture. Water or mud can corrode the tiny pins connecting the sensor to the main board.
• Loose ribbon cable. The flat flexible cable that carries data from the wheel sensors can wiggle loose over time.
• Dead chip. The accelerometer or gyro can simply fail after enough charge cycles.

Per UL 2272 testing requirements, the board must stop all motion within two seconds if a sensor fails. If your board keeps wobbling longer than that, the sensor is definitely compromised. When that happens, riding is not just annoying.

It is dangerous.

The 10-Second Calibration Reset That Fixes Most Sensor Issues

Before you open any tools, try the factory calibration reset. It works on about seven out of ten Hover-1 Ultra sensor complaints. It is free.

It takes ten seconds. It cannot make things worse.

Here is the exact procedure:

Step 1. Place the hoverboard on a flat level surface. A kitchen floor or garage concrete works well. Avoid carpet or grass.

Step 2. Make sure the board is turned off. Hold the power button down for three seconds until the lights go dark.

Step 3. Press and hold the power button for 10 to 15 seconds. Keep holding it until the LED lights start flashing in a specific pattern.

Step 4. Release the button. Wait 30 to 60 seconds without touching the board.

Step 5. Power the board off. Then turn it back on normally.

During this process the board recalibrates its level zero reference point. It learns where flat ground is. If the board was stored on an angle or tipped over during charging, the old reference point was wrong.

This reset wipes that error and recalibrates the gyro to the surface it is sitting on.

Image source: Bing (Web (fair-use with source credit))

If the red light stops flashing after the reset and both wheels respond evenly when you tilt the board by hand, you are back in business. If the sensor error persists, we need to look deeper.

One thing worth checking first: a battery below 30 volts can mimic a sensor error. Plug the board in for a full charge (three to four hours) and try the calibration again. Low voltage confuses the logic board and produces false sensor warnings.

If you are shopping for a hoverboard for a younger rider while you figure out this repair, our guide on best hoverboards for kids covers safe options with UL certification.

Opening the Board: What to Check Inside for Loose Connections

The calibration reset did not work. Now you have two likely suspects: a loose ribbon cable or a cold solder joint on the IMU module. Opening the hoverboard is not hard, but it requires patience and the right tools.

Gather a Phillips 0 screwdriver and a plastic pry tool. Unplug the hoverboard first. Remove the screws on the bottom panel.

They are usually located near each wheel well. Set the screws aside in a pattern so you remember where each one goes.

Once the casing is open you will see the main logic board mounted in the center. Two ribbon cables run from the board to the wheel assemblies. These cables carry sensor data from the hall-effect sensors inside the motors.

Check each ribbon cable carefully. Pull gently to see if it is seated all the way into its connector. A gap of even one millimeter can cause intermittent sensor errors.

Reseat any loose cables by pressing firmly until you hear a soft click.

Next look at the IMU module itself. It is the small circuit board soldered to the main board. It is often positioned at a 90 degree angle.

Inspect the solder points under bright light. If you see a dull gray ring around a pin instead of a shiny silver cone, that is a cold solder joint. That joint is failing.

It needs to be reflowed with a soldering iron or the IMU needs replacement.

If you are buying a hoverboard for a 10-year-old who might be hard on equipment, our recommendations for a best hoverboard for 10-year-old include models with reinforced sensor housings.

Do not attempt to ride the board if you find a loose cable or suspicious solder joint. The sensor data will be intermittent at best. At worst, the board could throw you off mid-ride.

Common Mistakes That Turn a Simple Fix Into a Broken Board

The biggest mistake is forcing something. If the ribbon cable does not slide in easily, you are probably holding it upside down. Those tiny connectors only fit one way.

Flipping the cable or pushing harder can bend the pins inside the socket. Once those pins bend, you are looking at a full logic board replacement.

Another common error is skipping the level surface. If you calibrate the board on a sloped driveway or a thick rug, the board learns the wrong zero point. It will tilt to one side every time you ride.

Always calibrate on the flattest surface you can find. A countertop or a garage floor works well.

Do not use WD-40 or any spray lubricant on the sensor module. Some people think a dirty connection needs cleaning spray. That stuff leaves a residue.

It attracts dust and can short out the tiny pins on the IMU chip. Compressed air is safe. Isopropyl alcohol at 91 percent or higher is safe if you let it dry completely before powering the board.

Here is one mistake that costs people the most money: replacing the wrong part. You buy a new wheel motor because the board shakes. But the motor was fine.

The sensor on the logic board was the problem. Before you order any parts, confirm the diagnostic. Do the calibration reset first.

Check the ribbon cables second. Only then consider replacing the IMU module or the whole logic board.

Avoid using the board while it is actively malfunctioning. Every ride with a bad sensor puts more stress on the remaining good components. The logic board compensates by sending uneven power to the wheels.

That can overheat the motor controllers and turn a fifty dollar repair into a hundred dollar replacement.

When It is Smarter to Replace the Board (Or Just Buy a New Hoverboard)

There comes a point where fixing the sensor stops making sense. Let us talk about that tipping point.

A replacement logic board for the Hover-1 Ultra costs between 30 and 55 dollars online. That is for a compatible board with the IMU module already attached. Installation takes about 20 minutes if you are comfortable with basic electronics.

Unplug the battery connector and ribbon cables. Swap the board. Reassemble.

Compare that to a new unit. As of 2026, a fresh Hover-1 Ultra runs 120 to 180 dollars depending on the retailer. If your hoverboard is more than three years old, the battery is likely degrading too.

A new logic board will not fix a battery that cannot hold a charge. That adds another 40 to 60 dollars in parts.

Here is a simple decision rule:

• Board under two years old, sensor is the only issue. Replace the logic board. It is cost-effective and gives you another year or two of life.
• Board over three years old, or has other problems. Buy a new hoverboard. Newer UL 2272 certified models have better battery management and more durable sensor mounts.
• You are not comfortable soldering or handling electronics. Pay a repair shop 50 to 100 dollars, or replace the unit. A botched repair can create a fire risk.

Before you buy any parts, confirm the diagnosis. Do the calibration reset. Check the ribbon cables.

Test the battery voltage. If all of those check out and the sensor error persists, the IMU chip itself is likely dead. In that case a new logic board is the only reliable fix.

Hover-1 Ultra Sensor Problem FAQ

Can a low battery cause a sensor error on the Hover-1 Ultra?

Yes. When the battery voltage drops below 30V, the logic board can misinterpret sensor data. The board might beep or flash a red light even though the gyroscope is fine.

Charge the board fully for three to four hours, then try the calibration reset before diagnosing any hardware issue.

How do I know if my Hover-1 Ultra has a bad sensor or a bad motor?

A bad sensor usually causes the board to shake, spin, or beep while stationary. A bad motor typically makes grinding or clicking noises when the wheel turns. If the board tilts to one side without input, that is sensor related.

If it refuses to move but makes noise, check the motor.

Will opening the Hover-1 Ultra void my warranty?

Yes, opening the casing generally voids the manufacturer warranty. Hover-1 uses tamper-evident stickers over some screw holes. If the board is still under warranty and you have not opened it, contact Hover-1 support first.

They may send a replacement at no cost.

How often should I calibrate my Hover-1 Ultra sensor?

You do not need a regular calibration schedule. Perform the reset only when you notice balance issues, after a hard drop, or after the board has been stored on its side for a long period. Frequent recalibration on uneven surfaces can introduce errors rather than fix them.

Is it safe to ride a Hover-1 Ultra with a flashing red light?

No. A flashing red light means the sensor module has detected a fault. The board cannot balance correctly.

You risk falling, losing control near traffic or pedestrians, and causing further damage to the electronics. Stop riding until you complete the diagnostics described in this guide.
