Hybrid Bike Crank Loose

Your hybrid bike crank is loose, and you're probably wondering if it's a five-minute fix or a sign of something worse. That wobble or click you feel under your foot can range from a bolt that just needs a quarter-turn to a crank arm that's about to fail entirely.

Manufacturer specifications indicate that most hybrid bike cranks should be tightened to between 35 and 55 newton-meters, and riding with even 2 millimeters of lateral play can permanently damage the square taper interface. The good news is that you can figure out exactly which problem you're dealing with in under two minutes without any special tools. Here's how.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Check the crank bolt first. That fixes the majority of loose hybrid bike cranks. Use an 8mm Allen key and turn clockwise.

Tighten to 35-55 Nm if you have a torque wrench. If you don't, snug it firmly but don't stand on the wrench. Lateral play means a loose bolt.

Rotational play usually means a worn bottom bracket. A clicking sound on every pedal stroke means chainring bolts or pedals. Ride with any of these loose and you risk damaging the crank arm or bottom bracket.

The Wiggle Test: How to Tell What's Actually Loose

You need to isolate the source of the problem before you grab any tools. The wiggle test is the fastest way to do that, and it works on every hybrid bike regardless of brand or bottom bracket type.

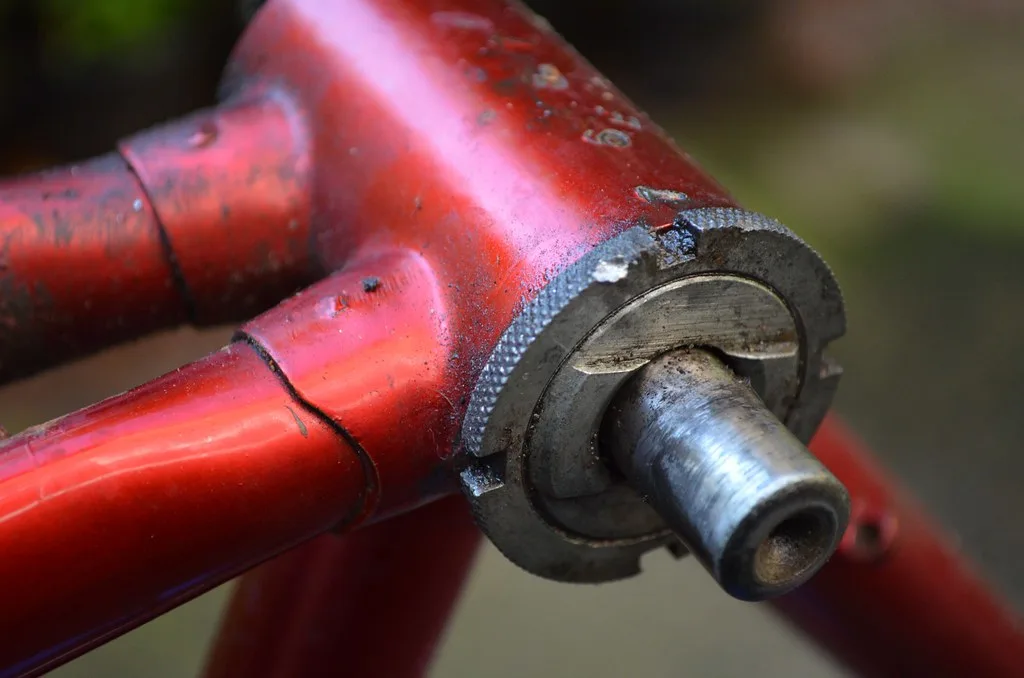

Performing the Lateral Play Check

Stand next to your bike and grab the crank arm on the non-drive side. That's the left side, opposite the chainrings. Hold it near the pedal with one hand and near the bottom bracket spindle with the other.

Push and pull the crank arm side-to-side perpendicular to the frame. Do not rotate it. You're checking for movement in and out, not around.

If you feel a distinct clunk or noticeable play at the crank arm-to-bottom bracket interface, that's lateral play. The amount of movement tells you how urgent the problem is. Anything under 1 millimeter of side-to-side play is usually just a loose crank bolt.

Anything over 2 millimeters could mean the square taper hole inside the crank arm is already ovalized and the crank needs replacement.

Image source: Bing (Web (fair-use with source credit))

Checking for Rotational Play with the Pedal Test

Now put your weight on the pedal and push down firmly. Do you feel a dull clunk or a delayed engagement before the bike moves forward? That's rotational play, and it's a different problem entirely.

Rotational play usually points to a worn bottom bracket bearing or a loose bottom bracket cup, not a loose crank bolt.

A quick way to confirm: hold the crank arm still and try to rock the chainring up and down. If the chainring moves but the crank arm doesn't, your bottom bracket bearings have play. If the whole assembly moves together, the crank bolt is likely loose.

The Creak Location Test

Pedal slowly in a quiet area and listen carefully. A single click per pedal revolution that happens at the same point in the stroke is almost always the crank bolt or pedals. A creak that happens at multiple points or changes with gear selection usually comes from the chainring bolts or the bottom bracket.

If you can reproduce the noise while pedaling backward, it's probably the pedals.

Decision Tree: What to Do Based on Your Symptoms

Now that you've done the wiggle test, you're ready to match your symptoms to a specific fix. This decision tree covers the four most common causes of a loose hybrid bike crank. Read the description under each branch and pick the one that matches your bike.

Branch 1: Crank Bolt is Loose

Symptoms: Lateral play under 2 millimeters, a single click per pedal revolution, and no play in the bottom bracket when you rock the chainring.

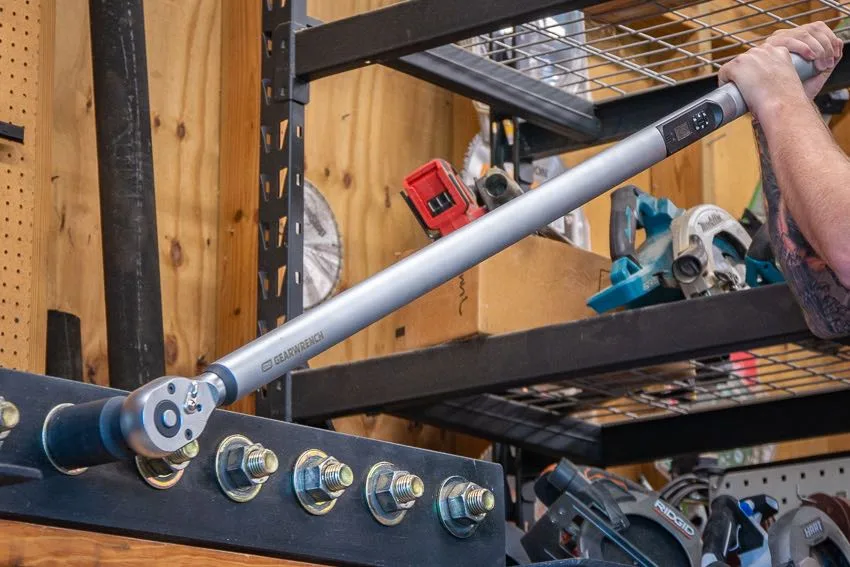

This is the best-case scenario and by far the most common fix. You need an 8mm Allen key. Some older models use a 6mm or 10mm, so check yours.

Turn the bolt clockwise to tighten. If you have a torque wrench, aim for 35 to 55 newton-meters. If you don't, tighten it until it feels snug and then give it another quarter-turn.

Do not stand on the Allen key or use a cheater bar for leverage. Over-tightening an aluminum crank arm can crack it.

Image source: Bing (Web (fair-use with source credit))

If your crank uses a self-extracting bolt, the process is the same. A self-extracting bolt has an external hex head and an internal Allen socket. Just make sure you're turning the center Allen bolt, not the outer cap.

A common mistake is tightening the outer cap instead of the actual crank bolt.

After tightening, repeat the wiggle test. If the play is gone and the creak is silent, you're done. Check the bolt again after your next three to five rides.

A crank bolt that loosens once often loosens again until you apply the correct torque.

Branch 2: Crank Arm Is Worn

Symptoms: Lateral play over 2 millimeters, a visible gap between the crank arm and the bottom bracket spindle, or a crank that keeps coming loose even after you tighten the bolt properly.

The square taper interface works like a wedge. When the bolt is tight, the female square hole in the crank arm clamps onto the male square end of the bottom bracket spindle. If you ride with a loose crank bolt for too long, that square hole gets deformed.

Instead of a perfect square, it becomes oval. Once that happens, no amount of tightening will fix it.

Quick check: Remove the crank bolt and pull the crank arm off with a crank puller tool. Look at the square hole. If it's rounded, stretched, or shows shiny wear marks on only one side, the arm is done.

You need a replacement crank arm.

Options for replacement:

• Same model crank arm: Best if you want to keep the same look and chainring compatibility. Check the crank arm length, usually stamped on the inside, and order the same side, left or right.
• Complete crankset: Often easier to find and install. A full square taper crankset for a hybrid bike costs $25 to $60 as of 2026. Make sure the spindle interface matches your existing bottom bracket.
• Used crank arm: Fine if the taper is clean and undamaged. Inspect it carefully before installing. A used arm with hidden wear will fail faster than the one you're replacing.

Branch 3: Bottom Bracket Is the Real Problem

Symptoms: You feel rotational play when pedaling, the crank wiggles but the bolt is tight, or you can rock the chainring up and down independently of the crank arm.

This is the fix that requires the most tools and patience. The bottom bracket is the bearing assembly that sits inside the frame's bottom bracket shell. On most hybrid bikes under $1,000, you're dealing with a sealed cartridge bottom bracket that uses a square taper spindle.

Replacing it costs $15 to $40 for the part plus about 30 minutes of labor if you have the right tools.

Tools you need:

• Bottom bracket tool (splined or pin spanner, depending on your model)
• Crank puller
• Large adjustable wrench or socket wrench

Quick confirmation before buying parts: Look for play by grabbing the crank arm near the pedal and pushing side-to-side. If the crank bolt is tight but the spindle itself moves inside the frame, the bottom bracket bearings are shot. If the spindle doesn't move but the crank arm wobbles around it, the bottom bracket is fine and the crank arm is the problem.

Branch 4: Pedal Threads or Chainring Bolts

Symptoms: A creak or click that happens when pedaling hard or standing up, but no lateral play and no rotational play in the crank or bottom bracket.

Sometimes the crank feels solid, the bottom bracket is smooth, and the noise is still there. Two sneaky culprits often get overlooked.

Pedal threads: Remove the pedals, clean the threads, apply a thin layer of grease, and reinstall to the correct torque. That's usually 35 to 50 Nm for the pedal-to-crank interface. The left pedal has reverse threads.

Turn it clockwise to loosen and counterclockwise to tighten. Forcing it the wrong way can strip the crank arm threads.

Chainring bolts: These small bolts hold the chainrings to the crank spider. They work loose over time, especially on bikes that see frequent gear changes or hard pedaling. Tighten them with a 5mm Allen key and a chainring bolt tool, or a thin 8mm wrench.

Each bolt should feel snug but not torqued to crank-bolt spec. Ten newton-meters is plenty.

Tools You'll Actually Need (And What You Can Skip)

You don't need a full workshop for most loose crank fixes. Here's what you should own and what you can borrow or skip.

The one tool to buy first: An 8mm Allen key with a T-handle gives you better leverage and feel than a foldable multi-tool. It costs about ten dollars and solves the majority of loose crank problems on its own.

Tools to skip: Impact wrenches, adjustable wrenches (they slip and round bolt heads), and WD-40. None of them belong near a crank bolt. Use a proper grease or anti-seize compound on the taper interface and clean dry threads for the crank bolt itself.

Common Mistakes That Cost You Time and Money

Even experienced riders make these errors. Here are the ones to watch for.

Over-tightening an aluminum crank arm. Aluminum is softer than steel. If you reef on the crank bolt like you're changing a car tire, you can crack the arm or strip the threads in the bottom bracket spindle. Use a torque wrench or err on the side of slightly loose rather than dangerously tight.

Using the wrong lubricant. Grease belongs on the square taper interface, not on the crank bolt threads. A greased bolt can over-torque easily because the friction is reduced. Clean, dry threads give you a more accurate torque reading.

For the taper itself, a thin layer of grease or anti-seize prevents corrosion and helps the crank arm seat fully.

Mistaking a worn bottom bracket for a loose crank bolt. If you tighten the crank bolt and the play doesn't disappear, you're treating the wrong part. Do the rotational play test before you buy any tools. Replacing a crank bolt when the bottom bracket is worn wastes time and money.

Riding too long with a small wobble. That 1 millimeter of play your friend told you to ignore is slowly destroying the square taper interface. A $5 crank bolt fix today turns into a $40 crank arm replacement next month. Fix it the first time you notice it.

When to Walk Away and Call a Shop

Some problems need professional attention. Here's when to hand it over.

A cracked crank arm or frame damage. If you see any crack in the crank arm, even a hairline one, stop riding immediately. A cracked crank arm can snap under load, and that crash is not worth saving a few dollars. The same goes for cracks in the frame around the bottom bracket shell.

Those need a frame repair specialist or a replacement bike.

A seized crank arm that won't come off. If the crank arm is stuck on the spindle, do not hammer it. Do not use a gear puller. Take it to a shop.

They have penetrating oil, heat, and the right puller tools to remove it without damaging the spindle or frame.

Lock-ring or preload cap confusion on splined systems. If your hybrid bike uses a Shimano Hollowtech II or SRAM GXP splined bottom bracket, the installation sequence is specific. The plastic preload cap goes on before the pinch bolts. Get that wrong and you'll either strip the cap or ride with a loose crank that damages the splines.

The dealer manual from Shimano or SRAM covers the exact sequence.

Typical shop costs vs. DIY savings: A shop will charge $15 to $30 to tighten a crank bolt. That's fair if you don't own an Allen key or don't want to touch it.

A bottom bracket replacement runs $50 to $100 in labor plus parts. By diagnosing the problem yourself with the wiggle test, you save the diagnostic fee and know exactly what you're paying for.

Frequently Asked Questions

Can I just tighten it and keep riding?

Yes, if the crank bolt is loose and the taper is undamaged. Tighten it to 35-55 Nm and check for play. If the play returns within a few rides, the taper is likely worn and you need a new crank arm.

How tight is "tight enough" without a torque wrench?

Snug it firmly with an 8mm Allen key, then give it another quarter turn. You should feel solid resistance but not be fighting the tool. If you're standing on the wrench or using a cheater bar, you're over-tightening.

Will a loose crank damage my bottom bracket?

Only indirectly. The wobble puts uneven stress on the bottom bracket bearings, which can accelerate wear. The bigger risk is damage to the crank arm itself.

The square taper hole gets ovalized and the arm becomes unusable.

Why does my crank keep coming loose after tightening?

The square taper is damaged. Once the female hole in the crank arm stretches, it can no longer clamp onto the spindle securely. No amount of tightening will fix it permanently.

Replace the crank arm.

Is it safe to ride with a little side-to-side play?

No. Even 1 millimeter of lateral play means the crank arm is moving against the taper. Each pedal stroke wears it further.

Fix it immediately. A loose crank can detach mid-ride, and that crash can cause serious injury.
