Jeep Grand Cherokee Brake Problem

Your Jeep Grand Cherokee brake problem could be five different things. That's exactly why it's so frustrating. The right fix depends on your symptom, your model year, and a few simple checks you can do without lifting the car.

We'll walk through each symptom branch and match it to the repair path that actually makes sense.

Brake fluid meets the DOT3 or DOT4 standard depending on your model year. Using the wrong fluid can damage seals and ruin your master cylinder. That's just one gateway detail.

The real work starts with listening to what the pedal is telling you. Let's trace each symptom branch together.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The most common brake problem on a Grand Cherokee is a soft or sinking pedal. That usually means air in the lines, a fluid leak, or a failing master cylinder. Pulsation and noise point to rotors or stuck calipers.

Warning lights often trace to wheel speed sensors or the ABS module. Match your symptom to the right branch below.

Start Here: Match Your Grand Cherokee's Brake Symptom to the Right Repair Path

The Grand Cherokee has gone through several generations, from the boxy ZJ to the current WL. Each one has its own quirks. But brake diagnosis follows the same logic across all of them.

The symptom tells you where to look first. Don't start throwing parts at it.

Before you open the hood, sit in the driver's seat and pump the pedal a few times. Does it feel spongy, hard, or normal? Does it sink slowly while you hold pressure?

Does the steering wheel shake at highway speed? Each answer sends you down a different path. That's why this article is built as a decision tree, not a random checklist.

If you're comparing Grand Cherokee trims or generations, you might want to see how it stacks up against rivals like the Dodge Durango or the Chevy Equinox. When it comes to brakes, the process is the same across models.

Quick Symptom Reference Guide

Branch 1: Soft or Sinking Brake Pedal: Leaks, Air in the Lines, or Master Cylinder Failure

Image source: Bing (Web (fair-use with source credit))

If your brake pedal sinks slowly toward the floor while you hold steady pressure, you're dealing with one of two things. Either an internal or external fluid leak. The master cylinder has two internal chambers.

When the rear seal fails, fluid bypasses the piston internally. The pedal goes soft, yet the fluid level stays right where it was.

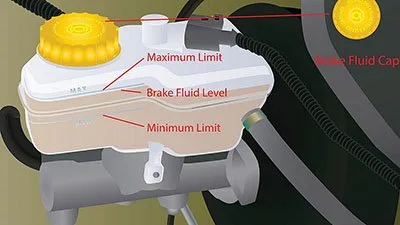

Start with the easy stuff. Check the brake fluid reservoir in the engine bay. If it's low, trace every brake line, flex hose, and caliper banjo bolt for wet spots.

Look closely at the master cylinder's boot and the area under the dash where the pedal connects to the brake booster. A wet drip near the firewall often means the master cylinder is leaking into the cabin.

If the fluid level is fine and there are no visible leaks, the next suspect is air in the system. Air compresses, and compressed air gives you that spongy pedal feel. Air gets in after a brake job, a line replacement, or any time the system was opened.

The fix is a proper brake bleed, starting at the wheel furthest from the master cylinder.

There's one Grand Cherokee-specific trap here. Models with the electronic parking brake, or EPB, need a scan tool to cycle the rear calipers during a bleed. Jamming a screwdriver into the EPB motor will destroy it.

As of 2026, aftermarket bidirectional tools start around $100 and handle the job fine.

If the pedal is hard and high but slowly sinks, that's a master cylinder issue. Confirm it with a simple test. Pump the pedal three or four times, hold steady pressure, and keep the engine running.

If the pedal slowly sinks to the floor with no external leak, the master cylinder is bypassing internally. Replace it, then bleed the entire system per the vehicle manufacturer's service procedure.

Branch 2: Brake Pulsation or Shudder: Rotor Thickness Variation, Pad Build-Up, or a Stuck Caliper

Image source: Bing (Web (fair-use with source credit))

Brake pulsation feels like the pedal is vibrating or pulsing under your foot. Sometimes you feel it in the steering wheel instead. The classic cause is rotor thickness variation, not rotor "warp." People say warp, but the real culprit is uneven material transfer from the brake pads leaving deposits on the rotors.

That creates high and low spots.

Deposits usually form when new pads aren't bedded in properly. They also form when you brake hard and then hold the pedal at a stop, pressing the hot pads into one spot. Rotors cool unevenly, and pad material transfers to the metal.

The result is a steering wheel shudder exactly like a warped rotor.

The diagnosis is straightforward. Raise the front wheels off the ground and spin them by hand. You'll often feel drag or hear a light scrape at the same spot on every rotation.

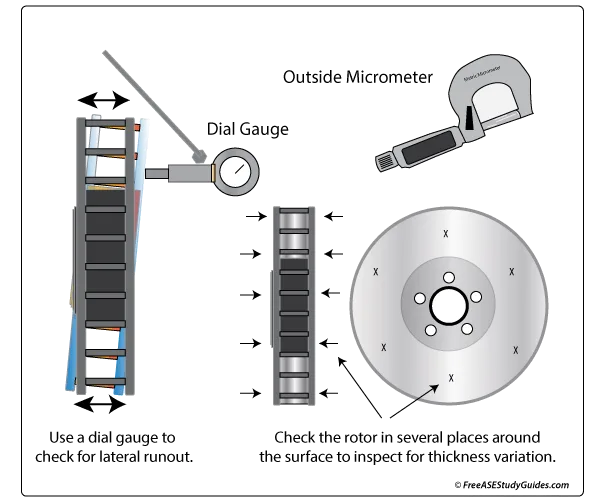

A dial indicator tells you the truth. Lateral runout should be under 0.002 inches on most Grand Cherokee models. More than that means the rotors need resurfacing or replacement.

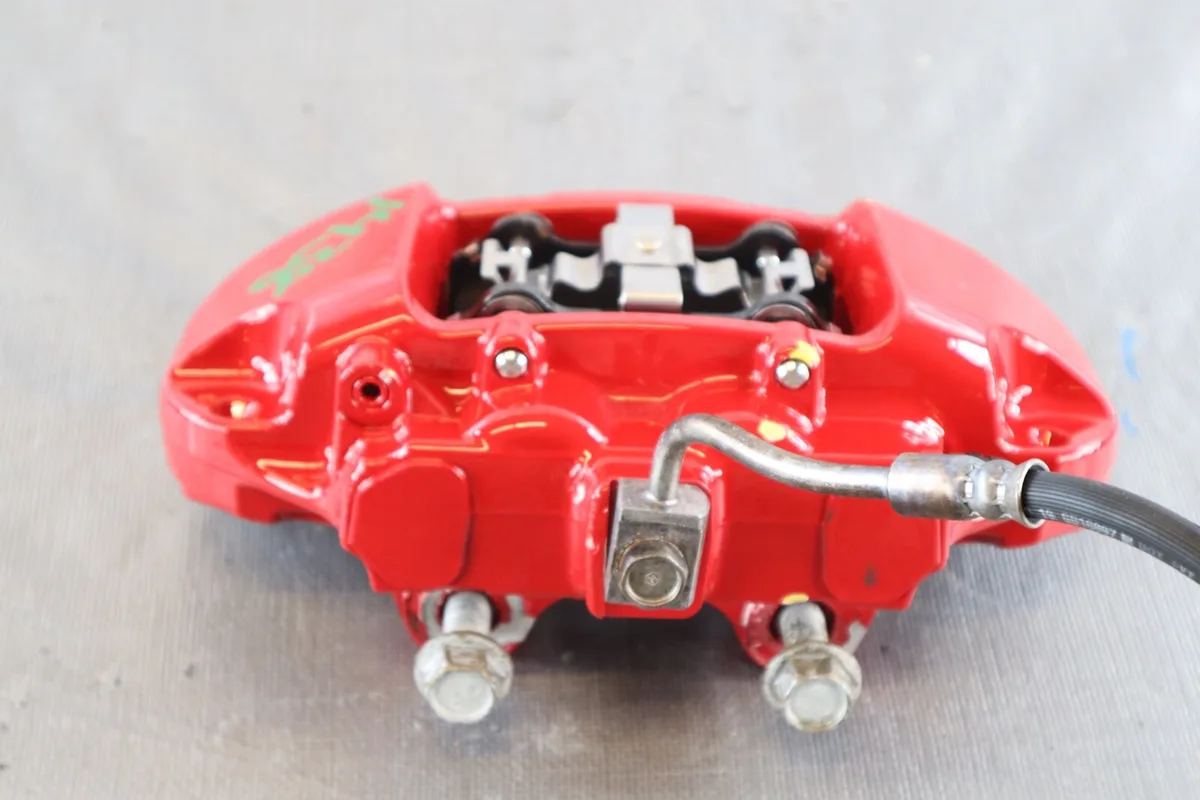

A stuck caliper produces a similar vibration with one extra clue. Check the temperature of each wheel after a short drive. Touch the center hub carefully with the back of your hand.

If one side is significantly hotter, that caliper is dragging. The slide pins are probably rusted, or the caliper piston is seized.

Your move depends on rotor thickness. Remove the wheels, measure the rotor with a micrometer, and compare it to the minimum thickness stamped on the rotor. If there's enough meat, resurfacing works.

If it's below spec, replacement is the only safe choice. Once you've fixed the rotors, make sure the caliper slides move freely. Lubricate the pins with high-temperature brake grease.

If you want to understand how the Grand Cherokee's platform handles other repair decisions, our engine comparison between the 3.6 and 3.8 covers the different powertrains you might be working around.

Branch 3: Brake Noises: Squeal, Grind, Scrape, or Click and What Each One Tells You

Brake noise is the most common reason owners search for a diagnosis, but it's also the easiest to sort out. Squeal, grind, scrape, and click each point to different components. Let's go one by one.

A high-pitched squeal when you apply light pressure usually means the wear indicators are touching the rotors. Those little metal tabs are designed to make noise when the pad is down to about 2 to 3 millimeters. The fix is new pads, and you should replace them in axle sets.

Don't just replace the side that's wearing fastest.

A deep grinding sound means metal-on-metal contact. That's urgent. The friction material is completely gone, and the steel backing plate is chewing into the rotor.

Drive as little as possible and get it to a shop. This one can cost you a full rotor replacement instead of a pad swap.

A scraping sound that happens only when you turn is often a bent dust shield or a small rock stuck between the rotor and the shield. Look through the wheel spokes. If you see a shiny spot on the metal shield, bend it back with a flathead screwdriver.

A clicking or popping noise when you first press the brake pedal points to worn caliper slide pins. The caliper moves slightly when it grabs the rotor, and you hear the movement. Fixing the pins is a 20-minute job.

Remove the caliper bolts, pull the pins out, clean off old grease, and reapply fresh high-temp brake lubricant.

One noise that surprises Grand Cherokee owners is a groan when reversing. That's normal on some models, especially in cooler weather. The pad material grips the rotor differently in reverse.

If there's no pulsation or grinding, you're fine.

Branch 4: Warning Lights and EPB Faults: ABS, Traction Control, and the Electronic Parking Brake System

A light on the dash means the system has detected a fault and stored a diagnostic trouble code. You need a scan tool to read it. Without the code, you're guessing, and guessing gets expensive fast.

On the Grand Cherokee, the two lights that usually appear together are ABS and traction control. When both come on at once, the system has lost signal from one or more wheel speed sensors. Those sensors sit behind each wheel hub and measure how fast that corner is spinning.

A cracked wire, a rusty sensor, or a damaged reluctor ring will trip the lights.

A common Grand Cherokee-specific issue involves the electronic parking brake system. The EPB uses small electric motors mounted on the rear calipers. When the motor fails or the caliper seizes, the EPB warning light flashes.

You may also see a "Service Parking Brake" message. You can't fix this with a basic ratchet and socket. The system requires a bidirectional scan tool to command the motor into service mode, retract the piston, and reset the system afterward.

Don't ignore the ABS light thinking it's just a sensor. The ABS modulator also provides stability control. If it fails, you can lose braking assist in a panic stop.

That's a safety issue, not a convenience feature. Per NHTSA guidance, any brake system warning light should be diagnosed promptly, not cleared and forgotten.

Your first step is checking the code. If it points to a wheel speed sensor, inspect the wiring harness near the wheel well. Rodents, road salt, and winter slush damage those wires.

If the code points to the hydraulic control unit, that's a more involved repair that often requires bench bleeding.

For those comparing the Grand Cherokee to other Jeeps, the Dodge Charger version of the platform shares some brake components. The diagnostic steps stay the same.

The Diagnosis Workflow: What to Check in the Right Order, Before You Buy Any Parts

Start with the cheapest checks first. That rule saves more money than any coupon. Buy nothing until you know what you're actually fixing.

Work through this order. Check the brake fluid level and color in the reservoir. Dark, muddy fluid suggests moisture contamination.

Then inspect the pedal feel with the engine running and off. If the pedal changes between those two states, suspect the brake booster. Next, look for wet spots along the brake lines, calipers, and master cylinder.

After that, measure pad thickness through the wheel spokes. You'll need about 3 mm of friction material minimum. Finally, check rotor surfaces for deep grooves, cracks, or blue heat spots.

A seized caliper throws off everything downstream. If one wheel runs hot and drags, fix that before you touch pads or rotors. Otherwise you'll burn through new parts in a month.

This simple order works across all Grand Cherokee generations. It also helps to know how the platform compares to other heavy SUVs, so check out this Grand Cherokee vs Tahoe breakdown while you're planning parts.

Common Grand Cherokee Brake Repair Mistakes That Waste Money or Compromise Safety

The biggest mistake is replacing pads without checking the caliper slides. Stuck pins destroy new pads fast. Always clean the slide pins and regrease them with high-temperature brake grease.

Skipping the pad bed-in procedure is another one. New pads need a break-in cycle to transfer friction material evenly onto the rotor. Without it, you'll get pulsation within a week.

Follow the pad manufacturer's procedure.

Ignoring old brake fluid is common too. Brake fluid absorbs moisture over time, which lowers its boiling point. That leads to brake fade on long downhill stretches.

Flush the fluid every two to three years per the owner's manual.

Don't force the EPB motor with a screwdriver. Grand Cherokee rear calipers with the electronic parking brake require a scan tool to retract the piston. Forcing it destroys the motor, and those calipers are not cheap.

Per NHTSA guidance, brake system faults contribute to thousands of crashes annually. Treat every warning light as urgent.

Frequently Asked Questions

How much does a brake job cost on a Grand Cherokee?

A front pad and rotor replacement averages $350 to $600 at an independent shop. Dealerships run higher, often $700 to $900 per axle. DIY parts run $150 to $300 for quality pads, rotors, and hardware.

Rear brakes with the EPB system cost more because labor includes scan tool time.

How often should I bleed the brakes?

Every two to three years, or whenever the fluid looks dark and murky. The owner's manual for most Grand Cherokee model years lists brake fluid replacement as periodic maintenance. If you've just replaced a caliper, master cylinder, or brake line, bleed the entire system.

A fluid exchange also removes moisture that causes internal corrosion.

Why does my steering wheel shake when I brake?

The most common cause is rotor thickness variation. The rotor isn't actually warped in most cases. Pad material builds up unevenly on the rotor surface, creating high and low spots.

Measure the rotor with a dial indicator. Anything above 0.002 inches of lateral runout needs resurfacing or replacement.

Can I drive with the ABS light on?

You can drive, but you've lost an important safety margin. The ABS module also handles stability control and traction control. In a panic stop, you may not have anti-lock protection.

That increases the risk of a skid, especially on wet or slippery pavement. Have the diagnostic trouble codes read immediately.

Why are my rear brakes wearing faster than the front?

On Grand Cherokee models with the EPB system, rear calipers sometimes drag. The electric motor or the caliper slide pins bind, leaving the pads lightly pressed against the rotor. This creates extra heat and faster wear.

Inspect the rear rotors for a blue tint and check for unusual heat after a short drive.
