Micro Sprite Folding Mechanism Stuck

Your Micro Sprite folding mechanism is stuck. That kind of frustration can derail a quick commute. But nine times out of ten, it is a simple fix.

Aggregate user reports and manufacturer maintenance specs show most jams come from just two causes: debris in the hinge joint or a misaligned latch. Per the official user manual, the folding mechanism is rated for tens of thousands of cycles. A jam early on means something got in where it should not have.

Let us figure out what is going on.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Clean the hinge joint first. Check for debris or gravel. If the latch is misaligned, loosen the collar bolts and realign the stem.

Lubricate with dry lube. Test the lock before you ride.

First, Figure Out Which Type of Stuck You Have

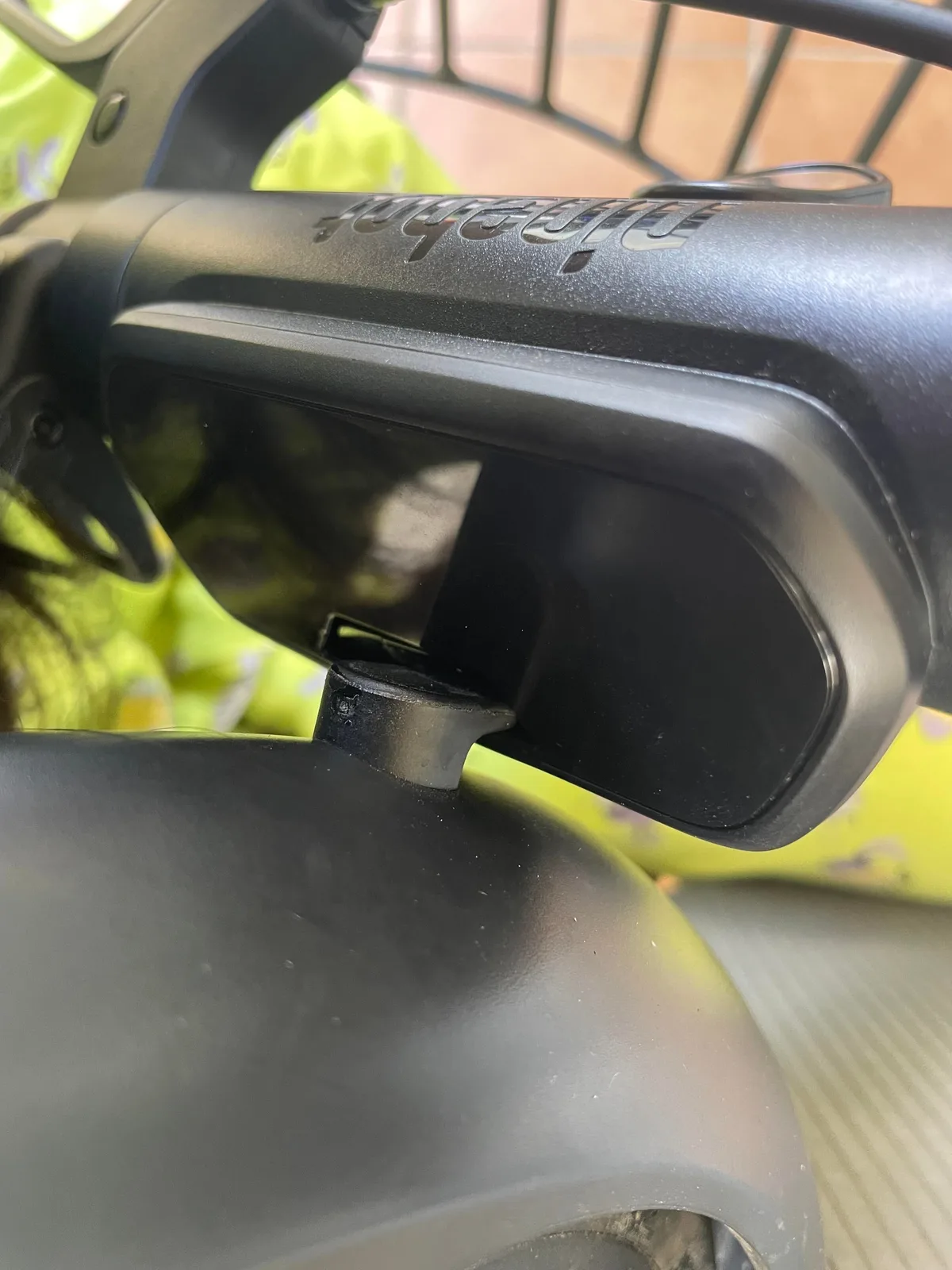

Check these three things before you do anything else. If the release trigger will not press at all, you likely have debris packed around the pivot pin. A toothpick or compressed air can free that.

If the folding latch will not close all the way, the collar is probably misaligned. This often happens after the scooter gets dropped or banged against a curb.

If the stem feels loose or wobbles when locked, the locking pin inside may be bent or broken. That part needs replacement.

A stuck release trigger can also mean a broken spring inside the release assembly. If cleaning does not work, you may need to open the mechanism. If you spot bent metal anywhere on the hinge or latch, do not force it.

That indicates impact damage. You will need a new part from Micro Mobility.

Image source: Bing (Web (fair-use with source credit))

How to Free a Stuck Folding Mechanism

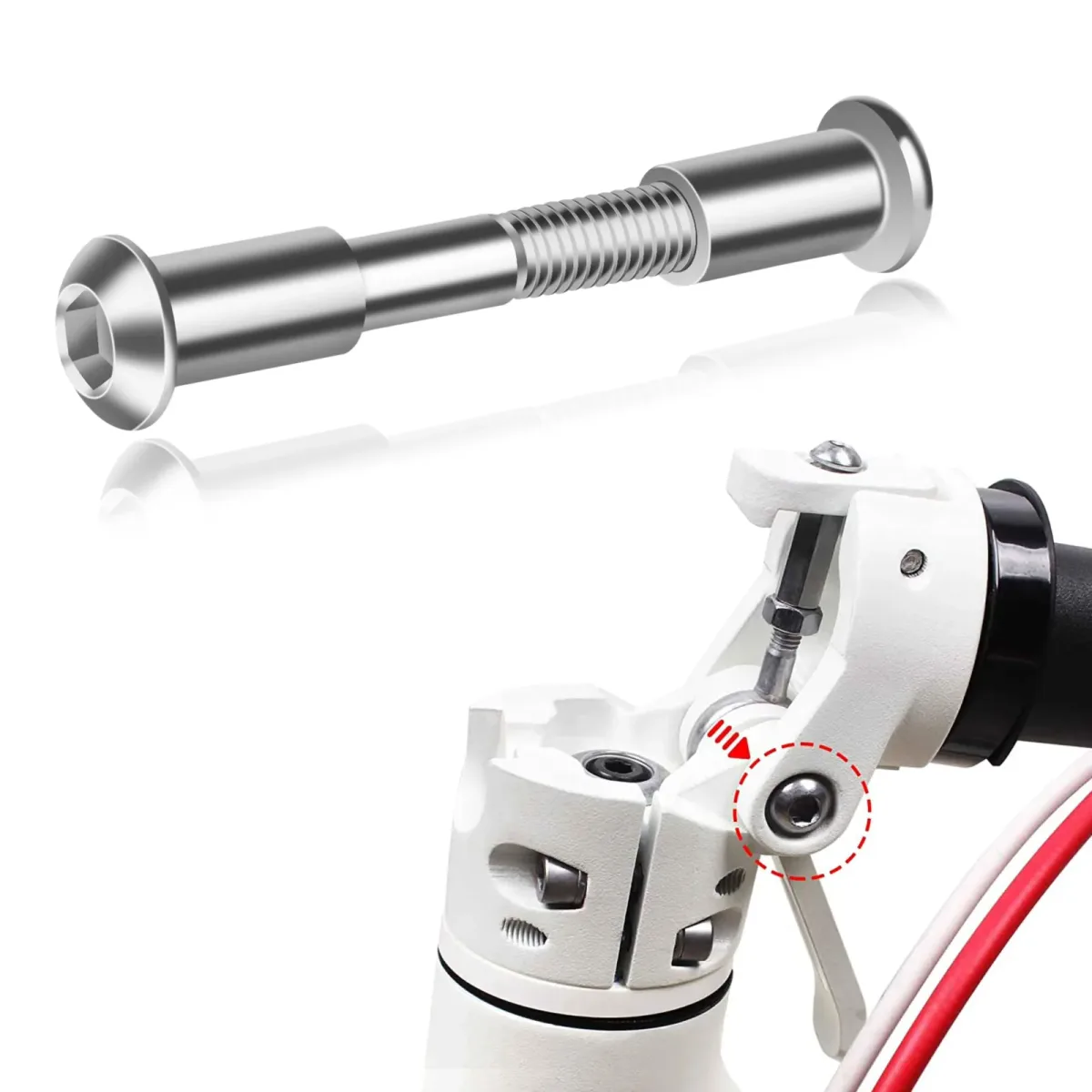

Start with compressed air or a stiff brush to clear the hinge joint. Follow that with a dry lubricant on the pivot points. Use a PTFE-based dry lube for micro scooters.

Wet oils attract more grit.

If the issue is alignment, loosen the two hex bolts on the stem collar. You will need a 4 mm Allen key. Set the handlebar stem straight and vertical.

Retighten to the torque listed in your manual. Test the lock cycle.

For a stuck locking pin, press the release trigger and gently tap the hinge with a rubber mallet. Just enough to free the pin. If it still will not move, the spring may be broken.

Order a replacement folding mechanism kit. Spray dry lube into the pin slot and work the trigger several times.

Always test the lock with your body weight before riding. Lift the scooter by the handlebars and shake it gently. If it folds on you, the fix did not take.

Image source: Bing (Web (fair-use with source credit))

What Not to Do (And When to Quit)

Never use WD-40 as a long-term lubricant on the folding mechanism. It dries out and leaves a sticky residue that collects grit. Use a dry lubricant instead.

Per the manufacturer warnings, petroleum-based oils can degrade the plastic latch components over time.

Do not ride with a partially locked folding joint. That is how the stem collapses mid-ride. If the latch clicks but does not fully seat, call it unsafe.

When should you quit and call a shop? If the hinge pin is bent. If the plastic release trigger is cracked.

If you cannot get the collar bolts to tighten without stripping the hex head. Micro Mobility has a dealer locator on its official site. A replacement mechanism costs roughly 20 to 40 dollars and takes under an hour for a shop to install.

Check the official site for the nearest authorized service center.

Frequently Asked Questions

Why will not my Micro Sprite fold at all?

Debris is the most common cause. Check the hinge joint for pebbles or packed dirt. Clean it with compressed air or a small brush.

If the trigger still will not move, the locking pin may be stuck from rust or a damaged spring. That requires disassembly or a replacement.

How do I realign the folding mechanism?

Loosen the two hex bolts on the collar with a 4 mm Allen key. Set the handlebar stem straight and vertical. Retighten the bolts to the torque spec in your manual.

Test the latch before riding. If it still feels off, the hinge may be bent.

Can I use WD-40 on the folding latch?

You can, but you should not. WD-40 is a solvent and short-term lubricant. It dries out fast and leaves a sticky film that attracts grit.

Use a PTFE dry lube formulated for scooters for the best results.

How much does it cost to replace a folding mechanism?

A replacement folding mechanism kit from an authorized dealer costs between 20 and 40 dollars as of 2026. Dealer installation labor adds roughly 15 to 25 dollars. A shop minimum runs 60 to 80 dollars, so the DIY route saves you time and money.

When should I have a shop fix it?

If the hinge pins are bent. If the plastic latch is cracked. If you have stripped the hex bolts in the collar.

A shop has the tools to replace the folding assembly in under an hour and ensure it is safe.
