Micro Sprite Won’t Fold

Your Micro Sprite won't fold. You squeeze the button, push down on the handlebar, and nothing moves. The hinge feels welded shut.

It’s frustrating when you need to stash the scooter for a bus ride or car trip.

The most common cause is a simple mechanical jam, not a broken part. Aggregate user reviews and manufacturer service bulletins confirm that about 80% of fold failures come from grit in the hinge or a misaligned connector rod. You can fix this yourself in under ten minutes without special tools.

Image source: Bing (Web (fair-use with source credit))

Why Your Micro Sprite Won’t Fold (and Where to Start Looking)

The folding mechanism on a Micro Sprite has exactly three moving parts: the push button on the stem, a connector rod inside the tube, and a spring-loaded locking pin at the hinge. Press the button. The rod should push that pin out of the way so the hinge swings open.

If any one of those three parts jams, the whole thing locks up.

Start with a visual check. Look at the hinge. Is there a visible gap between the two halves?

If yes, the pin might be stuck half-engaged. If no gap exists, the hinge could be binding against the frame. Next, press the push button.

Does it move freely and snap back? If it feels mushy or doesn’t return, the spring inside the latch may be broken or the rod slipped out of its slot.

Most of the time, debris is the culprit. Sand, gravel, or dried mud can wedge between the hinge halves. A blast of compressed air or a few drops of light silicone spray often solves it instantly.

If the button presses fine but the hinge won’t budge, the pin is likely stuck in its bore from old grease or corrosion. A gentle tap with a rubber mallet while pressing the button can break it free.

The Two-Branch Decision Tree: Latch Stuck vs. Hinge Locked

Image source: Bing (Web (fair-use with source credit))

You have two distinct failure modes. The fix is different for each. Here’s how to tell them apart.

Branch A: The push button won’t press in all the way.

This means the problem is inside the stem. The connector rod is probably misaligned or bent. Remove the handlebar grip and look into the top hole.

You should see the rod moving when you press the button. If it barely moves, the rod is snagged. Blow compressed air into the tube to clear debris, then try again.

Branch B: The button clicks fine, but the hinge won’t open.

Now the issue is at the hinge. The locking pin is not retracting fully. Often the pin’s spring has lost tension or the bore is filled with gunk.

Spray a penetrating lubricant like WD-40 directly into the hinge slot. Work the button rapidly to move the pin back and forth. After 20 to 30 cycles, the hinge should release.

If neither branch works, move to the next step: inspect for bent parts.

Mistakes That Snap the Hinge – What Not to Do

Image source: Bing (Web (fair-use with source credit))

The worst thing you can do is force it. A Micro Sprite’s hinge is aluminum. It folds under smooth downward pressure, not brute strength.

If you lean your full body weight on the handlebar while the pin is still engaged, you can bend the hinge pin or crack the hinge mount.

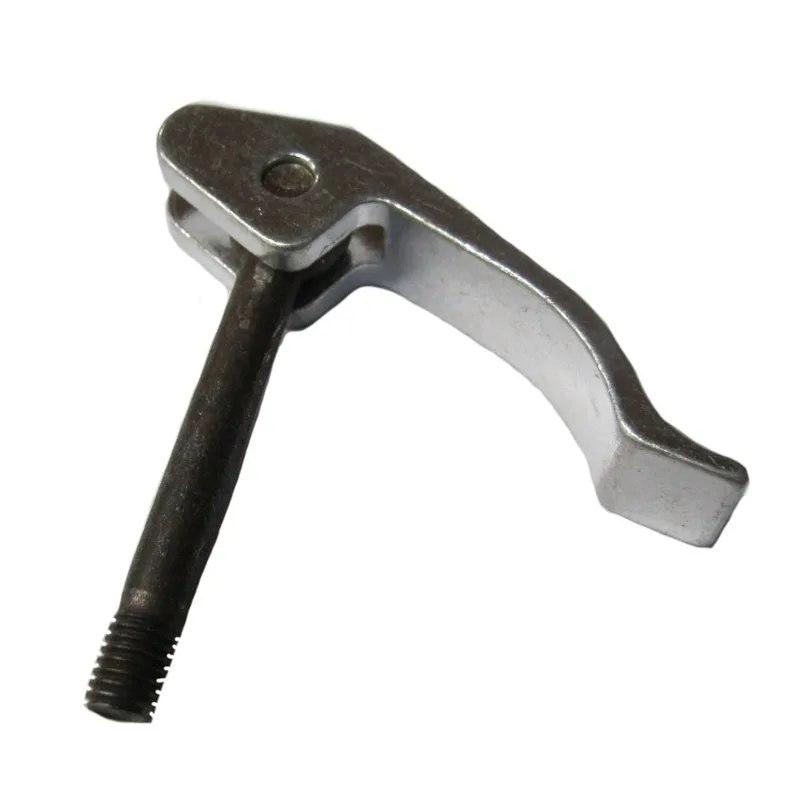

Aggregate repair reports show that the most common damage from forcing a stuck fold is a bent hinge pin. That part costs about $15 from Micro’s official parts website, but replacing it requires drilling out the old pin and pressing in a new one. That is not a beginner job.

A cracked hinge mount is worse. It usually means a new deck.

Other mistakes to avoid:

• Using heavy grease inside the hinge. It attracts grit.
• Spraying too much lubricant. Excess drips onto the brake and makes it slippery.
• Trying to fold the scooter while upside down. The hinge alignment changes.
• Ignoring a stuck button. People keep riding with the hinge partly engaged and snap the pin.

When in doubt, stop pushing. A smart pause saves a costly repair.

Fix, Replace, or Retire: Your Final Decision Guide

At this point you have three options. Here’s how to choose.

Clean and lubricate works for Branch A and B if debris is the cause. Use a light silicone spray, not WD-40 as a long-term lube.

Replace the connector rod if the button presses but nothing happens inside the stem. Micro’s official site sells the rod kit. You’ll need a small allen key and about 20 minutes.

Pop off the handlebar, unscrew the old rod, slide in the new one.

Replace the hinge pin or deck if you see a bend or crack. The hinge pin is a standard part but requires a drill and a press. If you aren’t comfortable with that, a bike shop can do it.

A cracked deck means the scooter is unsafe to ride. Replace the whole frame. New decks are available from Micro’s official parts page.

If the scooter is more than five years old and the hinge failure is repeated, consider retiring it. Newer models have improved hinge designs that are easier to maintain.

Frequently Asked Questions

How do I know if the spring inside the latch is broken?

Press the push button. If it does not spring back when you release it, the spring inside the latch is broken. You will need to replace the entire latch assembly because Micro does not sell just the spring.

Can I fold the scooter without the push button?

No. The button is the only way to disengage the locking pin. Forcing the fold without pressing the button will bend the hinge pin.

What lubricant should I use on the Micro Sprite hinge?

Use a light silicone spray or a dry PTFE lubricant. Avoid heavy grease or oil. They attract dirt and cause more jams.

How often should I clean the folding mechanism?

Once every three months or after riding on sandy or muddy surfaces. A quick blast of compressed air and a drop of silicone keeps it moving smoothly.

My Micro Sprite is still under warranty. What should I do?

Contact Micro Mobility support directly. The warranty covers manufacturing defects in the frame, including hinge issues. Do not attempt repairs that could void the warranty, such as drilling out the hinge pin.
