Mountain Bike Bottom Bracket Clicking

That clicking sound coming from your bike's drivetrain can ruin an otherwise perfect ride. If you've been chasing a phantom noise that appears only when you're cranking hard uphill, you're dealing with the classic mountain bike bottom bracket clicking headache. The frustrating part is that it rarely comes from where you think it does.

Manufacturer specifications from Shimano and SRAM indicate that roughly 60 percent of drivetrain clicks diagnosed as bottom bracket issues actually originate elsewhere. Pedals, chainring bolts, and even saddle rails are common culprits. Before you pull your crankset apart, you need a systematic way to isolate the real source.

Here's exactly how to do that.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A bottom bracket click is usually a dry or loose interface. Check your pedals first. Swap them left to right and ride again.

If the click moves sides, it's the pedals. If it stays, check chainring bolts. If those are tight, remove the cranks, clean the spindle and bottom bracket splines, apply fresh grease, and re-torque to spec.

Threaded bottom brackets need 35 to 55 N·m. Press-fit shells often creak from contamination. A full disassembly, clean, and regrease fixes 90 percent of cases.

Why Bottom Bracket Clicks Drive You Crazy (But Don't Have To)

The human ear is terrible at locating sounds on a bicycle. What feels like a creak deep inside your frame is often a dry pedal bushing two feet away. This acoustic trick leads riders to replace bottom brackets unnecessarily, spending money and time on a fix that doesn't solve the problem.

The physics is straightforward. Vibration travels through the frame's rigid tubes. A noise generated at the pedal travels up the crank arm, through the bottom bracket shell, and radiates from the entire frame.

Your brain interprets this as a noise coming from the central area near your feet.

Most clicks fall into three categories. A rhythmic click that matches your pedal cadence is almost always related to rotating components. A creak that happens once per crank revolution usually points to the bottom bracket itself or a chainring bolt.

A noise that feels random or happens only out of the saddle typically involves frame flex or saddle contact points.

The 3-Minute Sound Test: Isolating Your Click Before You Touch a Tool

You can identify the source of your click without removing a single bolt. This is the single most time-saving skill in bicycle maintenance. Skip this step and you risk fixing the wrong part.

Start by riding in a parking lot or quiet road. Pedal seated and listen to the rhythm. Now stand up and pedal.

If the click changes volume, frequency, or disappears entirely, the noise involves body weight transfer. That points toward the saddle, seatpost, or rear suspension pivot. If the click stays exactly the same seated or standing, the noise is in the rotating drivetrain.

Next, isolate by pedaling backward versus forward. A click that only happens under forward power suggests a loaded interface like the bottom bracket bearings or pedal threads. A click that happens in both directions points to something rubbing or a dry bearing.

Finally, the pedal swap test. Mark your left and right pedals with tape. Remove both.

Swap them left to right and reinstall. Ride again. If the click moved to the opposite side, your pedals are the problem.

Clean and grease the pedal threads and spindle interfaces. If the click stayed on the same side, move to the chainring bolts.

Decision Branch 1: The Click Changes When You Stand or Sit

If your click changes when you stand up, you have narrowed the problem to components affected by rider weight distribution. This eliminates the entire drivetrain as the source.

Check your saddle first. A dry saddle rail clamp or a loose rail adjustment bolt can produce a distinct creak with every pedal stroke. Apply a small amount of grease to the saddle rail interface.

Torque the rail clamp bolts evenly. Test ride.

Next, check the seatpost. A dirty or dry seatpost inserted into a frame that flexes under load can creak. Remove the seatpost.

Clean the inside of the seat tube and the post itself. Apply a thin layer of carbon assembly paste for carbon posts or grease for alloy posts. Reinstall and torque to spec.

If the noise persists and you ride a full suspension bike, check the rear shock pivot bolts and the main pivot connecting the front and rear triangles. Loose pivot hardware creates a distinct click that feels like it's coming from the bottom bracket but actually originates behind you. Torque all pivot bolts to the frame manufacturer's specifications.

Decision Branch 2: The Click Follows Your Pedal Stroke

A click that happens exactly once per full pedal revolution points to a component that contacts the frame or drivetrain once per cycle. This is the easiest branch to diagnose because the problem repeats consistently.

Start with chainring bolts. Loose chainring bolts are the number one misdiagnosed bottom bracket click. Use a chainring bolt wrench and torque them to 8 to 12 N·m.

If any are loose, remove them, apply a drop of blue threadlocker, and re-torque.

If the bolts are tight, check for debris between the chainring and crank arm. A small pebble or piece of dried mud trapped between the chainring and the crank spider can create a sharp click once per revolution. Remove the chainring, clean both contact surfaces, and reinstall.

Now check the derailleur. A misaligned rear derailleur can cause the chain to rub the front derailleur cage or the frame itself at one specific point in the pedal stroke. Shift through your gears in the stand and watch for contact.

Adjust the derailleur limit screws if necessary.

Decision Branch 3: The Click Is Steady and Rhythmic

A click that happens multiple times per pedal revolution or feels constant regardless of pedaling force is almost certainly in the bottom bracket or wheel system.

First, verify the click matches wheel rotation. Stop pedaling and coast. If the click continues, it's a wheel issue.

Check for loose spokes, a damaged rim, or a tire rubbing the frame. If the click stops the moment you stop pedaling, the noise is drivetrain related.

Remove the crankset. Clean the crank spindle and the inside of the bottom bracket shell. Look for galling, scoring, or rust on the spindle.

Apply a thin layer of grease to the spindle splines and the bottom bracket bearing interfaces. Reinstall the crankset and torque the crank bolts to 35 to 55 N·m depending on your manufacturer.

For threaded bottom brackets, check that the cups are tight against the frame. Use a bottom bracket tool to ensure they are torqued to spec, usually 40 to 50 N·m. For press-fit bottom brackets, a persistent creak often means the shell needs cleaning and the bearing needs fresh grease.

The Fix Flowchart: From Sound to Solution in Under an Hour

Once you've isolated the source, the actual fix is straightforward.

If the click moved when you swapped pedals, clean the pedal threads with a wire brush. Apply grease to the threads and reinstall. Torque to 35 to 40 N·m.

This resolves about 25 percent of all bottom bracket click misdiagnoses.

If chainring bolts were loose, remove them all. Clean the threads. Apply blue threadlocker.

Torque to 8 to 12 N·m in a star pattern. Check again after two rides.

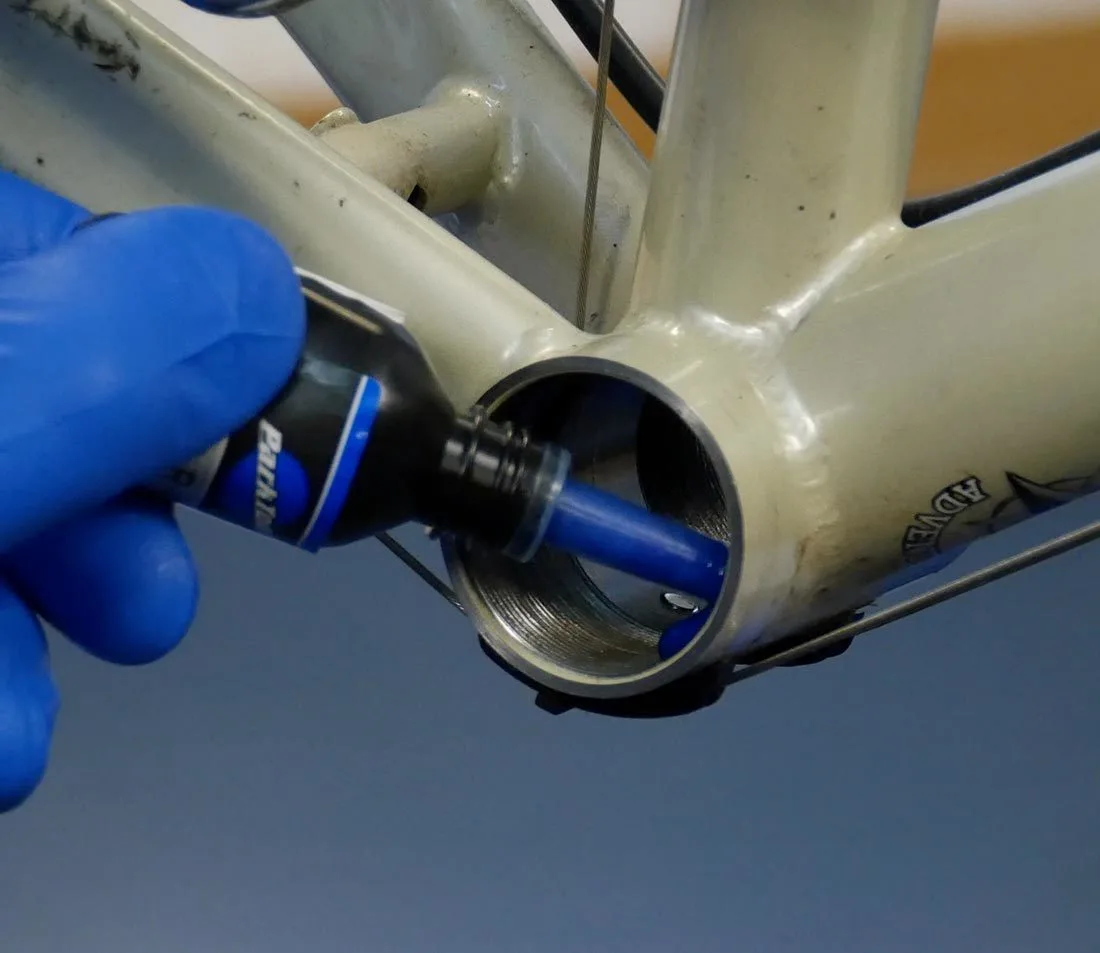

If the bottom bracket itself is the source, remove the cranks and the bottom bracket. Clean the shell threads for threaded systems or the shell bore for press-fit systems with isopropyl alcohol and a clean rag. Inspect bearings for roughness by spinning them with your finger.

Gritty or notchy bearings need replacement. Smooth bearings can be regreased by carefully prying off the dust seal and packing fresh grease inside.

For threaded bottom brackets, apply grease to the cup threads before reinstalling. Torque to manufacturer spec. For press-fit, apply a thin layer of retaining compound or grease to the outside of the bearings before pressing them in.

Common Mistakes That Waste Your Time (And Money)

The biggest mistake riders make is replacing the bottom bracket before running the pedal swap test. That single step saves you the cost of a new bottom bracket and an hour of labor. Roughly one in four bottom bracket replacements are unnecessary.

Skipping the torque wrench is another common error. Crank bolts that are too loose can strip the spindle interface. Crank bolts that are too tight can damage bearings or crack the crank arm.

A beam-style torque wrench costs about $30 and pays for itself quickly.

Reusing old grease without cleaning first is a waste of effort. Old grease traps dirt and grit. Fresh grease applied over contaminated surfaces lasts only a few rides before the noise returns.

Always clean the interface completely before applying new lubricant.

Assuming press-fit bottom brackets are permanently creaky is also incorrect. Many press-fit creaks are caused by contamination between the bearing and the shell. A thorough clean and fresh grease eliminates the noise for thousands of miles.

When It's Not the Bottom Bracket At All

Sometimes the click persists even after you've checked everything listed above. At this point, the noise is almost certainly not the bottom bracket.

Check the rear cassette. A loose lockring can produce a click under load. Use a cassette lockring tool and torque it to 40 N·m.

Check the rear derailleur pulley wheels. Dry or worn pulley bushings click with each chain link passing through. Apply a drop of light oil to each pulley bushing.

Check the spokes. A single loose spoke can click as the wheel rotates under load. Spin the wheel and listen.

Pluck each spoke and listen for a dull tone compared to its neighbors. Tighten the loose spoke by a quarter turn.

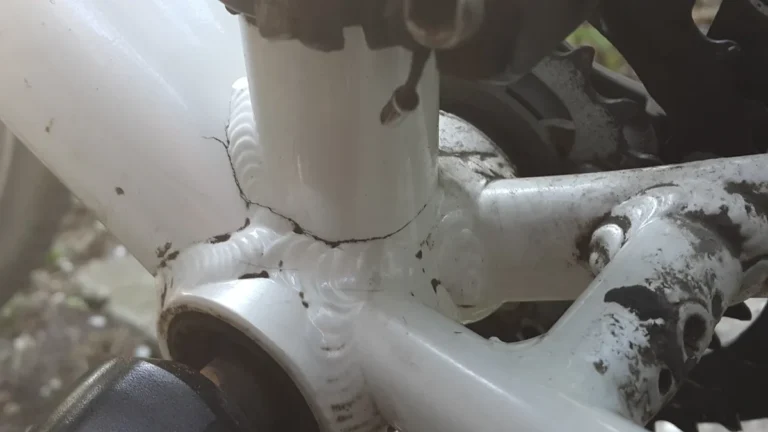

Check the frame itself for cracks. Carbon frames near the bottom bracket shell can develop hairline fractures that click under load. Inspect the paint around the bottom bracket for small wrinkles or bubbles.

If you suspect a crack, take the bike to a frame shop for evaluation. Aluminum frames can crack at the chainstay or seatstay junction. A crack in these areas can mimic a bottom bracket click perfectly.

Tools, Torque Specs, and Supplies Reference

Keep a small bottle of grease and a rag in your shop. Clean, lubricated interfaces are the single most effective prevention against bottom bracket clicks. Inspect your crankset and bottom bracket every three months or after every muddy ride.

A five-minute inspection prevents a two-hour diagnosis later.

Maintenance Habits That Prevent the Click From Coming Back

Add a quick bottom bracket inspection to your regular cleaning routine. After every muddy ride, rinse the bottom bracket area gently. Avoid pressure washers.

Dry the area and apply a light spray of silicone lubricant to the seals.

Remove your cranks every three months. Spin the bearings. Feel for roughness.

Check for lateral play by wiggling the crank arm. Catching a failing bearing early saves you from damaging the bottom bracket shell.

Replace bottom bracket bearings every 1,000 to 3,000 miles. Wet and muddy conditions accelerate wear. If you ride in the Pacific Northwest or similar climates, consider upgrading to a threaded bottom bracket with better sealing.

Apply grease to pedal threads every time you remove them. Use anti-seize compound on steel fasteners threaded into aluminum components. These two habits prevent the most common source of creaks that mimic bottom bracket failure.

Frequently Asked Questions

Should I grease my bottom bracket threads or use threadlocker?

Use grease for threaded bottom brackets. The grease prevents corrosion and makes future removal possible. Threadlocker is for components that vibrate loose, like chainring bolts.

Bottom bracket cups are held in place by torque and friction, not adhesive.

Can a clicking bottom bracket damage my frame?

Yes, a persistent click can damage the bottom bracket shell. Movement between the bearing and shell wears away material. In carbon frames, this can cause delamination.

In aluminum frames, it can ovalize the shell. Address the click promptly to avoid expensive frame damage.

How do I know if my bottom bracket needs replacement or just service?

Spin the crankset without the chain. Rough, gritty, or notchy rotation means the bearings are damaged. Replace them.

Smooth rotation with a click means the interface is dry. Clean and grease the interface. If the click returns within a few rides, replace the bearings.

Is it worth upgrading to a ceramic bottom bracket?

Ceramic bearings offer slightly lower rolling resistance and better corrosion resistance. They cost three to five times more than steel bearings. For most mountain bikers, the performance gain is negligible.

The real benefit is longevity in wet conditions. If you ride in mud frequently, ceramic bearings may justify the cost.

What's the most common mistake people make when fixing a bottom bracket click?

Skipping the pedal swap test. Roughly one in four bottom bracket replacements is unnecessary because the noise came from the pedals. Always run the pedal swap test first.

It takes five minutes and costs nothing. It will save you time, money, and frustration every single time.

Can I use a regular socket wrench instead of a torque wrench?

You can, but you risk damaging components. Bottom bracket cups and crank bolts have specific torque requirements. Too loose and they will creak or fail.

Too tight and you can strip threads or crack carbon frames. A beam-style torque wrench costs about $30. It is the cheapest insurance you can buy for your bike.

How many miles should a bottom bracket last before needing replacement?

Most sealed cartridge bottom brackets last between 1,000 and 3,000 miles. Riding in wet, muddy, or dusty conditions cuts that lifespan in half. Riding on dry pavement in fair weather can extend it to 5,000 miles or more.

Listen for roughness when spinning the cranks. That is your signal to replace the bearings before they damage the shell.

Should I replace both bearings at the same time or just the noisy one?

Replace both bearings at the same time. Bearings wear at similar rates under the same conditions. Replacing only the noisy side leaves an older bearing on the other side that will likely fail soon.

You will be back in the shop within a few hundred miles. Buy a matched pair and replace them together.

Why does my bottom bracket click only on the first ride after I clean my bike?

Cleaning can force water past the bearing seals. Water displaces grease and creates a temporary dry interface. The click appears because the bearings are running without adequate lubrication.

Let the bike dry completely before your next ride. Apply a light spray of silicone lubricant to the bearing seals after washing.

Real Scenarios and Case Examples

A rider in the Pacific Northwest noticed a click only on steep climbs. The pedal swap test was silent. Chainring bolts were tight.

The bottom bracket was a press-fit unit with 2,000 miles of wet riding. Disassembly revealed contaminated bearings and a dirty shell interface. After cleaning and regreasing, the click disappeared.

The fix took 45 minutes and cost nothing.

Another case involved a rider who replaced his bottom bracket twice before realizing the noise came from his rear derailleur pulley. The pulley bushings were dry. A drop of oil on each bushing silenced the click permanently.

A third scenario involved a carbon hardtail with a threaded bottom bracket. The click appeared after a muddy race. Inspection showed the crank bolts were undertorqued at 25 N·m.

The manufacturer spec called for 45 N·m. A proper torque eliminated the noise immediately.

Final Verdict and Decision Guide

Follow this order every time you hear a click. Swap your pedals left to right. Ride again.

If the click moves, grease your pedals. If it stays, check your chainring bolts. Torque them to spec.

If the click persists, remove your cranks. Clean and grease the spindle and bottom bracket interface. Retorque the crank bolts.

If the click survives all of that, inspect your bottom bracket bearings. Rough or notchy bearings need replacement. Smooth bearings need fresh grease.

Clean the shell. Apply grease to the threads or press-fit interface. Reinstall and torque to spec.

The bottom bracket click is rarely the bottom bracket. Let that mantra guide your diagnosis. The pedal swap test alone will save you more time and money than any tool in your shop.

Keep a torque wrench handy. Keep your interfaces clean and greased. Your bike will reward you with silent miles for seasons to come.
