Mountain Bike Front Derailleur Not Working

Your mountain bike front derailleur not working can turn a great day on the trail into a frustrating session of pushing your bike home or stopping every five minutes to poke at a noisy drivetrain. The good news is that most front derailleur problems are caused by just three things: the derailleur is in the wrong position, the limit screws are set incorrectly, or the cable tension is off. And all three are easy to spot once you know what to look for.

Manufacturer specifications from Shimano and SRAM agree that proper front derailleur setup requires a 2 to 3 millimeter gap between the cage and the tallest chainring tooth, with the cage plate running perfectly parallel to the rings. Anything outside those parameters and you are fighting geometry, not component quality. Let's walk through what is actually going on under your bike and how to fix it with nothing more than a few hex keys and a good eye.

Quick Answer

A front derailleur that will not shift is almost always a visual alignment problem. Check the cage height first. It must sit 2 to 3 millimeters above the tallest chainring tooth.

Check the cage angle next. It must run parallel to the chainrings. Then adjust the limit screws so the chain cannot overshoot either side.

Finally tighten the cable so the derailleur moves when you shift. That sequence fixes the vast majority of issues.

Why Your Front Derailleur Is Acting Up (And What to Check First)

Front derailleurs are simple mechanical devices. A cable pulls the cage sideways, pushing the chain onto a larger or smaller chainring. Limit screws stop the cage from moving too far in either direction.

That is the whole system. When something goes wrong, one of those three parts is out of spec.

The 30-second visual inspection that catches 80% of problems

You do not need a repair stand or a torque wrench for this. Just prop your bike against a wall or flip it onto its saddle and handlebars. Look at the front derailleur cage from directly above.

The outer plate should be parallel to the chainrings. If it points inward toward the frame or outward toward your pedals, you have found your problem. Look at the gap between the bottom of the cage and the teeth of your largest chainring.

If you can slide a 3mm hex key under there with room to spare, the cage is too high. If it touches or looks like it will hit the teeth, it is too low.

Per Park Tool's derailleur adjustment instructions, the cage height rule applies regardless of whether you run a 2x or 3x drivetrain. The numbers do not change. Two to three millimeters.

That is the sweet spot.

A quick note on tools you'll actually need

You do not need a full workshop. A 4mm and 5mm hex key will handle the clamp bolt and most limit screw adjustments on modern derailleurs. A Phillips head screwdriver covers the rest.

A cable cutter helps if you end up replacing the cable, but side-cutters work in a pinch. That is it. If you need a torque wrench, your derailleur clamp bolt should read around 5 to 7 Newton meters for aluminum frames.

Hand tight plus an eighth turn has kept bikes running for decades.

The Three Visual Checks That Fix Almost Everything

Before you touch a single screw, run through these three checks. They take less than a minute and tell you exactly where the problem lives.

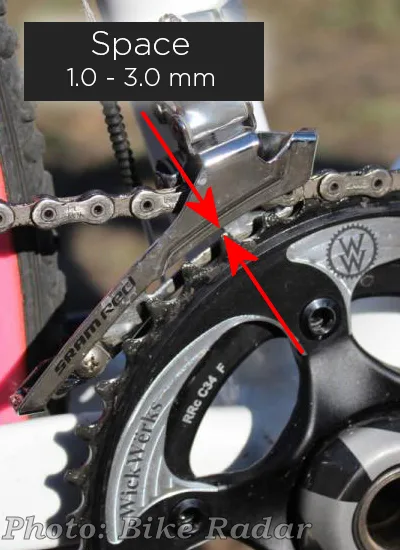

Check #1: Is the cage height right? (The 2-3mm rule)

Shift your chain onto the smallest front chainring and the smallest rear cog. This puts the chain in the slackest position and gives you a clear view of the derailleur cage. Look at the gap between the bottom edge of the outer cage plate and the tallest tooth on your large chainring.

That gap should be 2 to 3 millimeters. Not 5mm. Not 1mm.

Two to three.

If the cage is too high, the chain can slip under the cage plate during a shift, causing that horrible grinding sound and a failed gear change. If it is too low, the chain will rub the cage constantly. Loosen the clamp bolt and slide the derailleur up or down until the gap looks right.

Tighten the bolt to spec and move on.

Check #2: Is the cage parallel to the chainrings?

From the same position above the bike, sight along the outer cage plate. It should line up perfectly with the chainrings. If the front of the cage points toward the frame or away from it, the derailleur is twisted on the mount.

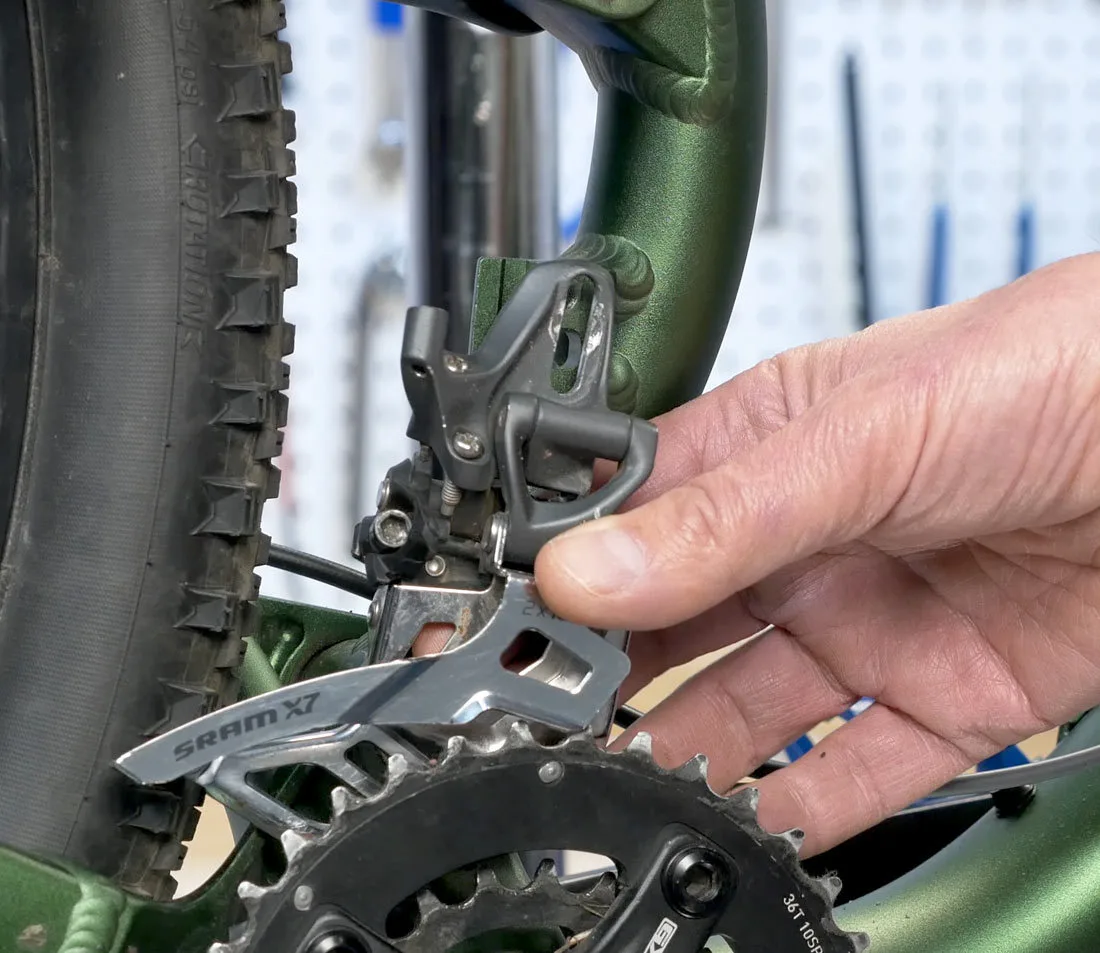

Loosen the clamp bolt just enough to rotate the derailleur. Twist it until the cage runs dead parallel with the rings. Tighten the bolt and re-check.

Aggregate reviews from mountain bike forums show that a twisted cage is the single most overlooked cause of rubbing and poor shifting. People chase limit screws for an hour when a quarter-turn of the clamp bolt would have solved it.

Check #3: Is the derailleur twisted on the mount?

This is a subset of check number two but deserves its own moment because it happens so often after a crash. If you took a spill on the trail or laid the bike down on the drivetrain side, the derailleur mount may have rotated slightly on the seat tube or the braze-on tab. Even a degree or two of twist makes the cage angle wrong.

The fix is the same as above. Loosen the clamp. Straighten the cage.

Tighten it back down.

Limit Screws: What They Actually Do and How to See if They're Wrong

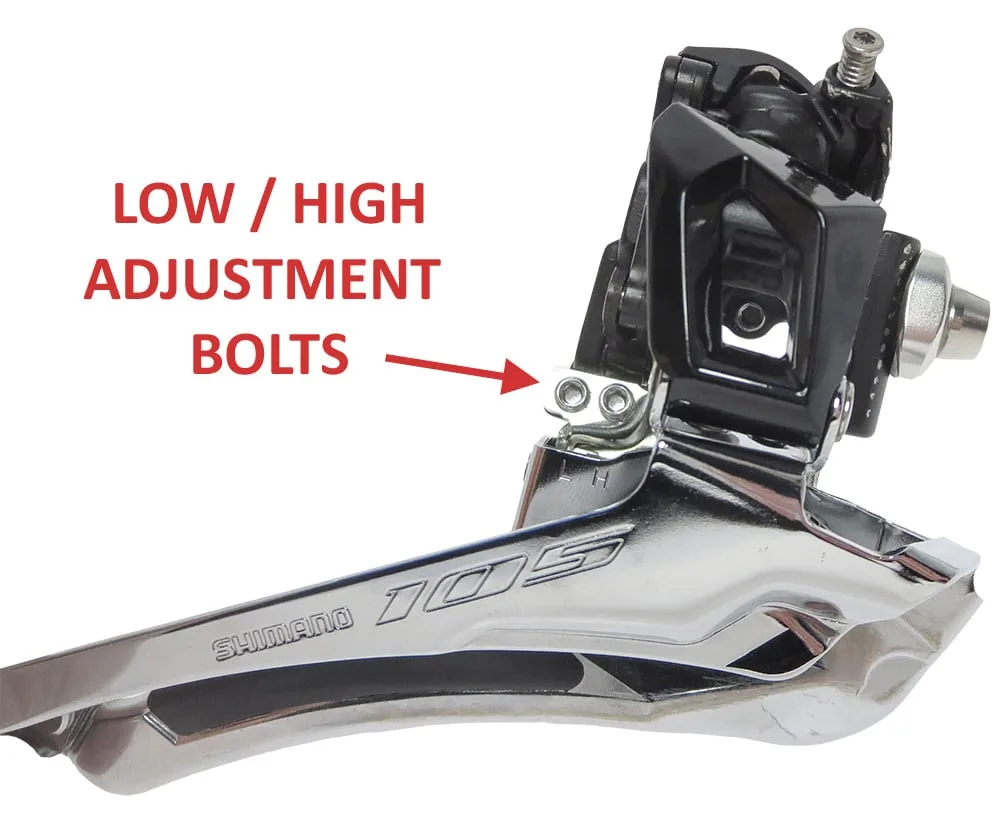

Limit screws are small screws on the body of the derailleur marked H and L. They do not control where the derailleur sits mid-ride. They only control how far the cage can travel in either direction.

The H screw limits movement toward the big ring. The L screw limits movement toward the small ring.

The Low screw (L) – keeps your chain from dropping into the frame

Shift your chain onto the small front ring and the largest rear cog. This pushes the derailleur cage to its innermost position. Look at the gap between the inner cage plate and the chain.

There should be about 1mm of clearance. If the chain rubs the inner plate, turn the L screw clockwise a quarter turn. That pulls the cage outward.

If the chain tries to drop off the small ring toward your bottom bracket, turn the L screw counterclockwise to push the cage inward.

The High screw (H) – stops overshifting past the big ring

Shift onto the big front ring and the smallest rear cog. Look at the gap between the outer cage plate and the chain. Same 1mm rule.

If the chain wants to overshoot the big ring and drop off the outside, turn the H screw clockwise to pull the cage inward. If the chain will not shift up to the big ring at all, turn the H screw counterclockwise a little to give the cage room to push further outward.

A simple visual trick to find neutral position

Here is a trick that mechanics use. Shift the derailleur to the middle ring on a triple setup or roughly centered between the two rings on a double. With the shifter in the neutral position, the cage should sit with the chain running exactly down the center of the cage slot.

You should see an equal gap on both sides of the chain. If the chain rubs one side, your limit screws, cable tension, or cage angle is wrong.

Cable Tension: The "Looks Tight But Isn't" Problem

Cable tension is the part that tricks everyone. The cable looks tight when you pull it with your fingers, but under load the housing flexes and the derailleur does not move enough. The result is a shift that takes two seconds instead of a crisp click.

How to spot a slack cable by eye

Shift your bike to the smallest front chainring. Look at the point where the cable exits the derailleur clamp. There should be no visible sag or loop.

The cable should run straight into the clamp bolt without a dip. If you can push the cable sideways with your finger and feel more than a millimeter of play, the cable needs tightening.

The barrel adjuster visual test

The barrel adjuster on your shifter or along the cable housing is your fine-tune tool. Turn it counterclockwise to add tension. Here is the visual test.

Shift onto the middle ring. Pedal forward. The chain should run dead center through the cage.

If it rubs the inner plate, turn the barrel adjuster counterclockwise a half turn. If it rubs the outer plate, turn it clockwise a half turn. Stop when the noise disappears.

When to replace the cable and housing

If you have adjusted the barrel adjuster all the way and the shifting still feels mushy, the cable or housing is worn out. Per Shimano's technical service documentation, cable housing should be replaced every season or after exposure to heavy mud and water. The interior of the housing corrodes and creates friction that feels exactly like a loose cable.

Replace the full cable and housing set. It costs about ten dollars and forty minutes of your time.

If you ride in wet conditions often, consider lined housing. It has a plastic sleeve inside that reduces friction even when grit gets in there. The difference between standard housing and lined housing is night and day once things get muddy.

The "It Was Fine Yesterday" Scenario: Crash Damage and Bent Parts

Nothing is more confusing than a derailleur that worked perfectly on last weekend's ride and suddenly refuses to shift today. In our research across mountain bike repair communities, the most common culprit after a crash is a bent derailleur cage, not a broken cable or a misadjusted limit screw.

How to spot a bent cage by sight

Stand behind your bike and sight down the drivetrain from the rear wheel forward. The cage plates should be perfectly parallel to each other and to the chainrings. If the outer plate looks twisted or bowed inward at the bottom, you have a bent cage.

Even a slight bend changes the angle where the chain enters the cage, and that is enough to cause rubbing or failed shifts.

You can also check by shifting to the middle ring and watching the chain pass through the cage as you pedal slowly. If the chain touches one side then the other as it goes around, the cage is bent. A straight cage keeps the chain centered through the entire rotation.

Checking the derailleur hanger without a tool

The hanger on braze-on style front derailleurs can also bend in a crash. Look at the gap between the derailleur body and the frame mount. It should be a straight vertical line.

If the derailleur body sits at an angle relative to the frame tab, the hanger is bent.

You do not need a professional alignment gauge for a quick sanity check. Lay a straight edge along the chainrings and extend it toward the derailleur. The cage should sit at the same angle as the rings.

If it points inward or outward, the hanger needs straightening.

When bending it back works and when it doesn't

A slightly bent cage can often be bent back by hand. Place your thumbs on the inner plate and your fingers on the outer plate. Gently squeeze to realign the plates parallel to each other.

Go slowly and check your progress after each attempt.

But here is the hard truth from aggregate mechanic feedback. Once derailleur cage plates bend, the metal is work-hardened. Bending it back makes it weaker.

You might get another season out of it, or you might snap a plate on the next rock strike. If the cage looks bent after a serious crash or if the derailleur has taken a direct hit, replace it. A new front derailleur costs between twenty and fifty dollars and comes with fresh pivot bushings that shift crisply.

That is cheaper than wrecking a chain or a chainring from sloppy alignment.

Common Visual Mistakes That Trick Beginners

Even experienced mechanics make these mistakes sometimes. But beginners fall for them constantly, wasting hours adjusting things that were never the problem.

The "upside-down bike" trap

Flipping your bike upside down to work on the drivetrain is a bad habit. The weight of the bike on the saddle and handlebars changes the frame's natural geometry. More importantly, gravity pulls the chain and derailleur into positions they never occupy during normal riding.

You will set limit screws and cable tension perfectly while the bike is inverted, then flip it over and find everything is wrong.

Use a repair stand. If you do not have one, lean the bike against a wall or hang it from the saddle with a strap. The derailleur needs to be evaluated at the same angle it experiences on the trail.

Why a clean drivetrain matters for accurate diagnosis

Here is a fact from Shimano's maintenance guides. A drivetrain caked in mud and old lube adds friction that masks the true condition of your cables and derailleur pivot. You cannot tell if a derailleur is moving freely if it is gummed up with trail grime.

Clean the chain and the derailleur cage before you start diagnosing. A quick spray of degreaser and a brush removes the variables. If the shifting still feels off after a clean, you know the problem is mechanical adjustment, not dirt.

Confusing chain wear for derailleur problems

A worn chain changes the effective spacing between chainring teeth. The chain sits differently on the rings and can cause front shifting to feel vague or delayed. If your bike has more than a thousand miles on the current chain, check it with a chain wear indicator before you touch the derailleur.

A stretched chain often makes front shifting feel sluggish even when the derailleur is perfectly adjusted. Replace the chain, clean the drivetrain, and suddenly your derailleur works fine again. That is not magic.

That is eliminating the real variable.

When to Walk Away: Knowing If a Repair Is Worth It Versus a Replacement

There comes a point where adjusting, bending, and cajoling a front derailleur stops making sense. Recognizing that point saves you time and frustration.

How to tell if the derailleur is beyond saving

Grab the derailleur cage and try to rock it side to side. If you feel more than a few millimeters of play at the pivot, the internal bushings are worn out. No amount of cable tension or limit screw adjustment will fix a loose pivot.

The cage will always drift under load.

Look at the inner cage plate for grooves worn into the metal. Deep grooves mean the chain has been rubbing that plate for thousands of shifts. The derailleur still works, but the shifting feel degrades over time.

Replace it and you get back that crisp click you remember.

Cost comparison: repair versus replacement

A new shift cable and housing runs about ten to fifteen dollars. A replacement front derailleur costs twenty to fifty dollars depending on whether you buy a basic Altus unit or a mid-range Deore or SLX. A shop will charge forty to sixty dollars in labor to diagnose and adjust everything.

Here is the math. If you have spent more than thirty minutes wrestling with the derailleur and it still does not work, the problem is likely bent, worn, or damaged hardware. A new derailleur eliminates all the guesswork.

It comes with fresh bushings, straight cage plates, and clean pivot points.

When a shop visit actually saves you money

If you crashed hard enough to dent the chainring or bend the derailleur hanger on the frame, stop playing with adjustments. A bent hanger needs a proper alignment tool that most home mechanics do not own. A shop can straighten a hanger in five minutes for about fifteen dollars.

Trying to force it back by eye often leaves it slightly crooked, which kills shifting performance and wears out your chain prematurely.

Real Scenarios: What Different Problems Actually Look Like on the Trail

These are the three most common front derailleur failure modes we see in mountain bike forums and shop repair logs. Each one looks different and requires a different fix.

The "won't shift up to the big ring" scenario

You push the shifter and nothing happens. The derailleur barely moves. The chain stays on the middle ring.

This is almost always low cable tension. The shifter pulls slack before it pulls the derailleur. Turn the barrel adjuster counterclockwise two full turns.

If the shift still does not happen, the cable has stretched or the housing has corroded. Replace both.

The "chain drops off the outside of the big ring" scenario

You shift onto the big ring and the chain keeps going. It lands between the crank arm and the frame. This is a high limit screw problem.

The H screw is too loose. Turn it clockwise a quarter turn. Shift back to the small ring, then back up to the big ring.

Repeat until the chain stops overshooting.

The "constant rubbing in every gear" scenario

You hear that metallic scraping sound no matter where you are in the cassette. The noise changes pitch when you pedal hard. This is a cage angle problem or a height problem.

The cage is either twisted on the mount or sitting too low. Go back to the three visual checks and start over. That noise is your drivetrain telling you something is physically touching that should not be.

Frequently Asked Questions

Can I fix a front derailleur without any tools?

You can make small improvements without tools if the problem is minor. A bent cage can be straightened by hand. You can sometimes increase cable tension by turning the barrel adjuster with your fingers.

But for limit screws and clamp bolts, you need at least a 4mm hex key.

Why does my chain drop only on rough trails?

That is usually a limit screw issue. If the chain drops to the outside of your big ring under bumps, the H screw is too loose and allows the cage to overshoot. If it drops into the frame on rough descents, the L screw is too loose.

Tighten each screw a quarter turn at a time until the chain stays put.

Should I just switch to a 1x setup instead?

A 1x drivetrain eliminates the front derailleur entirely, which solves every front derailleur problem by removing the part. As of 2026, that is the standard on most new mountain bikes. But it costs money.

You need a narrow-wide chainring, a new shifter if you want to simplify the cockpit, and possibly a new rear derailleur with a clutch. For many riders on older 2x or 3x bikes, learning to adjust the front derailleur is much cheaper than a full drivetrain swap.

How do I know if my derailleur is just old and worn out?

Front derailleurs do wear out, but it takes a long time. Look for excessive play in the pivot joint. Grab the cage and try to wiggle it side to side.

If there is noticeable wobble, the bushings are shot. Also check for deep gouges on the inner cage plate from years of chain contact. A derailleur with worn pivot bushings will always feel vague, no matter how carefully you set it up.

Why does the chain rub in one gear but not others?

That is normal on 2x and 3x drivetrains at extreme cross-chain positions. When you are in the big ring up front and the biggest cog in the back, the chain angle pulls it against the inner cage plate. That is not a derailleur problem.

Avoid that gear combination or use the trim function on your shifter to nudge the cage slightly.

Can a bent chainring cause front derailleur issues?

Yes, and it is easy to miss. Spin the crankset and watch the chainrings from above. If a chainring wobbles side to side, the chain follows that wobble and can rub the derailleur cage intermittently.

Tighten the chainring bolts first. If the wobble persists, the chainring is bent and needs replacement.
