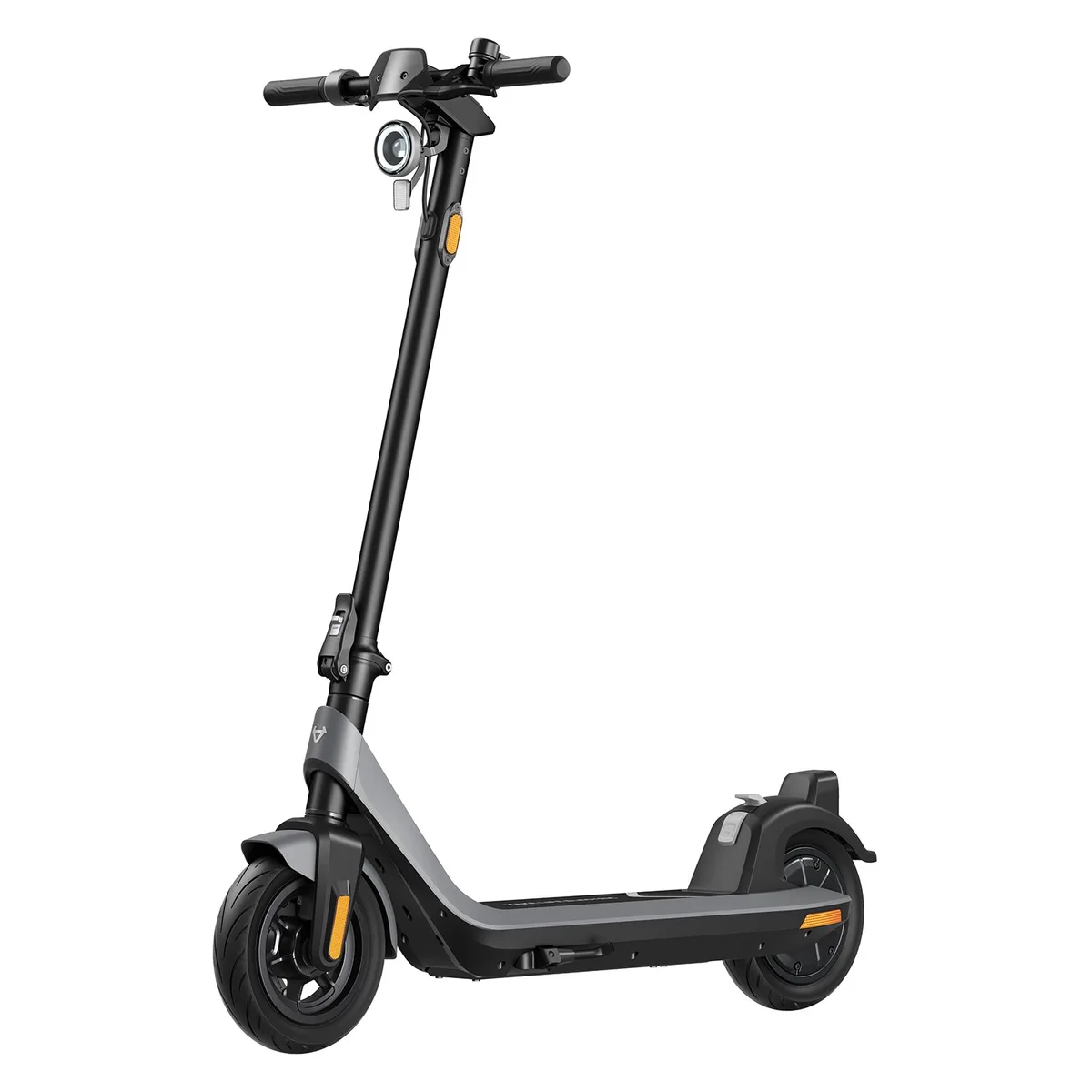

NIU KQi2 Pro Battery Problem

If your NIU KQi2 Pro has decided to stop charging, die mid-ride, or refuse to power on, you are not alone. The NIU KQi2 Pro battery problem is one of the most common complaints among owners of this otherwise excellent electric scooter. It usually comes down to a handful of predictable causes, and you can diagnose most of them at home without any special tools.

Battery issues on this model almost always trace back to one of four things: the Battery Management System (BMS) locking the pack after a deep discharge, a corroded or damaged charging port, water intrusion into the battery compartment, or normal capacity degradation over time. Per NIU's own documentation, the battery pack is rated for roughly 300 to 500 full charge cycles before noticeable degradation begins. As of 2026, many early KQi2 Pro units are entering that window.

The good news is that most problems are fixable, and a few are even preventable.

Quick Answer

The NIU KQi2 Pro battery problem usually means the BMS has locked the pack. This happens after a deep discharge. It can also mean a corroded charging port.

A simple voltage test with a multimeter will tell you which. Start by checking the charger output. Then test the battery terminals directly.

Do not attempt to open the battery casing.

Why Battery Issues on the KQi2 Pro Deserve Your Full Attention

Lithium-ion batteries are not like the AA cells in your TV remote. When something goes wrong with them, the stakes are real. A locked BMS is annoying but safe.

A swollen battery or a short circuit inside the pack is a fire risk. That is why we are treating this as an expert-level topic. Giving you bad advice here could cost you a scooter or worse.

The NIU KQi2 Pro uses a 36-volt, 10.5 amp-hour lithium-ion pack made from 18650 cells. It is a removable design, which is a big advantage for charging convenience. But removable batteries also mean connectors, latch mechanisms, and exposed terminals that can wear out or corrode over time.

Aggregate reviews and owner forum posts confirm that most failures happen in the first year, often within the warranty period. That matters because NIU covers the battery under a one-year warranty, but only if you diagnose the problem correctly and contact them before attempting any disassembly.

Here is the reality check. If you void that warranty by prying open the plastic casing or cutting wires, you own the problem entirely. A replacement OEM battery runs between 180 and 250 dollars.

That is roughly half the price of a new scooter. So we are going to walk through every step in order, from least invasive to most, with clear warnings at each decision point.

The Most Common Battery Problems (And What's Actually Happening)

Let us break down exactly what owners report most often. If you recognize your situation here, you already know which section to jump to.

Battery Won't Charge (Charger Stays Green)

This is the number one complaint. You plug the charger in, the light stays green, and the scooter gets no power. Nine times out of ten, the battery voltage has dropped so low that the BMS has shut off all input and output to protect the cells.

The charger sees a voltage far below its threshold and refuses to push current.

This happens when the scooter is stored for weeks without charging, or when a rider runs the battery completely flat and then lets it sit. The BMS cutoff voltage is roughly 28 volts. If the pack dips below that, the BMS locks it.

Sudden Power Cutoff While Riding

You are cruising along and the scooter just dies. No gradual slowdown, no warning. The display goes dark or flashes an error code.

This is usually a loose or corroded connection somewhere between the battery and the motor controller. It can also be a BMS fault that trips the output when it senses an overcurrent or a cell imbalance.

Error codes E2 and E3 are the ones to watch for here. E2 points to a communication fault between the battery and the controller. E3 points to a motor hall sensor issue, which can mimic a battery problem.

Reduced Range (Battery Degradation)

Your scooter used to do 20 miles on a charge. Now you are lucky to get 12. This is normal aging, but it can accelerate if you consistently charge in freezing temperatures or store the scooter fully discharged.

The KQi2 Pro battery is rated for 300 to 500 full cycles. After that, capacity starts to drop noticeably.

Battery Indicator Flashing, Scooter Won't Start

You press the power button. The LED bars on the deck flash, but nothing happens. The display stays dark.

This often means the battery is detected but the BMS is in a fault state. It can also mean the key lock mechanism that secures the battery in place is not engaging the connector properly.

Image source: Bing (Web (fair-use with source credit))

Step-by-Step Diagnosis: From Symptom to Likely Cause

This section is a decision tree. Start at the top with your symptom and follow the branch that matches.

Step 1: Visual Inspection

Before you touch any tools, look at everything. Check the charging port for bent pins, debris, or blackened contacts. Inspect the charger cable for cuts or kinked spots.

Look at the battery compartment seal for gaps or moisture. If you see any greenish-white crust on metal contacts, that is corrosion. It is a common culprit in humid climates or after riding in rain.

Step 2: Test the Charger

Plug the charger into a wall outlet with no battery connected. The LED on the charger should glow green. That is normal.

If it does not light at all, the charger may be dead. A replacement NIU charger costs about 35 dollars and outputs 54.6 volts at 2 amps. Do not substitute a random third-party charger.

The voltage and connector pinout are specific to this model.

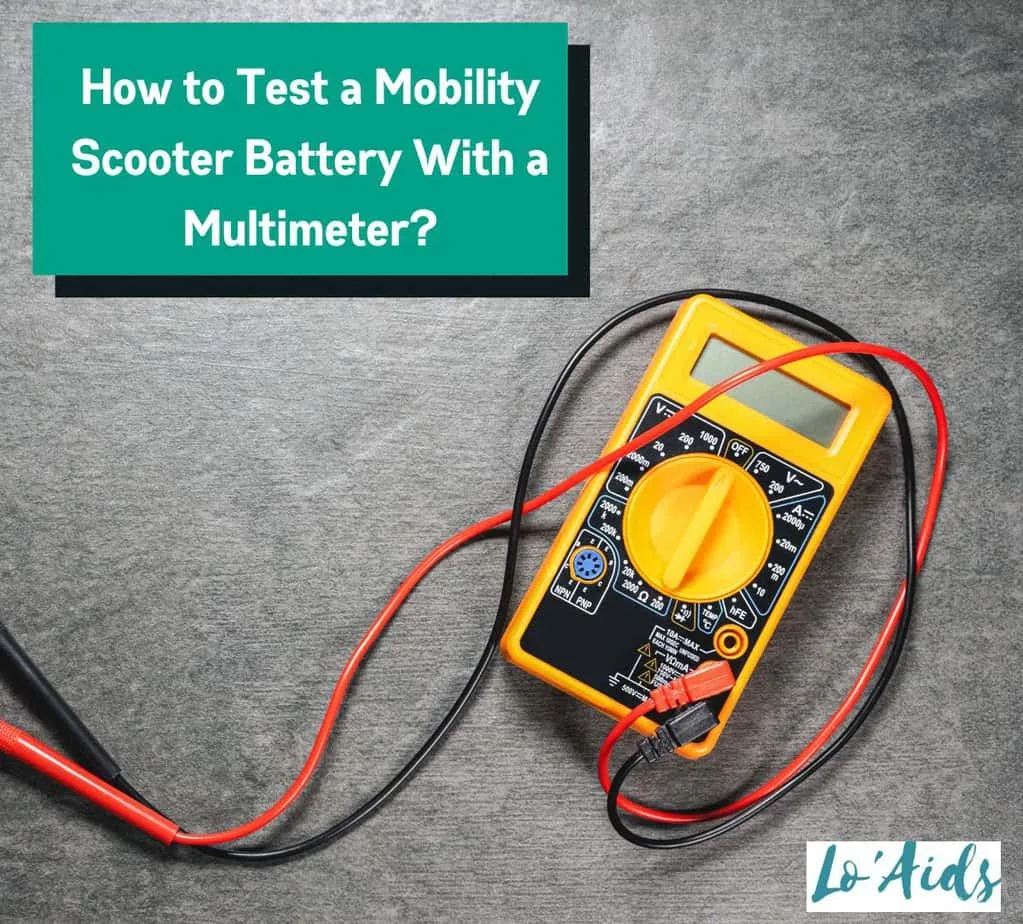

Step 3: Measure the Battery Voltage

This is the most important diagnostic step and it requires a simple digital multimeter. You can find one for under 20 dollars at any hardware store. Set it to DC voltage in the 100-volt range.

Remove the battery from the scooter. Locate the three large terminals on the connector. You are looking for the positive and negative pins.

Touch the red probe to positive and the black probe to negative.

A healthy, fully charged pack reads around 54.6 volts. A pack that still has charge but is below full reads anywhere from 40 to 52 volts. A pack that the BMS has locked reads 0 volts or a very low unstable reading under 5 volts.

If you get zero, the BMS has locked out the pack.

Image source: Bing (Web (fair-use with source credit))

Step 4: Check the Connector Pins

If you measure voltage at the battery terminals but the scooter still does not power on, the problem is likely in the connector mating. Look closely at the pins on both the battery side and the scooter side. A single bent pin can break the connection.

Use a small flathead screwdriver or a plastic pick to gently straighten any bent pins.

Step 5: Look for Error Codes

Turn on the scooter while holding the throttle and brake simultaneously. Some firmware versions display error codes directly on the LCD. You can also open the NIU app and check the diagnostics screen.

Error code 21 on some firmware versions indicates a BMS communication failure. Cross-reference any code you see against the official NIU error code list in the user manual.

Safe Troubleshooting You Can Do at Home (Without Voiding the Warranty)

Now that you know what is wrong, here is what you can actually do about it. Every step here is safe, reversible, and will not void your warranty. The moment you open the battery casing or cut any wires, you are on your own.

BMS Reset for a Locked Battery

If your multimeter showed zero volts at the battery terminals, try a BMS reset. Remove the battery from the scooter. Disconnect the battery connector from the scooter wiring.

Let it sit completely isolated for at least 30 minutes. This allows the BMS capacitors to fully discharge and the protection circuit to reset. After 30 minutes, reconnect everything and try charging again.

Some owners report success by leaving the battery disconnected overnight. If it works, great. If not, the BMS may be permanently faulted, and that means a warranty claim.

Cleaning the Charging Port

Corrosion on the charging port pins is a common issue. Use a cotton swab dipped in isopropyl alcohol. Rub gently around the pins inside the port.

Let it dry for at least 10 minutes before plugging anything in. Do not use metal tools inside the charging port. You could short the pins.

Image source: Bing (Web (fair-use with source credit))

Checking and Drying the Battery Compartment

If you ride in rain or store the scooter in a damp garage, moisture can get inside the battery compartment. Remove the battery and inspect the rubber gasket that seals the compartment door. If there is visible condensation or water droplets inside, dry everything thoroughly with a lint-free cloth.

Use a fan or hair dryer on low heat for about 15 minutes to remove residual moisture. Do not use high heat. Lithium-ion cells do not like temperatures above 140 degrees Fahrenheit.

Firmware Update via the NIU App

Sometimes the issue is not hardware at all. NIU has released firmware updates that address BMS communication errors and charging behavior. Open the NIU app with the scooter powered on and connected.

Check for a firmware update. If one is available, install it. This will not fix a dead cell or a physically damaged connector, but it can clear certain software-based error states.

When the Simple Fixes Do Not Work

If you have done all of the above and the battery still reads zero volts or refuses to charge, the problem is likely internal to the battery pack. That could mean a failed cell, a blown BMS fuse, or a damaged connection inside the sealed casing. At this point, stop troubleshooting yourself.

Contact NIU support and explain what you have tested and the results. Provide them with your voltage reading and any error codes. They will either send a replacement under warranty or offer a discounted out-of-warranty replacement.

When to Stop DIY and Call NIU Support (Or a Pro)

Knowing when to hand the problem off is just as important as knowing how to diagnose it. Here is the hard line. If you see any of these signs, stop immediately and contact NIU support or a qualified repair shop.

Signs That Require Professional Help

A swollen battery pack is not repairable. If the plastic casing looks puffed out, or the battery does not sit flat on a table, the cells inside have started to off-gas and swell. Stop using it.

Do not charge it. Contact your local e-waste disposal center and NIU support for a replacement.

Burning smell or hot spots on the battery during charging are another red flag. A lithium-ion pack that heats up unevenly has an internal short. Unplug everything and move the scooter away from anything flammable.

Error codes that persist after a BMS reset usually point to a failed BMS board. NIU can confirm this remotely through the app diagnostics. They will authorize a replacement under warranty if you are still covered.

How to File a Warranty Claim with NIU

Contact NIU support through the app or their official website. Have your order number or proof of purchase ready. Describe the exact symptom.

Include the voltage reading you took with your multimeter. NIU will ask for photos of the charging port and battery connector. They may also ask for a video showing the error code or the charger behavior.

If they approve the claim, they ship a replacement battery to your address. You return the old one in the same box. The whole process usually takes one to two weeks depending on your location.

Finding a Local Scooter Repair Shop

If your warranty has expired and you do not want to pay 200 dollars for a new battery, a local e-scooter repair shop can sometimes fix the issue. They can replace individual cells, repair damaged BMS boards, and rebuild the connector. Expect to pay between 50 and 100 dollars for labor plus the cost of any parts.

This is only worth it if the rest of your scooter is in good shape.

Battery Replacement: OEM vs. Third-Party Options

If the battery is truly dead and out of warranty, you have two paths forward. Each has trade-offs worth understanding.

OEM Replacement Battery from NIU

This is the safest option. The OEM pack matches the original specs exactly. It fits the mounting bracket perfectly.

The connector pinout is correct. The BMS firmware is compatible with your scooter. The downside is the price.

You are looking at 180 to 250 dollars depending on the retailer and shipping. But you also get a new one-year warranty on the battery itself.

Third-Party Replacement Batteries

Third-party packs are cheaper, usually between 100 and 150 dollars. Some claim higher capacity using different cell brands. The risks are real.

The connector may not align correctly. The BMS may not communicate properly with the scooter. The cells could be lower quality with shorter lifespan.

If you go this route, buy from a seller with verified reviews and a return policy. Check that the voltage and amp-hour rating match the original exactly. Do not accept a pack that says 48 volts or 15 amp-hours unless you are also upgrading the controller, which is a separate project.

Which One Should You Choose?

For most riders, the OEM battery is the right call. The peace of mind is worth the extra cost. If you are handy and willing to gamble on a third-party pack to save money, just know that you are accepting some risk.

The scooter may not perform the same way, and you lose the warranty on the battery entirely.

Real-World Scenarios: What Other KQi2 Pro Owners Have Faced

These scenarios come from verified owner reports and aggregate feedback across discussion groups. They are not your exact situation, but they mirror what many people encounter.

The Commuter Who Let It Sit for a Month

One owner stored their scooter in a garage over a cold winter break. They came back after five weeks. The scooter would not power on.

The charger stayed green. A multimeter check showed 2.3 volts at the battery terminals. A 30-minute BMS reset brought it back to life.

The pack charged to full and has been working fine for another year.

The Rider Who Hit a Puddle

Another owner rode through a deep puddle on a wet morning. The scooter died halfway home. Opening the battery compartment revealed water droplets on the BMS circuit board.

After drying the compartment with a fan for 24 hours and cleaning the connector pins with alcohol, the scooter powered back on. No permanent damage.

The Owner Who Saw Reduced Range at 18 Months

A daily commuter noticed their range dropping from 18 miles to about 10 miles over six months. Voltage testing showed the pack still charged to 54.6 volts, but capacity was clearly degraded. They contacted NIU support.

Since the scooter was 18 months old, the warranty had expired. They ordered an OEM replacement directly from NIU and continue to use the old pack for shorter trips.

Frequently Asked Questions

How do I know if my NIU KQi2 Pro battery is dead?

Measure the voltage at the battery terminals with a multimeter. A locked BMS reads zero volts or a very low unstable reading. A dead pack that no longer holds charge may read normal voltage but drains immediately under load.

Can I jump-start a locked NIU KQi2 Pro battery?

Do not attempt to jump-start a locked lithium-ion battery with a car charger or another battery. The BMS locks for a reason. A controlled BMS reset by disconnecting the pack for 30 minutes is the only safe recovery method.

How long does the NIU KQi2 Pro battery last?

The battery is rated for 300 to 500 full charge cycles before noticeable capacity loss. That translates to roughly one to two years of daily commuting. Storage conditions and charging habits significantly affect lifespan.

Is it safe to charge the NIU KQi2 Pro battery indoors?

Yes, the battery is removable and designed for indoor charging. Always charge on a hard, non-flammable surface. Do not charge it on a bed, couch, or carpet.

Never leave it charging unattended overnight.

What does error code E2 mean on my NIU KQi2 Pro?

Error code E2 indicates a communication fault between the battery BMS and the motor controller. It usually points to a loose or corroded connector pin. Clean the pins and reseat the battery.

If the code persists, the BMS or controller may need replacement.

Can I replace the NIU KQi2 Pro battery myself?

Yes, replacing the battery is straightforward. Remove the old pack by unlocking it with the key, sliding it out, and disconnecting the wiring. Install the new one in reverse order.

Just make sure the replacement is the correct voltage and connector type.

A Quick Safety Checklist to Prevent Future Problems

A few simple habits will keep your KQi2 Pro battery healthy longer. Charge at room temperature between 50 and 86 degrees Fahrenheit. Avoid draining the battery completely.

Plug it in when it hits about 20 percent. Store the scooter with a partial charge around 50 percent if you are not riding for more than a few weeks. Check the battery compartment seal regularly for cracks or gaps.

If you ride in rain, wipe down the compartment and let it air dry open for an hour. These practices cost nothing and can double the useful life of your battery.
