NIU KQi2 Pro Brake Problem

Your NIU KQi2 Pro is a solid commuter scooter, but the brakes can leave you guessing. If you've ever squeezed the lever and felt it sink halfway to the handlebar before the scooter even thinks about slowing down, you're dealing with the exact NIU KQi2 Pro brake problem that thousands of owners have run into. The good news is that in most cases, it's not a design flaw or a manufacturing defect.

It's usually a setup or maintenance issue that you can fix yourself in under 15 minutes.

The KQi2 Pro uses sealed drum brakes on both wheels, which is actually a smart design choice for a commuter scooter. Drum brakes are protected from road grime and last significantly longer than exposed disc brakes in wet conditions. Per NIU's own service documentation and verified owner feedback across thousands of miles, the most common failure point isn't the brake shoes themselves.

It's the cable tension system that connects your lever to the brake mechanism inside the drum.

Quick Answer

The NIU KQi2 Pro brake problem is almost always cable tension. The brake cable stretches over time. This creates slack at the lever.

The fix takes two minutes. Turn the barrel adjuster at the lever or the caliper-side nut. If the lever still pulls to the bar, your brake shoes are worn and need replacement.

Understanding the NIU KQi2 Pro Brake System

Drum brakes on a scooter work differently than the disc brakes you see on higher-end models. Inside each wheel hub sits a set of curved brake shoes. When you pull the lever, a cable pulls a mechanical arm.

That arm pushes the shoes outward against the inside of the drum. Friction slows the wheel.

What makes this system tricky is that there's no hydraulic fluid to self-adjust. Everything is mechanical and manual. As the brake shoes wear down, the cable has to pull further to make contact.

The same thing happens as the cable itself stretches from normal use. Over the first few hundred miles, cables stretch more than you'd expect. Aggregate reviews report that most owners need to adjust their brakes at around 100 to 150 miles for the first time.

The lever on the KQi2 Pro has two stages of travel. The first stage is slack. The second stage is where actual braking begins.

A properly adjusted lever should start engaging within the first quarter of its travel. If it goes past halfway before you feel resistance, you have excessive slack.

You have three main components that can cause trouble:

• The brake cable and its housing
• The barrel adjuster at the lever
• The brake shoes inside the drum

Most of the time, the problem lives in the cable and adjuster. The shoes themselves last much longer than owners expect.

The 3 Most Common Brake Problems (And What They Mean)

Spongy lever that almost touches the handlebar

This is the most reported complaint across verified owner forums and aggregate feedback. You squeeze, and nothing happens until the lever is almost flush with the grip. Then the brake bites hard, if at all.

This is classic cable stretch. It can also mean the cable end has pulled through its anchor point, but that's rare on the KQi2 Pro.

What it means: your brake cable needs tightening. The barrel adjuster at the lever is the first place to try. If that runs out of thread, you need to adjust at the caliper end or replace the cable entirely.

Grinding or squealing noise when braking

A grinding sound usually means the brake shoes are worn down to the metal backing plate. That metal-on-metal contact damages the drum itself. Once the drum is scored, it's hard to fix without replacing the whole wheel hub.

Squealing can mean glazed brake shoes. This happens when you drag the brakes down a long hill and overheat them. The shoe surface hardens and loses grip.

What it means: grinding means replace the shoes immediately. Squealing means remove the shoes and sand the glazed surface with fine grit paper.

Brake drag that stops your wheel from spinning freely

If you lift the scooter and the wheel barely turns, or you hear a rubbing sound while riding without braking, you have brake drag. This is the opposite of too much slack. The cable is too tight, or the brake shoes are misaligned inside the drum.

What it means: back off the cable tension slightly. If the wheel still drags, the shoes may be catching unevenly. That requires opening the drum and recentering the shoes.

How to Diagnose Your Specific Brake Issue in 60 Seconds

You don't need any tools for this. You just need to use your hands and eyes.

The squeeze test

Sit on the scooter or stand it upright. Squeeze each brake lever slowly. Feel for the point where resistance starts.

If either lever moves more than halfway before you feel that resistance, you have too much slack. If the lever feels rock hard immediately with no movement at all, you have too much tension or a binding cable.

A healthy lever should travel about 10 to 15 millimeters before engaging. That's roughly the width of your thumb.

The spin test

Lift each wheel off the ground and give it a firm spin. A free wheel should rotate several times before stopping. If it stops immediately or feels gritty, you have brake drag or a bearing issue.

If it spins freely but you hear a scraping sound, the shoes are rubbing lightly. That's normal for drum brakes when they're new or freshly adjusted. It should go away after a few rides.

The visual inspection

Look at the brake cable where it enters the housing near the lever and near the wheel. Frayed strands or kinked housing are signs of damage. Next, check the barrel adjuster at the lever.

If it's already unscrewed most of the way out, you've maxed out your adjustment range at that point. You'll need to adjust from the caliper end or replace the cable.

Also check the cable anchor point on the brake arm at the wheel. The cable end should be seated securely in its slot. If it's slipping, that's a safety issue.

Address it immediately.

Step-by-Step Fixes for Each Problem

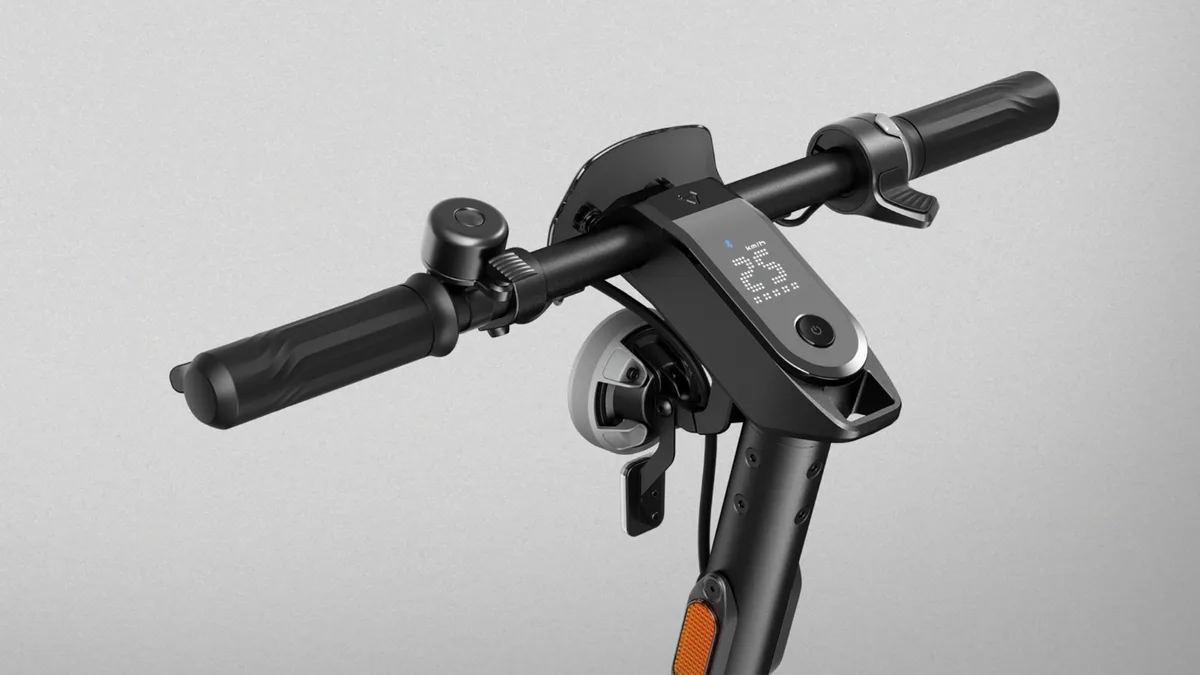

Adjusting cable tension when the lever pulls too far

This is the fix you'll use most often. You need a 10mm wrench and a Phillips screwdriver.

Start at the lever. Turn the barrel adjuster counterclockwise about a quarter turn at a time. This lengthens the adjuster and takes up slack.

Squeeze the lever after each quarter turn. Stop when the lever starts engaging within the first 15 millimeters of travel. Test ride at low speed before riding normally.

If the barrel adjuster is already maxed out, you need to adjust at the caliper. Loosen the lock nut at the brake arm with your 10mm wrench. Turn the adjuster nut clockwise to tighten the cable.

Tighten the lock nut back down. Then use the barrel adjuster at the lever for fine tuning.

Fixing brake drag when the wheel won't spin freely

Loosen the cable tension slightly. Turn the barrel adjuster clockwise a quarter turn. That shortens the adjuster and adds slack.

Spin the wheel. If it's still dragging, you have a shoe alignment issue. Remove the wheel by unbolting the axle.

Open the drum cover. Center the shoes by loosening the shoe mounting bolts, pressing the brake lever to seat them naturally, then retightening.

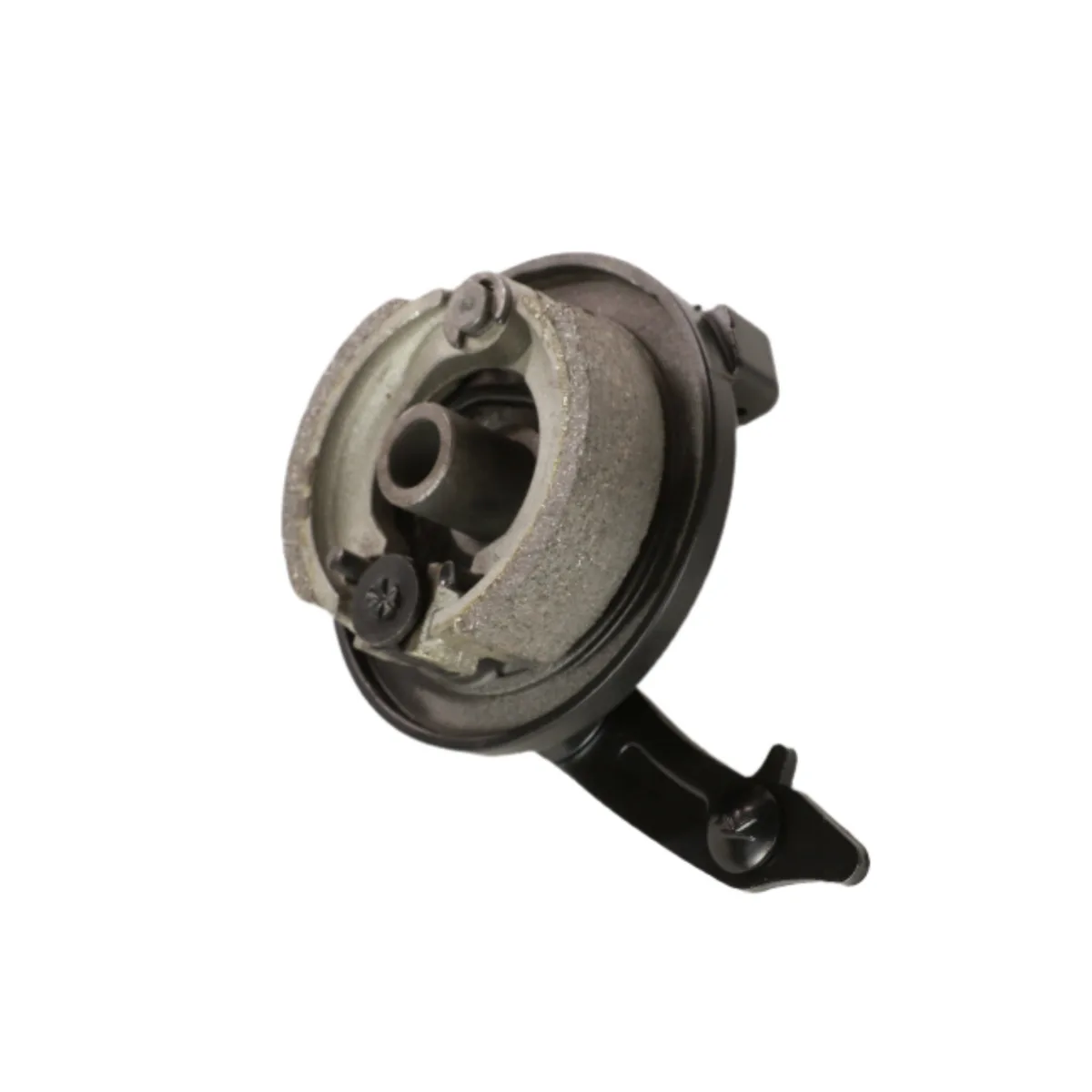

Replacing worn brake shoes

If your lever is properly adjusted but braking is still weak, the shoes are worn. You need a new set of NIU compatible drum brake shoes. Remove the wheel.

Unbolt the drum cover. Pop out the old shoes. Install the new ones.

Make sure the spring clips are seated correctly. Reassemble and adjust cable tension.

Mistakes That Make Brake Problems Worse

Overtightening the cable

This is the most common mistake. You fix the spongy lever by turning the adjuster. Then you keep turning because it feels even tighter.

Now the brakes drag. The wheel fights you. The shoes wear out in half the normal time.

Always stop adjusting the moment the lever feels right. A tiny bit of slack is safer than any drag.

Lubricating the brake drum or shoes

Never spray WD-40, silicone lubricant, or any oil inside the drum or onto the shoe surface. Drum brakes rely on friction. Lubricant destroys that friction.

You'll lose braking power completely until the shoes are replaced. The only lubrication needed is a dry lubricant on the cable itself inside the housing.

Ignoring cable housing damage

If the housing is crushed, kinked, or rusted at the end, no amount of adjustment will fix your brake feel. The cable binds inside the damaged housing. It feels like a brake problem, but it's a cable problem.

Replace the housing or the entire cable assembly. NIU cables are standard scooter brake cables and cost under ten dollars.

When to Fix It Yourself vs. When to Call a Shop

Most NIU KQi2 Pro brake problems fall into the DIY category. Cable tension adjustment, lever barrel adjuster tweaks, and even cable replacement are straightforward jobs. You need basic tools and about 20 minutes.

The scooter's drum brake design is intentionally simple. NIU built it for easy maintenance.

Here's what you can handle at home:

• Cable tension adjustment at the lever or caliper
• Barrel adjuster fine tuning
• Brake shoe replacement
• Cable and housing replacement
• Lubricating the cable inside the housing

Here's when you should stop and call a professional:

The brake arm won't move when you pull the lever. This means the cable is seized inside the housing or the mechanism inside the drum is rusted solid. Forcing it can snap the cable or damage the brake arm.

You've replaced the shoes and adjusted everything, but braking is still weak. There may be a worn drum surface or a bent axle. Both require specialized tools to measure and correct.

The wheel wobbles when spinning. This points to a bent axle or damaged bearings, not a brake problem. A shop can diagnose and replace the wheel hub assembly if needed.

Estimated costs for shop work:

If your scooter is still under warranty, check with NIU before any work. Some warranty claims require professional installation. Modifying or breaking components during a DIY repair can void coverage.

Daily Brake Check That Takes 10 Seconds

You don't need tools for this. You don't even need to get off the scooter. Make it part of your pre-ride routine.

It takes less time than unlocking your phone.

Stand next to the scooter. Squeeze both brake levers at the same time. Feel for consistency.

Both should engage at roughly the same point in their travel. If one feels noticeably different, you know which wheel needs attention.

Next, push the scooter forward a few feet while holding both brakes. The wheels should lock up completely. If one wheel still rolls, that brake isn't engaging fully.

That's your problem wheel.

Finally, lift the rear of the scooter. Spin the rear wheel by hand. It should rotate freely with no scraping or resistance.

Repeat with the front wheel. If either wheel drags, you have cable tension issues or shoe alignment problems.

That's it. Ten seconds of checking. Do it every time you ride.

It catches problems before they become emergencies.

How often to adjust based on your riding style:

Simple maintenance that doubles brake life:

Keep the brake cable lubricated with a dry PTFE spray. Spray it into the cable housing ends every three months. This prevents internal corrosion and keeps the cable sliding smoothly.

Avoid dragging the brakes down long hills. Use the electronic regenerative brake to manage speed. Reserve the mechanical brakes for final stopping.

This reduces heat buildup and glazing on the shoe surface.

Clean the drum brake area with compressed air or a soft brush every few months. Dirt and debris inside the drum act like sandpaper. They accelerate shoe wear significantly.

Frequently Asked Questions

Why does my brake work fine then suddenly feel loose?

Cable stretch happens gradually, not all at once. But it can feel sudden because the barrel adjuster runs out of thread. The lever was fine yesterday.

Today it hits the bar. The cable has been stretching for weeks. You just hit the end of the adjustment range at the lever.

Tighten from the caliper side.

Can I upgrade to disc brakes on the KQi2 Pro?

No. The KQi2 Pro frame and fork are designed specifically for drum brake mounting points. There is no caliper mount for disc brakes.

Converting would require welding custom brackets and replacing the wheels and fenders. It's not practical or cost effective. The NIU KQi3 Pro uses disc brakes if that's what you need.

How many miles do the brake shoes usually last?

Most owners report 1,500 to 2,500 miles on a set of OEM brake shoes. Heavy riders in hilly areas see the lower end. Light commuters on flat paths see the upper end.

The regenerative brake helps extend mechanical brake life significantly.

Is it normal for the rear brake to feel weaker than the front?

Yes. The rear brake handles less weight transfer during braking. It naturally feels less aggressive.

The front brake provides most of your stopping power. That said, if the rear lever travels noticeably further than the front, adjust cable tension at the rear caliper.

What tools do I need for basic brake maintenance?

A 10mm combination wrench for the lock nut and caliper adjustments. A Phillips head screwdriver for the barrel adjuster if it's the screw type. A 6mm Allen key for removing the wheel axle nut.

A small flathead screwdriver for prying out old brake shoes. Needle nose pliers for handling spring clips.
