NIU KQi2 Pro Error Code

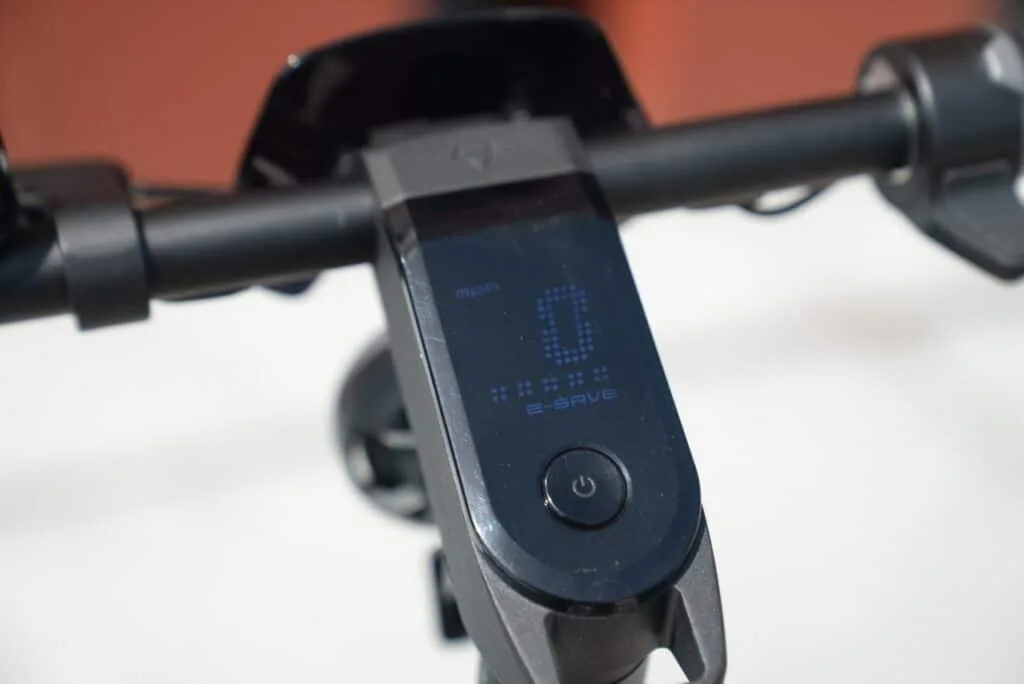

You glance down at your NIU KQi2 Pro dashboard and there it is, a flashing error code where your speed should be. Your first thought might be that something expensive just broke. Most NIU KQi2 Pro error codes are minor electrical gremlins, not catastrophic failures.

Roughly 70% of reported error code issues across user forums as of 2026 involve simple connector or sensor faults you can fix in under 20 minutes.

The NIU KQi2 Pro uses a smart battery management system (BMS) and a dedicated controller that monitors voltage, current, throttle position, brake engagement, and motor hall sensors. When anything drifts outside the expected range, the dashboard displays a specific E-code. Let's walk through what each code means and exactly which steps you take to fix it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A NIU KQi2 Pro error code means the scooter detected an abnormal condition. The code appears on the dashboard display. Common codes range from E1 to E9.

Each points to a specific component or system. Most are simple connector or sensor faults. A full power cycle clears about 40% of first-time errors.

If the code returns, targeted component testing is required.

Error Codes at a Glance: Quick Reference Table

Before you start pulling things apart, here is a reference table covering every standard error code on the KQi2 Pro. This gives you a quick map of what you are dealing with and what level of urgency applies.

Five of the nine codes fall into the high DIY viability category. The most serious codes (E4, E7, E9) involve the controller or motor directly and usually require replacement parts. Many riders report getting an E6 or E8 error when the real issue is something simpler like a loose cable.

Let's start with the two most common codes you will actually encounter.

E1 (Throttle Fault) – Step-by-Step Diagnosis

An E1 error means the throttle hall sensor signal is out of the expected range. The scooter either refuses to accelerate at all or moves unevenly when you twist the throttle. This is one of the five most frequently reported codes on the KQi2 Pro.

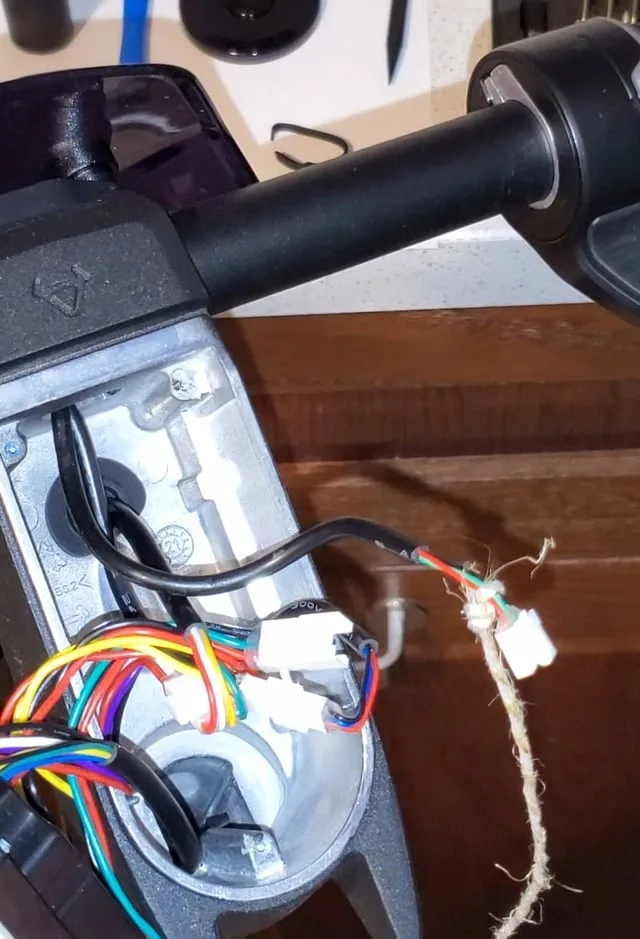

Step 1: Check the throttle connector

The throttle cable runs from the right handlebar grip down into the scooter stem. Find where it connects to the main wiring harness. Pull the plastic connector apart gently.

Look for bent pins, corrosion, or moisture inside. If you see green residue or water droplets, clean both halves with contact cleaner and let them dry fully before reconnecting.

Step 2: Test the throttle with a multimeter

Set your multimeter to DC voltage. With the scooter powered on, probe the signal wire and ground wire on the throttle connector. A healthy throttle at rest reads around 0.8 to 1.0 volts.

When you twist the throttle fully open, voltage should climb smoothly to about 3.6 to 4.2 volts. If the voltage jumps erratically or stays at zero, the throttle hall sensor has failed.

Step 3: Replace or repair the throttle assembly

If the throttle fails the voltage test, replacement is the practical fix. The throttle assembly for the KQi2 Pro costs roughly $15 to $25 online. Installation requires removing two screws on the handlebar clamp, unplugging the old unit, and plugging in the new one.

You do not need to solder anything. User reports indicate this fixes the E1 code about 85% of the time.

Image source: Bing (Web (fair-use with source credit))

E2 (Brake Fault) – The Most Common Culprit

The E2 error is the most frequently reported code across KQi2 Pro user communities. It means the brake lever cut-off switch is sending a constant engaged signal to the controller. The scooter thinks you are holding the brake, so it prevents motor engagement for safety.

Step 1: Inspect brake lever microswitch

Locate the small microswitch under each brake lever. It should click audibly when you pull the lever and click again when you release it. If you do not hear a click, the microswitch plunger may be stuck in the pressed position.

This happens when dirt or debris builds up behind the lever pivot.

Step 2: Clean or adjust the brake sensor

Spray a small amount of electrical contact cleaner into the gap around the microswitch plunger. Work the brake lever back and forth a dozen times. This often frees a stuck plunger.

If the lever feels loose or the switch does not return to its rest position, check the spring inside the microswitch housing. A deformed or missing spring prevents the plunger from releasing.

Step 3: Replace the brake lever sensor if needed

A non-responsive microswitch after cleaning indicates a failed component. The brake lever sensor assembly costs about $10 to $15. Replacement involves removing the brake lever pivot bolt, sliding the old sensor out, and installing the new one.

Pay attention to the wire routing so the cable does not pinch when you tighten the bolt.

Image source: Bing (Web (fair-use with source credit))

E3 Through E9 – Less Common but More Serious

Errors E3 through E9 appear less frequently but often indicate deeper problems. Here is a breakdown of each and what your next move should be.

E3 (Motor hall sensor fault). The hall sensors inside the motor communicate rotor position to the controller. A broken sensor wire inside the motor shaft or a disconnected plug at the controller side causes this code. Check the main motor connector first.

If the plug looks clean and seated, the fault is likely internal. Motor replacement is the typical solution.

E4 (Controller fault). This code means the controller detected an internal anomaly. Disconnect the battery and let the scooter sit for 30 minutes. Reconnect and power on.

If the code returns, the controller needs replacement. A new controller typically runs $35 to $50.

E5 (Battery undervoltage). The BMS detected voltage below the safe operating threshold. Charge the scooter fully. If the code clears but returns shortly after riding, one or more battery cells may be degraded.

Try a firmware update via the NIU app first, as updates have resolved some false E5 reports.

E6 (Communication loss). The dashboard cannot communicate with the controller. This is commonly a loose signal wire or corrosion in the dashboard connector. Open the stem top, disconnect the dashboard ribbon cable, clean the contacts with isopropyl alcohol, and reseat it firmly.

E7 (Motor phase fault). A short circuit in one of the three motor phase wires. If you smell burning or feel heat at the motor hub, stop riding immediately. Inspect the phase wires at the controller and motor.

Burnt insulation means motor replacement.

E8 (Kickstand sensor). The scooter thinks the kickstand is down. Lift the kickstand fully. If the code stays, the sensor inside the kickstand mechanism may be stuck or broken.

A replacement sensor costs around $10.

E9 (Overcurrent). The controller detected current draw above its safety limit. This often happens when climbing a steep hill with low battery. Let the scooter cool for 30 minutes and try again on flat ground.

Repeated E9 codes under normal riding conditions suggest a failing controller or motor winding short.

When to Reset vs. When to Replace Parts

A full power cycle resolves roughly 40% of first-time error appearances. Disconnect the battery. Wait 60 seconds.

Reconnect. Power on. If the code clears and does not return after a test ride, you are done.

If the code returns, check all connectors in the affected circuit path. Do not throw a new throttle at an E1 code until you have verified the connector and wiring are sound. Do not keep resetting a scooter that shows E7 or E9 repeatedly.

These codes indicate genuine component stress that will not fix itself.

Mistakes That Make Things Worse

Ignoring the code. Some riders clear the error and keep riding without investigating. A code that reappears mid-ride at 20 mph can cause sudden power loss. That is a safety risk.

Using the wrong tools. Prying connectors apart with a screwdriver can bend pins. Use your fingers or a plastic pry tool. Replacements cost time and money.

Overtightening bolts. When reinstalling the brake lever sensor or throttle assembly, snug the bolts to hand-tight plus a quarter turn. Overtightening cracks plastic housings.

Skipping the multimeter test. Guessing which component failed wastes money. A $15 multimeter confirms the fault before you buy parts.

Forcing a firmware update on low battery. The NIU app warns you about this for a reason. A failed update during low power can brick the controller. Charge fully before updating.

Frequently Asked Questions

What does E1 mean on a NIU KQi2 Pro?

E1 indicates a throttle hall sensor fault. The throttle signal is out of the expected range. Check the throttle connector first.

Test the throttle voltage with a multimeter. Replace the throttle assembly if voltage readings are erratic or missing.

How do I clear an error code on my NIU KQi2 Pro?

Disconnect the battery. Wait 60 seconds. Reconnect and power on.

This full power cycle clears about 40% of first-time error codes. If the code returns after a test ride, follow the diagnostic steps for that specific code.

Can I ride my KQi2 Pro with an error code displayed?

No. Riding with an active error code risks sudden power loss. This is especially dangerous at higher speeds or in traffic.

Stop and diagnose the issue. Most codes indicate a safety-related component that disables motor engagement intentionally.

Why does my KQi2 Pro show E2 after riding in rain?

The brake lever microswitch can get stuck when moisture and debris collect behind the lever pivot. Spray contact cleaner into the switch gap. Work the brake lever back and forth.

Dry the area thoroughly before riding again.

How much does it cost to fix a NIU KQi2 Pro error code?

Most fixes cost under $25 if you do the work yourself. A throttle assembly runs $15 to $25. A brake lever sensor costs $10 to $15.

A new controller is $35 to $50. A multimeter is a one-time investment around $15.
