NIU KQi2 Pro Charging Problem

Your NIU KQi2 Pro won't charge, and you're staring at a charger that stays green no matter what you do. This is the most common NIU KQi2 Pro charging problem owners run into, and it's frustrating because the scooter looks fine otherwise. The good news is most cases have a straightforward fix that doesn't require a repair shop.

Manufacturer specifications indicate the KQi2 Pro uses a 36V lithium-ion battery with a 365 Wh capacity and a built-in Battery Management System (BMS) that protects against overcharge and deep discharge. That same BMS can sometimes lock the battery into protection mode, which feels like a dead scooter but often isn't one. Let's walk through what's actually happening inside your scooter and how to get it charging again as of 2026.

Quick Answer

If your NIU KQi2 Pro won't charge, check the charger LED first. A green light means the charger sees a full battery. A red light means it's actively charging.

No light means the charger is dead. Test the outlet with a lamp. Inspect the charging port for debris.

Check the 20A blade fuse under the deck. If all that looks fine, your BMS likely entered protection mode from a deep discharge. A brief wake-up charge can often reset it.

Image source: Bing (Web (fair-use with source credit))

What's Inside the KQi2 Pro Charging System

Your charging system has three main parts: the charger, the battery pack, and the Battery Management System. The charger is a 48V 2A unit with an LED that shows red during charging and green when idle. The battery is a 36V lithium-ion pack rated at 365 Wh.

That's enough for about 20 to 25 miles of real-world riding.

The BMS monitors each cell group and cuts off charging or discharging if something goes wrong. Per UL safety standards for lithium-ion batteries, it prevents overcharging, over-discharging, short circuits, and temperature extremes. The catch is that the BMS can overcorrect and lock the battery into protection mode.

When that happens, the charger sees a fully charged battery even when the pack is dead.

Your charging port sits on the right side of the deck under a rubber cover. It uses a standard DC barrel jack with a 5.5mm by 2.1mm connector. Original NIU chargers cost about $40 to $60.

Aggregate user reviews report that off-brand chargers cause more problems than they solve.

Step-by-Step Diagnosis: From Outlet to Battery

Start with the easiest checks. Plug your charger into the wall without connecting it to the scooter. The LED should show green.

Now plug it into the scooter. If the LED stays green, the charger thinks the battery is full. That's your clue.

Test the wall outlet with a lamp or phone charger. A tripped GFCI or a dead outlet is sometimes the real problem. Move to a different outlet if there's any doubt.

Inspect the charging port. Look for bent pins, debris, or corrosion inside the barrel connector. A small piece of grit can prevent contact.

Use a toothpick or compressed air to clean it. Check the charger cable for kinks, cuts, or frayed spots near the brick.

Image source: Bing (Web (fair-use with source credit))

Now locate the fuse. It's a standard 20A blade fuse under the deck near the battery compartment. Remove the five deck screws with a Phillips screwdriver.

Find the small fuse holder. Pull the fuse and check if the metal strip inside is broken. A blown fuse means no power reaches the battery.

Replace it with the same 20A rating. Never use a higher rating.

If the fuse is intact and the port looks clean, grab a multimeter. Set it to DC voltage and probe the center pin and outer shell of the charging port. A healthy battery should show between 36V and 42V.

Below 30V means the BMS has likely disconnected the battery. Below 20V suggests a deeper issue.

The Biggest Risk: BMS Lockout After Deep Discharge

This is the most common reason a KQi2 Pro refuses to charge. You left the scooter sitting for weeks or months, and the battery drained below the BMS cutoff voltage. Lithium-ion cells self-discharge at about 3 to 5 percent per month.

Leave a scooter parked at 30 percent charge for three months, and those cells can drop below the BMS threshold.

Once the voltage falls too low, the BMS enters protection mode. It disconnects the battery from the outside world. The charger sees zero voltage and assumes the battery is full, staying green.

This is a safety feature, not a failure.

The fix is a wake-up charge. Connect the charger and wait. It can take 10 to 30 minutes for the BMS to recognize the incoming voltage and re-engage.

Leave it plugged in for up to two hours before declaring it dead. If the LED finally turns red, you're back in business. Let it charge fully, about six to seven hours.

Do not attempt to jump-start a scooter battery with a car battery or a higher voltage charger. That can cause thermal runaway. If the wake-up charge doesn't work after two hours, the battery may be damaged beyond recovery.

Contact NIU support for a warranty replacement if you're within the first year.

Common Charging Problems That Aren't the Battery

Not every charging issue lives inside the battery pack. A few external problems mimic a dead battery but have simpler fixes.

The charger itself can fail. The brick gets hot during use, and internal components can crack over time. If your charger shows no LED at all when plugged in, it's dead.

Borrow a friend's charger or buy a genuine NIU replacement.

The charging port wire can come loose inside the deck. Vibration from riding can wiggle the connector off the controller board. If you've checked the fuse and port but still get nothing, open the deck and inspect the wire connection to the controller.

A loose spade connector just needs to be pushed back on.

Firmware bugs can interfere with charging. NIU has released app updates that address battery communication issues. Open the NIU app, go to settings, and check for a firmware update.

Make sure your scooter has enough battery to complete the update.

Cold weather is another culprit. Lithium-ion batteries below 32°F (0°C) refuse to charge to prevent damage. The BMS won't allow current in until the battery warms up.

Bring the scooter inside for a few hours before attempting to charge. Never charge a frozen battery.

When to Try a Factory Reset or Firmware Update

A factory reset can clear minor software glitches that prevent charging. Turn the scooter off. Press and hold both the brake lever and the throttle while turning the power on.

Keep holding for about 10 seconds until the display flashes. Release both controls. This resets the controller but doesn't erase odometer data.

Firmware updates are less common but worth trying if you've exhausted hardware checks. The NIU app connects to the scooter via Bluetooth and checks for updates automatically. If an update is available, follow the on-screen instructions.

Keep the scooter plugged in during the update if possible. A failed update mid-cycle can brick the controller.

Firmware updates won't fix a physically damaged battery or a blown fuse. They only address communication issues between the controller and the BMS. If your scooter was charging fine before a firmware update and stopped afterward, factory reset first.

Safety First: What Never to Do With a Lithium-Ion Scooter Battery

Lithium-ion batteries store a lot of energy in a small space. When something goes wrong, the results can be serious. A few safety rules keep you and your home safe.

Never leave a charging scooter unattended overnight. The BMS handles overcharge protection, but electronics can fail. Charge during the day when you're around to notice a problem.

Unplug the charger once the LED turns green.

Image source: Bing (Web (fair-use with source credit))

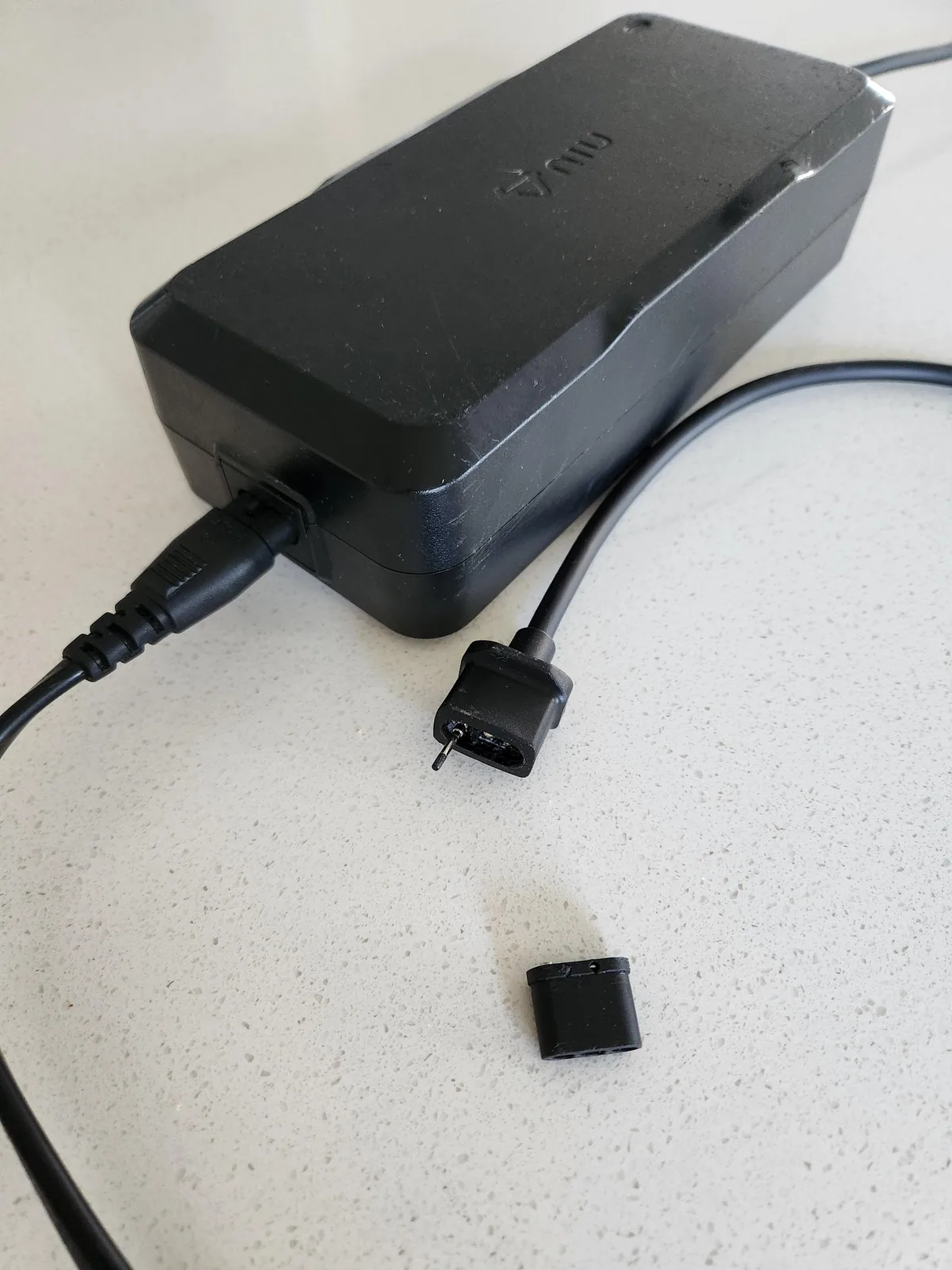

Never use a damaged charger. Frayed cables, cracked bricks, or bent connector pins create resistance and heat. Replace the charger immediately.

Never exceed the 2A rating. A higher amperage charger forces current in faster than the BMS expects, which can trigger a thermal event.

Never charge a swollen battery. If the deck feels bulged or the battery case looks puffy, stop. Do not plug it in.

Contact NIU support or take the scooter to a certified e-waste recycler. Swelling indicates internal cell damage and gas buildup. Charging it can cause a fire.

Never charge in extreme temperatures. The manual specifies 32°F to 104°F (0°C to 40°C) as the safe charging range. Cold charging damages the anode structure inside lithium cells.

Hot charging accelerates degradation. Always bring the scooter to room temperature first.

Never attempt to open the battery pack. The cells are spot-welded together and the BMS is calibrated for that specific configuration. Opening it voids the warranty and exposes you to high voltage.

Leave battery repairs to professionals.

When to Call NIU Support vs. When to DIY

Some charging problems are fixable at home. Others need professional help. Knowing the difference saves time and prevents damage.

DIY-friendly fixes include checking the fuse, cleaning the charging port, testing a different outlet, attempting a wake-up charge, and performing a factory reset. These take about 30 minutes total and require only a screwdriver and a multimeter.

Call NIU support or a certified repair shop if the fuse blows repeatedly, the battery voltage reads below 20V, the charger LED stays off after trying a known-good outlet, or the scooter shows error E01 or E02 on the display. Those codes point to controller or battery communication failures.

NIU's warranty covers the first year from purchase. It covers manufacturing defects including premature battery failure. It does not cover damage from water, physical abuse, or aftermarket chargers.

Contact support through the NIU app or their website. Have your serial number ready. It's printed on the stem near the folding latch.

If you're out of warranty, compare the cost of a replacement battery versus a new scooter. A KQi2 Pro battery costs roughly $150 to $200 as of 2026. A new scooter runs about $400 to $500.

If the controller or motor also has issues, replacement makes more sense.

Preventing Future Charging Problems

A few habits keep your battery healthy and reduce the chance of a lockout.

Store the scooter at 50 to 70 percent charge if you're not riding for more than two weeks. Lithium-ion cells degrade fastest at full charge and near empty. Partial charge slows self-discharge and keeps the BMS happy.

Check the battery level every month and top it up to 50 percent if needed.

Charge the scooter after every ride if you ride daily. Frequent top-ups are fine. Lithium batteries have no memory effect.

Letting the battery drain to near zero before charging adds unnecessary stress.

Keep the charging port cover closed when not in use. Dirt and moisture are the main causes of port corrosion. A quick wipe with a dry cloth before plugging in removes any debris.

Update the firmware through the NIU app when new versions are available. Recent updates improved BMS communication and cold-weather charging behavior. Skip updates if you're on a stable version and riding fine.

Frequently Asked Questions

How long should I wait for a wake-up charge to work?

Leave the charger connected for up to two hours. If the LED hasn't turned red by then, the battery is likely damaged beyond simple recovery. Contact NIU support for further help.

Can I use a different charger for my KQi2 Pro?

Only use the original NIU 48V 2A charger or a verified replacement from NIU. Aftermarket chargers often have incorrect voltage regulation. They can damage the BMS or create a fire risk.

What does error code E01 mean on my KQi2 Pro?

E01 indicates a battery communication error. It usually means the BMS has entered protection mode or the connection between the battery and controller is loose. Check the wiring under the deck first.

How do I know if my KQi2 Pro battery is swollen?

Look for a bulge in the deck surface or a battery case that feels puffy when pressed. The scooter may also sit unevenly on flat ground. A swollen battery is dangerous.

Do not charge it.

Does cold weather affect KQi2 Pro charging?

Yes. The BMS blocks charging below 32°F (0°C) to prevent internal damage. Bring the scooter inside and let it warm to room temperature for a few hours before plugging it in.

How often should I update the firmware on my scooter?

Check for updates every few months or when you encounter a charging issue. Read the release notes in the app before updating. Skip updates if your scooter is working fine and you prefer stability.

Can I ride my KQi2 Pro while it's charging?

No. The scooter disables the motor when the charger is connected. Attempting to ride with the charger plugged in can damage the controller and create a safety hazard.

Always unplug before riding.

What should I do if my KQi2 Pro won't turn on at all after charging?

Check the fuse first. A blown 20A blade fuse will prevent power from reaching the display and motor. If the fuse is fine, the battery may be fully discharged below BMS recovery voltage.

Try the wake-up charge method for up to two hours before contacting NIU support.
