NIU KQi3 Pro Charger Problem

If you're staring at a NIU KQi3 Pro charger problem right now, you've probably seen one of three symptoms: a charger that turns green instantly, an LED that blinks without settling, or a scooter that stays dead no matter how long it's plugged in. All three look like a battery failure, but only one usually is. The good news is that most trace back to a worn-out charger or a tiny connection fault, not the expensive battery pack.

The KQi3 Pro runs a 48V lithium-ion battery (486Wh) fed by a 54.6V, 2A charging brick. Under UL 2272 certification, the Battery Management System locks the pack when it detects abnormal charging patterns. That lockout is exactly what most people mistake for a broken charger.

Let's walk through it in order so you can fix yours without guessing.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Most NIU KQi3 Pro charger problems are not the charger. The charger turns green immediately because the battery won't draw current. This usually means a bent port pin, a BMS lockout, or a deeply discharged pack.

A multimeter check confirms the charger is fine 80 percent of the time. Replace the charger only if it outputs zero volts.

Is It the Charger or the Scooter?

Plug the charger in and watch the LED for about 60 seconds. That tiny light is the whole decision tree in miniature.

A solid red LED for the first hour means the charger is healthy. The real issue is a battery that needs the full 7 to 8 hour charge cycle at the stock 2A output. Most KQi3 Pro owners expect a faster charge, and that mismatch creates panic.

Green almost immediately tells a different story. The charger outputs voltage, but the battery won't draw it. That fault lives on the scooter side, not the charger.

A blinking LED points to a physical contact problem, which we'll inspect next.

The 30-Second Check That Tells You a Lot

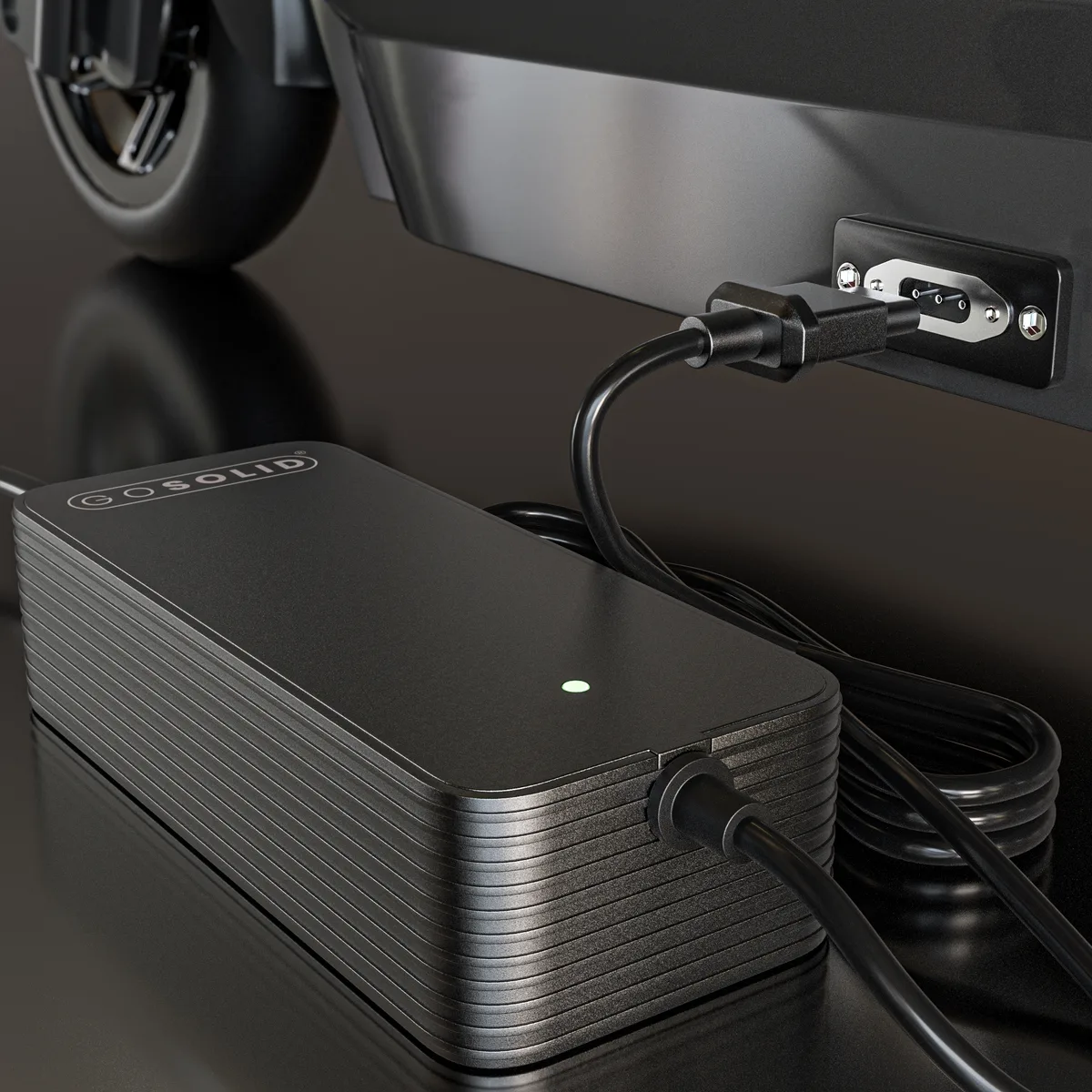

Do this before you buy anything. Unplug the charger from the scooter and plug it into the wall by itself. The stock NIU charger shows a solid green LED when it's idle and has power.

No light means a dead charger or an outlet with no juice. Try another outlet and inspect the cable for cuts or a bent tip.

If the charger lights up, plug it into the scooter and watch the LED again. Solid red means charging is happening, and your problem might just be arithmetic. At 2A, a drained 486Wh pack takes roughly 7 hours to refill.

That's not a fault. It's just a long charge window.

For the definitive answer, you need a multimeter. Set it to DC volts, touch the probes to the charger's output connector, and read the screen. A healthy charger reads about 54.6V.

Zero volts means the charger is dead. Anything below 52V means it's weak enough to trip the BMS into a false fault.

Image source: Bing (Web (fair-use with source credit))

Where the Problem Usually Hides

Once the charger proves it can output power, the next suspect is the charging port on the scooter itself. Pull the rubber cover open and look at the pins. They should be straight, bright, and springy.

Bent pins are the number one physical failure on the KQi3 Pro. The connector gets knocked when the scooter is folded, carried, or tipped over. A bent pin won't make contact, so the charger treats it like nothing is plugged in.

The LED goes green instantly.

Corrosion is the other common culprit. In humid climates, moisture sneaks past the port cover and oxidizes the contacts. You'll see a gray or green powdery film on the metal.

Clean it gently with electrical contact cleaner and a cotton swab.

Image source: Bing (Web (fair-use with source credit))

If the pins are bent or the plastic housing is cracked, you're looking at a port replacement. That's a $25 to $40 part. It's a straightforward DIY swap.

If you're not comfortable opening the deck, any local scooter shop can do it in under 20 minutes.

The Three Most Common Mistakes Riders Make

Most KQi3 Pro charging issues trace back to simple errors. Here are the ones we see most often.

Mistake 1: Using the wrong charger.

The KQi3 Pro needs 54.6V, while the KQi2 Pro uses 42V. The two chargers look nearly identical. Some third-party listings even call them cross-compatible.

A 42V charger will show a green light but never charge the battery, because the BMS rejects the lower voltage. Always check the output label before plugging anything in.

Mistake 2: Charging in freezing temperatures.

Lithium-ion cells won't accept a charge below freezing. The BMS locks the charging path. If you roll the scooter in from an unheated garage and plug in immediately, you'll see a green light or a blinking LED.

Bring it inside and let it warm up for an hour. Then retry.

Mistake 3: Storing at zero percent.

A deeply discharged battery triggers BMS sleep mode after a couple of weeks. When you connect the charger, the LED flickers and then goes solid green. You can usually wake the pack by unplugging everything, holding the power button for 15 seconds, and trying a fresh charge.

When It's Actually the Battery

You've confirmed the charger outputs 54.6V. The port pins are straight. The cable is intact.

The charger still shows green. That's when you stop blaming the charger and start suspecting the pack.

The KQi3 Pro's BMS is protective to a fault. If the battery sat dead for two weeks or more, the system goes into a sleep state that ignores the charger entirely. The charger looks fine because it outputs voltage, but the scooter won't draw a single watt.

The usual fix is a BMS reset. Unplug everything. Hold the power button for 15 seconds.

Then reconnect the charger.

Cell imbalance is the second big scenario. The charger turns green early when some cell groups sit at different voltages. The symptom is a short charge time with terrible range.

Try three full discharge and recharge cycles. Log the results after each one.

If range doesn't recover by the third cycle, the pack needs professional attention. As of 2026, a genuine NIU replacement battery runs about $380 to $450. That can exceed the scooter's resale value.

Before you sink that into a repair, check what current electric scooter options cost at the same budget.

If you want an official diagnosis, NIU's support team has a documented recovery procedure. Open a case before buying any parts.

Should You Replace the Charger or Call NIU?

It comes down to one thing: what your multimeter told you. A dead brick needs a charger replacement. A healthy charger with a scooter that won't charge points to the port or battery instead.

If your charger read 0V, that's a clear charger failure. The stock replacement costs about $60 to $80 from NIU. Third-party versions run $25 to $45, but double-check the output voltage.

The KQi3 Pro needs 54.6V at 2A. A mislabeled charger can trip the BMS and look like the same problem.

Check your warranty before you order anything. NIU covers charger defects in the first year. Contact NIU's support team with your serial number.

They'll typically send a free replacement for a confirmed fault.

If the port has bent pins or corrosion, that's a scooter-side part. The replacement port costs about $25 to $40. It's a 20-minute DIY job if you're comfortable opening the deck.

Otherwise, a local shop will do it cheaply.

The worst case is a battery fault. A locked BMS can sometimes be revived with a reset. But a swollen pack or a persistent charge error means a replacement.

That runs $380 to $450. Before you commit to that cost, compare it against the price of a new scooter. The KQi3 Pro's resale value drops fast after the first year.

Safety Warnings You Can't Ignore

Charging a lithium battery is safe when everything works. The danger shows up when a cheap charger, a damaged port, or a swollen cell enters the picture. Don't skip these warnings.

Use only a charger that matches NIU's spec sheet. The KQi3 Pro needs 54.6V and 2A. An unbranded charger could output the wrong voltage and stress the BMS.

It might even catch fire.

Never charge on a bed, sofa, or carpet. Use a hard, clear surface with nothing on top of the scooter. If you charge overnight, keep it away from curtains and paper.

Don't charge immediately after riding in freezing weather. The BMS blocks current below 10°C. Let the battery warm up indoors for about an hour.

Then plug it in.

Watch for red flags during charging. A hot charger, an acrid smell, or a buzzing brick means unplug it right away. Same for a blinking LED that won't settle.

These are early signs of a failing charger or a short in the port.

If the battery swells, pop the deck and inspect it. A swollen cell is a fire hazard. Don't ride it.

Don't charge it. Don't throw it in the trash. Take it to a proper e-waste drop-off.

These rules follow what UL 2272 certification demands. The standard exists because lithium fires burn fast and are hard to extinguish. Treat the charger like a serious tool, not a phone brick.

That respect keeps the scooter running for years.

Frequently Asked Questions

Why does my NIU KQi3 Pro charger turn green immediately?

That means the battery isn't drawing any current. It happens when the pack is full, the BMS has locked out after a deep discharge, or the port has a bad connection. Check the pins first.

Then try the BMS reset procedure.

Can I use a fast charger on my NIU KQi3 Pro?

Yes, but only a 54.6V charger with a higher amp output. The BMS regulates the rate. A 3A or 5A charger cuts charge time to about two to three hours.

It also reduces battery lifespan slightly. Use the stock 2A charger for daily charging.

What does a blinking charger light mean?

It usually signals a loose connection at the port or an unstable charger. Wiggle the connector while watching the LED. If the light flickers when you move the cable, replace the charger.

If it flickers when you move the scooter-side plug, the port is damaged.

How do I reset the BMS on my NIU KQi3 Pro?

Unplug the charger. Press and hold the power button for 15 seconds. Release it and wait 30 seconds.

Reconnect the charger and try again. This wakes the pack from sleep mode after a deep discharge.

Can I leave my NIU KQi3 Pro charging overnight?

Yes, the BMS stops charging when the pack is full. That prevents overcharging. But avoid flammable surfaces and don't leave it completely unattended.

If the charger gets hot or smells odd, unplug it immediately.
