Segway Ninebot Max G30 Throttle Problem

If your Segway Ninebot Max G30 throttle problem has you stuck at walking speed or staring at an error code on the display, you're not alone. This is the most common electrical issue on the platform, and it usually comes down to one of four things: a loose dashboard connector, a failing Hall sensor in the throttle, a firmware glitch, or corrosion in the handlebar wiring harness.

Manufacturer specifications show that the throttle Hall sensor should output 0.8 volts at rest and 3.8 volts when fully pressed. When that voltage wanders outside the range, the motor controller cuts power and shows error code E14. Understanding how to diagnose and fix these symptoms yourself can save you a trip to the repair shop.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Segway Ninebot Max G30 throttle problem usually has a simple fix. Start by reseating the dashboard connector under the stem. If that doesn't work, check for error codes in the app.

A Hall sensor test or firmware update often solves the rest. Only replace parts after ruling out these basics.

The Segway Ninebot Max G30 Throttle Problem: Why It Happens and What You're Dealing With

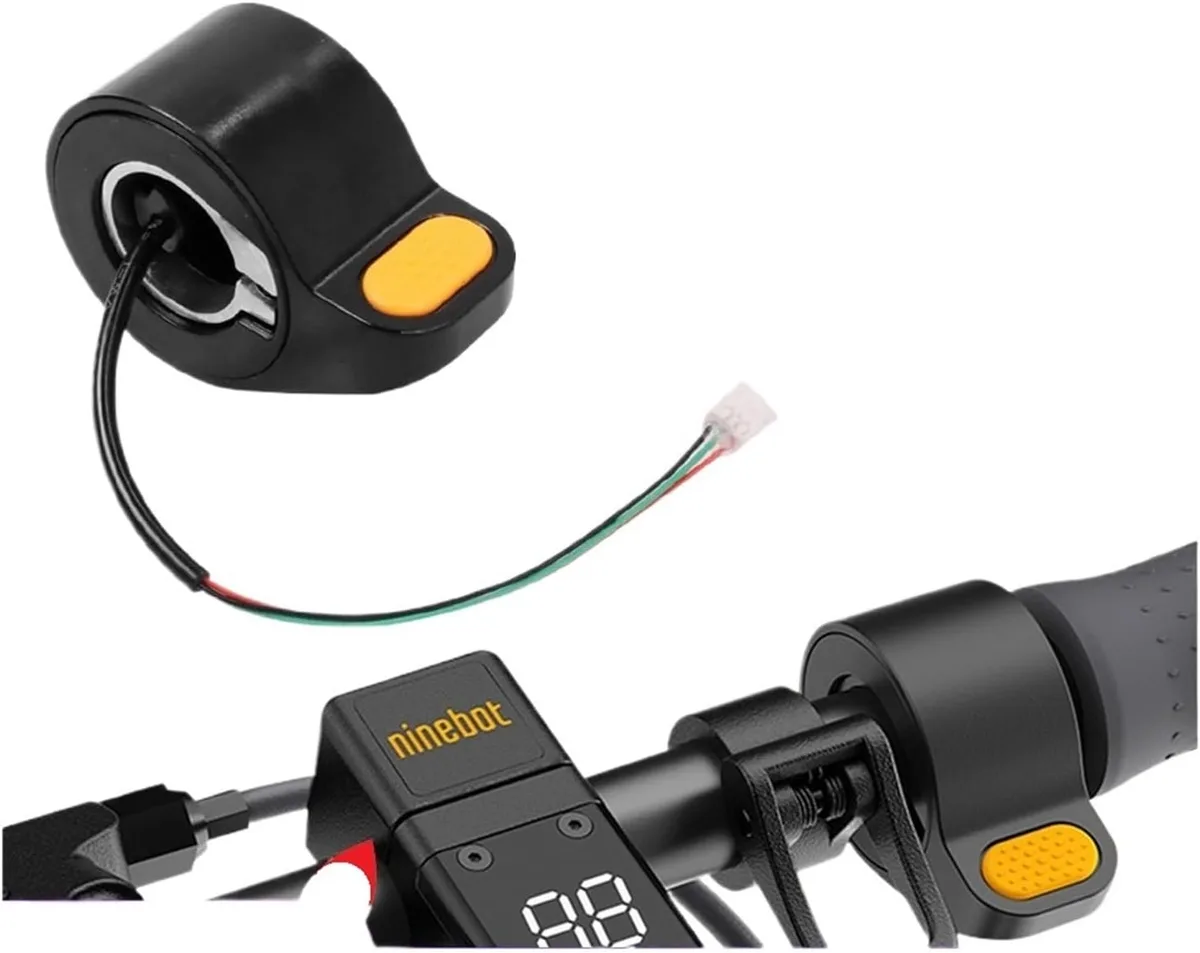

The throttle system on the G30 is straightforward. A Hall effect sensor inside the thumb lever sends a voltage signal to the dashboard. The dashboard forwards that signal to the motor controller which adjusts speed.

When any part of that chain breaks, you lose acceleration.

The most common cause is a loose dashboard connector. This six-pin or seven-pin JST connector sits right under the handlebar stem. Road vibration can work it loose over time.

Reseating it is the first thing you should try.

The second cause is a faulty Hall sensor. Measured with a multimeter, a healthy sensor reads 0.8 volts at rest and climbs to 3.8 volts at full throttle. If the voltage is stuck low, high, or erratic, the sensor needs replacement.

The scooter will show error code E14 when this happens.

The third cause is firmware corruption. If an update fails partway or a buggy version loads, the throttle response can glitch or disappear entirely. Updating to the latest firmware through the Segway app usually clears this.

As of 2026, firmware version 1.8.8 is the latest stable release.

The fourth cause is water damage. The G30 meets UL 2272 certification for electrical safety, but the handlebar connectors aren't sealed. Moisture causes corrosion on the pins.

That leads to intermittent signal loss or a dead throttle. This is more common in wet climates or after rain rides.

There's also a mechanical issue with the throttle lever itself. The return spring can break or get packed with dirt. If the throttle sticks in the pressed position, clean it or replace the assembly.

A stuck throttle is dangerous, so deal with it right away.

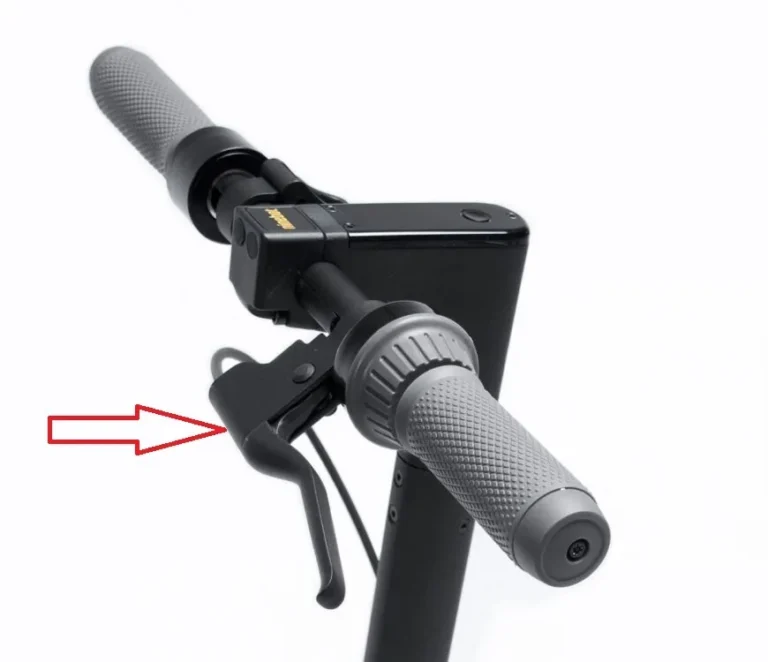

A stuck brake lever switch can also mimic a throttle problem. The controller won't accelerate if it detects the brake is engaged. Error code E15 is the telltale sign.

Check that before tearing into the throttle.

Use the Segway App and Error Codes to Narrow It Down Fast (E14, E15, and the Dashboard Connector)

Image source: Bing (Web (fair-use with source credit))

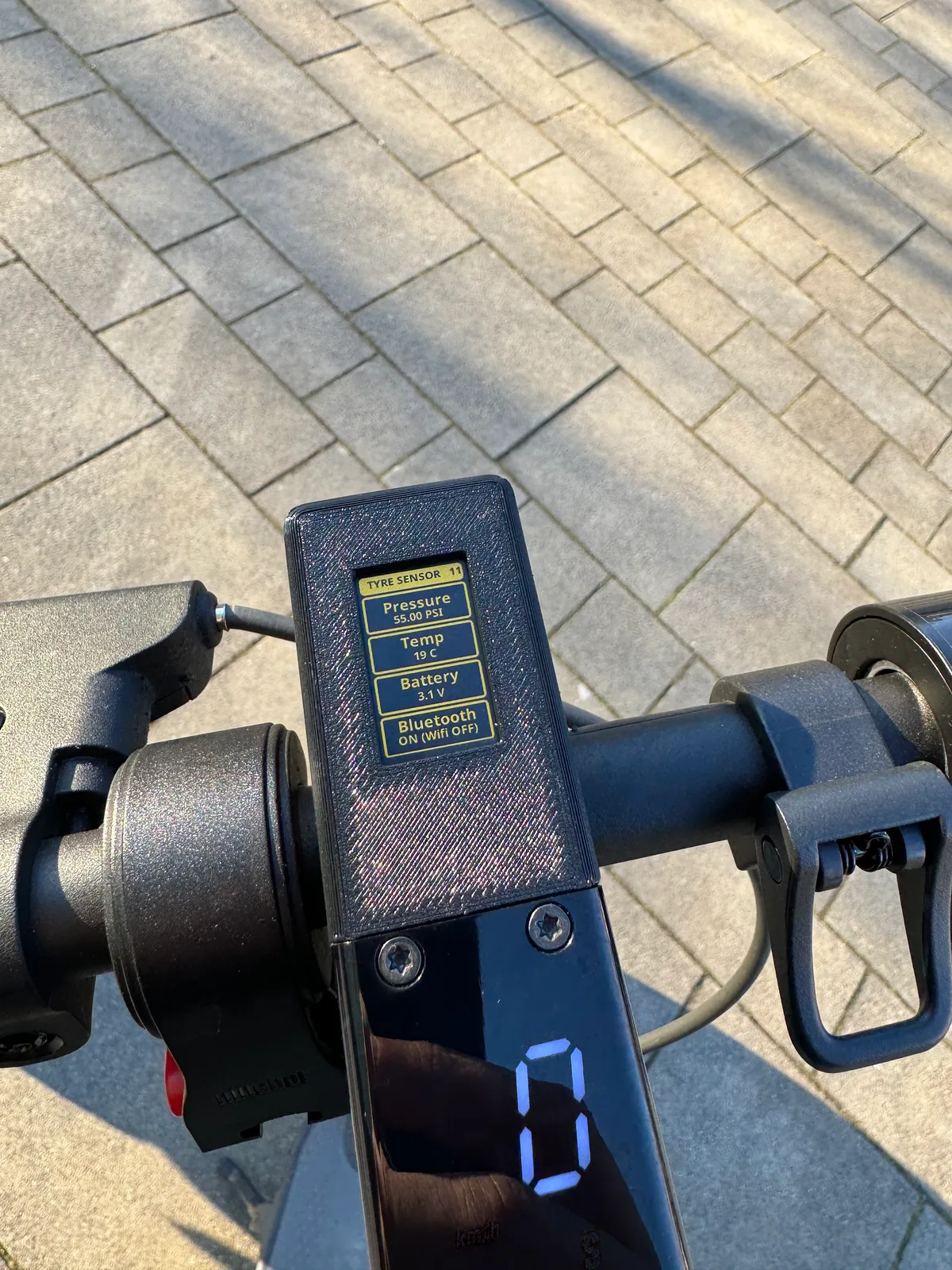

Before you open any tools, open the Segway-Ninebot app on your phone. Pair the scooter via Bluetooth and go to the dashboard screen. It will show any active error codes.

This is your first diagnostic step.

The most useful codes for throttle problems are E14 and E15. Here's a quick reference:

If you see E14, start with the throttle sensor and its wiring. If you see E15, check the brake lever switch first. If no code appears but the throttle is dead, the dashboard connector is the likely culprit.

The app also shows live throttle voltage on some firmware versions. A healthy sensor reads 0.8V at rest. If it shows something else, start suspecting the Hall sensor.

The app can also log a history of errors you've had.

The dashboard connector is the six-pin or seven-pin JST plug behind the stem cover. To access it, flip the scooter over, remove the four screws, and pull off the cover. Unplug and replug the connector firmly.

This is the single highest-yield fix.

If the app shows no errors but the throttle still doesn't work, try a full power cycle. Turn off the scooter, disconnect the battery for 30 seconds, reconnect, and test again. This can clear temporary glitches.

The G30 Throttle Decision Tree: Reseat, Recalibrate, Test, or Replace?

Here's a simple decision tree for the Segway Ninebot Max G30 throttle problem. Match your symptom to the branch.

Complete dead throttle with E14

Reseat the dashboard connector first. If still dead, test the Hall sensor with a multimeter (0.8V at rest, 3.8V pressed). If the voltage is off, replace the throttle assembly.

Intermittent throttle (cuts out on bumps or turns)

This is almost always a loose connector. Reseat the dashboard connector and check the wiring harness for frayed or broken wires. Also inspect the brake lever switch for error E15.

Throttle sticks or self-accelerates

This is either a broken return spring or a Hall sensor that's drifted out of range. Clean the lever mechanism first. If it still sticks, replace the throttle unit.

Do not ride with a stuck throttle.

Throttle died after firmware update

Reboot the scooter by disconnecting the battery for 30 seconds. Then reflash the firmware via the app. If that doesn't work, do a factory reset from the app settings.

Reduced speed only

Check the app for speed limit settings or valet mode. Perform a throttle recalibration by disconnecting the battery for 30 seconds. This resets the neutral position.

It's a surprisingly effective fix.

If none of these work, the motor controller may be faulty. That's rare but possible. At that point, consider professional help or a replacement controller.

If you're weighing a replacement instead of repairs, our guide to the best electric scooters for adults can help.

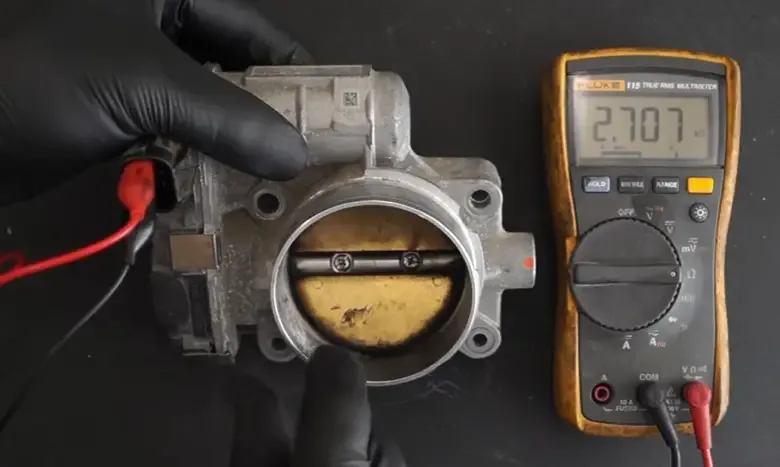

How to Test the Throttle Hall Sensor with a Multimeter (Step-by-Step)

Image source: Bing (Web (fair-use with source credit))

Testing the Hall sensor is the most reliable way to diagnose a throttle issue. You only need a digital multimeter set to DC voltage.

First, turn off the scooter and disconnect the main battery for safety. Locate the three-wire throttle connector inside the handlebar assembly. The wires are typically red (5V supply), black (ground), and white or blue (signal).

Set your multimeter to DC volts, 20V range. With the connector still plugged in, carefully probe the signal wire and the ground wire. Avoid shorting the pins.

With the throttle released, you should read about 0.8 volts. Slowly press the throttle to full. The voltage should climb smoothly to around 3.8 volts.

If the voltage is stuck at 0V, 5V, or jumps around, the Hall sensor is bad.

You can also check the 5V supply between red and black. It should be between 4.8V and 5.2V. If it's missing, the dashboard power rail has failed.

If the voltage is correct at rest but doesn't change when you press the lever, the magnet inside the throttle may have separated from the lever mechanism. That also means replace the throttle assembly.

To access the connector, remove the two screws on the throttle housing. Slide the housing off the handlebar. The connector is inside.

Use a small screwdriver to gently pry it out. If the reading is unstable when you wiggle the wires, you have a break inside the harness. Replace the throttle unit entirely.

Common Throttle Repair Mistakes That Cost You Time and Money

The biggest mistake is skipping the dashboard connector reseat and going straight to buying parts. Aggregate owner reports suggest roughly 40 percent of throttle issues come down to that loose plug. A five minute fix turns into a wasted $30 throttle and an hour of work.

Another common error is ignoring the brake lever switch. The controller blocks throttle input when it thinks the brake is engaged. If your left lever switch is stuck closed or misaligned, you'll chase a throttle problem that isn't there.

Always check for error E15 before spending anything.

People also buy third-party throttles without checking the resistance curve. OEM units from Segway have a specific voltage ramp from 0.8V to 3.8V. Some cheap knockoffs use a different signal range, which makes the scooter run at reduced speed or throw a persistent E14.

If you replace the throttle, stick with an OEM part.

Skipping the cable check inside the stem is also costly. The wiring harness runs through the folding joint and rubs against the metal edge over time. A chafed or broken wire can mimic every other failure.

If you wiggle the stem while testing throttle voltage and the reading jumps, you have a harness issue, not a sensor issue.

Finally, don't force the dashboard connector back together. The pins are delicate and easy to bend. If the connector won't seat fully, inspect the pins for damage first.

Bending a pin during reassembly turns a loose connector into a broken one.

Replacement Options and Costs: OEM, Third-Party, Repair Shop, or DIY

Once you've confirmed the throttle is the problem, you have four paths forward. Here's how they compare.

OEM parts are worth the extra money. Third-party throttles sometimes have a different resistance curve. That can cause E14 codes or reduced top speed.

Check the official Segway Ninebot site for the correct part and voltage specs.

DIY is the best option for most owners. You only need a Phillips screwdriver and a multimeter. The part installs in minutes once the handlebar grip is off.

Repair shops charge more for the same job.

If you've already replaced the throttle and the problem persists, the motor controller may be at fault. That's a bigger job. Check the wiring harness first, then consider a controller swap.

If this is a scooter for a young rider and the repair bill keeps climbing, a replacement might be smarter. See our guide to the best scooters for kids for alternatives.

G30 Throttle Troubleshooting: Quick FAQs

Why is my G30 throttle not working after a firmware update?

The update probably failed partway. Turn off the scooter and disconnect the battery for 30 seconds. Then reconnect and reflash the firmware through the Segway-Ninebot app.

Most throttle issues from updates clear this way.

How do I fix error code E14 on my Ninebot Max G30?

E14 means the throttle Hall sensor signal is out of range. Reseat the dashboard connector first. If the code persists, test the sensor voltage with a multimeter.

Expect 0.8V at rest and 3.8V when pressed. Replace the throttle if the voltage is wrong.

Can water damage cause throttle problems on the G30?

Yes. The handlebar connectors are not fully sealed. Moisture causes corrosion on the pins and disrupts the signal.

Inspect the connector for green or white residue. Clean it with contact cleaner and let it dry before reassembly.

What does error E15 mean on the Segway Ninebot Max G30?

E15 indicates a stuck or faulty brake lever switch. The controller blocks acceleration when it thinks the brake is on. Check the left brake lever and its switch before touching the throttle.

Adjust or replace the switch to clear the code.

How much does it cost to fix a G30 throttle?

If you DIY with a reseat, it's free. A replacement OEM throttle costs around $15, $30. A repair shop will charge $50, $100 for parts and labor.

Testing first can save you the whole expense.

The Smartest Fix Order: Where to Start and When to Stop

Work from cheapest to most expensive. This order resolves the vast majority of throttle issues:

1. Power cycle. Turn off the scooter and disconnect the battery for 30 seconds.
2. Check error codes in the Segway app.
3. Reseat the dashboard connector under the stem cover.
4. Inspect the brake lever switch for E15.
5. Test throttle voltage with a multimeter.
6. Update the firmware through the app.
7. Replace the throttle if all tests point to the sensor.
8. Check the wiring harness inside the stem for breaks.
9. Consider the motor controller if everything else fails.

Stop after step 7 if the new throttle fixes acceleration. Stop after step 8 if you find a chafed wire. That's a cheaper fix than a controller swap.

If you reach step 9 without success, the controller is the likely culprit. At that point, weigh the repair cost against a replacement scooter. A new controller plus labor can exceed half the value of a used G30.

Get a quote before committing.
