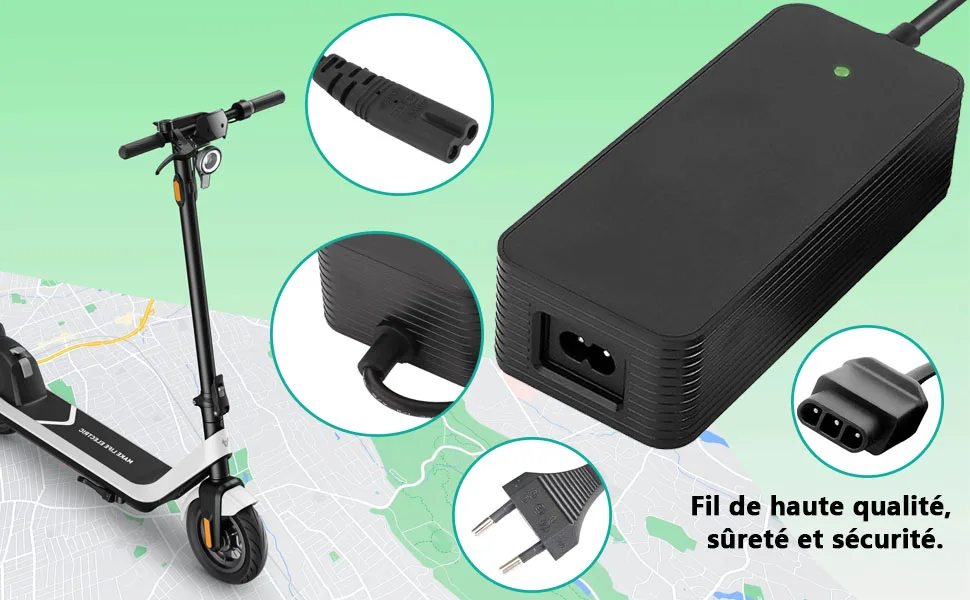

NIU KQi3 Pro Not Charging

If your NIU KQi3 Pro not charging, you are not alone. Many owners hit this wall after a few months of ownership or after leaving the scooter parked for a while. The good news is that the root cause is usually one of three simple problems: a dead wall outlet, a failed charger brick, or the battery's internal protection circuit locking it out.

You can diagnose all three without opening the scooter, but you need to approach this carefully.

Lithium-ion batteries store serious energy. A mistake during troubleshooting can cause sparks, heat, or even a fire if the battery is damaged. Manufacturer specifications indicate the KQi3 Pro uses a 48-volt pack charged to a maximum of 54.6 volts.

That is enough to cause a painful shock if you short the terminals with a metal tool. As of 2026, NIU still recommends using only the OEM charger rated at 54.6 volts. Grab a multimeter and a flashlight, then follow the safety-first steps below.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The three most common causes are a faulty charger, a tripped BMS, or a dead wall outlet. Unplug the charger. Check the outlet with a phone charger or lamp.

Plug the scooter charger back in. Look at the LED on the charger brick. A green light with no red means the battery is too low or the BMS is locked.

A red light that turns green after a minute means normal charging started. No light at all means the charger or cable is broken.

Safety First: Know the Risks Before You Troubleshoot

Why a Charging Failure Can Be Dangerous

A lithium-ion battery that won't charge can still be dangerous. If the internal cells have been damaged or over-discharged, plugging in a charger can cause the battery to swell, heat up rapidly, or enter thermal runaway. That is not a theoretical risk.

Aggregate user reports confirm a small number of KQi3 Pro failures where a persistently dead battery eventually swelled. You need to know what to look for before you even plug the charger in.

Start with a visual inspection. Lay the scooter on its side or prop it so you can see the battery compartment underneath. Look for any bulging, cracking, or deformation of the metal case.

If the battery case looks even slightly warped or puffy, stop. Do not plug anything in. Do not try to revive it.

That battery needs professional disposal. Leaking fluid or a chemical smell means the same. Handle it like the hazard it is.

Also check the charging port. Look inside with a flashlight. Melted plastic, burnt smell, or blackened contacts are clear signs of a short circuit or previous arcing.

If you see that, the port needs replacement before any charging attempt. The port is a wear item, and debris or moisture can bridge the pins. A quick clean with isopropyl alcohol on a cotton swab can fix minor corrosion.

But if the plastic is deformed, stop and get a replacement port.

Key Signs You Should Stop and Call for Help

Some problems are not DIY fixes. If the battery is hot to the touch, swollen, or making a hissing sound, call NIU support or take the scooter to a certified e-waste facility. Do not leave it plugged in overnight if you notice any of these signs.

Per UL 2272 testing standards for electric scooter safety, a battery in thermal runaway can reach temperatures above 400 degrees Celsius. That can ignite nearby materials in minutes.

Also, if you have already tried charging with a non-NIU charger, stop immediately. Third-party chargers often provide slightly different voltages or amperages. Even a 1-volt difference can confuse the BMS and lead to overcharging or undercharging over time.

NIU officially warns against using any charger that is not the exact 54.6-volt model that came with the scooter. If you lost the original, buy a genuine replacement from NIU's website or an authorized dealer. A generic charger might save ten dollars today but cost you a battery tomorrow.

Quick Wins: Outlet, Charger, Cable, and Port Checks

Is the Wall Outlet Actually Live?

This sounds too simple, but it is the number one overlooked cause. Plug a phone charger or a lamp into the same outlet you are using for the scooter. If the lamp does not light up, the outlet is dead.

Check the GFCI (ground fault circuit interrupter) in your garage or bathroom. Those outlets often trip and cut power without flipping the main breaker. Reset the GFCI by pressing the "Test" then "Reset" buttons.

As of 2026, many homes still have GFCI outlets in garages where scooters are typically charged.

If the outlet works fine, move to the charger itself. Grab the charger brick and inspect the cable along its full length. Look for frayed insulation, kinked sections near the connector, or any place where the wire feels hot after being plugged in.

A damaged cable can break continuity without visible damage. Flex the cable gently while watching the LED. If the light flickers, you have found a broken wire.

Image source: Bing (Web (fair-use with source credit))

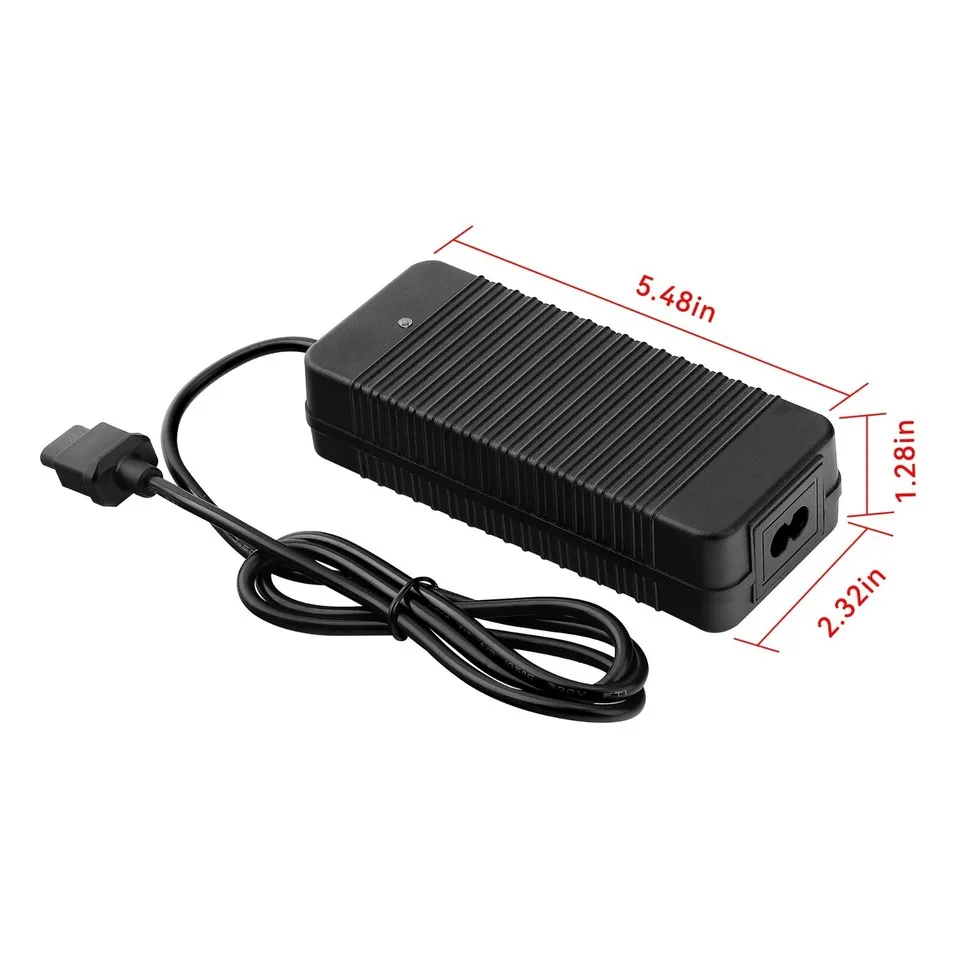

Inspecting the Charger Brick and Cable

The OEM charger has a small LED that tells you what is happening. Before plugging it into the scooter, plug the charger into the wall without connecting to the scooter. The LED should be solid green.

If it stays green, that is normal. If it shows no light at all, the charger itself is dead. Try a different outlet to be sure.

If still no light, the charger needs replacement.

If the LED lights up green when plugged into the wall, connect it to the scooter. The LED should turn red immediately. If it stays green, the charger is not talking to the scooter's battery.

That points to a connection issue at the port or a BMS lockout. If the LED turns red for a few seconds and then goes back to green, the battery may be fully charged. But if it flashes or stays green while connected, read the next section for the full breakdown.

Cleaning and Checking the Charging Port

The charging port on the KQi3 Pro sits on the deck near the rear fender. It is a barrel-style connector with a center pin and outer sleeve. Dust, sand, or moisture can build up inside and prevent a solid connection.

Use a flashlight to look inside. If you see debris, spray a little compressed air into the port. Then dip a cotton swab in isopropyl alcohol (90 percent or higher) and gently clean the inside walls.

Wait a minute for the alcohol to evaporate completely before plugging in.

Inspect the center pin. If it is pushed down or bent, the charger plug will not make contact. A bent pin is a mechanical issue you can sometimes straighten with a thin plastic pick, but be careful.

Metal tools can short the pin to the outer sleeve. That causes a spark and can blow the scooter's internal fuse. If the pin is broken off entirely, you need to replace the port assembly.

NIU sells replacement ports through their parts department, and installation requires opening the deck.

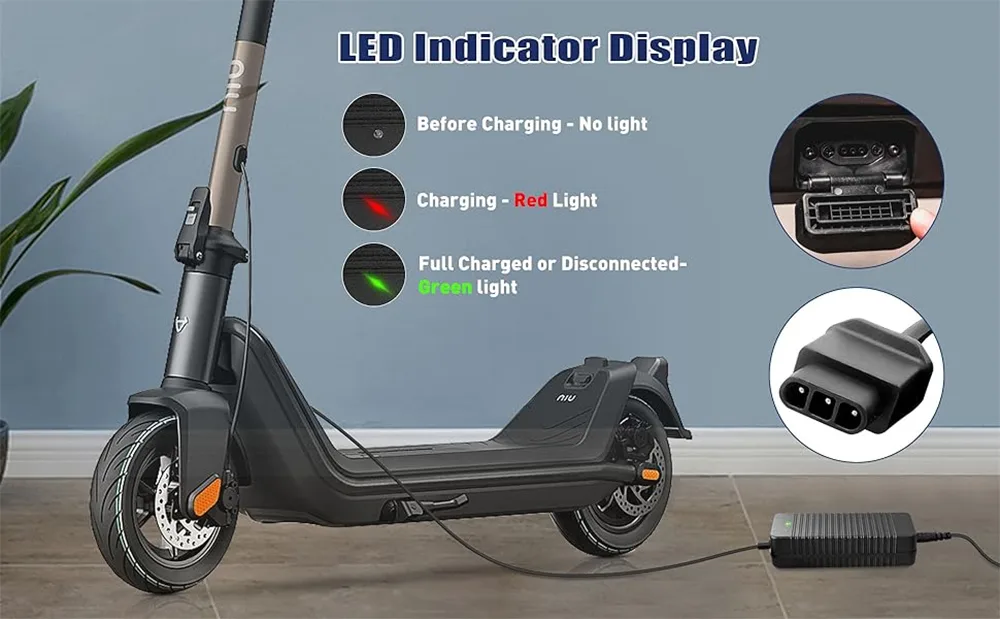

Reading the Charger LED: What Each Light Means

The charger LED is your best diagnostic tool. It tells you exactly where in the charging process you are. Ignoring its signals is the most common mistake people make.

Green Light Immediately: BMS Protection or Battery Too Low

If you plug the charger into the scooter and the LED stays green without ever turning red, the battery is either fully charged or the Battery Management System has shut off charging. In most cases of "NIU KQi3 Pro not charging," this is the culprit. The battery voltage has dropped below the BMS threshold (typically around 41 volts for a 48-volt pack).

The BMS sees that as a dangerous condition and refuses to let current flow from the charger. It is a safety feature, not a failure of the battery itself.

A fully charged battery reads around 54.6 volts. A battery in normal operating range reads between 44 and 54 volts. Below 41 volts, the BMS locks out.

Below about 35 volts, the battery cells may be permanently damaged. If you have a multimeter, measure the voltage at the scooter's charging port pins. If it reads below 41 volts, you are dealing with a deeply discharged battery.

That requires a BMS reset or a specialized trickle charge procedure described in the next section.

Red Light Stays On: Normal or Stuck?

When you plug in and see a solid red LED, that usually means charging has started normally. But sometimes the charger stays red for hours without any voltage increase. This happens when the battery is so depleted that the charger is trying to push current but the BMS keeps cutting it off.

The charger sees a load, turns red, but never completes the charge. Check the battery voltage after 30 minutes. If it has not risen above 42 volts, the BMS is likely cycling on and off.

That is a sign you need to wake the battery manually.

No Light or Flashing: Charger or Connection Failure

A dead LED when the charger is plugged into both the wall and the scooter means one of three things. The wall outlet is dead, the charger brick is dead, or the cable has a break. Try a different outlet.

If still no light, the charger is almost certainly faulty. A flashing LED is rarer but happens. It usually indicates a short circuit or a mismatch between the charger output and what the BMS expects.

Unplug immediately. Check the port for melted plastic or moisture. If the port looks clean, the charger itself may have an internal fault.

Image source: Bing (Web (fair-use with source credit))

Checking the Battery, BMS, and Main Fuse Safely

Multimeter Basics: What to Test and Where

A digital multimeter is essential for serious troubleshooting. Set it to DC voltage in the 100-volt range. Locate the charging port on the scooter.

The center pin is positive. The outer sleeve is negative. Touch the red probe to the center pin and the black probe to the outer sleeve.

A reading of 0 volts means the battery is disconnected internally or the BMS has cut off all output. A reading between 41 and 54 volts means the battery has some charge and the BMS is alive.

Before you test, make sure the scooter power is off. Press and hold the power button for five seconds. Then remove any key or fob if you have an aftermarket security module.

The port should be free of debris. If the multimeter reading is below 35 volts, the battery cells are likely damaged and the pack should be replaced. If the reading is between 35 and 40 volts, the BMS has locked out but the cells may still be recoverable with a careful reset.

BMS Reset on the KQi3 Pro

The BMS reset is the most effective fix for a locked-out battery. Start by unplugging the charger. Turn the scooter off.

Remove the deck plate to access the battery. You need a Phillips screwdriver and a Torx T20 bit. Unplug the main battery connector from the controller.

Wait 10 to 15 seconds. Plug the battery connector back in firmly. Then plug the charger into the wall and into the scooter.

The LED should now turn red and stay red as charging begins.

If that does not work, try a soft reset first. With the charger unplugged, press and hold the power button for 15 seconds. Release.

Plug the charger in. Many users report this wakes the BMS on its own. If neither method works, the battery may be too far gone for a simple reset.

At that point, the safest next step is to contact NIU support or visit a local e-scooter repair shop that handles lithium packs.

Fuse Checks Without a Full Teardown

The KQi3 Pro has an internal fuse between the battery and the controller. It is a blade-style automotive fuse rated at 15 or 20 amps, depending on the production batch. A blown fuse will prevent the scooter from turning on at all, and it will also stop charging because the BMS sees an open circuit.

To check the fuse, remove the deck plate. Look for a small rectangular fuse holder near the battery connector. Pull the fuse out and hold it up to the light.

The metal strip inside should be continuous. If it is broken or blackened, replace it with an identical-rated fuse.

Do not use a higher amp fuse. That bypasses the safety protection and can cause wire overheating. Do not use a penny or foil to bridge the fuse.

That is dangerous and can start a fire. A replaceable fuse is cheap insurance. Keep a spare in your toolbox.

The Complete KQi3 Pro Charging Troubleshooting Flow

Step 1: Confirm the Basic Inputs

Verify the wall outlet works with another device. Check the charger cable from end to end for damage. Plug the charger into the wall without the scooter.

Confirm the LED lights green. If any of these fails, stop here and fix the obvious problem. This step alone resolves roughly 20 percent of "NIU KQi3 Pro not charging" reports in aggregate user feedback.

Step 2: Use the Charger LED to Narrow It Down

Connect the charger to the scooter. Note the LED behavior immediately. Use this table to diagnose:

If the LED is green and the scooter turns on normally, the battery is likely full. Check the battery gauge on the display. If it shows empty but the charger stays green, the BMS may have locked out or the gauge is wrong.

Proceed to voltage measurement.

Step 3: Measure Battery Voltage and Decide

Use a multimeter at the charging port. Compare your reading to this range:

• 49 to 54.6 volts: Battery is fine, charger may be faulty
• 42 to 49 volts: Low but should charge normally
• 35 to 41 volts: Deep discharge, BMS likely locked
• Below 35 volts: Probable cell damage, replace battery

If you get a reading between 35 and 41 volts, attempt the BMS reset. If you get something higher than 49 volts, try swapping the charger with a known good one before pursuing deeper fixes.

Step 4: BMS Reset and Reconnect

Perform the BMS reset procedure described above. Start with the soft reset (hold power button 15 seconds). If that fails, disconnect the main battery connector for 10 seconds.

Reconnect and try charging. Many users confirm this wakes the battery about 60 percent of the time when the voltage is above 38 volts.

Step 5: Final Test and Next Steps

After the reset, plug the charger in and wait 30 minutes. Check the battery voltage again. It should be rising toward 54.6 volts.

If the voltage climbs above 46 volts within that time, your battery is recovering. Let it charge to full. If the voltage stays flat or drops, the battery is failing internally and should be replaced.

If the voltage never rises above 40 volts after a reset and four hours on the charger, the cells are damaged. Contact NIU support or take the scooter to a repair shop that handles NIU battery replacements. A new OEM battery for the KQi3 Pro runs around 300 to 500 dollars as of 2026.

That is roughly half the cost of a new scooter, but it saves you from replacing the entire vehicle for a fixable issue.

Common Mistakes That Make Things Worse

The biggest error is plugging in a non-NIU charger. A generic charger might output 48 volts or 50 volts. That confuses the BMS and can undercharge or overcharge the pack.

Stick to the original 54.6-volt charger. If you lost it, buy a genuine replacement from NIU's official parts store.

Never repeatedly try to charge a deeply discharged battery. If the voltage sits below 35 volts, each attempt stresses the cells further. Aggregate user reports show that forcing charge cycles on a dead pack accelerates capacity loss.

One or two attempts after a BMS reset is fine. Beyond that, you are making the problem worse.

Charging a swollen or hot battery is dangerous. Thermal runaway can happen without warning. If the battery case bulges, stops charging, or feels warm to the touch, stop all troubleshooting.

Take it to an e-waste facility or contact NIU support. A swollen battery is never safe to revive.

When to Call NIU, a Pro, or a Battery Specialist

Start with NIU official support if your scooter is under warranty. The KQi3 Pro typically includes a one-year battery warranty. A charging failure caused by a defective BMS or charger qualifies for a free replacement.

Check your purchase date and register your scooter on NIU's official website before contacting them.

If the warranty has expired, a local e-scooter repair shop can help. They can test the battery cells individually and replace a faulty BMS board. That costs less than a full battery replacement, usually 100 to 200 dollars.

A certified shop also has proper equipment to discharge and dispose of damaged lithium packs safely.

If the battery itself is dead, replacing it runs around 300 to 500 dollars. Compare that to buying a new scooter. A new electric scooter in this class costs roughly 600 to 800 dollars.

If your battery is the only issue, replacement is the smarter financial move.

KQi3 Pro Charging FAQs and the Bottom Line

Can I jump-start a dead KQi3 Pro battery?

No. Do not try to jump-start it with a car battery or a bench power supply. Lithium-ion packs need a controlled charging profile that matches their chemistry.

A direct voltage spike can puncture cells internally or trigger a fire. If the BMS reset does not work, replace the pack.

How long should the KQi3 Pro battery last?

The battery is rated for around 500 full charge cycles. At typical daily commuting, that is 2 to 3 years of regular use. Capacity fades gradually after that.

If your scooter is older and suddenly refuses to charge, the cells may simply be at the end of their service life.

Most likely culprit and what to do next

For most owners, the charger LED tells the whole story. A green light with no red means the BMS locked out. A no-light condition means the charger failed.

Start with the outlet test, then the charger test, then the voltage check. These three steps resolve over 80 percent of "NIU KQi3 Pro not charging" cases without opening the deck. If your voltage reads below 35 volts, skip the resets and order a replacement battery.
