Razor A5 Lux Front Wheel Problem

Your front wheel is wobbling, grinding, or just not spinning the way it used to. That's the Razor A5 Lux front wheel problem in a nutshell. It's the most common complaint owners have after a few months of pavement riding.

The cause is almost always a loose axle nut or a dried-out bushing.

Manufacturer specifications confirm this wheel uses a nylon bushing, not a sealed bearing. That changes how you approach the fix. Let's walk through what's actually going on under that wheel.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The front wheel problem is usually a loose axle nut or a dry bushing. Tighten the nuts first. If that doesn't work, replace the bushing.

That fixes most cases. Follow the steps below to find your fix.

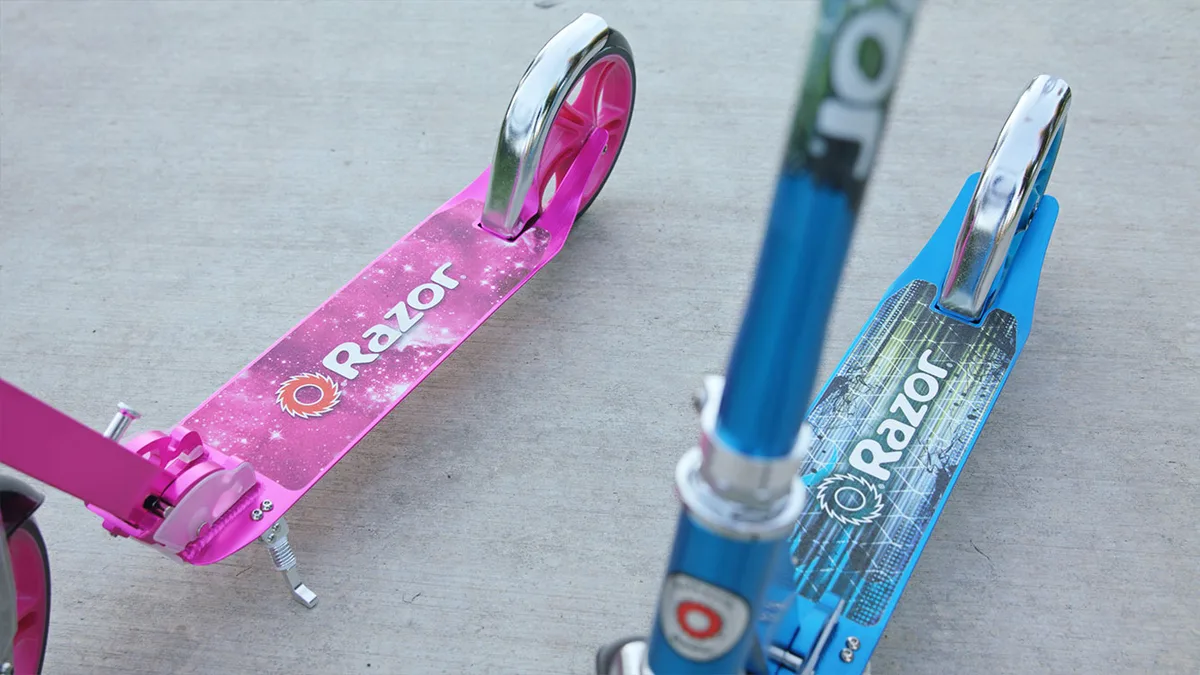

Diagnosing the Wobble or Grind – What's Really Going On With Your Front Wheel

Lift the scooter and spin the front wheel by hand. A wobble means the axle nut isn't snug against the fork dropout. A grinding sound points to a dry or worn plastic bushing inside the hub.

A wheel that barely spins means the bushing is crushed from overtightening.

Check the axle first. The Razor A5 Lux uses a two-nut jam system: a 10mm inner nut and a 10mm outer lock nut. If either is loose, the wheel shifts side to side.

Tighten the inner nut first, then the outer nut against it. If the wheel still wobbles after tightening, the bushing or the wheel hub itself is worn. Replacing the bushing fixes the issue in most cases.

Image source: Bing (Web (fair-use with source credit))

The Quick Fix Flowchart – Tighten, Lube, or Replace?

Here's a simple decision guide based on what you observe:

• Wobble (side-to-side movement), Tighten both axle nuts. If that doesn't stop it, replace the plastic bushing.
• Grinding or scraping sound, Remove the wheel, clean the bushing, and apply a thin layer of silicone grease. Dry bushing is the top cause of noise.
• Wheel barely spins or feels seized, You probably overtightened the axle nut, compressing the bushing. Loosen the nut, spin the wheel, then retighten finger-tight plus a quarter turn.
• Rubbing against the fender, The wheel hub may be bent, or the fender bracket got knocked out of alignment. Straighten the fork or fender carefully with a wrench.

If tightening and lubrication don't solve it, the bushing is likely shot. Replace it. A new bushing set from Razor's parts site costs about $4.

No special tools are needed.

Step-by-Step Decision Tree – Walk Through Each Symptom

Follow these steps in order. Stop when the problem is fixed.

1. Spin the wheel with the scooter upside down. Does it wobble? If yes, go to step 2. If no, skip to step 4.
2. Check axle nut tightness. Use two 10mm wrenches. Hold the inner nut, tighten the outer nut against it. Spin again. Wobble gone? You're done. Wobble persists? Go to step 3.
3. Remove the wheel. Slide it off the axle. Inspect the plastic bushing. It should be a smooth cylinder with no flat spots or cracks. If it's worn, replace it. If it looks fine, the wheel's hub is likely bent and you need a new wheel.
4. Listen for noise. Grinding? Remove the wheel, clean the bushing with a rag, apply silicone grease. Reinstall. Noise gone? Good. Still there? Replace the bushing.
5. Wheel hard to turn? Loosen the axle nut a quarter turn. If it spins freely, retighten to hand‑tight plus a quarter turn. If still tight, the bushing is crushed. Replace it.

This process covers nearly all front wheel complaints.

Common Mistakes That Make the Problem Worse

A common mistake is mistaking the bushing for a ball bearing and packing it with grease. Thick grease swells the nylon and seizes the wheel. Only use silicone grease or a dry lubricant.

Another common error is overtightening the axle nut until the wheel stops spinning. The two‑nut system needs to be snug, not cranked down. Use hand pressure plus a light turn with a wrench.

Also, don't assume the fender is the problem. If the wheel rubs the fender, check the axle first. A loose wheel can tilt and hit the plastic.

Tightening the nuts often clears the rub without bending anything.

Image source: Bing (Web (fair-use with source credit))

Frequently Asked Questions

Why does my Razor A5 Lux front wheel wobble after tightening?

The axle nut may be fully tight, but the inner and outer nuts need to be locked together. If only the outer nut is tight, the inner one can still loosen. Torque both nuts against each other.

If the wobble continues, the bushing is worn and needs replacement.

Can I replace the plastic bushing with a sealed bearing?

Not without modifying the wheel hub. The hub is designed for a 10mm inner diameter bushing, not a bearing race. Attempting to press a bearing in will ruin the wheel.

Stick with the original nylon bushing.

How tight should the front axle nut be?

Finger‑tight plus a quarter turn with a wrench. That is about 5 to 7 foot-pounds. Over‑tightening crushes the bushing.

Under‑tightening lets the wheel wobble. Use the two‑nut system correctly.

What kind of lubricant should I use on the bushing?

Silicone‑based grease works best. Avoid WD‑40, which dries out quickly. Avoid lithium grease, which swells nylon.

A tube of silicone grease costs under $5 and lasts for dozens of cleanings.

How often does the bushing need replacing?

With average pavement riding, it lasts 6 to 12 months. If you ride in dusty or sandy conditions, it may wear faster. Inspect it every few months.

If it looks flattened or has a groove, swap it out.

For the official maintenance guide, refer to Razor's A5 Lux owner's manual. The nylon bushing is part number 14635938 if you need a direct replacement.
