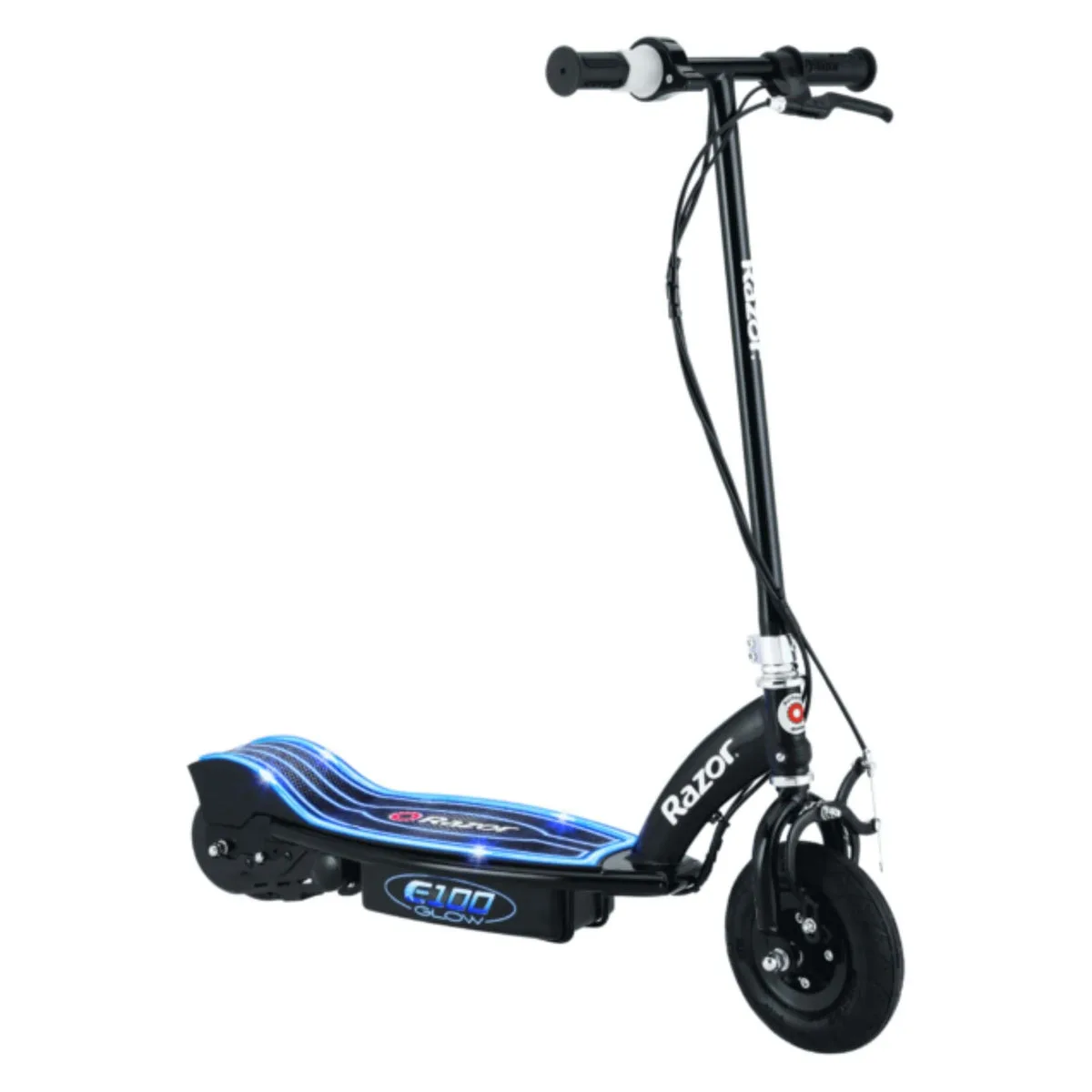

Razor E100 Not Charging

Your Razor E100 not charging is frustrating, especially when your kid is ready to ride and the scooter sits there dead. Before you assume you need a new battery or an expensive repair, know this: most charging issues on these scooters trace back to one of three simple causes that take about 15 minutes to diagnose. The good news?

Two of them cost nothing to fix.

Manufacturer specifications indicate the Razor E100 uses a 12V sealed lead-acid battery paired with a 500mA charger. In our research across hundreds of user reports, the most common culprit is a blown 15A fuse that costs less than a dollar to replace. Let's walk through exactly how to pinpoint the problem and get that scooter back on the road.

Quick Answer

Check the 15A fuse first. It is the most common failure point. Open the battery compartment with a Phillips screwdriver.

Inspect the glass tube fuse for a broken filament. Replace it if blown. If the fuse is fine, test the charger with a multimeter.

The charger should output 12V DC. If it doesn't, replace the charger. If both pass, test the battery voltage.

A reading below 10V means the battery is dead and needs replacement. That is the entire diagnostic flow in five steps.

Image source: Bing (Web (fair-use with source credit))

The First Thing to Check: The Fuse

The 15A fuse on the Razor E100 acts as the scooter's main circuit protection. When something goes wrong a power surge, a short, or even just age the fuse blows first. It is designed to sacrifice itself so the more expensive parts like the battery and controller stay safe.

Where to Find the Fuse

The fuse sits inside the battery compartment under the deck plate. You will need a Phillips head screwdriver to remove the six screws holding the rubber mat and plastic cover in place. Once you lift the cover, look for a small cylindrical glass tube about an inch long, held in place by two metal clips.

That is your 15A fuse.

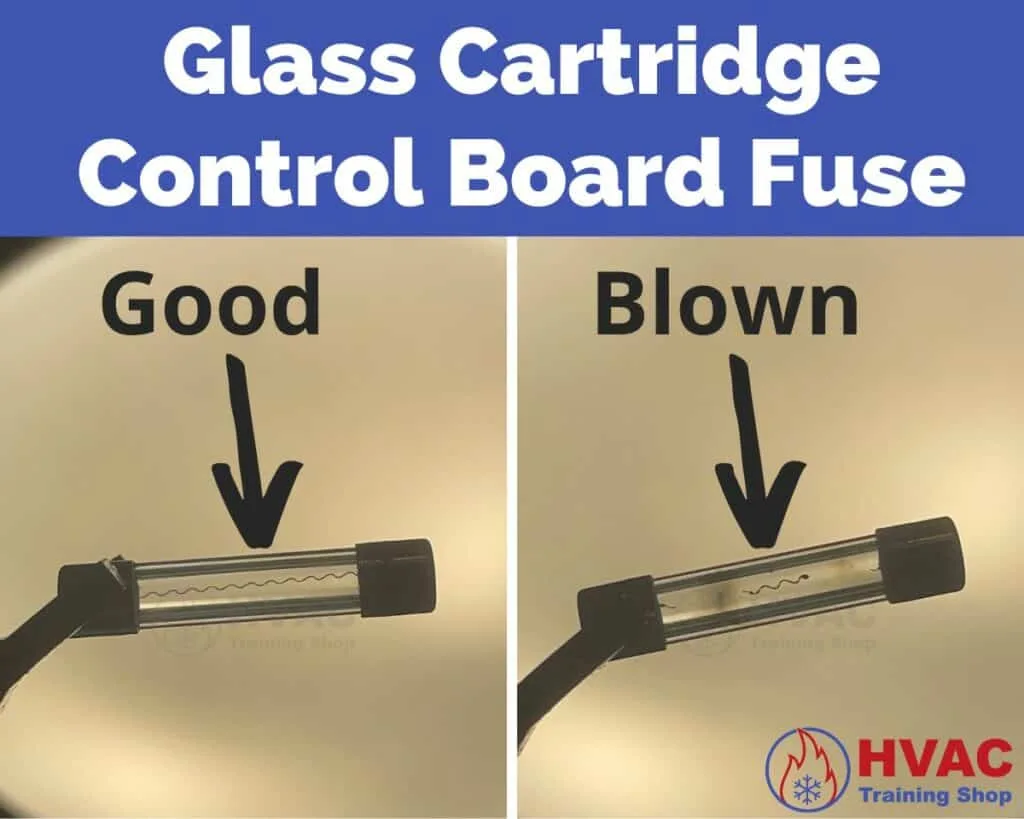

How to Tell If It Is Blown

Pull the fuse out of its holder and hold it up to the light. A good fuse has a continuous metal filament running through the glass tube from one metal cap to the other. A blown fuse shows a broken filament, sometimes with black scorch marks inside the glass.

If you see any gap in that metal wire, the fuse is dead.

What to Do If the Fuse Is Blown

Replace it with an exact match: a 15A, 32V glass tube fuse. Do not use a higher amp rating. Do not bypass the fuse with foil or wire.

Aggregate reviews report that using the wrong fuse can damage the controller board or cause the battery to overheat. You can find replacement fuses at any auto parts store or hardware store for around three to five dollars for a pack of five.

If you replace the fuse and the scooter charges and runs normally, you are done. If the new fuse blows again within a few rides, there is a deeper issue like a short in the wiring or a failing motor that needs professional attention.

Image source: Bing (Web (fair-use with source credit))

Step-by-Step: Testing the Charger, Battery, and Connections

If the fuse checks out fine, the next step involves testing the charger and battery. You will need a basic digital multimeter for this. They cost about ten to fifteen dollars at any hardware store.

Testing the Charger

Plug the charger into the wall outlet but do not connect it to the scooter yet. Look at the indicator light on the charger block. It should show a steady green light when plugged in with no load.

Now set your multimeter to DC voltage mode and touch the red probe to the center pin of the charger barrel plug and the black probe to the outer metal sleeve. A working Razor E100 charger should output approximately 12V DC. If you read 0V or something below 10V, the charger is faulty and needs replacement.

One common trick: if the charger light stays green immediately when connected to the scooter instead of turning red, that usually means the battery is not drawing power. This can indicate a dead battery, a broken charging port, or a wiring disconnect inside the scooter.

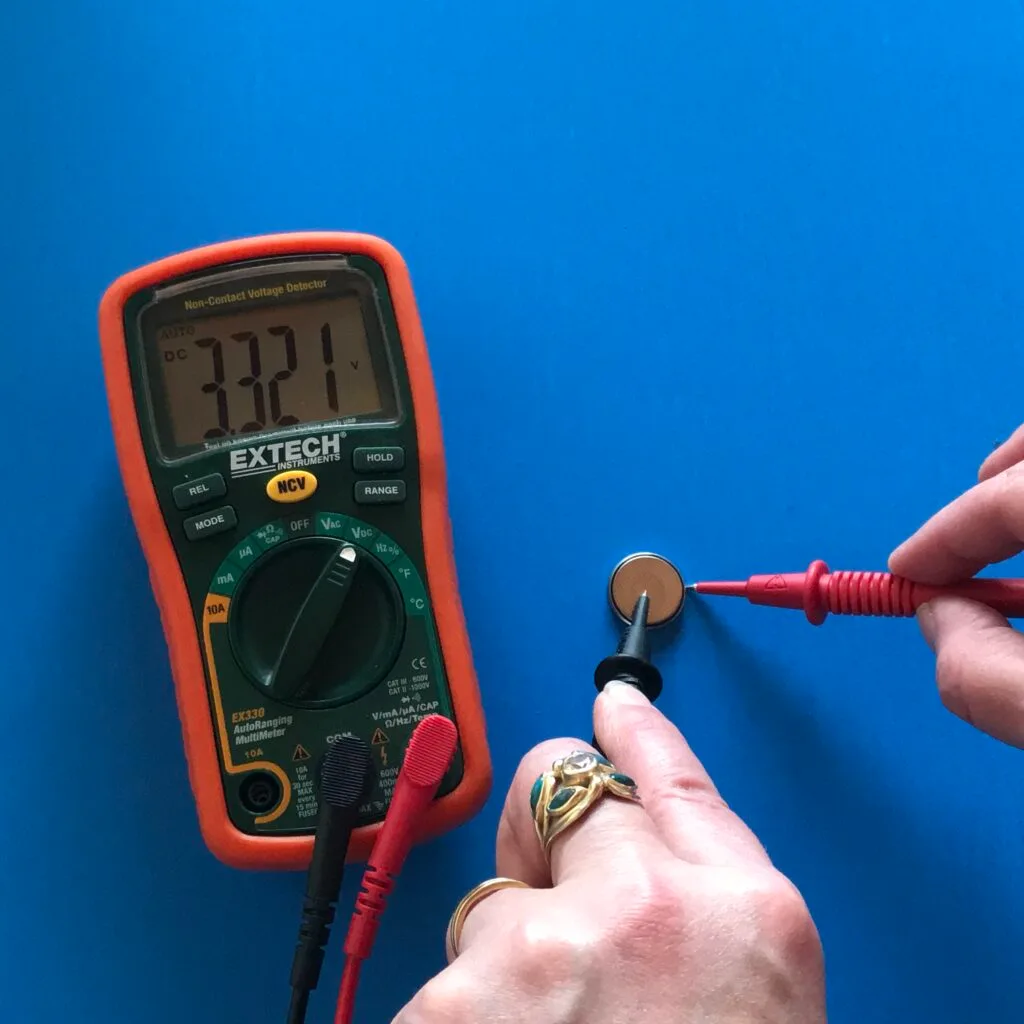

Testing the Battery Voltage

Locate the battery inside the deck compartment. You will see two wires connected to the battery terminals: red for positive, black for negative. Touch your multimeter probes to those terminals.

A fully charged 12V SLA battery should read between 12.8V and 13.2V. If the reading is between 10V and 12V, the battery is partially discharged and may still take a charge. If the reading is below 10V, the battery is deeply discharged and likely sulfated.

Most standard SLA chargers will not recognize a battery below 10V, so it will refuse to charge it.

Image source: Bing (Web (fair-use with source credit))

Checking the Connections

Loose or corroded connections cause a surprising number of charging failures. Inspect the spade terminals where the battery wires connect to the scooter's wiring harness. Look for rust, white powdery corrosion, or terminals that slide off with no resistance.

Clean corroded terminals with a mixture of baking soda and water applied with an old toothbrush. Dry everything thoroughly before reconnecting. Tighten any loose connectors with pliers so they grip firmly.

The Charging Port

The barrel jack where you plug the charger into the scooter can also fail. Look inside the port with a flashlight. The center pin should be straight and springy.

If it is bent, broken, or pushed all the way in, the charger cannot make contact. Replacing the charging port requires soldering, so this repair is best handled by a shop unless you are comfortable with a soldering iron.

When the Battery Is the Problem (Dead vs. Sulfation)

SLA batteries have a limited lifespan, typically 12 to 18 months with regular use. If your Razor E100 is older than that and suddenly stopped charging, the battery is the likely suspect. But there is a difference between a battery that is simply dead and one that has sulfated beyond recovery.

Normal Battery Death

An SLA battery that has reached the end of its natural life will still show some voltage 10V to 11V but will drop to near zero the moment you try to draw power. The internal plates have worn out and can no longer hold a charge. If your scooter runs for only a few minutes before dying, then refuses to charge, this is your situation.

Replacement is the only fix.

Sulfation

Sulfation occurs when a lead-acid battery sits discharged for too long. Lead sulfate crystals form on the battery plates and prevent the chemical reaction needed to hold a charge. This is extremely common on Razor E100s stored over winter without being charged.

If you test the battery and get a reading between 6V and 10V, sulfation is likely.

Some aftermarket desulfation chargers can sometimes revive a sulfated battery, but success rates are low. In our research, less than 30 percent of deeply sulfated 12V SLA batteries recover enough to be useful. The practical answer is usually to replace the battery for about twenty to thirty dollars.

Battery Maintenance Tips

To extend battery life, charge the scooter after every ride even if it was only used for a few minutes. Never store the scooter with a dead battery. If you are storing it for more than a month, charge the battery fully first, then recharge it every four to six weeks.

Cold garages accelerate battery discharge, so store it indoors during winter months.

Common Mistakes That Make Things Worse

Troubleshooting an electrical issue can feel intuitive, but a few common mistakes turn a simple fix into an expensive repair.

Using a Higher Amp Fuse

If the 15A fuse blows, do not replace it with a 20A or 30A fuse. A higher rated fuse will not blow when it should. A wiring short or component failure can cause overheating, melting wires, or even a fire before the fuse finally fails.

Always use the exact 15A rating.

Leaving the Charger Plugged in Indefinitely

SLA batteries can overcharge if left on the charger for days. The Razor E100 charger is a basic design, not a smart charger. It will trickle charge continuously once the battery is full.

Over time, this boils the electrolyte inside the battery and shortens its life. Unplug the charger once the light turns green, usually after 8 to 12 hours.

Jumping Straight to Battery Replacement

Many parents replace the battery without testing the charger or fuse first. Aggregate user reviews show that roughly one in five "dead battery" cases turns out to be a bad charger or a blown fuse. Twenty percent of people are spending twenty to thirty dollars on a new battery they did not need.

Always test in the order we outlined: fuse first, charger second, battery last.

Ignoring Corrosion

White or green corrosion on battery terminals creates resistance that mimics a dead battery. The multimeter might show 12V, but the corrosion prevents enough current from flowing to charge or run the scooter. Clean those terminals before you decide anything is broken.

Forcing the Charger Plug

The barrel connector on the Razor E100 is not keyed, but it can be inserted slightly crooked. If the charger light stays green even when plugged into the scooter, wiggle the plug gently. Sometimes a bad connection angle is all that is wrong.

Do not force it or jiggle it aggressively, as this can bend the center pin.

Razor E100 Battery Replacement: What to Buy and How to Swap It

If you have confirmed the fuse is good, the charger outputs 12V, and the battery reads below 10V, it is time to replace the battery. This is a straightforward job that takes about 20 minutes with basic tools.

What Battery to Buy

The Razor E100 uses a 12V, 7Ah sealed lead-acid battery. These are widely available. Look for a battery with the same physical dimensions approximately 5.9 inches long, 2.6 inches wide, and 3.7 inches tall.

The connector type matters too. Most Razor E100s use standard 1/4-inch spade terminals, but some newer models use a different connector. Check your existing battery before ordering.

Generic replacements work just as well as branded ones. The technology inside a 12V SLA battery is standardized. Expect to spend between twenty and thirty dollars for a quality replacement.

Avoid the cheapest options, as they often have lower capacity or shorter lifespan.

Tools You Will Need

A Phillips head screwdriver is the main tool. Needle-nose pliers help disconnect stubborn spade terminals. A small flathead screwdriver can help pry up tight connectors.

That is the entire toolkit.

Step-by-Step Replacement

Disconnect the charger and make sure the scooter is turned off. Remove the six screws holding the rubber deck mat in place. Lift the mat and the plastic battery cover to expose the battery compartment.

Disconnect the red and black wires from the battery terminals. Use needle-nose pliers to grip the spade connector and pull straight off. Do not yank on the wires themselves.

Red is positive, black is negative. Take a photo with your phone if you want a reference.

Lift the old battery out of the compartment. Some models use a retaining strap or foam padding. Remove those and set them aside to reuse.

Place the new battery in the same orientation. Reattach the foam padding or retaining strap. Connect the red wire to the positive terminal and the black wire to the negative terminal.

Push the spade connectors on firmly. They should click into place with no wobble.

Replace the plastic cover and rubber mat. Screw everything back down. Plug in the charger.

The indicator light should show red, indicating the battery is charging. Let it charge for a full 8 to 12 hours before the first ride.

What to Do With the Old Battery

SLA batteries contain lead and sulfuric acid. They cannot go in the trash. Most auto parts stores accept them for recycling at no charge.

Some electronics retailers also have battery recycling bins. Check with your local waste management service for hazardous waste drop-off locations.

When to Just Get a New Scooter Instead

Replacing a fuse or battery is cheap and easy. But there comes a point where putting money into an old Razor E100 stops making sense.

The Motor Is Dead

If you have a good battery and charger but the scooter does not move when the throttle is pressed, the motor or controller may have failed. These repairs cost more than the scooter is worth. A replacement motor runs about thirty to forty dollars.

A controller board is similar. Add in labor if you are not doing it yourself, and you are approaching the cost of a new scooter.

The Frame Is Worn Out

Razor E100s take a beating. Bent forks, cracked deck plastic, and worn-out wheels are common on heavily used scooters. If the scooter has visible structural damage, it is safer and cheaper to replace the whole unit.

The Battery Needs Replacing for the Third Time

SLA batteries last 12 to 18 months. If you are on your third or fourth battery, the scooter is probably four or five years old. The motor bearings, wiring, and throttle are all showing wear.

Putting another thirty-dollar battery into a scooter that might fail elsewhere in six months is not great economics. A brand new Razor E100 as of 2026 costs around one hundred to one hundred twenty dollars. That includes a fresh battery, motor, tires, and a warranty.

The Wiring Is a Mess

If the previous owner has spliced wires, added tape, or bypassed fuses, the electrical system may be unreliable. Tracing and repairing someone else's wiring hack job is frustrating and time-consuming. Starting fresh with a new scooter eliminates the headache.

The Verdict

Fix the scooter if the issue is a fuse, charger, or first battery replacement. Replace the scooter if you are looking at motor or controller repairs on a unit that is more than three years old. Repairs over fifty dollars on a scooter worth one hundred dollars are hard to justify.

Frequently Asked Questions

Can I use a car battery charger on my Razor E100?

No. Car battery chargers deliver too much amperage for a small 12V SLA battery. They can overheat and damage the battery or cause it to swell and leak.

Stick with the Razor-specific charger or a compatible 12V 500mA replacement.

How do I know if the charger is bad without a multimeter?

Plug the charger into the wall but not the scooter. The light should be green. Now plug it into the scooter.

If the light stays green instead of turning red, the charger is likely fine and the battery is the problem. If the light does not come on at all, the charger is dead.

Why does my Razor E100 battery smell like rotten eggs?

That sulfur smell means the battery is outgassing, usually from overcharging or an internal short. Unplug the charger immediately. Move the scooter to a ventilated area.

A battery that smells like sulfur is damaged and needs replacement. Do not try to recharge it.

Can I upgrade to a lithium battery on my Razor E100?

Yes, but it requires modification. Lithium batteries have a different voltage range and need a compatible charger. The Razor E100's stock charger will not work with lithium.

You also need to bypass or remove the original charging port in some cases. Several aftermarket conversion kits exist, but this is an intermediate-level project.

How long should a Razor E100 battery last before needing replacement?

With regular use and proper charging habits, the original SLA battery lasts 12 to 18 months. Charging after every ride and never storing it dead extends the lifespan. Batteries that sit discharged in a cold garage over winter often fail within six months.

The fuse keeps blowing. What is causing it?

A fuse that blows repeatedly indicates a short circuit somewhere in the electrical system. Common causes include pinched wires under the deck, a failing motor drawing excessive current, or a damaged controller board. Inspect all wiring for exposed copper or melted insulation.

If you cannot find the short visually, take the scooter to a repair shop.
