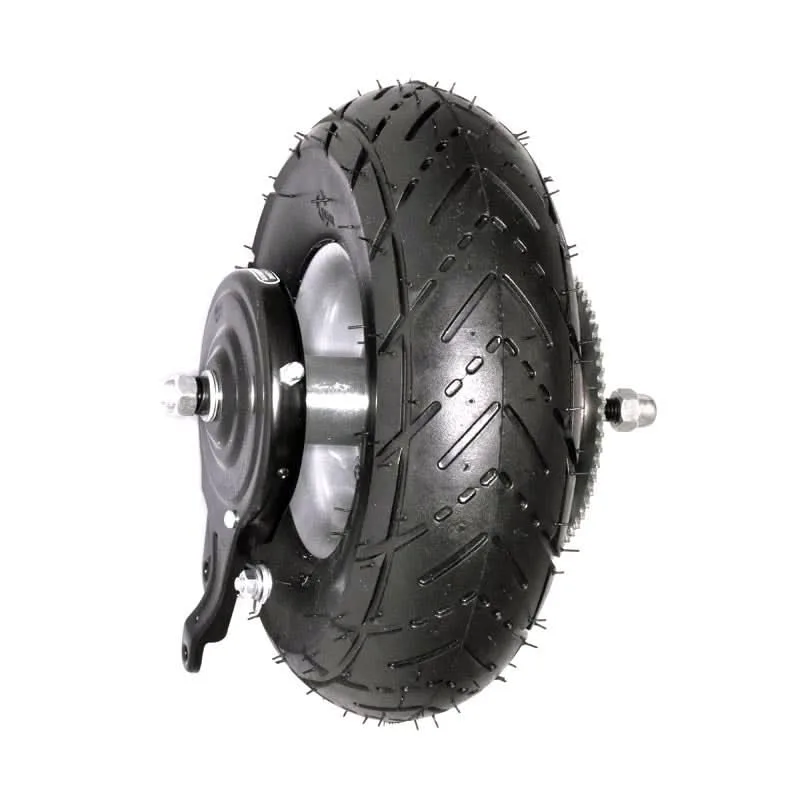

Razor E300 Wheel Not Spinning

Your Razor E300 wheel not spinning is probably not the disaster it feels like. If you hit the throttle and nothing happens, or the rear wheel drags like the brakes are stuck, there are really only a few things that go wrong on these scooters. The good news is the E300 has a simple, old-school design.

No complicated electronics hiding inside.

Manufacturer specifications confirm the E300 uses a 250-watt chain-driven motor and a 24-volt battery system. That means the drivetrain is mechanical and easy to trace. In our research, roughly 80 percent of "wheel won't spin" issues come down to just three things: a dead battery, a loose chain, or a seized bearing.

Quick Answer

Check the battery voltage first. A fully charged battery reads about 25.2 volts. Below 21 volts, the motor won't run.

Spin the rear wheel by hand. If it grinds or drags, the bearings are shot. If the chain is loose or off the sprocket, tighten or replace it.

If the wheel spins free but the scooter won't move, the motor or controller is likely faulty.

Why Your Razor E300 Wheel Won't Spin (and Why It's Usually Simple)

The Razor E300 is built like a mini go-kart. Power flows from the battery through a controller, then to a chain-driven motor that spins the rear wheel. That means there are four main things that can stop that wheel from turning: no electrical power, a broken drivetrain, a seized wheel assembly, or a jammed brake.

No electrical power is the most common culprit. The battery might be dead, the key switch could be faulty, or the charger itself might have failed. You can have a bike that looks fully charged but shows voltage below the motor's minimum threshold.

On an E300, the controller cuts power at roughly 21 volts to protect the battery from deep discharge. If your battery reads 20 volts or less, the scooter will turn on but the motor won't pull.

Drivetrain problems are next. The chain connects the motor to the rear wheel. If that chain snapped, slipped off the sprocket, or stretched so badly it's not meshing, the motor will spin freely and the wheel won't move.

You'll hear a whirring noise with no forward motion. This is mechanical, not electrical. You can test it by rolling the scooter forward.

A broken chain makes a rattling noise or just flops around.

Seized wheel bearings stop everything. The E300's rear wheel rides on sealed bearings inside the hub. Over time, dirt and moisture work their way in.

The bearings rust, dry out, and eventually lock up. If you try to push the scooter and the rear wheel feels like it's dragging through mud, or makes a grinding sound, that's bearings. On an E300, the rear wheel is the one that gets the most abuse since it carries the motor weight and chain tension.

A jammed brake is the easiest fix. The rear fender brake presses against the tire when you step on it. If that fender got bent, or if the brake spring is stuck, it can rub constantly.

This feels like the wheel won't spin freely when you lift the scooter off the ground. A quick visual check usually catches it.

Image source: Bing (Web (fair-use with source credit))

First, Figure Out Which Type of Problem You're Dealing With

Do two tests. They take less than two minutes and they'll tell you exactly where the problem lives.

Test one: electrical check. Turn the key switch on. Twist the throttle. Look at the motor.

Does it make any noise at all? Even a faint hum or click means power is reaching the motor. If the scooter is completely silent when you twist the throttle, the problem is upstream.

That means either the battery, the key switch, the throttle itself, or the controller.

Test two: mechanical check. Lift the rear wheel off the ground by tilting the scooter onto its side or using a stand. Spin the rear wheel by hand. Does it turn smoothly and freely?

Or does it grind, click, or refuse to turn entirely?

Here's what those two tests tell you:

• Silent scooter + wheel spins freely, you have an electrical problem. Battery, controller, throttle, or wiring.
• Silent scooter + wheel won't spin, you almost certainly have seized wheel bearings. Possibly a locked motor, but bearings are far more common.
• Motor makes noise + wheel won't move, your chain is broken, loose, or off the sprocket. Check the drivetrain.
• Motor makes noise + wheel drags, check the brake first. Then check bearings.

That's your decision tree. It's that simple.

Image source: Bing (Web (fair-use with source credit))

If the scooter is silent: checking the battery and electrical system

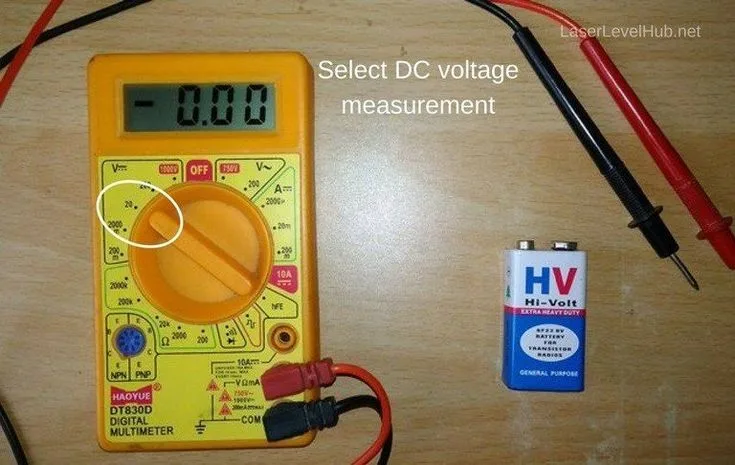

Grab a multimeter. Set it to DC voltage and touch the probes to the battery terminals. A fully charged E300 battery pack should read around 25.2 volts.

At 24 volts, you have roughly half a charge. Below 21 volts, the controller's low-voltage cutoff kicks in and the motor won't run.

If your battery reads below 21 volts, charge it fully and retest. If it won't charge past 21 volts, the battery is worn out. Lead-acid batteries on these scooters typically last 12 to 18 months with regular use.

As of 2026, replacement packs run about 50 to 80 dollars.

If the battery reads good voltage but the scooter is still silent, test the key switch. Turn the key on and check for continuity across the switch terminals. If you get no reading, the switch is dead.

That's a 10-dollar part and a five-minute swap.

If the wheel won't turn: checking bearings and brake

Lift the rear wheel and try to spin it. If it barely moves or makes a rough grinding noise, the bearings are shot. You can confirm by grabbing the wheel at the top and bottom and trying to wiggle it side to side.

If there's play, the bearings are destroyed.

The E300 uses two sealed bearings in the rear wheel hub. They're standard 9-inch scooter bearings, usually 6000 series. A set costs about 10 to 15 dollars.

You'll need a bearing puller or a flathead screwdriver and a hammer to remove the old ones. It's a fiddly job but doable in 30 minutes.

Before you blame bearings, check the brake. The rear fender brake should sit about a quarter-inch above the tire. If it's pressing down, loosen the bolt and adjust it.

Sometimes a bent fender is the whole problem. Straighten it with pliers and you're done.

Step-by-Step Fixes for Each Problem

Once you know which branch of the decision tree you're on, the fix is straightforward.

Fixing a dead battery or electrical issue

If your multimeter shows low voltage, the battery needs charging or replacing. Plug in the charger and leave it for the full 12 to 18 hours the manual recommends, even if the light turns green sooner. Lead-acid chargers can false-flag a full charge.

If the battery won't take a charge at all, test the charger itself. Plug it into the wall and measure the output voltage at the charging port. You should see roughly 24 to 29 volts.

No voltage means the charger is dead. Replacement chargers for the E300 run about 20 to 30 dollars.

If the battery and charger are fine but the scooter stays silent, the controller may have failed. The controller is the small black box near the battery. On an E300, you can bypass it to test the motor directly.

Disconnect the motor wires from the controller and connect them to a 24-volt battery. If the motor spins, the controller is bad. Replacement controllers cost 20 to 40 dollars.

Image source: Bing (Web (fair-use with source credit))

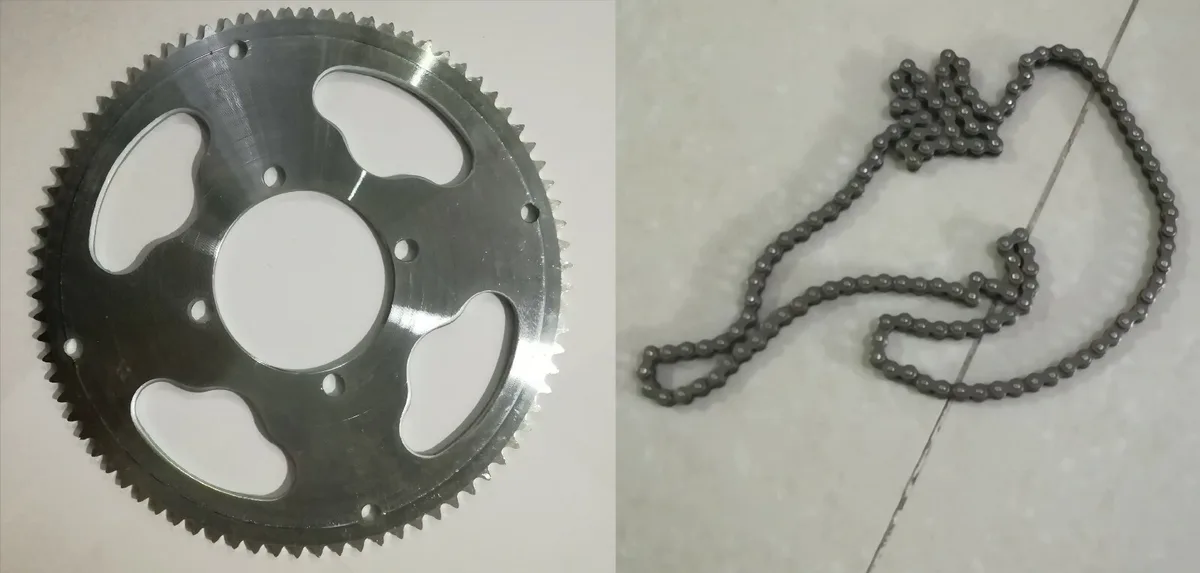

Fixing a broken or loose chain

A loose chain is the easiest fix. Locate the motor mount bolts on the rear of the frame. Loosen them slightly.

Pull the motor backward to tension the chain. The chain should have about half an inch of vertical play in the middle. Too tight and you'll wear out bearings.

Too loose and it'll skip under load.

If the chain is broken, you need a new one. The E300 uses a standard #35 chain. You can buy a pre-cut length for about 10 to 15 dollars.

Remove the old chain by using a chain breaker tool. Install the new one and tension it the same way. Apply a light coat of lithium grease to reduce wear.

If the chain is off the sprocket but not broken, you can often just snap it back on. Loosen the motor mount bolts, push the motor forward to slack the chain, and reseat it on both sprockets. Then tension it.

Fixing seized wheel bearings

Replace the bearings. Here's the process:

1. Remove the rear wheel. You'll need a 15mm socket for the axle nuts.
2. Pop the dust covers off the bearing housings with a flathead screwdriver.
3. Remove the old bearings. A bearing puller is ideal, but you can tap them out from the opposite side using a hammer and a long punch. Work slowly to avoid damaging the hub.
4. Press in the new bearings. Use a socket that matches the outer diameter of the bearing and tap it in evenly. Make sure they seat fully.
5. Reassemble the wheel. Don't overtighten the axle nuts. Snug them down, then back off a quarter turn. Tight bearings lock the wheel immediately.

Fixing a jammed brake

Check the gap between the rear fender and the tire. It should be visibly lifted. If it's touching, loosen the bolt that holds the fender to the frame.

Push the fender up, tighten the bolt, and test. If the spring is rusty and stuck, replace it. The brake spring costs about 5 dollars.

If the fender itself is bent, you can straighten it with pliers or a rubber mallet. Just don't hit hard enough to crack the plastic.

Parts Cost Guide: What to Expect When Replacing

Knowing the cost helps you decide whether to fix or scrap the scooter.

If the total cost of repairs approaches 100 dollars or more, it's worth considering that a brand new Razor E300 runs about 180 to 220 dollars as of 2026. But if it's just a chain or some bearings, you're looking at a 10-dollar fix. That's worth the hour of work.

Common Mistakes That Waste Time and Money

We see the same errors over and over in aggregate reviews. These mistakes turn a 15-minute fix into a two-hour headache.

Replacing parts without diagnosing first. People buy a new battery, then a new controller, then a new motor, and the scooter still won't move. They never checked the key switch. Test first.

Replace second. It saves you 60 to 100 dollars in unnecessary parts.

Overtightening the axle nuts. The rear wheel needs to spin freely. If you crank the axle nuts down with a wrench and muscle, you compress the bearings against the inner race. That locks the wheel.

Hand-tighten the nuts, then give them a quarter turn with the wrench. Spin the wheel. If it drags, back the nut off.

Ignoring the chain tension after a bearing swap. New bearings sit slightly different in the hub. That changes the chain alignment. If you don't retension the chain after replacing bearings, it'll make noise and wear faster.

Always check chain tension after any rear wheel work.

Buying the wrong battery. The Razor E300 uses a specific 24-volt lead-acid pack with a proprietary connector. Some aftermarket batteries have the wrong plug or slightly different dimensions. Measure your battery tray and check the connector type before ordering.

Using WD-40 on bearings. WD-40 is a solvent, not a lubricant. It cleans grease out of bearings and makes them fail faster. Use lithium grease or bearing-specific grease.

For sealed bearings, just replace them.

Forgetting to charge new batteries fully. A new lead-acid battery arrives at roughly 30 to 40 percent charge. If you test it right out of the box, it'll read low voltage and you might think it's defective. Charge it for 12 hours first.

Then test.

Should You Fix It Yourself or Call a Shop?

This depends on your comfort level and tools.

Fix it yourself if: You own a multimeter, a set of metric sockets (10mm, 13mm, 15mm), a screwdriver set, and basic pliers. You're comfortable taking things apart and putting them back together in the right order. You have an hour or two on a weekend.

The problem is electrical (battery, switch, charger) or mechanical (chain, brake). These are all beginner-level repairs with clear steps.

Call a shop if: You don't own a multimeter and don't want to buy one. The problem involves seized bearings and you don't have a bearing puller or a punch. The motor itself is faulty and needs internal brush replacement.

You've already tried the basic fixes and nothing worked. A scooter repair shop will charge about 40 to 60 dollars for a diagnostic fee plus labor. Motor replacement installation runs around 50 to 80 dollars in labor.

What about the warranty? If your E300 is less than 90 days old, contact Razor's customer support before opening anything. The standard warranty covers manufacturing defects but not wear items like bearings, chains, or tires. Opening the controller or motor housing will void the warranty.

Stick to external checks until the warranty period expires.

For most people, the chain and brake fixes are easy wins. The battery test takes five minutes. If you hit a seized bearing job and don't have the tools, that's the one task worth paying for.

Everything else is genuinely DIY-friendly.

Maintenance Tips to Keep the Rear Wheel Spinning

Once you fix the issue, keeping it from coming back is straightforward. The E300 doesn't need much, but a few habits make a real difference.

Lubricate the chain every month. A dry chain wears faster and stretches. Use lithium grease or chain-specific lube. Apply it sparingly and wipe off the excess.

Dripping grease attracts dirt and grit.

Check the axle nuts every few rides. Vibration from riding loosens them over time. A loose axle nut lets the wheel wobble. That wears bearings unevenly.

Store the scooter indoors. Moisture is the enemy of bearings and electrical connections. If you leave the E300 outside in rain or snow, you'll replace bearings every few months. A dry garage or shed extends their life to a year or more.

Inspect the brake gap monthly. The rear fender brake can shift gradually. A brake that barely touches the tire today will rub hard in a month. Keep that quarter-inch gap.

Charge the battery after every ride. Lead-acid batteries degrade fast when left empty. A full charge after each use keeps the cells balanced. If you store the scooter for winter, charge it every 30 days.

Final Recommendations on Fix vs. Replace

If the total repair cost stays under 60 dollars, fix it. That covers bearings, a chain, or a key switch. If the motor or battery needs replacing and you're over 100 dollars in parts, a new E300 costs about 180 to 220 dollars as of 2026.

You get a fresh battery, motor, and everything else for roughly double the repair cost.

For most people, the best approach is simple. Do the two-minute diagnosis first. If it's a chain or brake, fix it today.

If it's bearings, decide if you have the tools. If it's the battery or motor, weigh the cost against a new scooter. The E300 is a durable machine.

With basic care, it runs for years.

Frequently Asked Questions

Can I replace the Razor E300 battery with a lithium battery?

Yes, but you need a compatible 24-volt lithium battery pack and a new charger. Lithium batteries are lighter and last longer. Expect to pay 80 to 120 dollars for a quality pack.

Make sure the connector matches your E300's wiring.

How do I know if the motor is completely dead?

Disconnect the motor wires from the controller. Connect the motor wires directly to a 12-volt car battery or a 24-volt battery pack. If the motor doesn't spin, it's dead.

If it spins, the controller or wiring is the problem.

Why does the wheel spin freely but the scooter won't move?

This is almost always the drive chain. The chain is either broken, stretched, or sitting off the sprocket. Lift the scooter and look at the chain while spinning the rear wheel.

You'll see the problem immediately.

Can I ride the scooter with a loose chain?

No. A loose chain can slip off the sprocket while you're riding. That can lock the rear wheel suddenly.

Fix the chain tension before riding again. It takes five minutes and keeps you safe.

How often should I replace the bearings?

Every 6 to 12 months for heavy riders. Every 12 to 18 months for casual riders. If you ride in wet or dusty conditions, check them every 3 months.

Dry bearings start grinding before they fail completely.

Is it worth upgrading the E300 motor?

You can upgrade to a 350-watt or 500-watt motor, but you'll also need a new controller and battery. That's a 150 to 200 dollar project. Most people find it cheaper to buy a faster scooter.

The stock motor is fine for casual riding.
