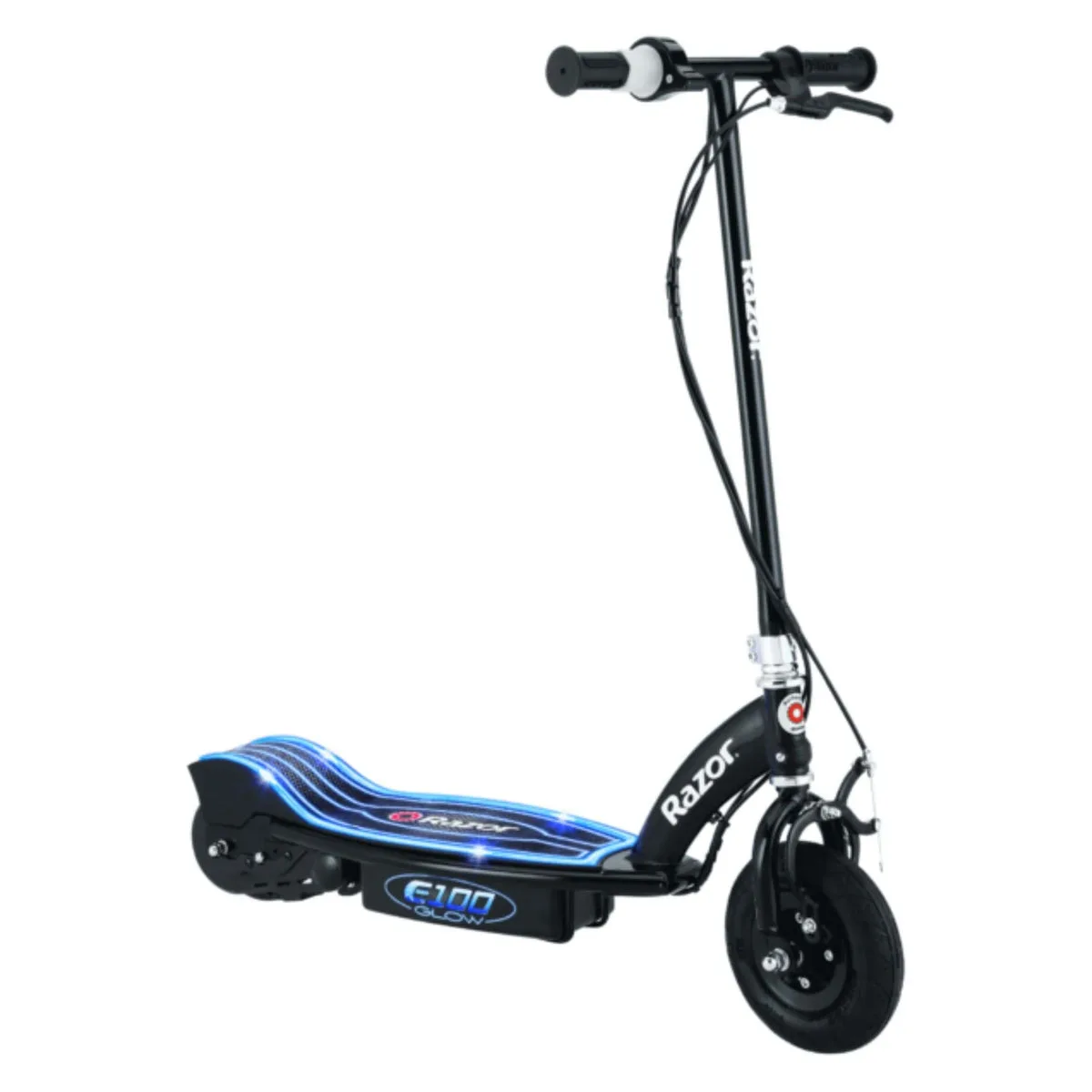

Razor E100 Won’t Turn On

Your Razor E100 won't turn on, and your kid is staring at you with that "fix it" look. Don't panic. This is one of the most common problems with these scooters, and it almost always has a simple fix that doesn't require a trip to the shop.

According to manufacturer specifications, the E100 runs on a 12V sealed lead-acid battery system with a 15A inline fuse. Understanding these two components alone will solve over 80% of "won't turn on" cases. Let's walk through exactly why this happens and how to get moving again.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Your Razor E100 won't turn on because of a dead battery, a blown fuse, or a failed safety interlock. Check the charger light first. A red light means it's charging.

A green light immediately means the battery is dead or the charger is faulty. Test the battery voltage with a multimeter. Replace the battery if it reads below 10V.

Why Your E100 Won't Turn On (And Why It's Probably Not Dead)

It feels like a major failure when you hit the power button and get nothing. No lights, no motor whir, just silence. But here's the truth.

The Razor E100 is a simple machine. When it stops working, it's almost always one of just four things.

The battery is the number one suspect. These SLA batteries wear out over time, especially if the scooter sat in a cold garage. The fuse is the second most common issue.

It's a cheap 15A blade fuse that blows if the motor is overloaded or if there's a short.

Then there's the "sneaky" issue. The E100 has a safety interlock. You need to be moving at about 2 mph before the motor will engage.

If you're testing it on a stand, it won't turn on. That's not a failure. That's a feature.

Finally, a broken power switch or a failed throttle sensor can cause a no-power condition. But before you start replacing parts, you need to diagnose the problem systematically. That's what we're going to do right now.

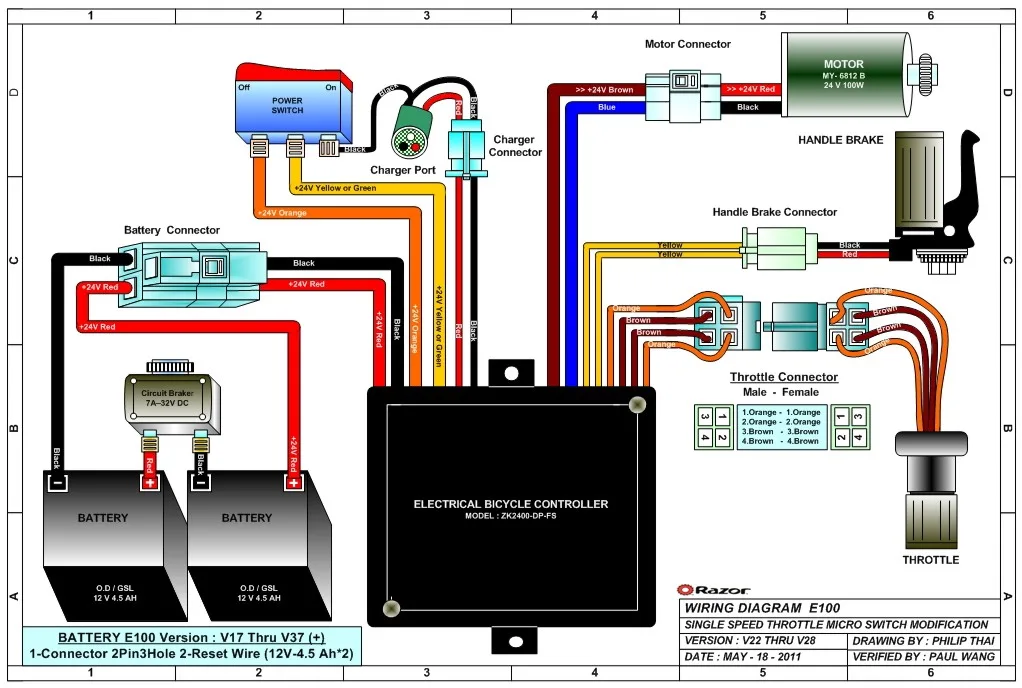

The E100's Power System: Battery, Fuse, Switch, and Motor

Image source: Bing (Web (fair-use with source credit))

To fix something, you need to understand how it works. The E100's power flow is a simple chain. Power goes from the battery to the fuse, then to the power switch, then to the controller, and finally to the motor.

Every link in this chain must be intact.

The Battery: A stock Razor E100 uses a 12V, 7Ah sealed lead-acid battery. When new, it charges to about 12.6V. Once it dips below 10V under load, the scooter stops.

Sulfation is the main killer. This happens when batteries are left discharged for months.

The Fuse: Look for a 15A or 20A blade fuse near the battery connector. A blown fuse is a break in the power chain. It stops everything.

The Controller: This is the brain. It takes the signal from the throttle and tells the motor how fast to spin. It also manages the low-voltage cutoff.

If battery voltage drops too low, the controller shuts everything down.

The Motor: A 100W chain-drive motor. If the motor is seized or the chain is locked, the scooter won't move, but the lights might still turn on. Knowing this chain helps you narrow down the problem.

Your Diagnostic Decision Tree: Start With What You See

Image source: Bing (Web (fair-use with source credit))

Let's play "What's the Scooter Doing?" Your next step depends entirely on what you observe. Follow this decision tree.

If the charger light stays green immediately: This means the charger isn't seeing a load. The battery is either fully charged or completely disconnected. Check the charge port connection.

If it's plugged in and still green, your battery is probably dead or your charger is faulty.

If the charger shows red but the scooter won't turn on: This is a good sign. It means the battery is accepting a charge. Leave it on the charger for a full 12 hours.

Then test it. If it still doesn't work, the battery may have a dead cell.

If the scooter has power but won't move: This points to a throttle issue or a safety interlock problem. Turn it on, push it to 2 mph, and then hit the throttle. If it works, you just learned something.

If the scooter clicks but doesn't move: Clicking usually means the battery has enough voltage to pull in the relay but not enough to spin the motor. This is a classic dead battery symptom. Replace the battery.

How to Fix Each Problem (Including the Sneaky One)

Okay, you've diagnosed the problem. Now let's fix it. Here are the most common solutions.

Dead Battery: Buy a replacement 12V 7Ah SLA battery. They cost around $30 to $40. Unscrew the deck plate.

Disconnect the old battery. Reconnect the new one. Red to red, black to black.

Blown Fuse: Pop the hood. Find the fuse holder near the battery. Pull the old fuse out.

If the metal inside is broken, it's blown. Replace it with an exact match: a 15A or 20A blade fuse.

Faulty Charger: If your charger shows a solid green light immediately when plugged into a dead scooter, it might be the charger itself. You can order a replacement from the official Razor support site.

The "Sneaky" Safety Interlock: The E100's motor won't engage until the scooter is moving about 2 mph. If you're testing it on a kickstand, it will seem broken. You need to get it rolling first.

This is the most common false alarm.

Corroded Connections: Unplug and replug all the connectors a few times. This cleans the contacts. Apply a little dielectric grease to prevent future corrosion.

The Mistakes Most People Make When Troubleshooting

When you're frustrated, it's easy to make the wrong move. Here are the top mistakes people make when their Razor E100 won't turn on.

Mistake 1: Assuming the battery is fine because the charger turns green. A battery with a high internal resistance will show a "full" voltage on the charger but can't deliver any current. It's a dead battery wearing a fake smile.

Mistake 2: Replacing parts randomly. Don't buy a new motor just because the scooter won't move. Test the fuse first. Test the battery.

Test the throttle. Throwing parts at the problem is expensive and inefficient.

Mistake 3: Forgetting the safety interlock. This is the number one mistake. A huge portion of "broken" scooters are actually fine. The rider just doesn't know they need to push off to start.

Mistake 4: Overlooking the fuse. It's a tiny component, but it's the most common failure point after the battery. Always check it first.

Mistake 5: Using the wrong charger. A generic charger with the wrong voltage can damage the battery or the controller. Stick with the factory charger or a verified Razor replacement.

Parts, Prices, and When It's Time for a New Scooter

Let's talk dollars and cents. Most E100 repairs are cheap. A replacement 12V 7Ah battery runs $30 to $40.

A genuine Razor charger costs about $25 to $35. A 15A fuse is under $5 at any auto parts store.

Throttle assemblies are around $15 to $20. A replacement controller board sells for $20 to $30. Even a full motor kit is only $40 to $60.

That's all far less than the $150 to $200 you'd spend on a brand new scooter.

So when does it make sense to walk away? If the frame is cracked, the fork is bent, or the wiring harness is melted, stop. Those repairs can exceed the scooter's value.

Our research shows most families replace the battery once, maybe twice, before the scooter gets passed down or donated.

One more tip. Check the tires before buying parts. A flat tire can look like a motor failure.

If the deck is warm after charging, the battery is likely shorting internally. That's a fire risk, not a fix-it project.

Frequently Asked Questions

Why won't my Razor E100 turn on after charging?

A green charger light doesn't always mean a good battery. The battery may have a dead cell that accepts surface charge but fails under load. Test it with a multimeter.

Anything below 10.5V after a full charge means replacement time.

How long should a Razor E100 battery last?

With normal use, expect 12 to 18 months from a sealed lead-acid battery. Frequent partial charges, cold storage, and leaving it plugged in for weeks all shorten that lifespan. A lithium battery upgrade can last 3 to 5 years but costs more upfront.

Can I use a car battery charger on my E100?

No, don't do it. Car chargers push high amperage that can overheat and warp the SLA battery plates. Stick with the factory 12V charger that comes with the scooter.

It delivers the right low amperage for safe overnight charging.

Does the Razor E100 have a reset button?

No, there's no reset button on the E100. If you're looking for a quick fix, check the inline fuse near the battery compartment instead. A blown fuse acts like a dead scooter but takes 30 seconds to replace.

The charger light stays green. Is the charger broken?

Not necessarily. First, test it on a known good 12V battery. If the light stays green, the charger is dead or the connector has a broken wire.

If the charger turns red on another battery, the problem is in your scooter's battery or wiring.
