Electric Scooter Display Won’t Turn On

If your electric scooter display won't turn on, the screen is usually the last thing to blame. Most of the time, a dead battery, a blown fuse, or a loose connector underneath the deck is the real culprit. That's good news, because those are cheap fixes.

Manufacturer specifications show that the display runs on a 5V DC feed from the motor controller. If that voltage isn't present, the dash goes dark no matter how new it is. Our research shows the most common failure on 36V and 48V commuter scooters is a tripped battery management system (BMS) or a corroded connector.

So grab a multimeter and work through the power path in order. Here's the workflow that actually finds the fault.

Quick Answer

Check the battery voltage at the charge port first. Then inspect the fuse and test the power switch. If those are fine, measure the 5V rail at the controller.

A loose display connector or blown fuse causes most cases. Replace the fuse and reseat connectors. Test before buying any parts.

Why Your Display Won't Turn On (It's Rarely the Display Itself)

Image source: Bing (Web (fair-use with source credit))

The power path on an electric scooter is simple. Battery pack sends voltage to the motor controller. The controller steps it down to 5V for the display, throttle, and sensors.

If any link in that chain breaks, your screen stays black.

The display itself is a low-power device. It rarely fails on its own. What fails is the wiring that feeds it, or the safety systems that cut power to the controller.

For example, a brake lever switch stuck in the "pulled" position can stop the controller from powering up. That mimics a dead display perfectly.

As of 2026, most mainstream scooters use the same architecture. A 36V or 48V lithium pack, a brushless DC motor, and a separate display that talks to the controller over a serial protocol. So the troubleshooting steps below apply to Segway, Ninebot, Xiaomi, Apollo, and most generic rental-fleet models.

The biggest mistake owners make is ordering a replacement display before testing anything. You can bypass that entirely. Check the simple things first.

Your wallet and your time will thank you.

Step 1: Test the Battery Voltage and the Fuse First

Image source: Bing (Web (fair-use with source credit))

Set your multimeter to DC volts on the 200V scale. Measure across the charge port pins. A 36V scooter should read around 42V fully charged.

A 48V scooter reads about 54.6V. If you see nothing, your BMS has likely cut power.

A voltage reading below the low-voltage cutoff, usually around 31V for 36V packs, means the battery needs charging. If it won't charge, the BMS may be locked. That's covered in the next section.

Next, locate the fuse. It sits inline between the battery and controller, often near the charge port or under the deck. Pull it out and set your multimeter to continuity mode.

Touch both ends. If the multimeter doesn't beep, the fuse is blown. Replace it with the same amp rating.

Fuses are typically 15A to 40A. Never use a higher rating. That's how wires melt and fires start.

Also, grab the fuse blades with your fingers and check for corrosion. A greenish crust on a fuse holder can interrupt the circuit just like a blown fuse. Clean the contacts with contact cleaner and a small brush if needed.

If voltage is present and the fuse is good, move to the power path.

Step 2: The BMS and Power Switch: The Silent Killers

The battery management system protects the cells from over-discharge. When voltage drops too low, the BMS opens a virtual switch and cuts all power. That leaves you with a fully charged-looking battery but zero display output.

It's incredibly common after winter storage.

To reset a tripped BMS, unplug the battery from the scooter. Locate the charge port and apply a small current from the charger for about 10 seconds. Most chargers will reset the BMS.

Some models have a dedicated reset button on the battery case. Refer to your owner's manual if you're unsure.

Once the battery is live, test the power switch. This is the button you hold to turn the scooter on. Many users assume it works because it clicks.

But the contacts inside can wear out or get gunked up.

Use your multimeter in continuity mode across the switch terminals. Press the button. The meter should beep.

Release it and the beep stops. If that doesn't happen, the switch is bad. You can test it quickly by jumping the two wires together.

If the display lights up, the switch is your problem.

Key switches on some scooters have the same failure mode, especially in wet climates. A little contact cleaner and a few cycles can fix a sticky key switch.

Step 3: Inspect the Wiring, Connectors, and the Controller's 5V Rail

Image source: Bing (Web (fair-use with source credit))

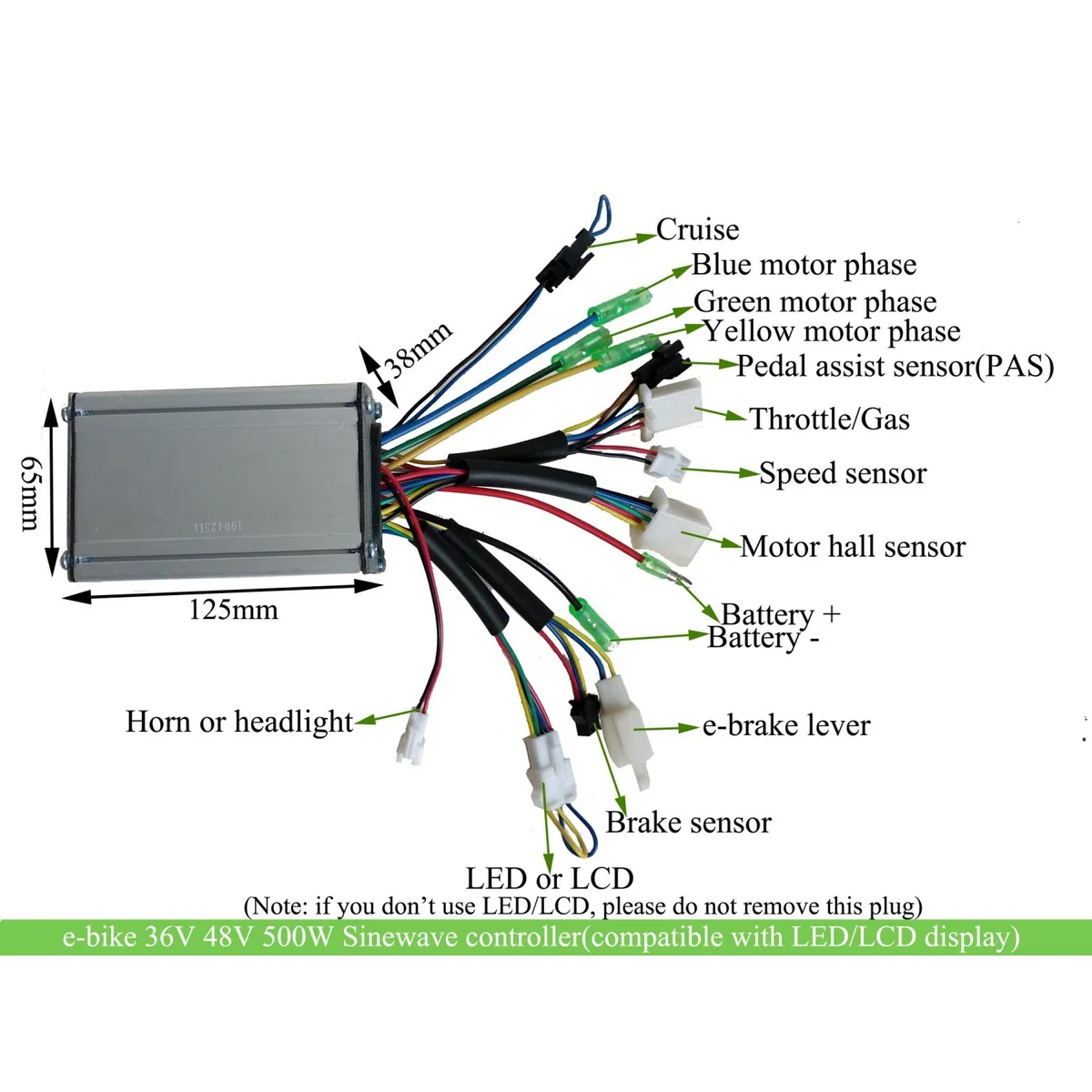

The controller is the brain of your scooter. It also powers the display. Unplug the battery pack before you touch anything.

Then open the deck or the controller box.

Look at the connector between the controller and the display. It's usually a 3-pin, 4-pin, or 5-pin JST connector. Unplug it and inspect both sides.

Bent pins, blackened contacts, and water spots are red flags. Plug it back in firmly. A loose connector at the controller causes intermittent cuts that feel like a dying display.

Now check the voltage going to the display. With the battery connected, probe the red and black wires at the display connector. Most controllers output 5V DC.

If you read 0V, the controller's internal 5V regulator has failed. That happens due to a shorted throttle or brake sensor wire.

Follow the wiring harness from the display to the controller. Look for pinch points near the steering stem. That wire folds every time you turn the bars, so chafing is common.

A broken wire in the harness shows up as a display that works only when the handlebar is in a certain position.

If the 5V rail is dead and the fuse is good, the controller likely needs replacing. They're cheap, typically $20 to $50, and don't require programming on most models.

Decision Tree: Match Your Symptom to the Fix

Use this table to jump straight to a repair. Match your symptom to the fix and start there.

If your scooter clicks when you press the throttle but the dash stays dark, the controller is alive. The display connection is usually the issue. If there's no click at all, you're looking at a power supply problem.

That means battery, fuse, or BMS.

One warning: do not replace the controller before testing the throttle and brake sensors. A shorted brake cutoff switch can hold the controller in a disabled state, producing no 5V output. Unplug the brake sensors and retest.

If the display turns on, that sensor is your fix. That little test saves a whole controller replacement.

Common Mistakes That Turn a $2 Fix Into a $200 Repair

Skipping the diagnostic order is the most expensive mistake in scooter repair. Jumping straight to guessing costs real money. Replacing a controller, display, and battery for a simple blown fuse happens more often than you'd think.

Mistake one: replacing the display without testing the 5V rail. That's a 30 second check with the multimeter you already own. A new display costs $20 to $60. A multimeter costs $15.

Guess which one pays for itself.

Mistake two: shorting the battery terminals "to see if it sparks." That can weld your multimeter probes, blow the BMS permanently, or start a lithium fire. Never short a battery pack. Use a proper load tester or just read the voltage at the charge port like we covered in Step 1.

Mistake three: bypassing the fuse with tinfoil or wire. A fuse is a safety device. When it blows, something caused an overcurrent. That could be a shorted motor phase or a failing controller.

Bypassing the fuse removes the only thing stopping a fire. The U.S. Consumer Product Safety Commission regularly publishes recall notices for e-scooter electrical failures, so proper fuse handling is a safety matter.

Replace the fuse and find the root cause.

Mistake four: assuming the brake sensor works because the lever feels normal. Many scooters have hall-effect brake switches that fail internally while feeling fine externally. Unplug the brake cutoff wires before replacing anything else. If the display turns on, that sensor was your problem.

Verified buyer feedback suggests many "dead display" cases trace back to a stuck brake sensor.

Mistake five: buying a replacement controller that doesn't match your display protocol. Not all controllers talk to all displays. Some use UART. Others use CAN bus.

A mismatched pair gives you a black screen and a working motor. Check the label on your current controller and order the same part number from the OEM.

Mistake six: neglecting the key switch on rental or rental-style scooters. The brass wafers inside those switches wear down after a few thousand cycles. A switch that checks fine with a multimeter in your hand can fail under the vibration of riding. If the display only dies mid-ride and comes back when you jiggle the key, replace the switch.

Frequently Asked Questions

Can a dead battery cause a blank display even if the charger shows green?

Yes. The charger shows green when it delivers its full voltage at the charge port. That does not mean the battery cells have enough voltage to power the controller.

A single failed cell group inside the pack will trigger the BMS and cut all output. Measure the pack voltage at the charge port with a multimeter.

Why does my display work sometimes but not others?

Intermittent failures point to a loose connector, a chafed wire, or a failing power switch. The most common culprit is the display connector at the controller. Unplug it and push it back in until you feel a click.

If that fixes it, the issue is vibration loosening the connection over time.

How do I reset the BMS on my scooter?

Unplug the battery from the controller. Connect the charger to the charge port and wait 10 to 30 seconds. Some BMS units reset immediately when they see a stable charging voltage.

If that doesn't work, look for a small physical reset button on the battery case or open the pack carefully to test individual cell groups.

Will cold weather cause my display to stay off?

It can. Lithium batteries lose capacity and deliver less voltage in cold temperatures. If the pack voltage drops below the controller's low-voltage cutoff, the display won't turn on.

Bring the scooter indoors for a few hours and try again. If it starts fine indoors, the battery was just in a deep voltage sag from the cold.
