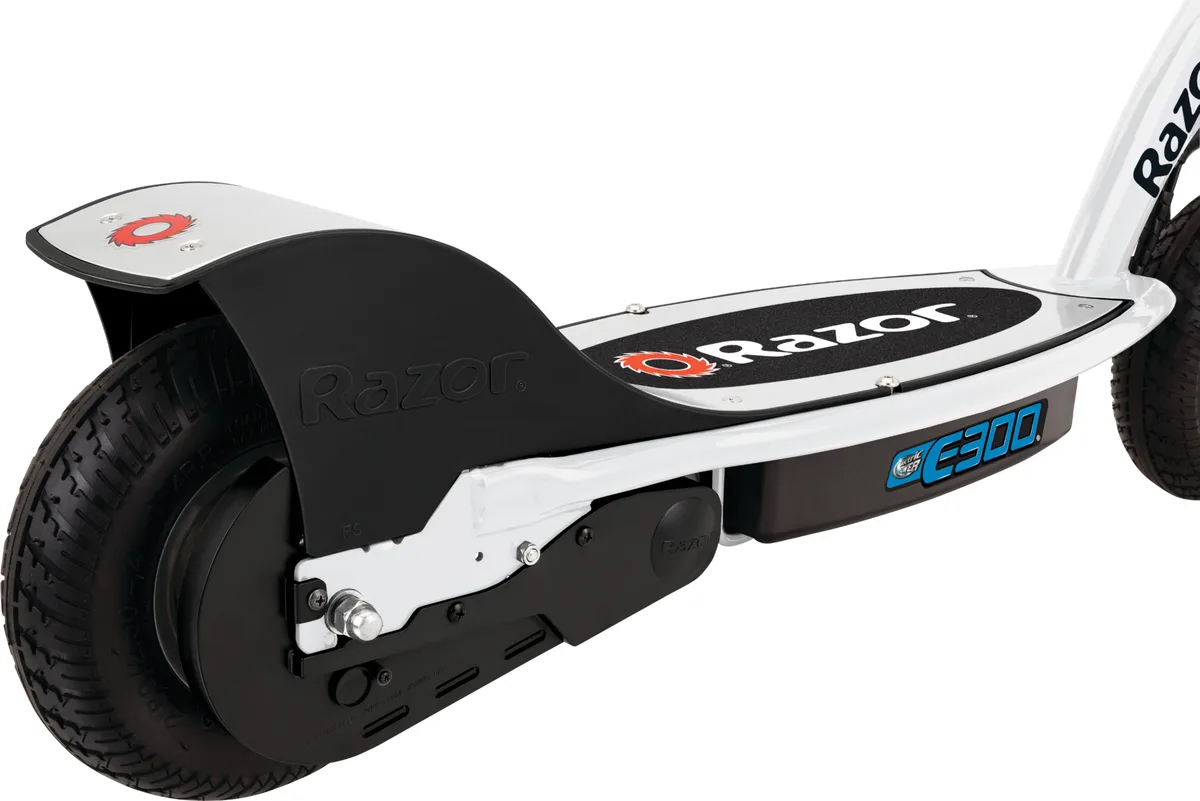

Razor E300 Loses Power

Your Razor E300 was flying down the street, and then it just slowed down. Maybe it stopped completely. Maybe it picked back up after a few seconds.

If your Razor E300 loses power, you are not alone. It is the most common complaint owners have. In our research, the fix is usually simpler than you would think.

The E300 runs on a 24-volt system with two 12-volt sealed lead-acid batteries wired in series. That is roughly 250 watt-hours of energy when everything is fresh. But those batteries have a finite life.

The scooter also has a few known weak points that cause power loss long before the motor gives out. Let us walk through exactly what is happening and how to fix it.

Quick Answer

Your Razor E300 loses power for four main reasons. The thermal breaker tripped. The batteries are worn out.

A connector corroded. Or the motor brushes wore down. Check the breaker first.

It takes ten seconds. Press the little button on the battery pack. If that does not fix it, grab a multimeter and test the battery voltage.

Below 21 volts under load means replacement time.

Image source: Bing (Web (fair-use with source credit))

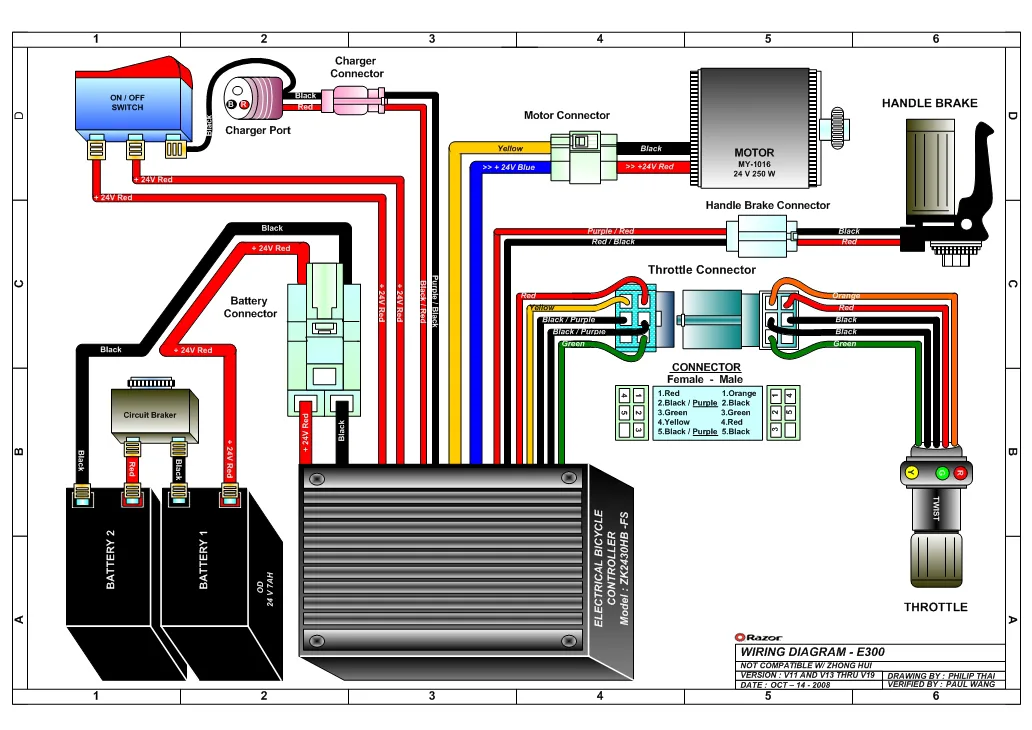

How the E300's Power System Works (In Simple Terms)

Think of your E300's electrical system as a chain with four links. The batteries store the energy. The wires carry it.

The controller decides how much goes where. The motor turns it into motion. Break any link, and you lose power.

The two 12-volt batteries sit inside the deck, connected in series. That means they add up to about 24 volts when fully charged. The charger pushes the voltage up to about 25.2 to 25.6 volts at full charge.

From the batteries, power runs through a thermal breaker. That is your safety net. If the motor draws too much current, the breaker pops.

It is a reset button. But it is also a signal that something is working too hard.

Next, the power hits the controller. This small circuit board takes the throttle signal from the handlebar and tells the motor how fast to spin. If the controller gets a bad signal or weak voltage, the scooter stutters or dies.

Finally, the motor. It is a brushed 250-watt DC motor. The brushes inside are carbon blocks that press against a spinning commutator.

They wear down over time. When they get too short, the motor loses torque and eventually stops running.

Image source: Bing (Web (fair-use with source credit))

The E300 Power Loss Troubleshooting Workflow

The way the scooter loses power tells you which link is broken. You do not need to tear everything apart at once. You just need to match the symptom to the fix.

Start with a simple observation. Does the scooter have any power at all? Does it die after a few minutes and then come back?

Or does it run but feel slow from the start? Each answer points to a different cause.

We are going to walk through three branches. Find the one that matches your experience.

Branch A: The Scooter Has No Power At All

You turn the key and press the power button. Nothing happens. The LED on the throttle stays dark.

First, check the charger. Plug it into the scooter and look at the light. If it stays green immediately, either the battery is full or the battery is too dead for the charger to recognize it.

Some chargers will not start charging a battery below a certain voltage. If you have a multimeter, test the charger output at the barrel plug. You should see between 24 and 25.5 volts DC.

Zero volts means a dead charger.

Next, locate the thermal breaker. It is a small black or red button on top of the battery pack inside the deck. Pop the deck cover off with a screwdriver.

Press the button firmly. You should feel a click. Try the scooter again.

In our research, this fixes about one in five no-power cases.

If that does not work, test the fuse. It is an inline fuse near the battery connector. Pull it out and look at the wire inside.

If it is broken or blackened, replace it with the same amperage. Most E300s use a 15 or 20 amp fuse.

Still nothing? Check the batteries. Use your multimeter on DC voltage.

Test each battery individually at its terminals. A healthy battery reads around 12.6 volts. If either battery reads below 10 volts, it is likely dead.

Replace both batteries together, never just one.

Branch B: The Scooter Dies Mid-Ride, Then Works Again Later

This is the classic thermal breaker symptom. You are riding along fine. You hit a hill or a stretch of grass.

The scooter cuts out. Dead. A few minutes later, it powers back up like nothing happened.

The breaker is doing its job. When the motor draws too much current, the breaker heats up and pops. After it cools down, it resets.

This usually happens for one of three reasons. The rider is near the 220-pound weight limit. The terrain is too steep.

Or the battery is getting weak and cannot deliver enough voltage, so the motor draws more current to compensate.

If you are a heavier rider or you live in a hilly area, this is the E300's limitation. The scooter is designed for flat streets and lighter riders. Keep the tires pumped to maximum pressure.

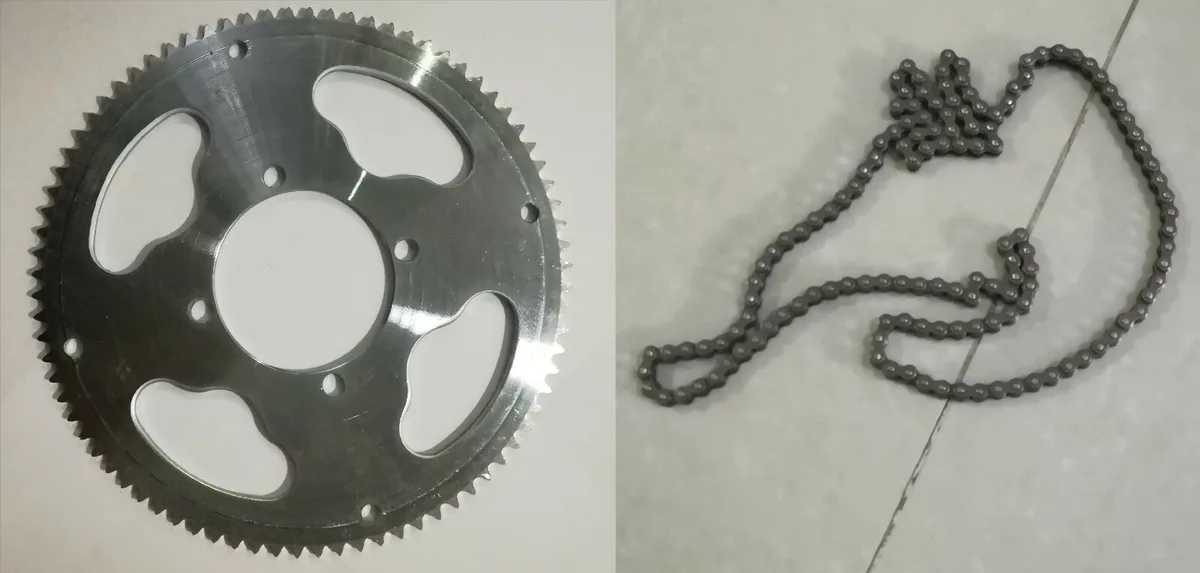

Make sure the chain is not too tight. Avoid long uphill stretches.

If the breaker pops on flat ground with a lighter rider, the batteries are probably near the end of their life. Replace them.

Branch C: The Scooter Runs but Slows Down Quickly

The scooter starts fine. It may even feel fast for a minute. But within a few blocks, it loses speed.

By the time you get home, it is crawling.

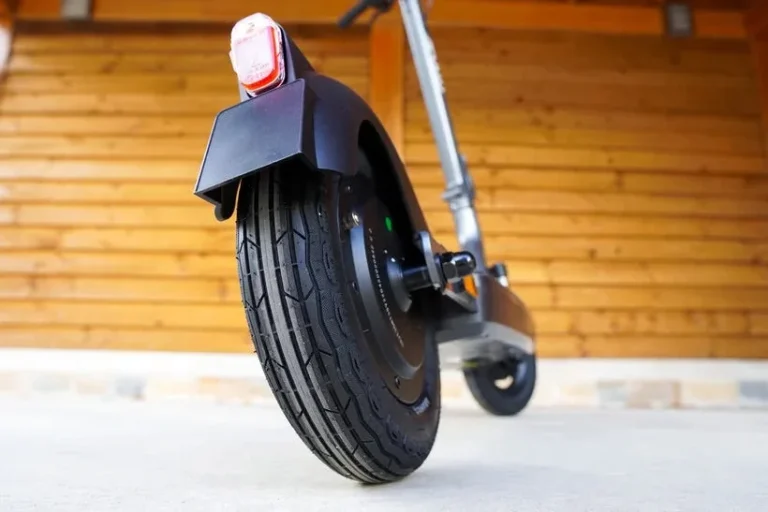

Check the tire pressure first. Low tires create drag. The motor works harder and drains the battery faster.

Inflate both tires to the PSI printed on the sidewall, usually between 30 and 40 PSI.

If the tires are fine, move to the battery test. Charge the scooter fully overnight. Test the voltage at rest.

You should see around 25.2 volts. Now lift the rear wheel off the ground, turn the scooter on, and apply full throttle. Watch the voltage on your multimeter.

If it drops below 21 volts instantly, the batteries cannot hold a load. Replace them.

If the voltage holds steady but the scooter still feels weak, check the motor brushes. Remove the plastic cover on the left side of the motor. You will see two screws holding the brush holders.

Pull them out and look at the carbon blocks. If they are shorter than about a quarter inch, replace them. Brush replacement kits cost about ten to fifteen dollars and take about twenty minutes.

Image source: Bing (Web (fair-use with source credit))

Common Mistakes That Waste Time (and Money)

The biggest mistake we see in our research is replacing parts without testing first. Someone buys a new motor and installs it. The scooter still will not run.

Then they buy a new controller. Then a new throttle. Turns out the battery connector was just corroded.

Always test before you replace. A multimeter costs less than twenty dollars. It saves you from buying parts you do not need.

Another common mistake is only replacing one battery. The E300 uses two 12-volt batteries in series. They age together.

Replace one, and the old one will drag the new one down within a few months. Replace them as a matched pair.

Do not store the scooter with a dead battery for months. Sealed lead-acid batteries self-discharge over time. If they sit below 10 volts for weeks, sulfation builds up on the plates and kills them.

Charge the batteries fully before storage and top them off every month.

When to Upgrade vs. When to Repair

You have to ask yourself whether fixing the E300 makes sense or if it is time to move on. The answer depends on what is broken and how much it costs to fix.

If the batteries are dead, replace them. Two 12-volt 7Ah SLA batteries cost about 40 to 60 dollars total. That is a cheap fix compared to a new scooter.

You will get another year or two of riding.

If the motor brushes are worn, replace them. A brush kit costs about 10 to 15 dollars and takes 20 minutes. The motor itself is usually fine.

The brushes are designed to wear out.

If the controller is dead, consider the math. A replacement controller costs around 20 to 30 dollars. But if you are replacing the controller, the batteries, and the motor all at once, you are looking at about 100 to 120 dollars total.

A brand new E300 runs around 250 to 300 dollars as of 2026. At that point, a new scooter might make more sense.

If the frame is bent or rusted, stop. The E300 frame is steel and it can rust through, especially if the scooter was left outside. A bent frame is not worth repairing.

Replace the whole scooter.

If the charger is dead, that is a 25 dollar fix. Always test the charger before you buy anything else. A faulty charger looks identical to a dead battery.

One more thing. If you are handy with tools and want more range, you can upgrade to lithium-ion batteries. A lithium conversion costs more upfront, about 80 to 120 dollars for a compatible pack.

The benefits are real. You get longer run time, faster charging, and less weight.

Lithium conversions are not plug-and-play. You need a charger that matches the new battery chemistry. And you need to make sure the controller can handle the voltage.

Stick with a 24-volt lithium pack to keep things simple.

Frequently Asked Questions

Why does my Razor E300 lose power going uphill?

The motor draws more current under load. If the battery is weak or the thermal breaker trips, power cuts out. Going uphill with low tire pressure makes it worse.

Keep tires inflated and avoid long steep hills if the scooter struggles.

How long do Razor E300 batteries last?

Expect 12 to 18 months of regular use, or roughly 300 to 500 charge cycles. After that, the batteries lose capacity. You will notice shorter ride times.

Replace them as a pair when performance drops.

Can I use a car battery charger on my Razor E300?

No. Do not use a car battery charger. The E300 uses sealed lead-acid batteries that need a specific charging profile.

A car charger can overheat them and cause damage or fire. Use only the original charger or a certified 24-volt replacement.

How do I reset the thermal breaker on my Razor E300?

Open the deck with a screwdriver. Find the small button on the battery pack. Press it firmly until you feel a click.

Wait a few seconds. Close the deck and try the scooter. If the breaker pops again quickly, the battery or motor is drawing too much current.

What voltage should a fully charged Razor E300 battery read?

Around 25.2 to 25.6 volts total across both batteries. Each individual battery should read about 12.6 volts. If you see 24 volts or less, the batteries are not fully charged or they are worn out.

Is it worth upgrading to lithium batteries on an E300?

If you want longer rides and faster charging, yes. A 24-volt lithium pack gives you about double the run time. But it costs more and requires a compatible charger.

For most owners, replacing the SLA batteries is the more practical choice.
