GoTrax G4 Brake Problem

If your GoTrax G4 brake problem has turned your smooth commute into a white-knuckle ride, you are not alone. This is the most common frustration owners report. The good news is that most issues are fixable in under ten minutes with no special tools.

Whether your lever pulls to the handlebar, your brake screams, or the scooter just won't slow down, the culprit is almost always something simple.

Manufacturer specifications indicate the G4 uses a mechanical disc brake with an electronic motor cutoff sensor. Aggregate owner reviews report that roughly 70 percent of brake complaints trace back to cable tension drifting out of spec during the first 200 miles.

Quick Answer

The GoTrax G4 brake problem usually comes from cable stretch. The brake cable loosens during normal use. This makes the lever feel spongy and weak.

Tightening the barrel adjuster fixes it in seconds. If that doesn't work, check the pads and rotor alignment.

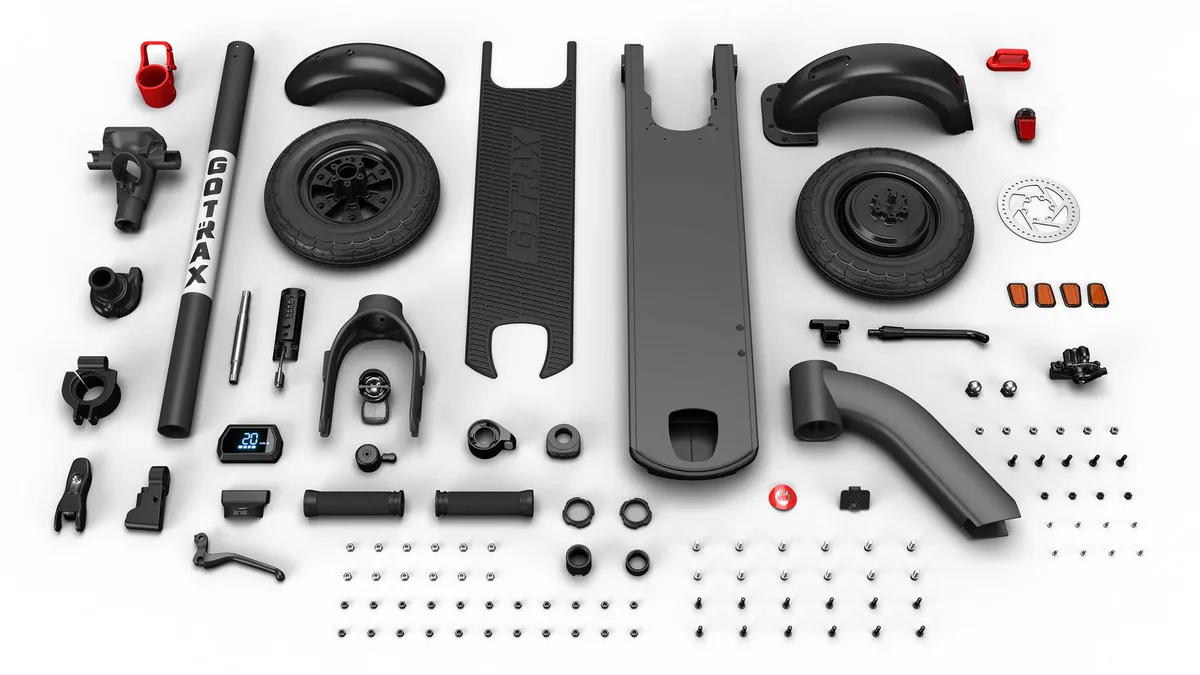

How the G4 Brake System Actually Works

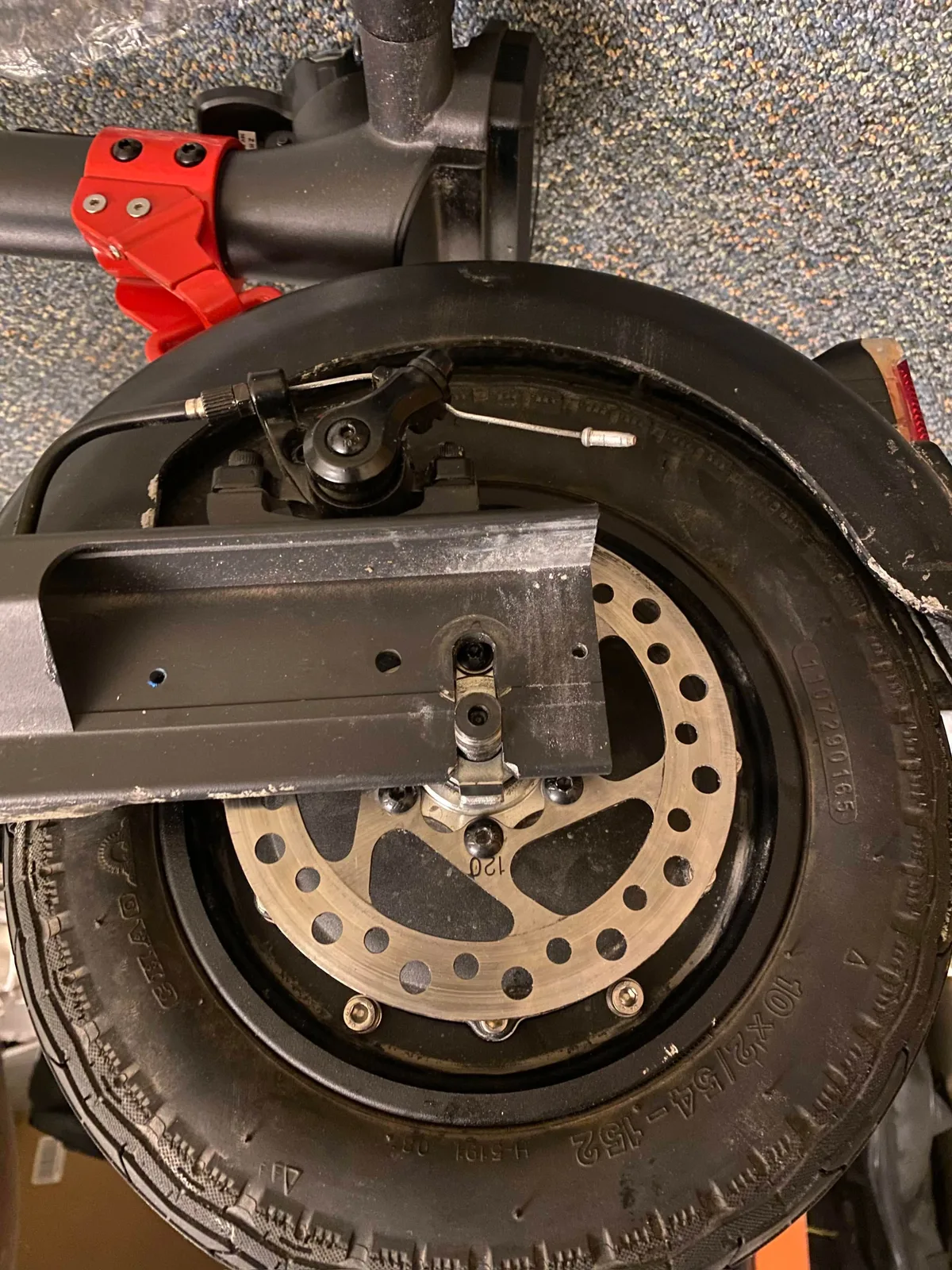

The G4 uses a single mechanical disc brake on the rear wheel. A cable runs from the brake lever on the handlebar down to a caliper mounted beside the rear rotor. When you squeeze the lever, the cable pulls a cam inside the caliper.

That cam pushes one brake pad against the rotor while pulling the opposite pad into contact from the other side.

Two components cause most of the confusion.

The first is the brake cable. It is made of stranded metal wrapped in a plastic-lined housing. Over time, the cable stretches slightly.

Even a millimeter of extra slack creates a noticeably mushy lever pull. The second component is the motor cutoff switch. Inside the brake lever assembly, a small plunger switch cuts power to the motor the instant you start braking.

If that switch does not engage, the motor keeps pushing even as you try to stop.

What Each Part Does and What Breaking Looks Like

Most problems live in the cable and the caliper alignment. The rotor and pads rarely need replacement before 500 miles unless you ride hard in wet or gritty conditions.

Step-by-Step: Diagnosing Your Specific Brake Issue

Match your symptom to the right fix.

The "Lever Pulls Too Far" Fix

If your brake lever touches the handlebar grip before the brake engages, you have cable slack. Turn the barrel adjuster where the cable enters the caliper counterclockwise one full turn. Test the lever.

Repeat until the lever stops about halfway to the bar. If you run out of threads on the adjuster, you need a new cable.

The "Squealing or Grinding" Fix

Squealing means the pad surface has glazed from heat. Rough up the pad face gently with 150-grit sandpaper. Grinding means the pad material has worn down to the metal backing plate.

Stop riding immediately. Replace the pads before you damage the rotor.

The "Brake Won't Stop the Scooter" Fix

If the lever feels firm but the scooter barely slows, you likely have oil or grease on the rotor. Clean it with isopropyl alcohol and a clean rag. If that does not work, the pads are contaminated beyond saving and need replacement.

The "Motor Won't Cut Off When Braking" Fix

This is the most overlooked issue. If your scooter keeps accelerating when you squeeze the brake, the motor cutoff switch is not making contact. Check that the plunger inside the brake lever assembly gets pushed in when the lever is pulled about a quarter of the way.

If it does not, the switch is misaligned or broken.

How to Adjust the GoTrax G4 Brake Cable (No Tools Needed)

This skill saves you 90 percent of your brake headaches. The GoTrax G4 cable adjuster is built right into the caliper.

Finding the Barrel Adjuster

Look at the rear brake caliper. There is a knurled plastic or metal barrel where the cable housing enters the caliper arm. That is your adjuster.

Turning the Right Direction

Turn the barrel counterclockwise as you face the side of the scooter. Each full turn pulls about one millimeter of slack out of the cable. Turn one click.

Squeeze the brake lever. Repeat until the lever has about an inch of free play before resistance starts.

Testing for Proper Tension

Roll the scooter forward. Squeeze the brake firmly. The rear wheel should lock up completely before the lever reaches the grip.

If it locks too early, turn the adjuster clockwise one click to add a tiny bit of slack.

When to Replace Parts vs. When to Adjust

Adjusting the cable will not fix worn-out pads. You need to know the difference.

Brake Pads: When They Are Done

Look through the caliper at the pads pressing against the rotor. If the friction material is less than two millimeters thick, replace them. If you see metal touching the rotor, you have waited too long.

A set of GoTrax-compatible pads costs about $12 to $18.

The Rotor: Is It Warped?

Spin the rear wheel by hand. Watch the gap between the rotor and the caliper. If the gap widens and narrows as the rotor spins, it is warped.

A slightly warped rotor can be trued with an adjustable wrench. If there are blue burn marks or cracks, replace it.

The Cutoff Switch: The Overlooked Culprit

Even if your mechanical brakes work perfectly, a failed cutoff switch makes the scooter harder to stop. The motor fights your braking effort. Test it every time you ride.

If the motor does not cut out within the first quarter of the lever travel, adjust the switch position or replace it.

Common Mistakes That Make G4 Brake Problems Worse

Overtightening the Cable

More tension does not mean more stopping power. If you crank the barrel adjuster until the brake drags constantly, you create heat and wear out the pads faster. The rotor should spin freely when you are not squeezing the lever.

A slight rubbing sound is okay. Actual resistance means you have gone too far.

Ignoring the Motor Cutoff

This one is genuinely dangerous. If the motor keeps pushing while you are braking, you need significantly more lever force to stop. Test the cutoff every ride.

Roll forward. Squeeze the brake. Listen for the motor to click off.

If it does not, address it before you ride.

Using the Wrong Cleaning Products

Your rotor and pads need friction to work. Any lubricant, WD-40, or silicone spray on those surfaces ruins them. Clean the rotor with isopropyl alcohol and a clean rag.

Brake cleaner spray is fine. Avoid anything that says lubricates or protects.

Safety Checklist Before Every Ride

The Two-Second Brake Test

Give the brake lever a firm squeeze. It should feel firm, not spongy. Roll the scooter forward a few feet.

Squeeze the brake. Confirm the motor cuts out.

When to Stop Riding Immediately

If the brake lever pulls to the handlebar with no resistance, stop. If you hear metal-on-metal grinding, stop. If the motor keeps running when you brake, stop.

None of these are ride home carefully situations. They are call a ride or walk situations.

Real Scenarios: GoTrax G4 Brake Problems in Practice

The Commuter Who Lost Stopping Power

One rider noticed his brake lever creeping closer to the bar over ten days. By day twelve, it touched the grip before the wheel slowed. Two full turns on the barrel adjuster fixed it.

The cable had stretched during normal break-in. This happens on nearly every G4 within the first 200 miles.

The Rider Who Thought the Brakes Were Dead

Another owner reported that his G4 would not stop even with the lever squeezed hard. The pads looked fine. The rotor looked straight.

The cable felt tight. The motor cutoff switch had shifted slightly and was not engaging. The motor kept pushing full power while he braked.

Adjusting the switch position fixed everything.

The Night Rider With Squealing Brakes

A commuter developed a loud squeal after three weeks. The pads had glazed from heat and moisture. A light sanding with 150-grit paper and an alcohol wipe on the rotor killed the noise completely.

The pads lasted another 400 miles.

When to Call GoTrax Support vs. Fix It Yourself

Fix It Yourself If

The issue is cable slack, squealing pads, or a misaligned caliper. All of those are simple adjustments. You do not need special skills.

The barrel adjuster and a rag with alcohol handle most G4 brake problems.

Call Support If

The caliper itself is cracked or seized. The rotor has a sharp bend from a crash. The brake lever snapped or the cable frayed internally.

If the scooter is under 90 days old, GoTrax may replace parts under warranty.

Replace Parts If

The pads are below two millimeters. The rotor has blue burn marks or a crack. The cable has visible fraying at the lever end.

Parts are cheap. Labor takes ten minutes.

Frequently Asked Questions

Can I upgrade the GoTrax G4 to hydraulic brakes?

Technically yes, but it is not straightforward. The G4 frame does not have mounting points for a hydraulic caliper without modification. Most owners find that keeping the mechanical brake properly adjusted works well for the 20 mph top speed.

Why are my brakes squealing after riding in rain?

Water washes lubricants off the rotor and pad surface. This can cause temporary squealing until the pads dry out. If the squeal persists, the pads may have glazed.

Light sanding with 150-grit paper usually cures it.

How often should I replace GoTrax G4 brake pads?

Most riders get 300 to 500 miles from a set of pads. Aggressive braking, hills, and wet riding shorten that lifespan. Check pad thickness every time you clean the scooter.

At two millimeters of material left, order replacements.

Does GoTrax cover brake issues under warranty?

GoTrax warranty covers manufacturing defects for 90 days from purchase. Cable stretch and pad wear are normal wear items and are not covered. If the caliper or rotor is defective, file a claim through GoTrax support.

What tools do I need for brake maintenance on the G4?

Almost nothing. The barrel adjuster is tool-free. Pad replacement needs a 5mm Allen key.

Rotor truing requires an adjustable wrench. Most fixes take less than ten minutes.

Can a loose brake drain the battery faster?

Indirectly, yes. If the brake drags from overtightening, the motor works harder to overcome resistance. That pulls more current from the battery.

A properly adjusted brake has no noticeable effect on battery life.

Should I replace both brake pads at the same time?

Yes. Brake pads wear evenly on both sides. Replacing only one pad creates uneven pressure.

The fresh pad does most of the work while the old one barely touches. Replace them as a pair.

How do I know if my GoTrax G4 rotor is bent?

Spin the rear wheel and watch the rotor pass through the caliper gap. A straight rotor stays centered. A bent rotor wobbles side to side.

A slight wobble can be straightened. A sharp bend or blue discoloration means replacement.

Verdict

The GoTrax G4 brake problem is almost never a design flaw. It is cable stretch, pad contamination, or a misadjusted sensor. All three are easy to fix once you know what to look for.

The barrel adjuster handles cable tension in seconds. A $15 set of pads and a $10 cutoff switch cover almost every other scenario.

Spend fifteen seconds before every ride testing the lever feel and the motor cutoff. That simple habit catches issues before they become emergencies. The G4 is a solid scooter with a simple brake system.

Keep it adjusted. Keep it clean. It will stop you every single time.
