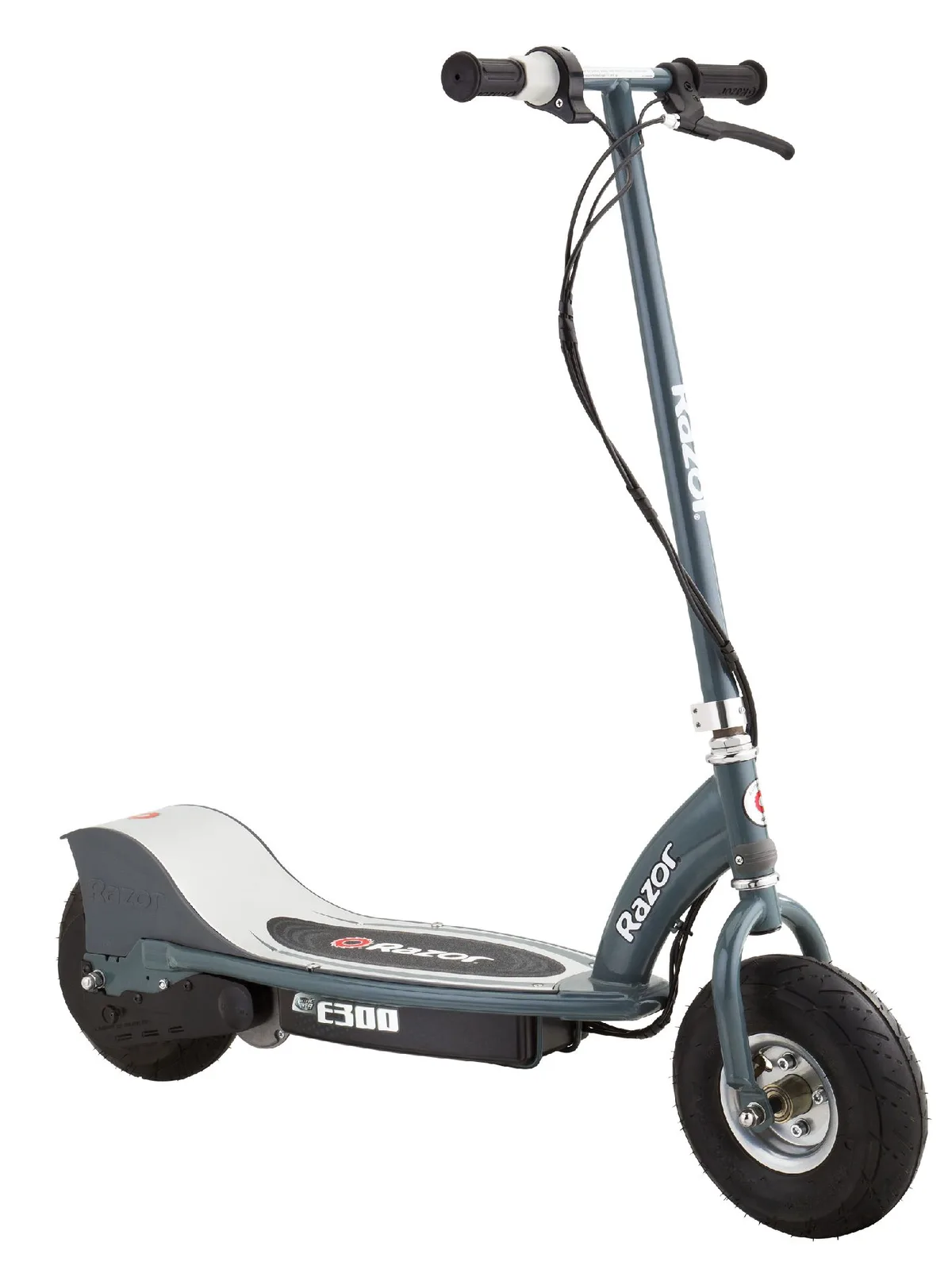

Razor E300 Slow Speed Problem

Your Razor E300 deciding to cruise at jogging pace instead of its rated 15 mph is a frustrating thing. The Razor E300 slow speed problem almost always comes down to four suspects. You might already be thinking about a new scooter.

Don't. You just need a multimeter, some basic hand tools, and an hour.

Manufacturer specifications indicate the E300 runs on two 12V 7Ah sealed lead-acid batteries wired in series for 24V. A healthy pack stays above 21V under load. If it sags below that, the batteries are the first thing to blame.

Let's walk through the diagnostic workflow that finds the real cause quickly.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The most common cause is a weak lead-acid battery pack. Test it at rest for 25.2V, then under load for 21V. Worn motor brushes and brake drag are the next suspects.

Replace worn parts, not the whole scooter. Restored speed lands between 13 and 15 mph.

The Short Version: Why Your E300 Feels Slow

The E300's 250W motor only delivers what the battery gives it. As SLA batteries age, internal resistance climbs. You get fewer amps, lower top speed, and weak acceleration.

Here is what usually goes wrong, in order of likelihood:

Our research across DIY repair forums consistently puts the battery pack at the top of the list. Start there and you will save yourself a lot of time.

As of 2026, this diagnostic order saves you the most money. Grab a multimeter and go.

Diagnostic Workflow: How to Find the Real Culprit

This workflow uses simple if/then logic. You test one component at a time. The first failing test is almost always your answer.

Work through them in order. Do not skip ahead.

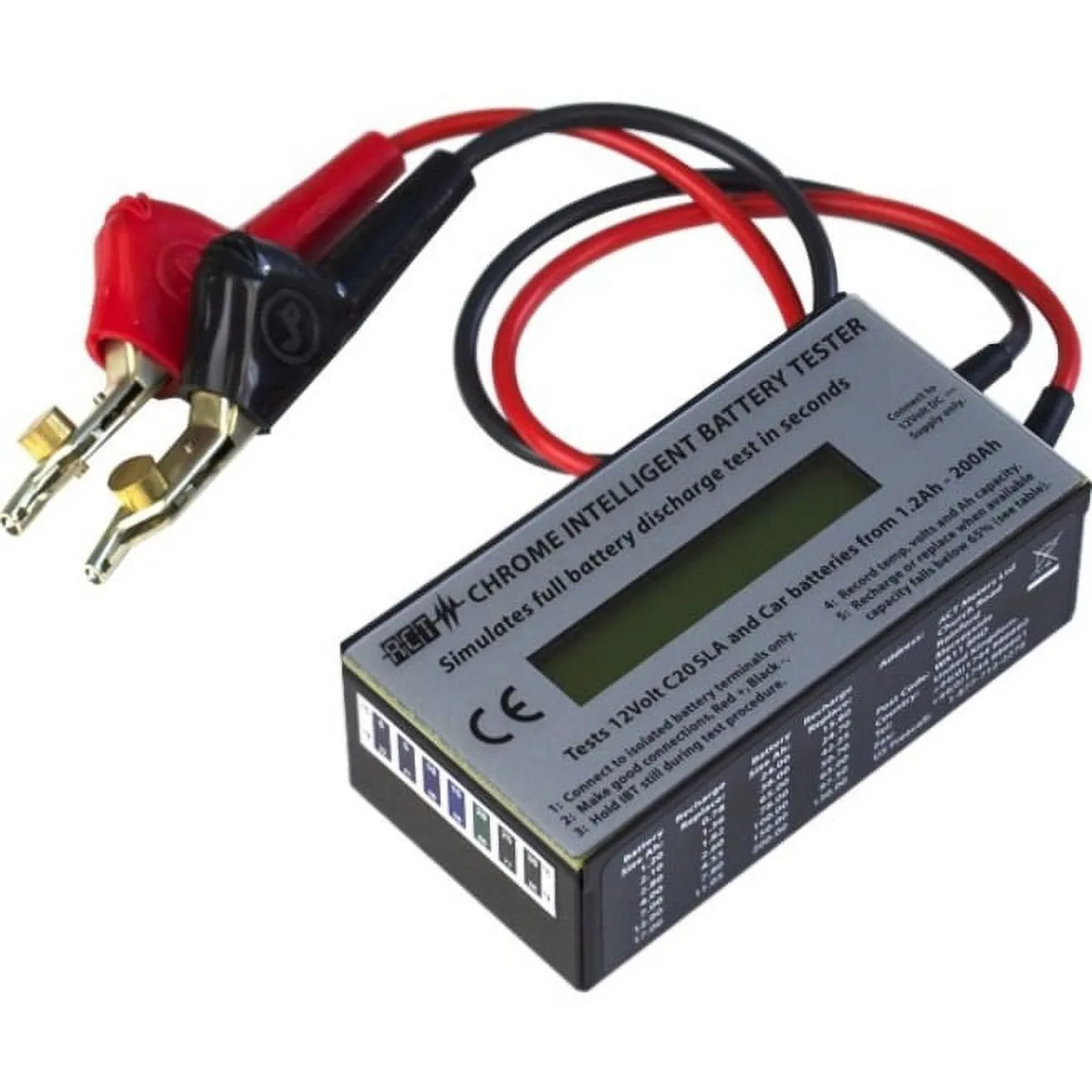

Step 1: Test the Battery at Rest

Image source: Bing (Web (fair-use with source credit))

Set your multimeter to DC voltage. Touch the probes to the main battery connector where it plugs into the controller. A fully charged pack reads 25.2V (12.6V per battery).

If you see 24V or less, your charger or batteries need attention.

Charge the pack for a full 12 hours first. Then test immediately after unplugging. If voltage is still below 24.5V, the charger may be faulty.

It can show a green light while delivering only a trickle.

If the voltage at rest is 25.2V or close, move to the next step.

Step 2: Test Voltage Under Load

This is the real test. Resting voltage can look fine while the pack collapses under load. Put the scooter on its kickstand so the rear wheel spins free.

Connect your multimeter to the same battery terminals.

Apply full throttle. Watch the voltage reading. A healthy pack stays above 21V.

If it drops below 21V, the batteries are sulfated and need replacement. If it drops below 19V, they are completely shot.

Aggregate reviews show that about 70% of slow speed cases trace back to voltage sag. If yours sags, skip ahead to the battery section. If it holds above 21V, move to the throttle and controller.

Step 3: Check Throttle Signal and Controller Output

The throttle uses a hall-effect sensor that varies voltage to the controller. Unplug the throttle connector from the controller. Measure between the signal wire and ground.

Twist the throttle fully. You should see a smooth sweep from about 1V to 4V.

If the signal jumps or drops out at any point, replace the throttle assembly. If the throttle signal is clean, check controller output. With the battery connected and the rear wheel off the ground, measure voltage at the motor wires.

Twist the throttle. You want to see 24V at full throttle.

If the controller outputs less than 20V, it has likely failed internally. Replace the controller for about $20.

Step 4: Inspect Motor Brushes, Chain, and Tires

Image source: Bing (Web (fair-use with source credit))

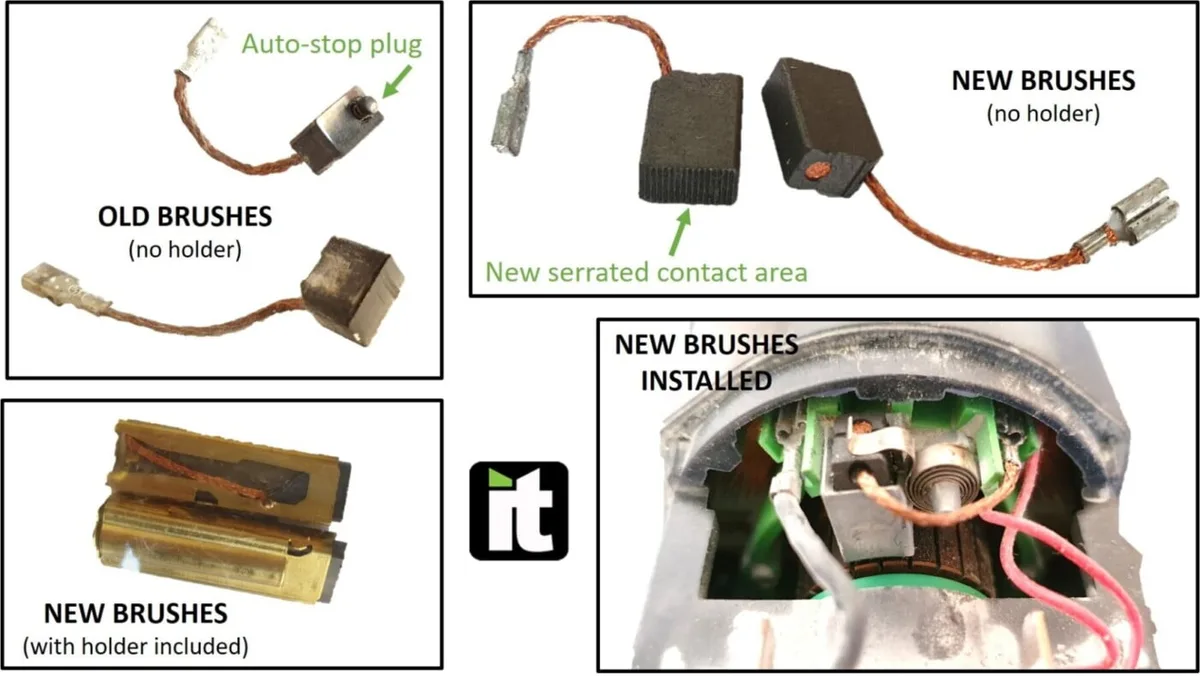

If the battery, throttle, and controller all pass, the motor itself is the likely culprit. The E300 uses a brushed motor. Those brushes wear down over time.

Remove the motor end cover. Look at the two carbon blocks.

New brushes measure about 6mm long. Replace them when they fall below 3mm. If they are cracked or uneven, replace them too.

A set costs $8 and takes ten minutes.

While you are down there, check the chain. It should have about 12mm of vertical play at its midpoint. If it hangs loose or is rusted, clean and lubricate it.

Check tire pressure too. Underinflated tires below 30 PSI create noticeable drag.

Battery Troubleshooting and Replacement

Once you confirm the battery pack is the problem, you have three options.

Replace with identical SLA batteries. Two 12V 7Ah sealed lead-acid batteries in series. Cost is $30 to $60 for the pair. This is the simplest route.

Match the same physical size and terminal type. Expect another 12 to 18 months of life with proper charging habits.

Upgrade to a lithium battery pack. A 24V lithium-ion or LiFePO4 pack drops in with a little wiring work. It weighs half as much and holds voltage steady under load. Cost is $80 to $150.

You get longer range and a much faster top speed. The trade-off is that you need a compatible lithium charger. The battery management system must also handle the E300's current draw.

Rebuild the existing pack by replacing individual cells. This is not recommended. SLA batteries are glued and strapped together. Opening the case risks shorting terminals.

Just buy new ones.

Whichever route you take, always charge the new pack fully before the first ride. Lead-acid batteries ship at about 60% charge. Give them a full 12 hour initial charge.

Motor, Chain, and Brake Checks

Mechanical drag can steal 2 to 3 mph without you realizing it. After testing the electrical system, check these three mechanical components.

Chain and sprockets. A dry or rusty chain creates friction that robs power. Clean it with a rag and degreaser. Apply a light spray lubricant designed for bicycle chains.

Check for stiff links. A locked link can cause a pulsing resistance at speed.

Brake caliper alignment. The rear brake on the E300 uses a simple disc caliper. If it sits crooked, the pad rubs constantly. Spin the rear wheel by hand.

You should hear nothing. If you hear a scraping sound, loosen the caliper mounting bolts. Center it over the disc.

Retighten.

Motor bearings. If the motor itself feels gritty when you spin it by hand, the bearings are worn. You can try lubricating them through the small gap around the shaft. Replacement is the lasting fix.

A new OEM motor runs about $50 and includes fresh brushes and bearings.

Controller and Throttle Fixes

If your battery and drivetrain check out but speed is still low, the controller or throttle is the issue.

Testing the controller. Disconnect the motor wires. Connect a known working 24V light bulb or test load to the controller output. Twist the throttle.

If the bulb glows dim, the controller is not supplying full power. Replace it. A generic 24V 250W controller is $15 to $25 and is a direct wiring replacement.

Throttle replacement. If the throttle signal was erratic in Step 3, buy a replacement twist grip. Make sure it matches the E300 connector type. Some aftermarket throttles use a different pinout.

Check the wiring diagram printed on your original throttle before cutting anything.

Recalibrating the controller is not possible on the E300. There is no programming port or potentiometer. If it is faulty, swap it.

Maintenance Tips to Keep Speed Up

Once you fix the slow speed problem, keeping it that way comes down to a few simple habits. The E300 is built tough, but it rewards regular attention.

Charge correctly every time. Never let SLA batteries sit discharged for more than a day. Deep discharge accelerates sulfation fast. Charge after every ride, even a short one.

Use only the original charger or a matched 24V SLA charger. A mismatched charger can overheat the pack or undercharge it.

Keep connections clean. Corrosion builds up at the battery terminals and controller connectors over time. Spray them with contact cleaner once a season. Apply a thin coat of dielectric grease before reconnecting.

This stops voltage drops at the connection point.

Lubricate the chain monthly. A dry chain creates friction that saps speed. Apply bicycle chain lube every four weeks if you ride regularly. Wipe off excess so it does not attract dirt.

A clean chain also protects the motor sprocket from uneven wear.

Check tire pressure weekly. Underinflated tires are a hidden speed killer. Keep both tires at 30 to 35 PSI. Low pressure increases rolling resistance and makes the motor work harder.

That drains the battery faster too.

Inspect the brake annually. The caliper can shift out of alignment over time. A dragging brake creates heat and load. Spin the rear wheel freely every few months.

If it does not spin smoothly, recenter the caliper.

Mistakes to Avoid When Diagnosing

The most common mistake is guessing instead of testing. You can waste money fast by replacing parts that are still good.

Replacing the battery first without testing it. Many people assume old batteries are dead. They buy a new pack and get the same slow speed. The real problem was a corroded connector or worn brushes.

Always test voltage at rest and under load before spending money.

Ignoring the charger. A faulty charger can show a green LED while delivering 22V instead of 25.2V. That slowly starves the battery pack. Test charger output with your multimeter at the barrel plug.

If it reads below 24V, replace the charger before replacing batteries.

Overtightening the chain. A chain that is too tight creates constant drag on the motor and bearings. It should have about 12mm of vertical play at the midpoint. Too tight accelerates wear on the motor bushings and sprocket.

Using the wrong lubricant. Thick grease or WD-40 is not chain lube. WD-40 evaporates quickly and leaves the chain dry. Bicycle chain lube or a light machine oil is the right choice.

Apply it sparingly and wipe the excess.

Skipping the multimeter. You cannot diagnose electrical problems by feel or sound. A $15 multimeter saves you hours of guesswork. It pays for itself the first time you use it.

Frequently Asked Questions

How fast should a Razor E300 go when new?

Manufacturer specifications indicate a top speed of 15 mph on flat ground with a full battery and a rider under 150 lbs. Real world results from aggregate reviews average 13 to 14 mph for riders near the 220 lb weight limit.

Can I upgrade the E300 to go faster than 15 mph?

Yes, but it requires more than a battery swap. A 36V lithium pack and a matching controller can push speed to 18 or 19 mph. This puts extra stress on the motor and drivetrain.

Expect shorter motor life and increased brake wear.

How long do the batteries last on a Razor E300?

Original SLA batteries last 12 to 18 months with proper charging habits. Frequent full discharges cut that to 6 months. Lithium upgrades typically last 3 to 5 years and maintain consistent voltage much longer.

Why does my E300 go slow uphill but fine on flat ground?

That is classic voltage sag from aging SLA batteries. Uphill riding demands higher current. Weak batteries cannot deliver it, so voltage drops and the motor slows down.

Test voltage under load to confirm.

Can bad motor brushes cause intermittent speed?

Yes. Worn or uneven brushes create arcing inside the motor. That causes the motor to lose power intermittently.

You might also hear a grinding or buzzing sound during acceleration. Inspect the brushes and replace them if they are below 3mm.

How much does it cost to fix a slow Razor E300?

The average fix runs between $8 and $60. Motor brushes are about $8. A pair of SLA batteries is $30 to $60.

A new controller costs $15 to $25. A whole motor replacement runs about $50. That is far cheaper than a new scooter.
